EPS Wall Panel Making Machine Line
Basic Info
| Model No. | YY--EPS--001 |
|---|---|
| Brand Name | YY |
| Applicable industry | Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Other |
| Out-of-warranty service | Video Technical Support, Online Support |
| Where to provide local services (in which countries are there overseas service outlets) | None |
| Showroom location (in which countries are there sample rooms overseas) | None |
| Old and new | New |
Product description
EPS Wall Panel Making Machine Line
The eps/rock wool sandwich panel production line can produce roof sandwich panel and wall sandwich panel. The raw material is 1000 and 1200mm width, thickness between 50-200mm.
The whole production line include the roof and wall panel roll forming machine, glue process, sandwich panel process, cutting.
Technical parameters:
|
Panel width |
950, 970,1150mm |
|
Panel thickness |
50-200mm |
|
Raw material |
Galvanized coils, Pre-painted coils, Aluminum coils |
|
Material thickness range |
0.3-0.7mm |
|
width |
1000mm, 1250mm |
|
yield strength |
235Mpa |
|
Max coil weight |
5000kgs |
|
working speed |
0-5m/min (adjustable) |
|
Total length |
about 35m |
|
Control mode |
PLC |
|
Total power |
about 30kw |
|
Electricty condition |
380v/3phase/50hz (or depend on custmers requirement) |
Working process:

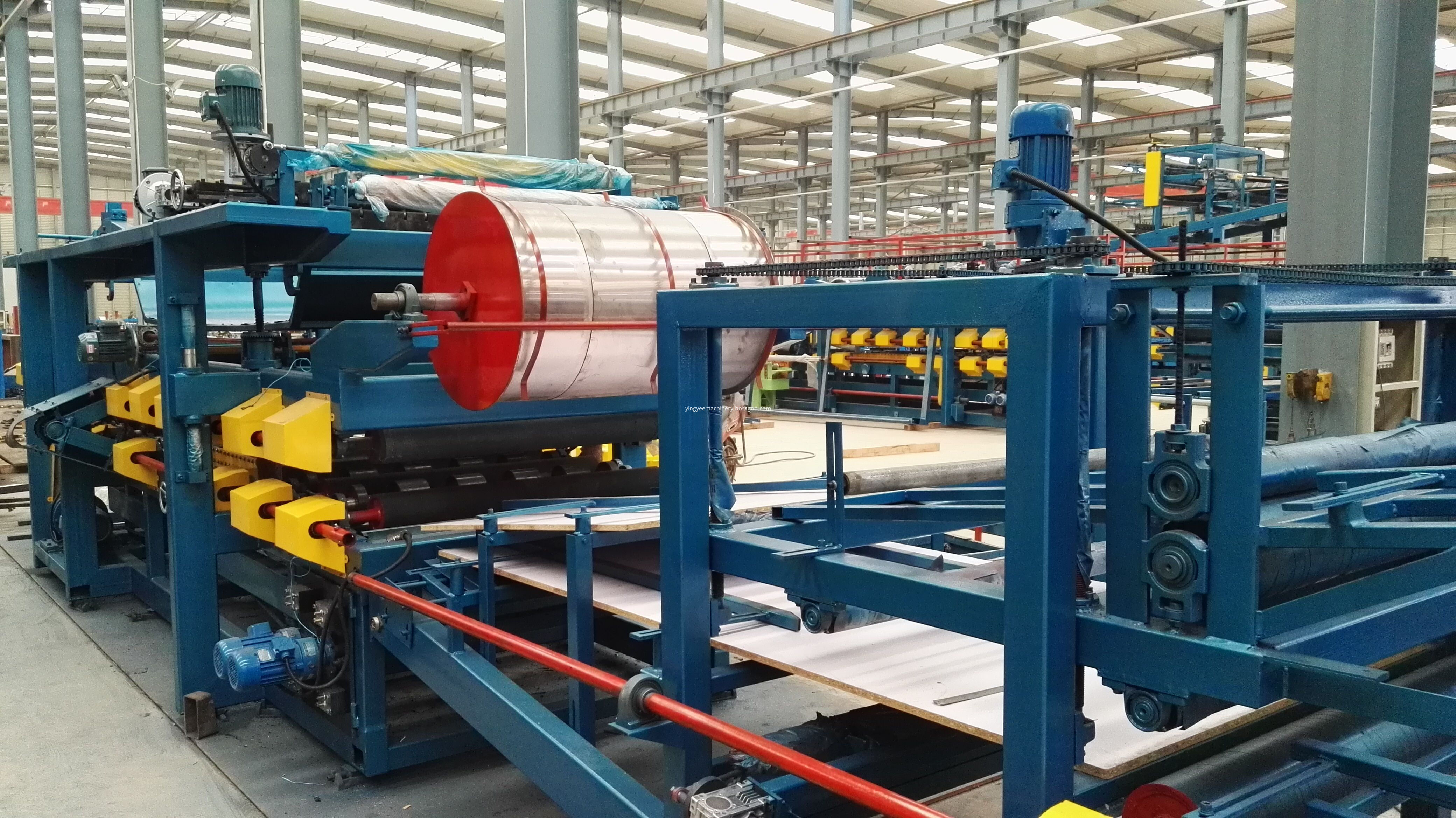

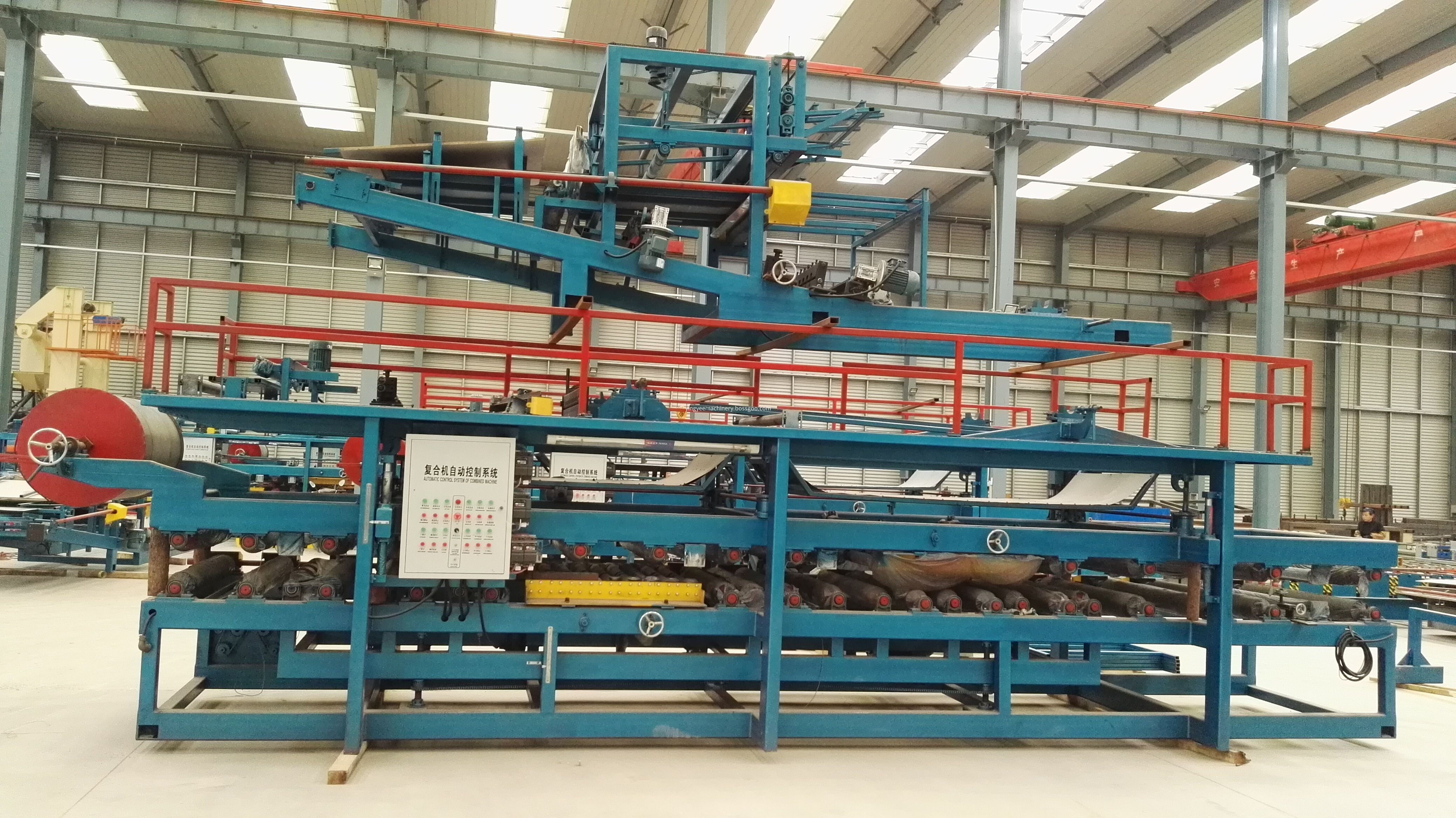

Pictures of machine:
Company information:
YINGYEE MACHINERY AND TECHNOLOGY SERVICE CO.,LTD
YINGYEE is the manufacturer specialized in various cold forming machineries and automatic production lines. We have a wonderful team with highly technology and excellent sales, which offer professional products and related service. We paid attention to quantity and after service, got great feedback and honor formal the clients. We have a great team for after service. We have sent several patch after service team to oversea to finish the products installation and adjustment.
Our products were sold to more than 20 countries already. Also included US and Germany.
Main product :
- Roof roll forming machine
- Roller shutter door roll forming machine
- C and Z purlin roll forming machine
- Downpipe roll forming machine
- Light keel roll forming machine
- Shearing machine
- Hydraulic decoiler
- Bending machine
- Slitting machine
FAQ:
Training and Installation :
1 We offer installation service local in paid, reasonable charge.
2 QT test is welcome and professional.
3. manual and using guide is optional if no visiting and no installation.
Certification and after service:
1. Match the technology standard, ISO producing certification
2. CE certification
3. 12 months warranty since the delivery. Board.
Our advantage:
1. Short delivery period.
2. Effective communication
3. Interface customized.
