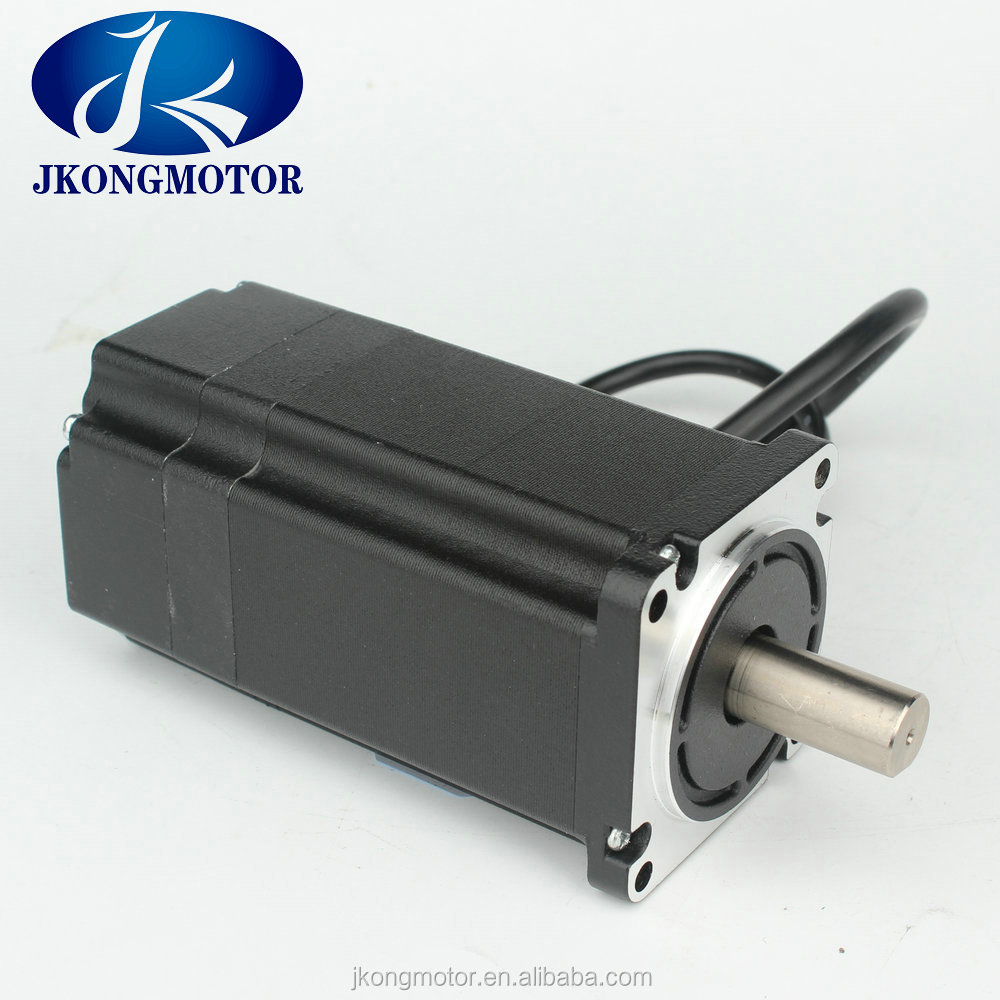

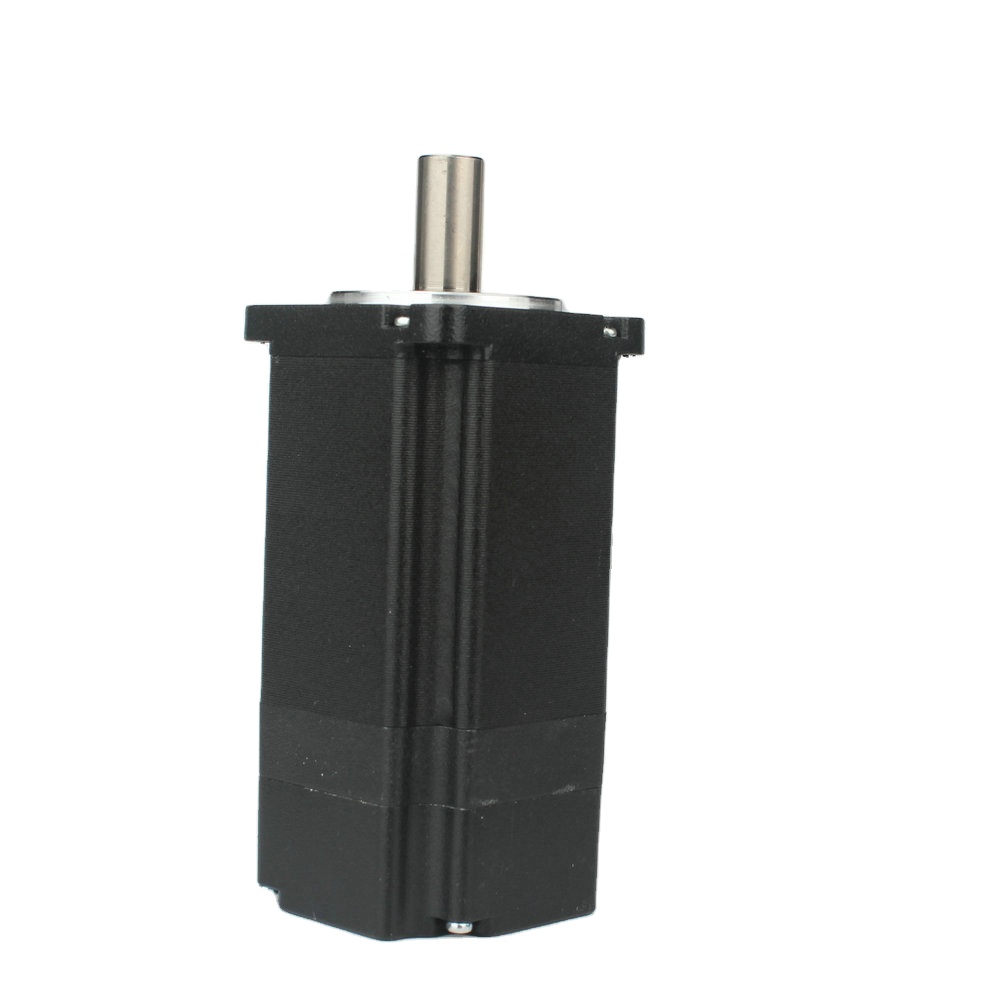

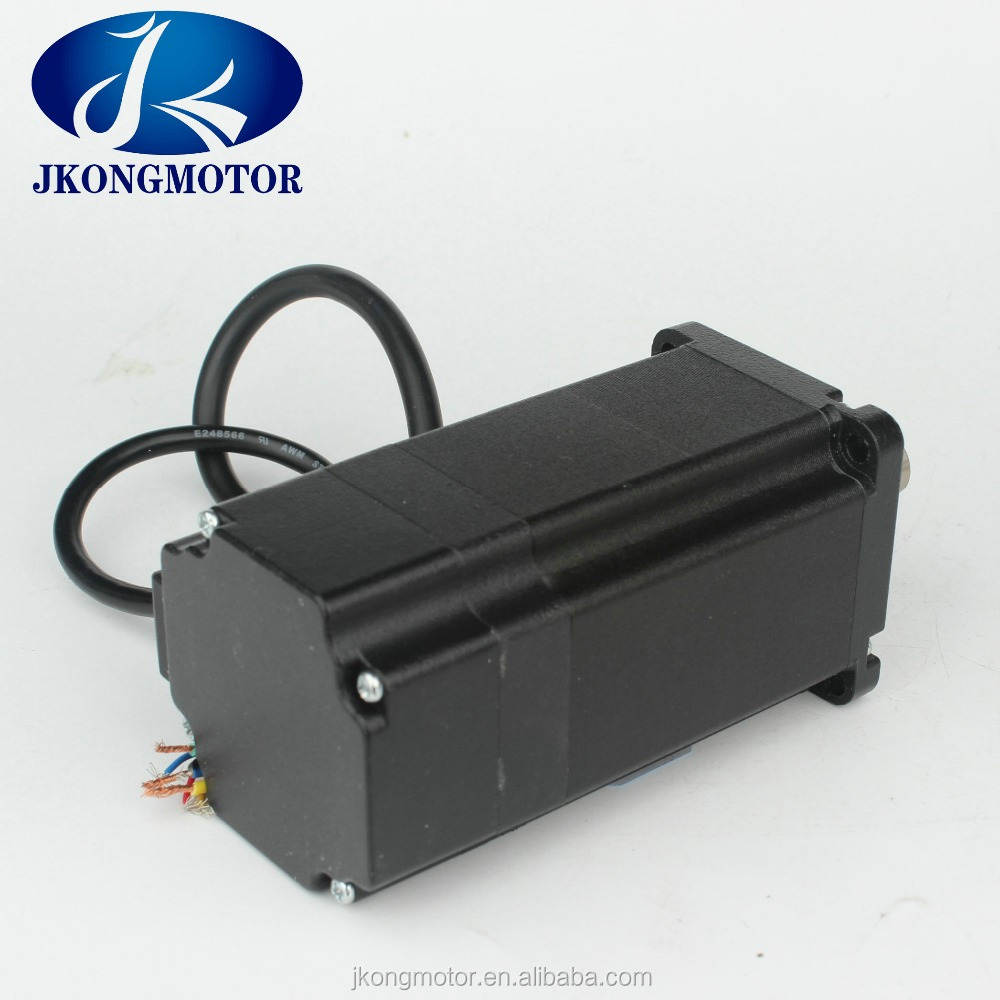

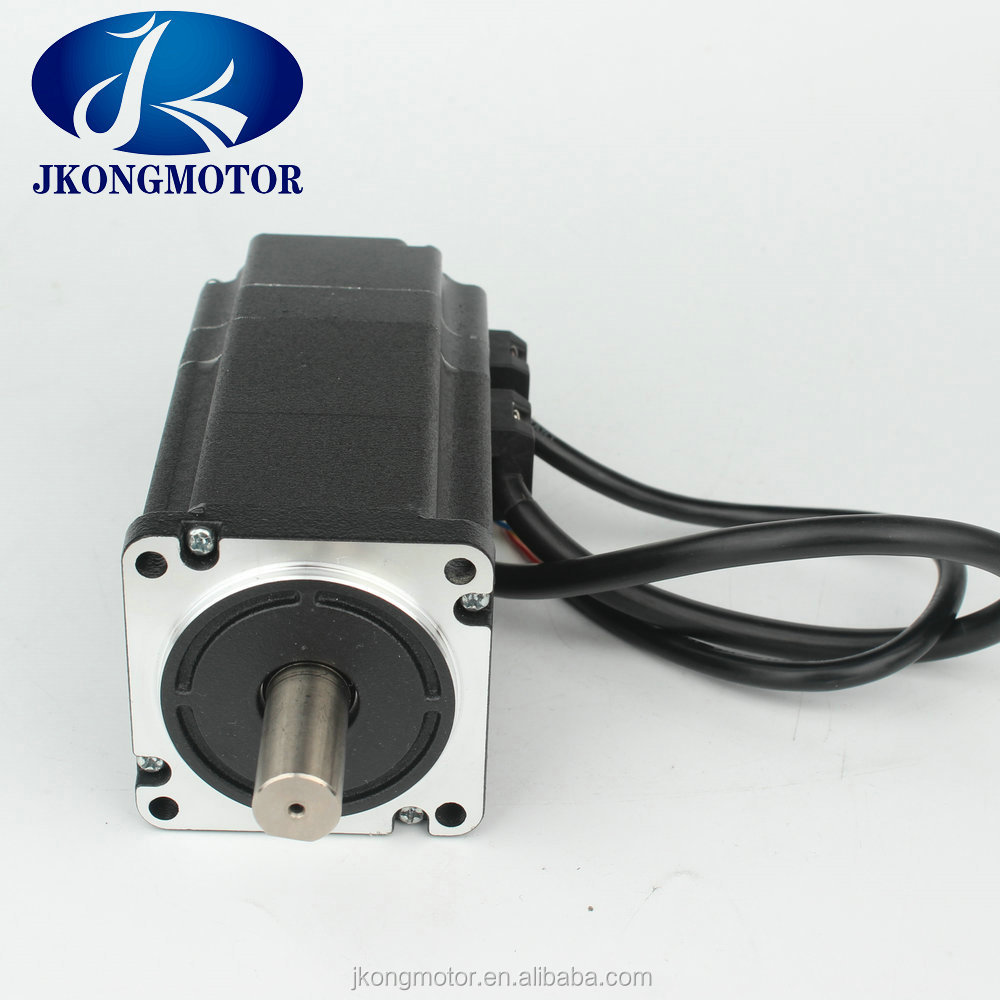

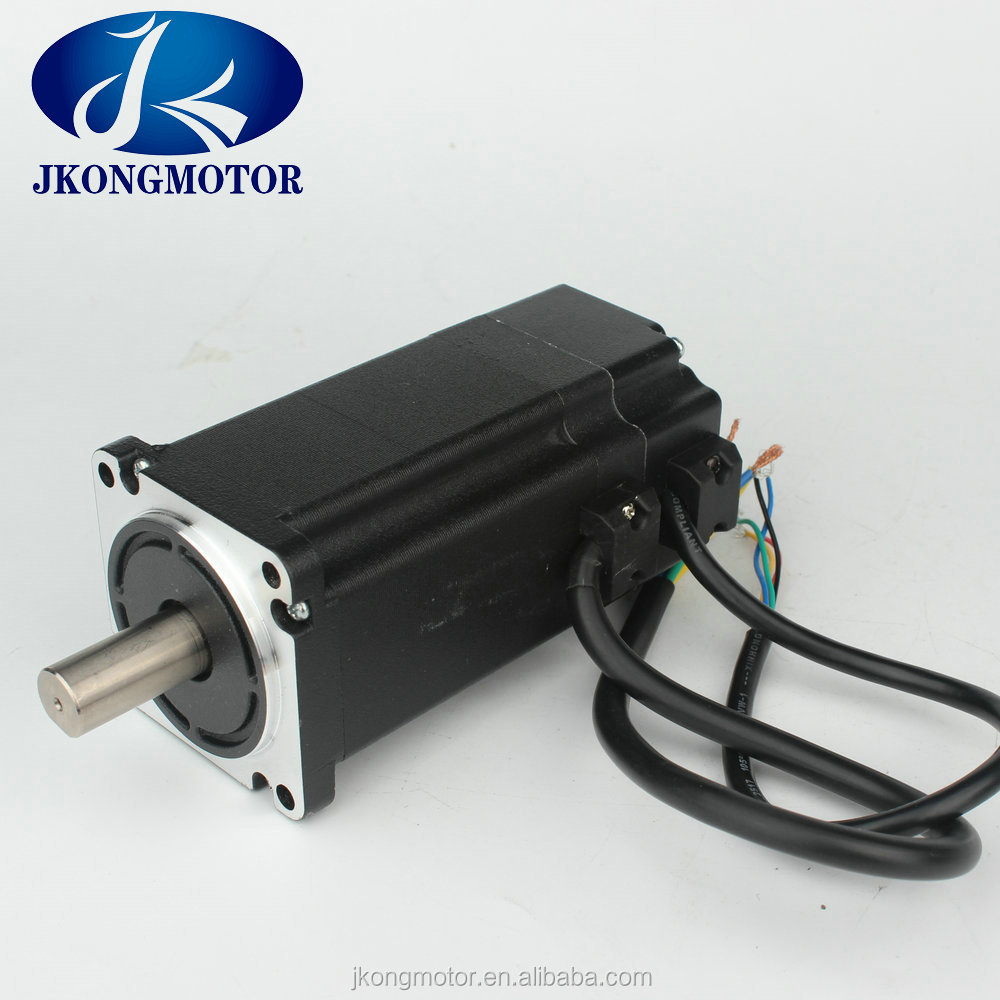

Factory Price 60mm NEMA24 48V 94W 3-Phase BLDC Motor for CNC Machines
$27.14
≥10 unit
$23.27
≥300 unit
$19.16
≥1000 unit
Holding torque:
- 0.3N.M
Options:
- 1.8 Degree
Basic Info
| Warranty | 1year |
|---|---|
| Place Of Origin | Jiangsu, China |
| Brand Name | Jkongmotor |
| Model Number | JK60BLS01 |
| Phase | 3 |
Product description
 |
 |
 |
 |
 |
|
60mm(NEMA24) 48V 94W 3 phase bldc motor with factory price for cnc machine
Genaral Specification:
| Item | Specification |
| Winding?type | Star |
| Hall?effect?angle | 120?degree?electrical?angle |
| Shaft?run?out | 0.025mm |
| Radial?play | 0.02mm@450g |
| End?play | 0.08mm@450g |
| Max.radial?force | 115N?@20mm?form?the?flange |
| Max.axial?force | 45N |
| Insulation?class | Class?B |
| Dielectric?strength | 500VDC?for?one?minute |
| Insulation?resistance | 100MΩ?Min.,500VDC |
?Electrical Specification:
| ? | ? | Model | |||
| Specification | Unit | JK60BLS01 | JK60BLS02 | JK60BLS03 | JK60BLS04 |
| Number?Of?Phase | Phase | 3 | |||
| Number?Of?Poles | Poles | 8 | |||
| Rated?Voltage | VDC | 48 | |||
| Rated?Speed | Rpm | 3000 | |||
| Rated?Torque | N.m | 0.3 | 0.6 | 0.9 | 1.2 |
| Rated?Current | Amps | 2.8 | 5.2 | 7.5 | 9.5 |
| Rated?Power | W | 94 | 188 | 283 | 377 |
| Peak?Torque | N.m | 0.9 | 1.8 | 2.7 | 3.6 |
| Peak?Current | Amps | 8.4 | 15.6 | 22.5 | 28.5 |
| Back?E.M.F | V/Krpm | 12.1 | 12.6 | 12.4 | 13.3 |
| Torque?Constant | N.m/A | 0.116 | 0.12 | 0.118 | 0.127 |
| Rotor?Inertia | Kg.cm^2 | 0.24 | 0.48 | 0.72 | 0.96 |
| Body?Length | mm | 78 | 99 | 120 | 141 |
| Weight | Kg | 0.85 | 1.25 | 1.65 | 2.05 |
| Sensor | Honeywell | ||||
| Insulation?Class | B | ||||
| Degree?of?Protection | IP30 | ||||
| Storage?Temperature | -25~+70℃ | ||||
| Operating?Temperature | -15~+50℃ | ||||
| Working?Humidity | 85%?or?under?85%?RH(non?condensing) | ||||
| Working?Environment | outdoor(no?direct?sunlight),Non-corrosive?Gas, Non-inflammable?gas,?No?oil?fog,?No?dust |
||||
| Altitude | 1000m?or?under?1000m | ||||
? Products of special request can be made according to the customer request !
?
Q1: What about your warranty?
A: We guarantee is one year . for sea order . ?is 15months.
?
Q2: Do you have any certificates?
A: Yes, we have. All the motors have been approved by CE and Rohs.
?
Q3: Do you offer OEM AND ODM service?
A: Yes. We can ?supply OEM andmake customized design for any specific application.
?
Q4: How can be your brand distributor?
A: We will check your capacity and help you promote and expand the market.
?
Q5: What's the delivery time ??
A: Except special order. For samples usually ?10-14 working days . for batch order . usually 20-25days. ?
?
