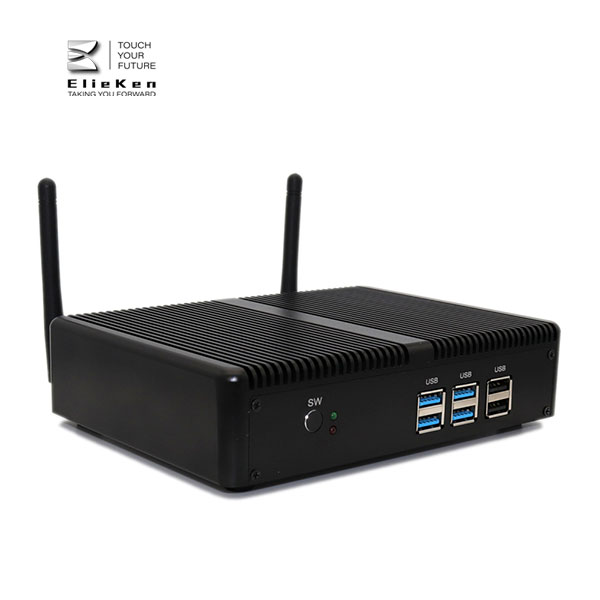

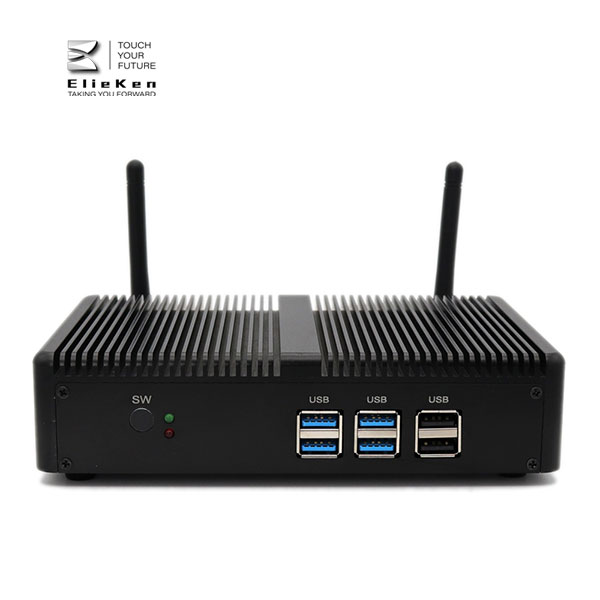

Fanless NUC Intel 16GB Mini PC

Name: Introducing the self-driving bicycle in the Netherlands
Uploaded: 2022-12-20T10:07:05.000Z
Duration: 25
Description: M3 Gamming mini PC

Get Latest Price

Fanless NUC intel 16GB Mini PC

Intel mini PC, we need to choose the mini cpu of the WIN system. This Intel NUC8I5BEHS mini host is recommended here. Mini nuc is equipped with i5+8G memory+256G solid state drive, and the built-in WIN10 system can be installed.

What can this intel mini pc NUC Fanless Mini PC?

Office work: Office, skype, yahoo, outlook and all other office requirement support and runs perfect;

Design work: Photoshop, CoreIDRAW, Dreamweaver, IIIustrator, Flash, Indesign and others

Game playing: support most online games and PC games, like Warcraft, Counter-Strike (CS), support 3D games but this is integrated graphic not independent cards, so don't play very high grade 3D games.

Entertainment: support blu ray 1080P and 4k video play, XBMC and others

Basic Information:
CPU	Onboard Intel Pentium Gold 4415U
TDP	15W
Motherboard Size	120 x 120mm customized size
BOIS	AMI BIOS, ACPI supported
Chipset	Intel Xeon E3 - 1200 v6/7th Gen Intel Core/DRAM Registers - 5904 - 7th Generation Intel Processor Fami
Memory	1 x SO-DIMM DDR4 Slot Support 4GB/8GB/16GB DDR4-2133, LPDDR3-1866, DDR3L-1600
OS	Windows 7/Windows 8/Windows 10/Linux
PXE	YES
Audio	Intel High Definition Audio Controller
Network	Onboard Realtek RTL8168/8111/8112 Gigabit Ethernet Controller
Video	Intel? HD Graphics 610

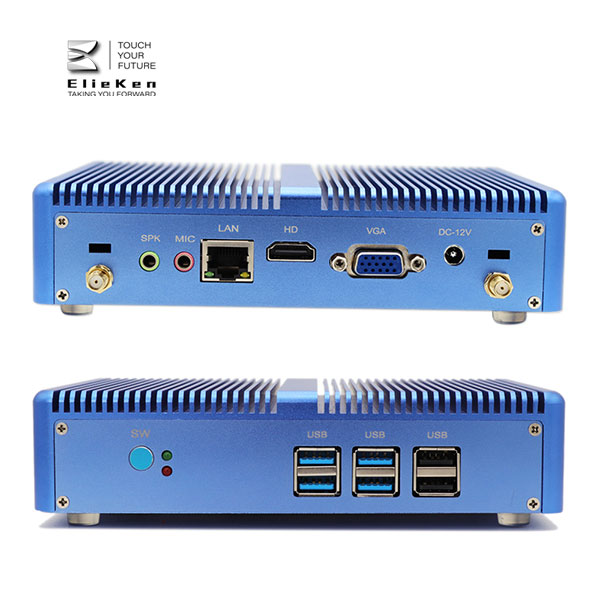

Input/output port
Switch	1 x Power On/Off Switch
Power	1 x 12V DC In
LED	2 x LED
USB	2 x USB2.0, 4 x USB3.0
Display	1 x VGA, 1 x HDMI
LAN	1 x RJ45 Giga LAN
Audio	1 x MIC, 1 x SPK
Others	2 x Kensington Lock holes
Storage
MSATA	1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s
SATA	1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s
Wi-Fi
Module	1 x mini PCIE-half port for Wi-Fi module
Antenna	2 x inner RF cables and 2 x external antennas
Power and Working Environment
Input	DC100-240V AC/50-60Hz
Output	DC +12V~+19V, recommend 12V/5A
Operating Temperature	0/+70 Centigrade
Storage Temperature	-20/+85 Centigrade
Relative Humidity	0%~90% (non-condensing)
Product Dimension & Details
Size	17312739mm
Weight	Net 0.8kg, Gross 1.2kg
Shell	Black/Sliver/Blue color aluminum alloy(any customized color for bulk order)
Cooling Mode	Fanless
Functions	AWAL, WOL, RTC, Kensington Lock
Package Content
Standard	1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag, 1xBracket
Optional	Wi-Fi antennas, 1xHDMI cable, 1xUser Manual, 1xVESA mount

Product Highlight

- Support HDMI and VGA dual display output synchronously.

- Full Aluminum Alloy Silver/Black/Blue color shell, Exquisite production craft on outside design with high quality and stable performance, slim dimension 173*127*39MM.

- Fanless system without cooling fan, no any noise, work as long as 24 hours.

- Low consumption TDP only 15W, save much energy and eco-friendly.

- Can stand vertically or can be mounted back of monitor by a metal bracket coming with the computer as default accessories.

- Two Kensington Lock holes keep the computer more safe in school, office, hotel, etc.

Model: M3-4415U

CPU: Onboard Intel Kaby Lake 14nm CPU Intel Pentium Gold 4415U 2.3GHz Dual Cores Four Threads 2MB cache TDP 15W Intel? HD Graphics 610.
