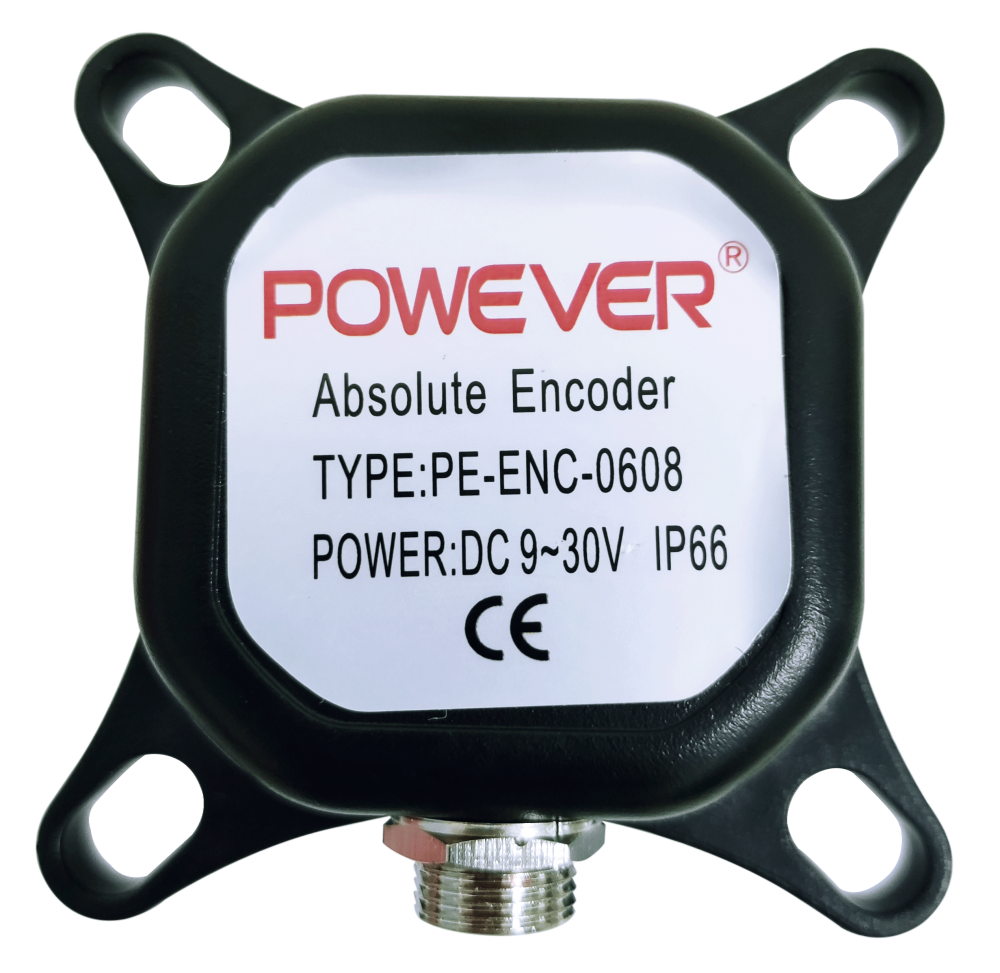

The high-speed door limit switch encoder is a crucial accessory designed for automatic door systems. It operates on a voltage range of DC5V to 24V, with an output voltage specification that ensures high voltage remains above 85% of Vcc and low voltage does not exceed 0.5V. With a remarkable maximum mechanical speed of 6000 rpm and anti-vibration capability at 50 m/s across a frequency range of 10-200 Hz—two cycles in each XYZ direction—this encoder provides exceptional performance.

Current consumption is optimized at ≤30 mA, and it boasts a response frequency of 0-100 kHz, making it highly responsive. Designed for tough environments, the encoder features IP54 protection, ensuring it remains waterproof, oil-proof, and dust-resistant. The output is encoded in binary code, enhancing its reliability.

With an expected operating life (MTBF) of over 30,000 hours at 25°C and 2000 rpm, this encoder also has a low rotational inertia of 4.0 x 10^-8 kgm². It can handle a maximum radial load of 20 N and an axial load of 10 N, all while weighing approximately 0.4 kg, making it an efficient and durable choice for high-speed door applications.
