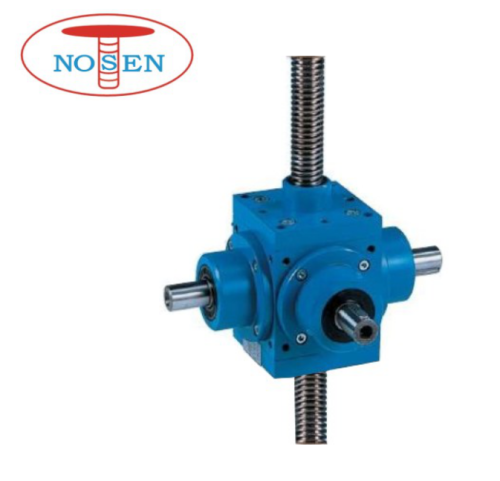

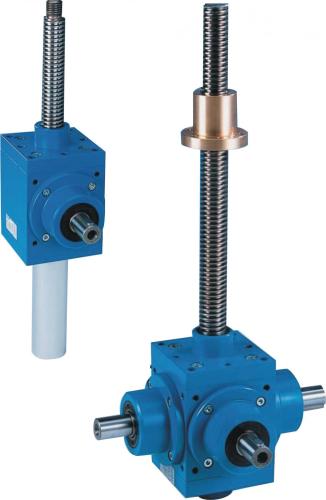

Fast Speed Right Angle Power Input Bevel Gear Screw Jack
Basic Info
| Model No. | RNS |
|---|---|
| Brand Name | NOSEN |
| Application | Industry |
| Material | Cast Iron |
| Hardness | Hardened |
| Manipulate Way | Robotics |
| Manufacturing Method | Cast Gear |
Product description
NOSEN Fast Speed Right Angle Power Input Bevel Gear Screw Jack. 5 Tons Fast Speed Screw Jack With Big Load ,load capacity is 1ton,2tons,3 tons,5tons,9tons, Max is 90KN. cube design for easy installation ,and faster speed than normal screw jack lift ,up to 7000mm/min. bevel gear jack is with a safety self-locking screw,no special brake is required to prevent the jack from sliding down under load,
Features:

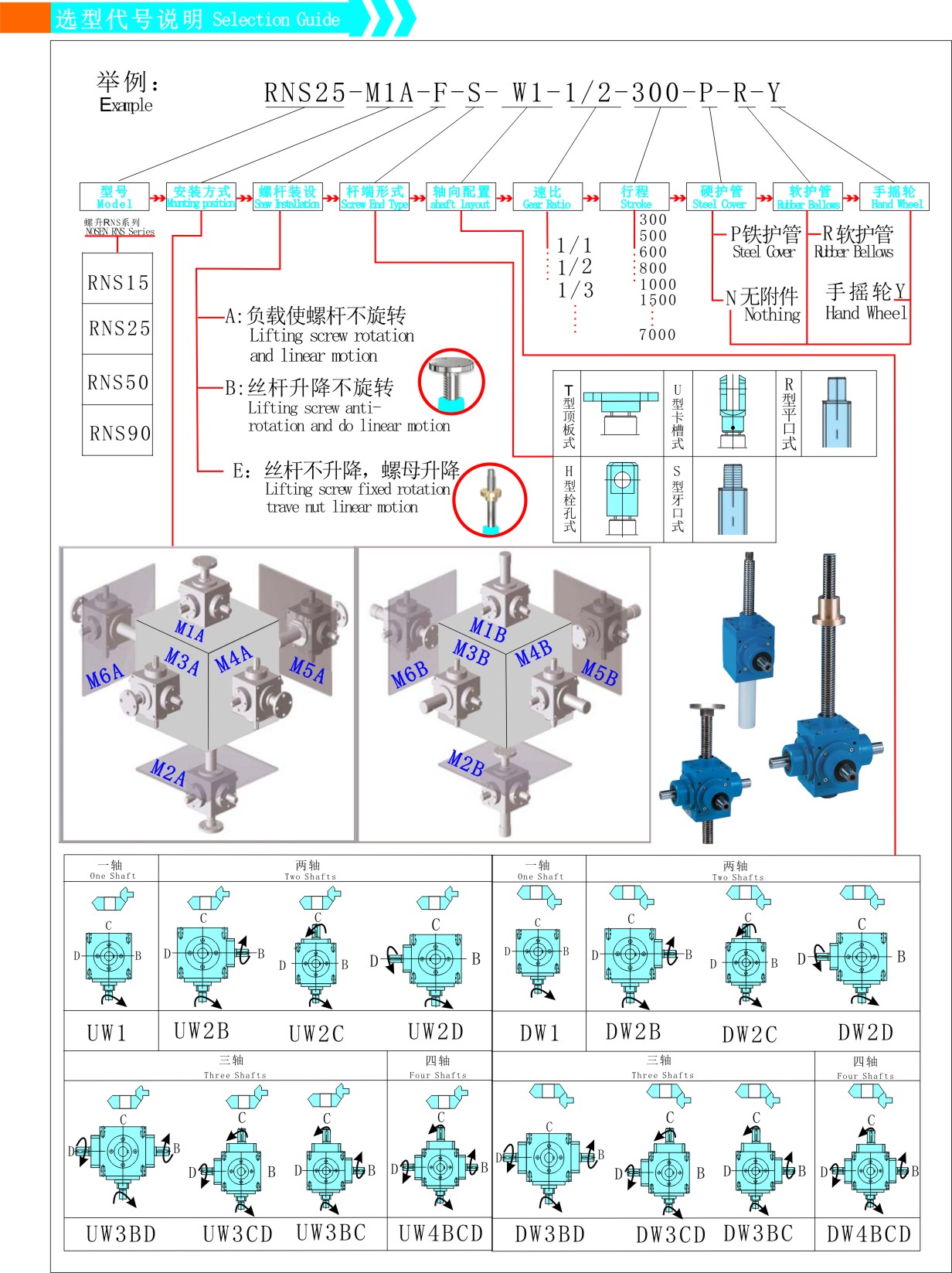

*Models: RNS-15,RNS-25,RNS-50,RNS-90.
* Load Capacities From 15KN to 90KN As Standard.
* Self Locking Trapezoidal Screw, Spiral Bevel Gears, Max Stroke 6000 mm.
Protective Tube, Rubber Bellows, Electric Motor, Hand Wheel, Inverter, Limited Switches, Linking Shaft, Coupling, Pillow Block Bearing, Counter, Bevel Gearbox, Swivel Plate and Trunnion Base
* Lifting Screw: steel C45 (optional: stainless steel).
* Worm Shaft: heated treated steel C45 (optional: stainless steel).
* Bearing: taper roll bearing.
* Housing: casting iron (optional: aluminum for small model).
* Oil Sealing (optional: high/low temperature oil sealing).
* Spiral bevel gears: alloy steel,case hardened,be of high rigidity and wear risistance
