Basic Info

Model No.	FA804
Brand Name	fibos
Transform Type	Resistance Strain
Out-Wire	4-Wire
Output Signal Type	Analog Type
Feature	Corrosion Resistant
Production Process	Integration
Material	Metal
IP Rating	IP68
Certification	CE
Customized	Customized
Customized Load Cell Solution	Provider

Product description

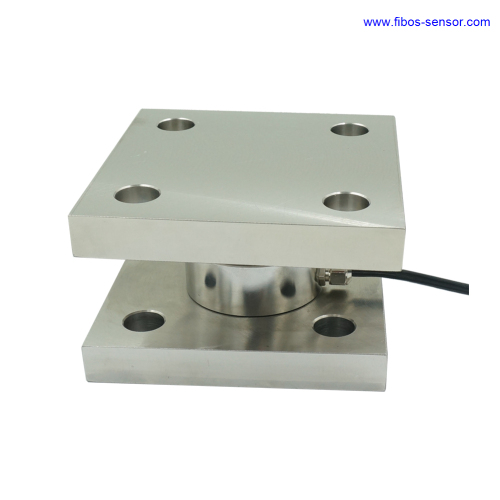

factory supply 100kn weighing modules

technical parameters
Specifications	Technique
Capacity	1,2,5,10,20,50,75,100KN
Rated output	1.5±10%mv/v
Zero balance	±0.03%F.S.
Non-linearity	0.2%F.S.
Hysteresis	0.1%F.S.
Repeatability	0.1%F.S.
Creep (30 Min)	0.05%F.S.
Temp.effect on output	0.05%F.S./10℃
Temp.effect on zero	0.05%F.S./10℃
Input impedance	780±20Ω
Output impedance	700±10Ω
Insulation	≥5000MΩ/100VDC
Recommended excitation	5-15V
Maximum excitation	20V
Compensated temp range	-10~60℃
Operation temp range	-20~80℃
Safe overload	150%F.S.
Ultimate overload	200%F.S.
Cable size	φ4*4000mm
IP Class	IP67 (IP 68 could be customized)

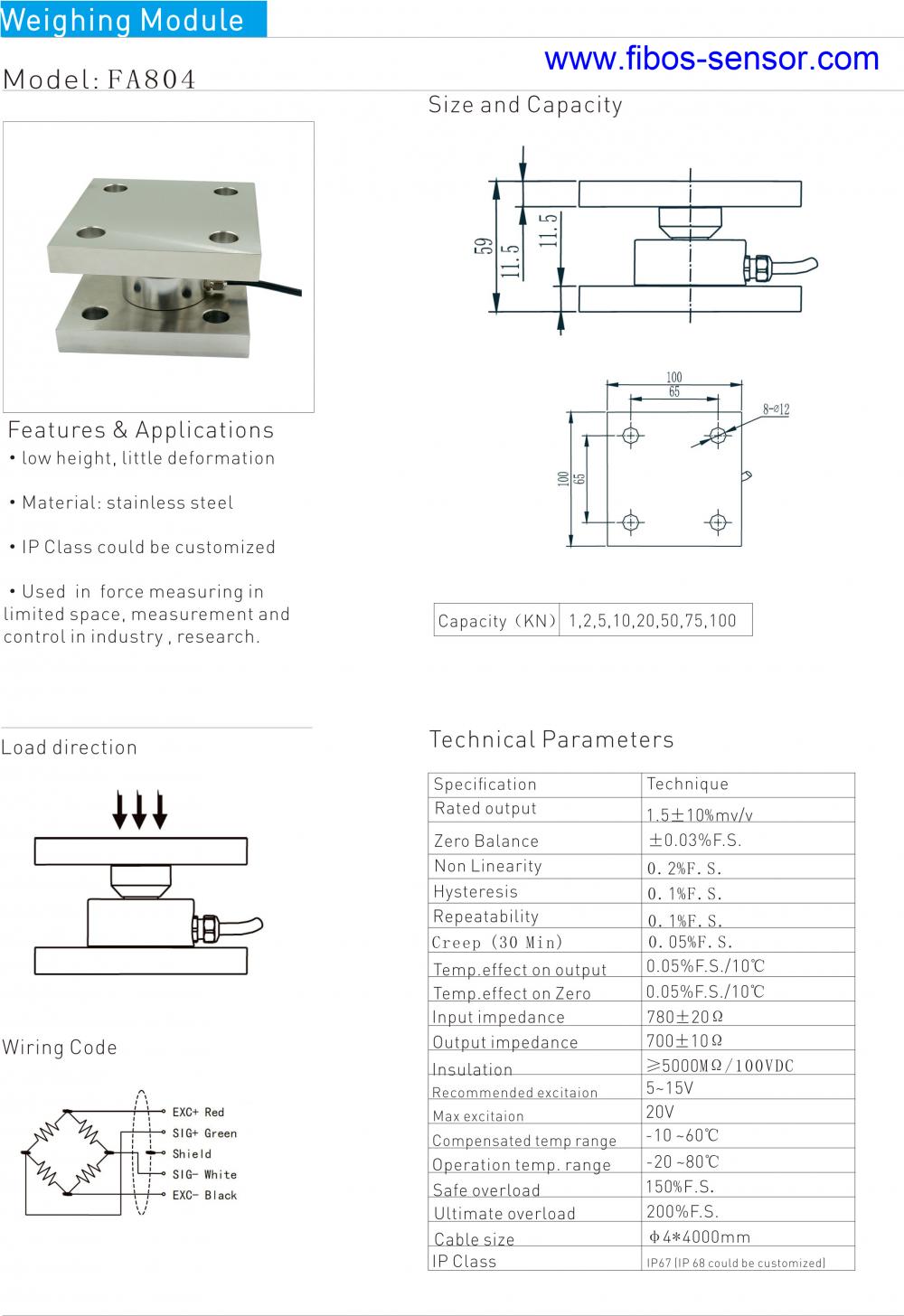

804c7
