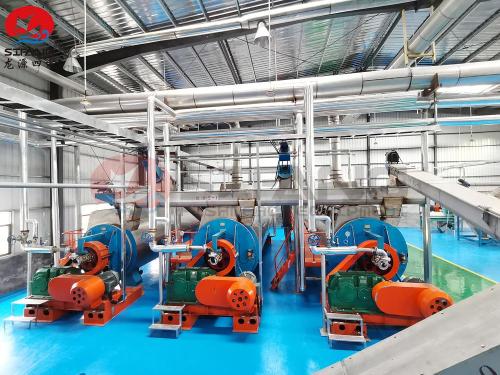

Fish Meal Continuous Vacuum Drier Plant

$70000.00

≥1 Set/Sets

Get Latest Price

You might also like

COIL PIPE DRYER

1 Set/Sets (MOQ)

Coil Pipe Type Dryer

1 Set/Sets (MOQ)

Reliable Dryer Cylinder For Fishmeal Plant and Meat Meal PLant

1 Set/Sets (MOQ)

Indirect Heating Dryer for fish meal machine

$30000.00

1 Set/Sets (MOQ)

Fishmeal Drier fish meal production line

$65000.00

1 Set/Sets (MOQ)

Fish meal making machine continuous vacuum drier

$200000.00

1 Set/Sets (MOQ)

Fish Meal Continuous Vacuum Drier Plant

1 Set/Sets (MOQ)

Drier fish meal machine for Sale

$25000.00

1 Set/Sets (MOQ)

Drier Fishmeal Machine Production Equipment

1 Set/Sets (MOQ)

Fish Meal Dryer for Fishmeal Production line

1 Set/Sets (MOQ)

Basic Info

Model No.
Brand Name
Condition	New
Brand Name	Lysf
Type	Feed Pellet Machine
Warranty	1 Year
After-sales Service Provided	No After-Sales Service, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support, Engineers Available To Service Machinery Overseas
Place Of Origin	Zhejiang, China
Voltage	220-450v
Weight	14000 Kg
Certification	Iso
Where to provide local services (in which countries are there overseas service outlets)	Philippines, Viet Nam, India, Russia, Chile

Product description

Although the standard Drier that is widely used in currernt marketcould meet the requirement of drying the material, there are still some disadvantanges during working. Such as high evaporation temperature and long evaporation duration, which results in the oxidation and deterioration of the nutrtion ingredient. Meanwhile it not only reduces the various nutrients, but alsao causes huge heat loss.

With a view to solve the above problems, we have researched and developed the Continuous Vacuum Driver on our own.The Drier could continuously run under the vacuum condition, meanwhile it can improve the quality of the finished product as well as energy-saving effect because of the necessary improvement. The Vacuum Drier is suitable for both the fish meal and other materials.

Product features

1.Large heating area and perfect drying performance to well assure the quality of finished fish meal.

2.Wear-resistan heating coil (disc) to prolong the life time.

3.Observation window is equiped with light enables to check the material without opening.

4.Using S.S rectangular tube as stand of blades fixed in special position to prevent fishmeal from stacking.

5.With steel founfation instead of concrete foundation,changeable installation location.

6.Equipped with gear surface hardened reducer,lower noise and longer lifetime.

7.With hydraulic clutch enables to restart with load.

8.Stainless steel top structure with better corrosion resistance.

Model	Heating Surface Area (m2 )	Dimensions(mm)			Power (kw)
Model	Heating Surface Area (m2 )	L	W	H	Power (kw)
SG-?1300*7800	88	11015	2600	2855	37
SG-?1600*7800	140	10120	2600	3105	45
SG-?1600*8700	158	11020	2600	3105	55
SG-?1850*10000	230	12326	3000	3425	75
SG-?2250*11000	370	13913	3353	3882	90

COMPARISON BETWEEN VACUUM DRIER AND STANDARD DRIER

Items	Vacuum Drier	Standard Drier
Working Mode	Working continuously	Working continuously
Evaporation Temperature	Around 70℃	Around 98℃
Pressure Inside Drier	-0.07MPa	Normal
Quality of Finished Product	Under evaporation temperature at 70℃, avoid the protein oxidation or deterioration of material during drying process; Improve various nutrition element.	High evaporation temperature result in protein oxidation and deterioration of material; Reduce various nutrition element.
Energy Consumption	Low evaporation temperature leads to energy-saving.	High evaporation temperature cause larger energy consumption because of long drying time.
Waste vapours Treatment	Because the machine is hermetic, the air is unable to flow into machine. That could cut a lot of Deodorizing cost.	Because the machine is not exactly hermetic, making the waste vapours mix with air. That virtually increase the Deodorizing cost.
