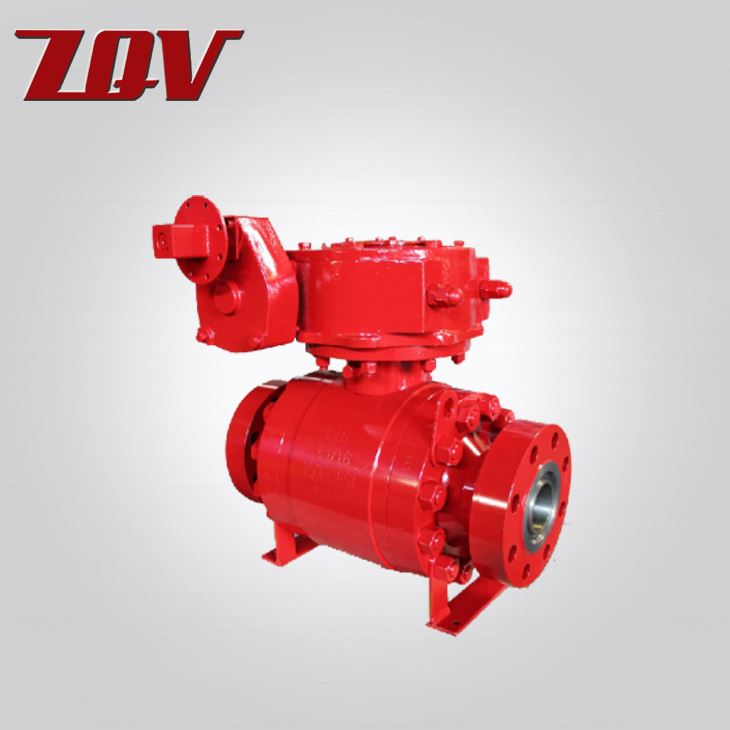

Flanged End API 6A RTJ Ball Valves
$100.00
≥10 Piece/Pieces
Material:
- Stainless Steel
- Casting
pressure:
- High Pressure
Basic Info
| Brand Name | OEM |
|---|---|
| Types of | Ball Valves |
| Support customization | Oem |
| place of origin | China |
| application | General |
| Medium temperature | Medium Temperature |
Product description
Flanged End API 6A Ball Valves
3-Piece Trunnion Ball Valves - API 6A
Bolted & Welded Body Construction
Sizes: 2-1/16” - 13-5/8”
Classes: 2000, 3000, & 5000
|
DESIGN & MANUFACTURING STANDARDS |
|
|
Basic Design |
API 6A |
|
Wall Thickness |
API 6A |
|
Face-to-Face Dimension |
API 6A |
|
Flange End Dimension |
API 6A |
|
Inspection & Testing |
API 6A |
|
Fire Safe Design |
API 607/BS 6755 |

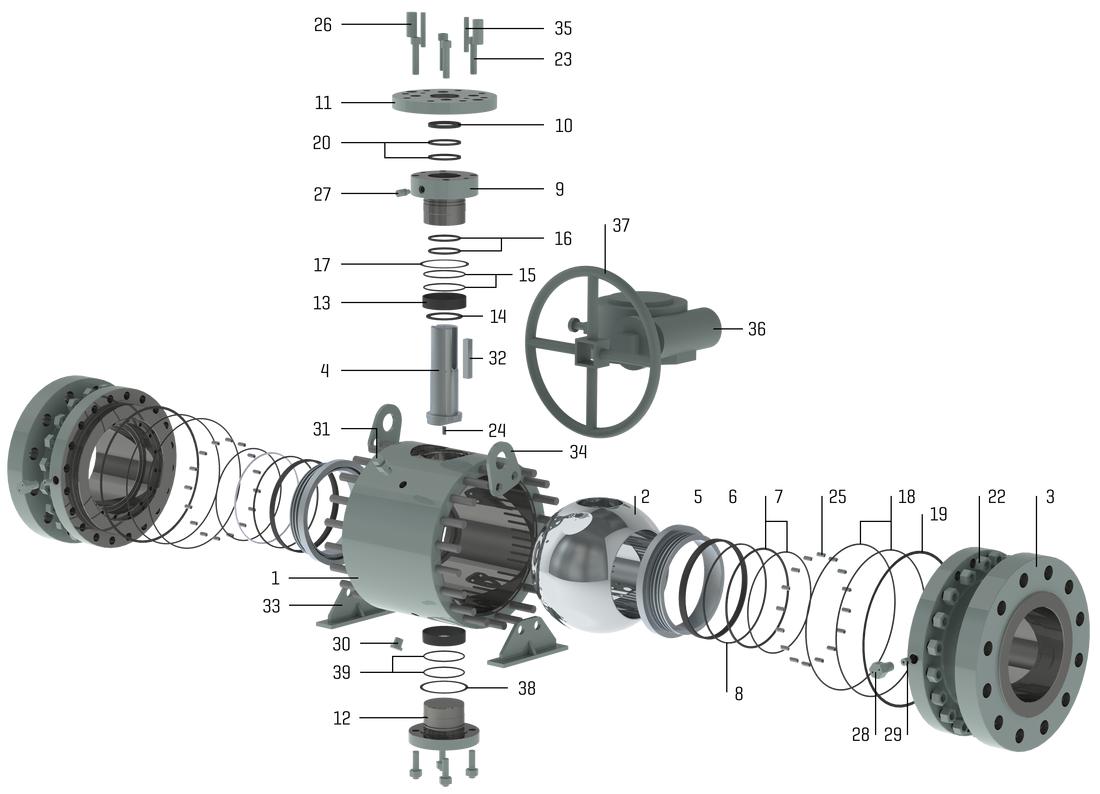

3-Piece Trunnion Ball Valves - Full Port Expanded View (See "Bill of Materials" below)
Bill of Materials
| No |
Name Of Part |
Materials |
|
1 |
Body |
4130 NQT |
|
2 |
Ball |
410 SS NQT |
|
3 |
Adapter |
4130 NQT |
|
4 |
Stem |
410 SS NQT |
|
5 |
Seat Ring |
410 SS NQT |
|
6 |
Seat Insert |
Devlon |
|
7 |
Seat O-ring (2) |
HNBR |
|
8 |
Seat Seal |
Graphoil |
|
9 |
Gland |
4130 NQT |
|
10 |
Gland Ring |
4130 NQT |
|
11 |
Mounting Plate |
4130 NQT |
|
12 |
Trunnion |
4130 NQT |
|
13 |
Trunnion Bearing (2) |
316 SS/FIBREX |
|
14 |
Thrust Washer |
PEEK |
|
15 |
Gland O-ring (2) |
HNBR |
|
16 |
Stem O-ring (2) |
HNBR |
|
17 |
Gland Gasket |
Graphite/Stainless Steel |
|
18 |
Adapter O-ring (2) |
HNBR |
|
19 |
Adapter Gasket |
Graphite/Stainless Steel |
|
20 |
Packing |
Graphoil |
|
21 |
Stud Bolt* |
A320 L7M |
|
22 |
Hex Nut* |
A320 L7M |
|
23 |
SHCS |
A320 L7M |
|
24 |
Anti-Static Spring |
X-750 |
|
25 |
Seat Spring |
X-750 |
|
26 |
Dowel Pin |
Hardened Steel |
|
27 |
Grease Fitting |
316 SS |
|
28 |
Grease Fitting, BGH |
316 SS |
|
29 |
Ball Check |
316 SS |
|
30 |
NPT Plug |
316 SS |
|
31 |
Vent Fitting |
316 SS |
|
32 |
Stem Key |
1045 or Equal |
|
33 |
Foot Plate* |
Carbon Steel |
|
34 |
Lift Plate* |
Carbon Steel |
|
35 |
Body Dowel Pin |
Hardened Steel |
|
36 |
Gear Operator |
Carbon Steel |
|
37 |
Handwheel |
Carbon Steel |
|
38 |
Trunnion Gasket |
Graphite/SS |
|
39 |
Trunnion O-ring (2) |
HNBR |
|
|
||
