Flanging and bunching equipment
Basic Info
| Brand Name | IDO |
|---|---|
| Certification | ISO |
| Automation | Automation |
| Flexible Production | Intelligent Manufacturing |
Product description

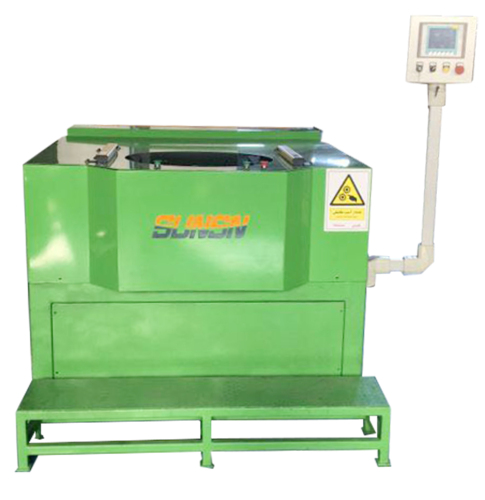

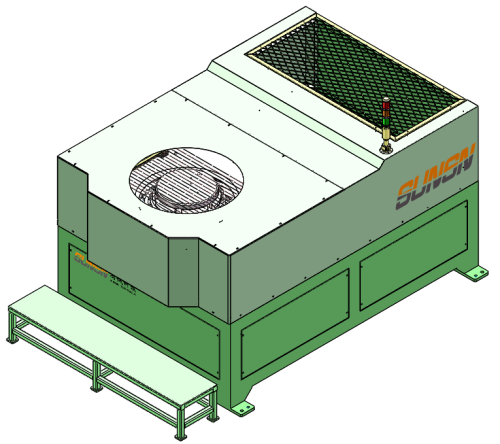

Punching and cutting barrel hole turning machine

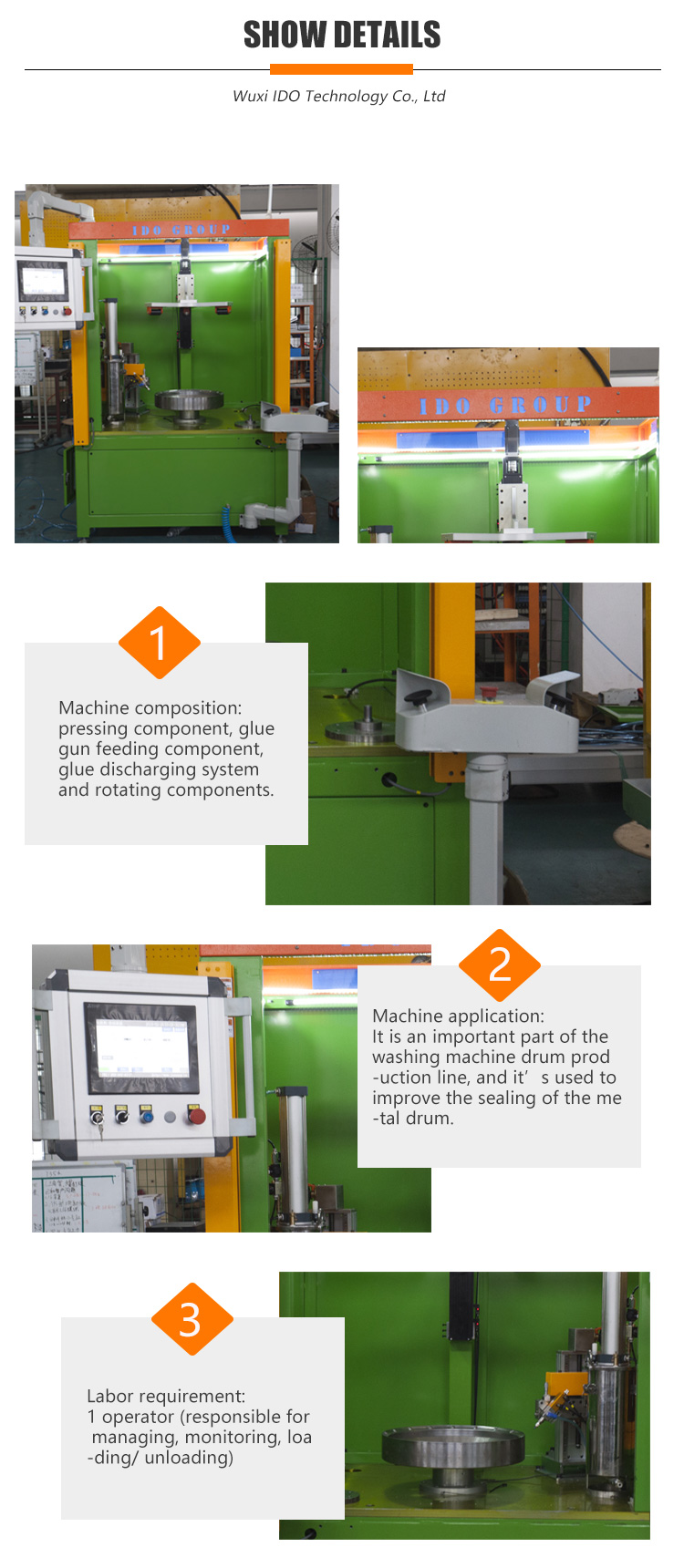

1、Flanging and squeezing rib is a single machine equipment, including hydraulic system, expansion mechanism, flanging mechanism, squeezing mechanism, material receiving storage location;
2、Flanging and squeezing rib manually put the riveted cylinder into the automatic flanging and squeezing rib machine, then exit the operating area of the equipment and start the equipment. The inner ring of flanging and squeezing rib are simultaneously done in the outer ring, and the flanging and squeezing rib are completed. Then the flanging and squeezing mechanism are returned to the original position.
3、The operating side of the equipment shall be equipped with grating protection device. When the personnel enter the operating range of the equipment, the equipment will stop automatically to prevent harm to human body.After flanging and banding, the equipment will give a prompt and stop the mechanical action. The barrel ring shall be taken out manually and placed on the receiving warehouse for conveying to the next process.
| Automatic Production Line Customized Equipment List | |||
| Project Name: Automatic Production Line For 56L WM Drum | |||
| PARTS | Equipment | QTY | Demands |
| Common punch line | Automatic Loading | 1 | Compatible with 54\ 56L, reserve 64L material specification |
| Uncoiler Levellering Machine | 1 | ||
| Servo Feeder | 1 | ||
| Punching Machine | 1 | Compatible with 54\ 56L, reserve 64L die size | |
| 54L Stamping Die | 1 | New-Made | |
| Transfer Feeder Machine | 1 | Compatible with 54\ 56L two separated line | |
| Buckle riveting Extruded Processing Line | Three-axis Rolling Machine | 1 | Produce 54L |
| Extruded Flanging Machine | 1 | ||
| Flange&Tripod Preassemble Pressing Rivet Machine | 1 | ||
| Front&Back Flange Whirling Machine | 1 | ||
| Welding Processing Line | Welding Machine | 1 | Produce 54L Compatible & reserve 64L Production |
| Erikson Detector Machine | 1 | ||
| Flanging Machine | 1 | ||
| Front&Back Flange Whirling Machine | 1 | ||
| Drum&Tripod Assemble Machine | 1 | ||
| Tripod Preassemble&Flanging Machine | 1 | ||
| Tripod Fastening Tooling Machine | 1 | ||
| Fixed Twist Tool Gun | 2 | Desoutter / Atlas Welding Brand | |
| Common Testing | Dimensional Inspection Tool(Axial's radial runout data) | 1 | Compatible with 54\ 56L, reserve 64L |
| Material: | AISI430(1200R),thickness0.5&0.6mm, Coil weight 800kg--1500kg | ||
| Cycle Time | Line cycle time ≦ 35 Seconds/piece, Production cycle time ≦ 45 Seconds/piece | ||
| Project Delivery Date | In August 2016 , the lead time is 5 months | ||
A: We are a factory which has been producing metal stamping moulds for more than 10 years.
A: Yes, of course. We can custom make for you based on your drawing or sample
A: We specialize in designing and manufacturing sheet metal stamping tools/moulds mostly for household appliance and automobile
industry, CNC machining parts and mould supporting facilities etc.
A: Yes, we could offer the samples free of charge but do not undertake the cost of freight.
A: Normally, we can get back to you within 24 hours when getting your detailed 3D drawing and requirements. If the project include
s many different parts, we will try our best to get back asap.In order to quote for you earlier, please provide us the following
information together with your inquiry.
1) 2D and 3D Drawings (DWG, STP, STEP, X_T, IGES, PDF)
2) Material requirement
3) Surface treatment requirement
4) Quantity (per order/per month/annual)
5) Any special demands or requirements, such as packing, labels,delivery,etc.
A: CAD, CAXA, UG
A: The stamping tool manufacturing cycle is 30-50Days, standard stamping parts is 3 to 10 days after payment. If OEM or make the
tooling, we will confirm the delivery time with you.
A: Payment 50% T/T in advance, balance before shipment.
