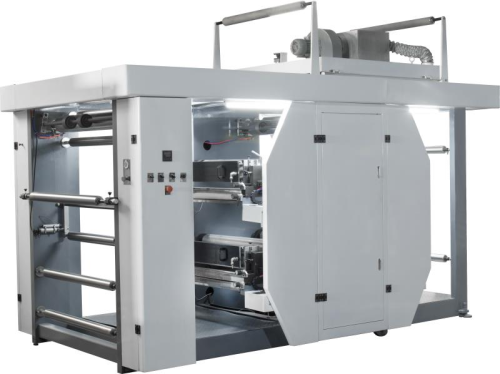

FLEXO PRINTING MACHINE INLINE

Get Latest Price

You might also like

1 Set/Sets (MOQ)

Full Rotary Printing Machine For Flexible Packaging

1 Set/Sets (MOQ)

Flexo Label Printing Machine

1 Set/Sets (MOQ)

high-precision Flexo Printing Press

1 Set/Sets (MOQ)

4 Colors Flexible Letterpress Printing Machine

1 Set/Sets (MOQ)

Basic Info

Model No.
Brand Name

Product description

CONTROL PART

1.Main motor frequency control

2. Reduce motor separate

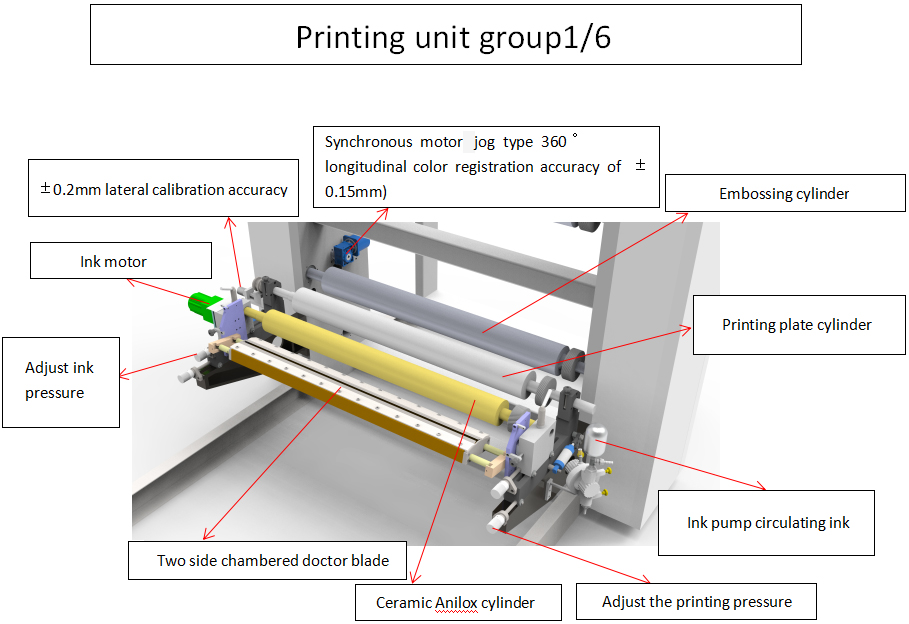

PRINTING PART

1. Pneumatic lifting and lowing printing plate cylinders auto lifting plate cylinder when the machine is stopped. After that can run ink automatically. When the machine is opening,it will make alarm to start the auto lowering plate printing cylinder.

2. Inking with ceramic anilox chambered doctor blade ink pump circulation

3. High precision planetary gear oven 360°circulation longitudinal register

4.? ±0.2mm transverse register

5.? Adjust inking press and printing pressure press by manual

DRYING PART

Adopt with external heating pipe, temperature display, electric current control,centrifugal blower bring the wind

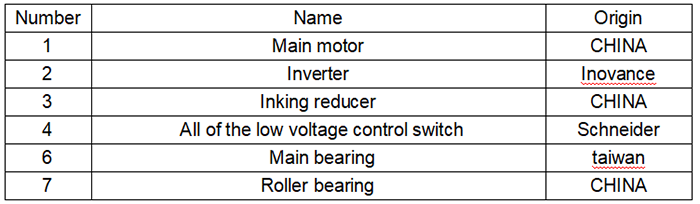

Parts List

STRUCTURE

1.? The machine adopt with synchronous belt drive and hard gear face gear box. The gear box adopt with synchronous belt drive each printing group high precision planetary gear oven(360o adjust the plate) gear driving the press printing roller

2.? After printing, long running material space ,it can make the ink drying easily,better results

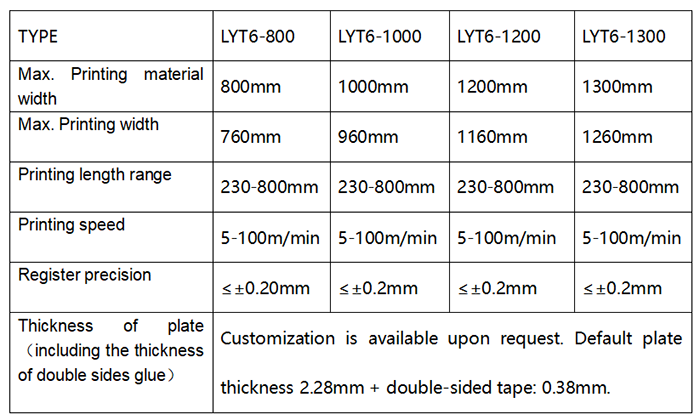

PARAMETERS
