Forensic testing DNA Sequencer

Fragment Analysis Instrument Introduction

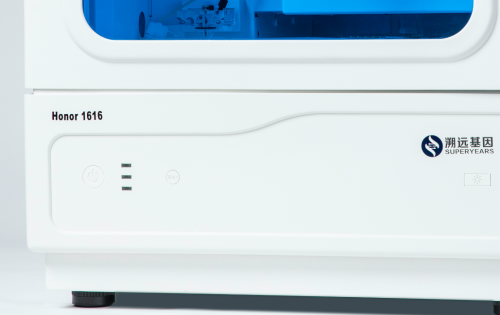

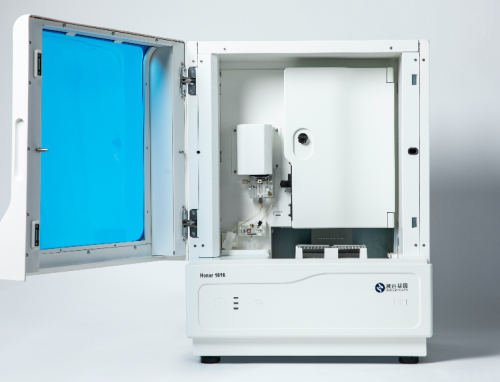

Honor series genetic analyzer is a first-generation sequencer developed by Superyears Gene. Based on the classic Sanger sequencing principle, it can support up to 8-color fluorescence and 24 channels. It can be used for gene sequencing and fragment analysis. The product can be used for human identification, Forensic DNA analysis, DNA database construction, etc. Honor series genetic analyzers provide a user-friendly operation interface. The sequencing analysis software can perform base-calling, sequencing data quality assessment, mutation site search, and the automatic deletion of low-quality data. The fragment analysis software can perform STR, SNP, AFLP, Fusion, and other analysis functions.

Identifiler Plus Reagent kit ladder on Honor 1816 results

Case 2 Display

Identifiler Plus Reagent kit sample detection results on Honor1816

Electrophoresis was performed on Honor 1816 by Identifiler Plus kit, and the data generated were analyzed using Genemapper-IDX. The classification result of Honor1816 is consistent with mainstream manufacturing instruments.

Molecular Biolab Equipment Parameters

Project		Content
Basic Parameters	Size (L x W x H)	Doors Closed:610 x 532 x 812 mm   Doors Opened: 1225 x 532 x 812 mm
	Weight	95KG (approx.)
	Channel	16
	Fluorescence Dye	8
	Capillary Length	36 cm、50 cm
	Sampling Method	Auto-Sampling, Compatible with 96-well plate(x2) and 8-strip tubes
	Polymer-Injection Method	Auto-Polymer Injection
	Laser	Solid-state semiconductor
	Laser wave length	505 nm
	Fluorescence Dye wave length	> 520 nm
Performance Parameters	Temp. Accuracy	ΔT≤0.2 ℃
	Resolving Power	1 bp
	Detection Capability	Above 800 bp
Operating Environment	Power	220 VAC，50 Hz；Single Phase：10 A，2200 VA
	Ambient Temperature	20℃～30℃，Temperature Uniformity ±2℃
	Relative Humidity (RH)	20%-80% (non-condensing)
	Atmospheric Pressure	86 kPa~106 kPa

DNA Sequencer Advantages

High efficiency -It supports up 8-color Fluorescence, and max. 70 STR sites detection in one test

Compatible -Open platform, compatible with mainstream reagent kits and consumables

Customizable -Customized interface, easy to interact, handy to operate

Cost-effective -No boundling sells. Customer can customize their orders according to the sample volume, saving 50% reagent cost of consumables.

Widely used - Identifier?? Plus, VERIFIEDTM Plus, VersaPlexTM 27PY, PanGlobal, and other commercial kits have consistent testing results on Superyears Genetic Analyzer.

Product Application

Forensic DNA identification technology is an essential scientific demonstration method with high technology content, a wide range of applications, and a significant effect in solving cases. Every year, DNA technology is used to solve a large number of various criminal cases, and it has become a vitally important tool in criminal investigation technology.
DNA identification technology is mainly used in human identification and is an indispensable technical means in criminal case detection. The main applications of Superyears Genetic Analyzer Honor Series for Forensic DNA Analysis include:

1) The human DNA identification, with a 99.99% accuracy rate of locking or reducing criminal suspects;
2) The identification of kinship is used in the identification of corpses, the handling of children's household registration, the search for missing persons, and the fight against trafficking in women and children, etc.;
3) The construction of a database and DNA database plays an essential role in developing public security criminal investigation work.
