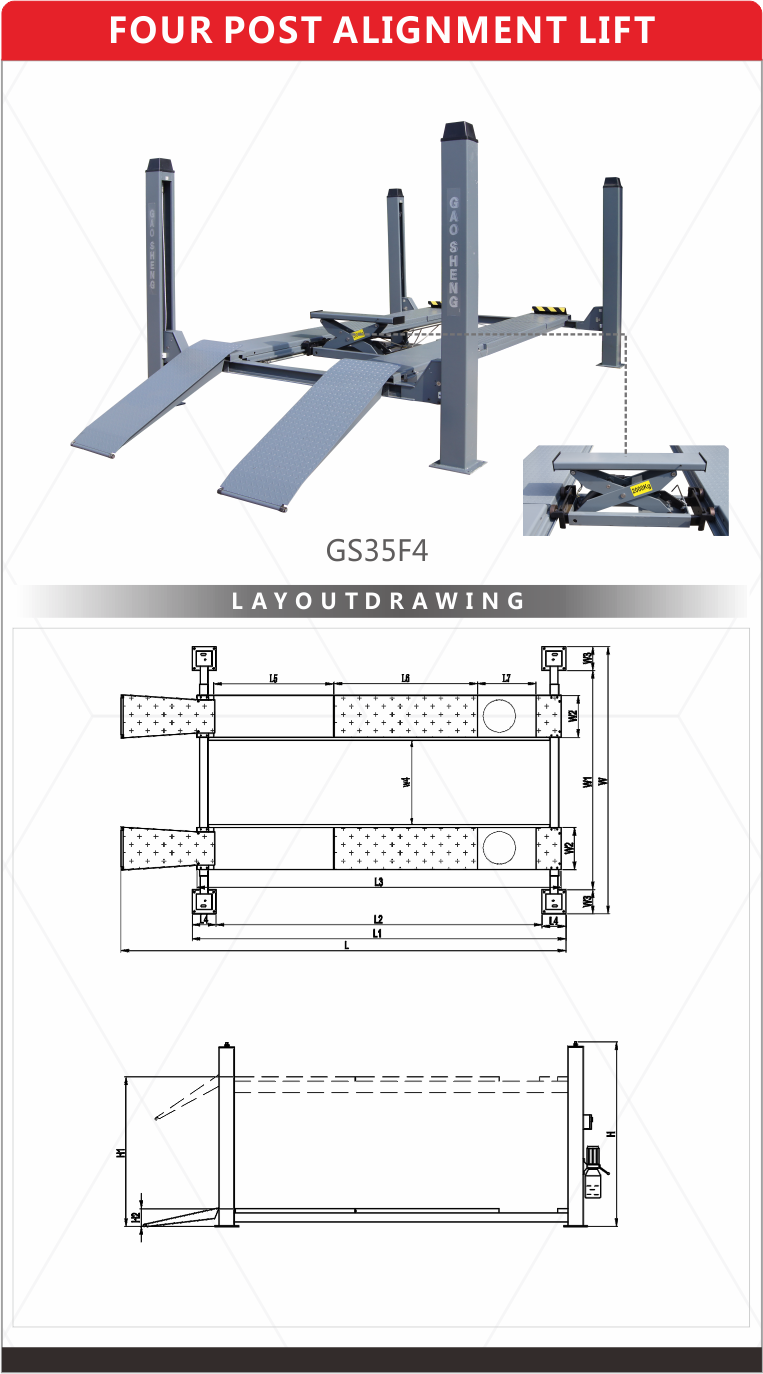

Four post alignment lift
Basic Info
| Model No. | GS35F4 |
|---|---|
| Brand Name | Gaosheng |
Product description
Features:
Low voltage control(24V)
With antiknock valve and safety valve to ensure the safety.
Imported hydraulic and electrical components
The alignment level of the lift can be adjusted with high precision,which is the ideal equipment for four-wheel alignment.
Perform stable and reliable.
With trolley guide rail and can add rolling jack(optional part)
Technical Data:
| Model | Power Supply | Air Supply | Power | Lifting Capacity | Max Lifting Height | Second Lifting Capacity(Optional) | Second Lifting Height(Optional) |
| GS35F4 | 380V/3PH or 220V/1PH | 6-8kg/cm2 | 2.2KW | 3.5T | 220-1820mm | 2T | 375mm |
| GS40F4 | 380V/3PH or 220V/1PH | 6-8kg/cm2 | 2.2KW | 4.0T | 246-1896mm | 2T | 375mm |
| GS45F4 | 380V/3PH or 220V/1PH | 6-8kg/cm2 | 2.2KW | 4.5T | 246-1896mm | 3T | 375mm |
| GS50F4 | 380V/3PH or 220V/1PH | 6-8kg/cm2 | 2.2KW | 5.0T | 246-1896mm | 3T | 375mm |
| GS55F4 | 380V/3PH or 220V/1PH | 6-8kg/cm2 | 2.2KW | 5.5T | 246-1896mm | 3T | 375mm |
| GS65F4 | 380V/3PH or 220V/1PH | 6-8kg/cm2 | 3.0KW | 6.5T | 255-1845mm | 5T | 375mm |
| GS80F4 | 380V/3PH or 220V/1PH | 6-8kg/cm2 | 3.0KW | 8.0T | 260-1845mm | 5T/7T | 375mm |
| GS100F4 | 380V/3PH or 220V/1PH | 6-8kg/cm2 | 3.0KW | 10T | 260-1845mm | 5T/7T | 375mm |
| GS120F4 | 380V/3PH or 220V/1PH | 6-8kg/cm2 | 3.0KW | 12T | 260-1845mm | 5T/7T |
375mm |
Four post alignment lift
