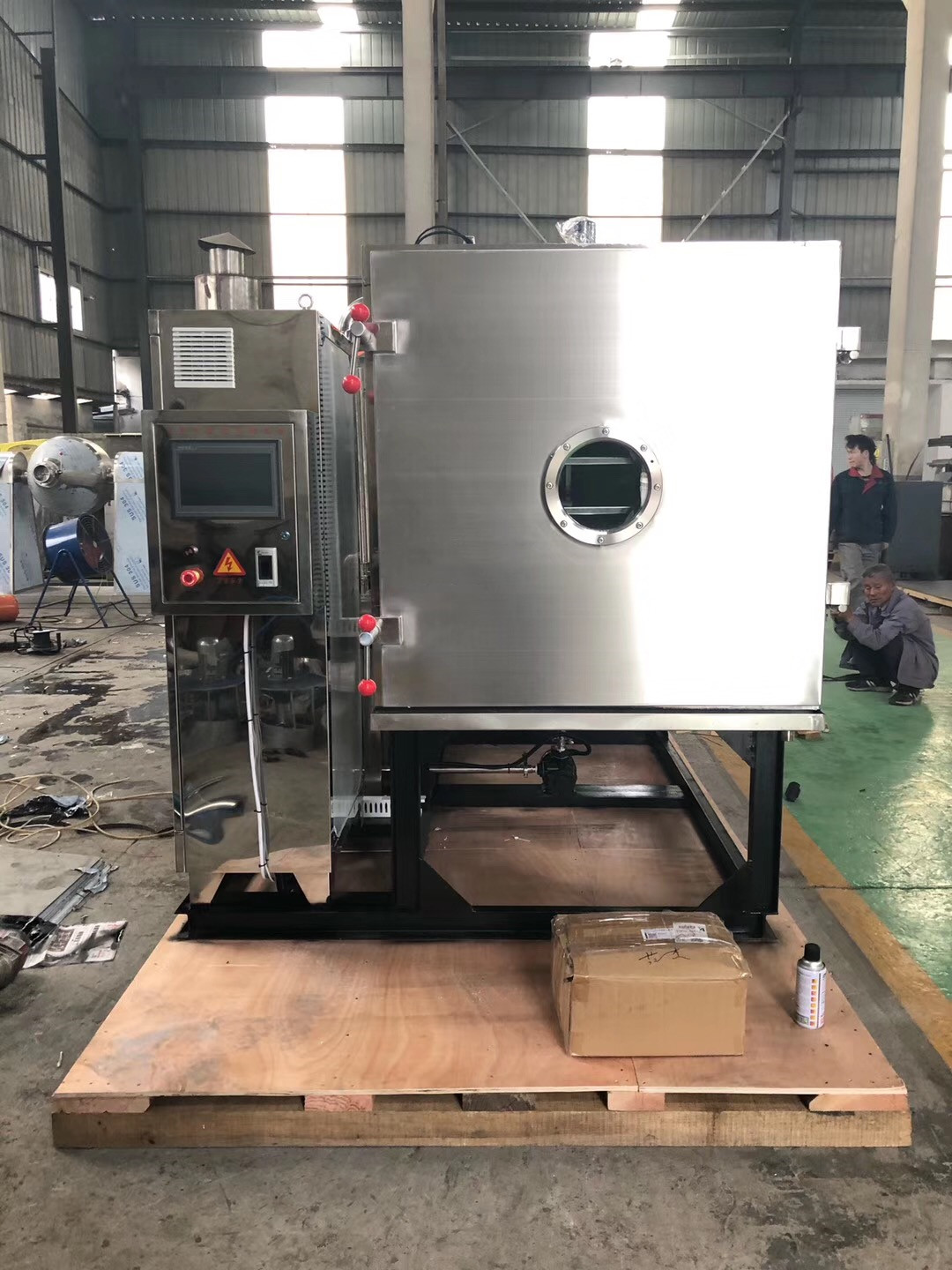

Freeze Dried Fruit Processing Machine
$16500.00
/ set
Options:
- FD-5C
Get Latest Price
You might also like
$30000.00
1 set (MOQ)
Basic Info
| Type | Freeze Drying Equipment |
|---|---|
| application | Chemicals Processing |
| Condition | New |
| place of origin | China |
| Brand Name | BRAVO |
Show More
Product description
Products Description
BRAVO series freeze-drying is to quickly freeze the water in the material into solid ice. Under the premise that the ice does not dissolve, the water is directly vaporized from the solid state，and the steam is continuously removed to drying the material. The dried material by vacuum freeze has basically the same biological state and little loss of nutrient content. The dried material is porous and its volume is basically the same as that before drying. After adding water, the material can quickly recover.
Freeze-drying is an excellent drying method. The dried product can be stored for a long time at room temperature without additives. The structure of freeze-dried articles is porous and crisp. The color, aroma, taste, shape and biological activity of the articles restored after adding water are basically unchanged, and it is especially suitable for the food, health products and pharmaceutical industries.
BRAVO series vacuum freeze dryer is a new product designed on the existing conventional vacuum drying and drying ovens, which are upgraded and upgraded, and truly master the core technology. It is manufactured using the principle of vacuum drying, compact and reasonable structure, convenient maintenance, fully automatic control and easy operation.
Technical Features
1.Moisture sublimation and evaporation has high efficiency and fast drying;
2.Low energy consumption,only 30%-40% of energy consumption of ordinary dryer;
3.Wide drying temp. range( -40 ~ 120℃),can be dried quickly at low temperature;
4.It can recover organic solvents, especially suitable for materials containing organic solvents that cannot be dried by ordinary dryers at low temperatures;
5.PLC control system, touch human-machine operation interface, can record multiple temperature data in the freeze-drying process in real time, and browse in the form of graph;
6.The shelf temperature control curve can be set in advance to realize the automation of the sublimation process.

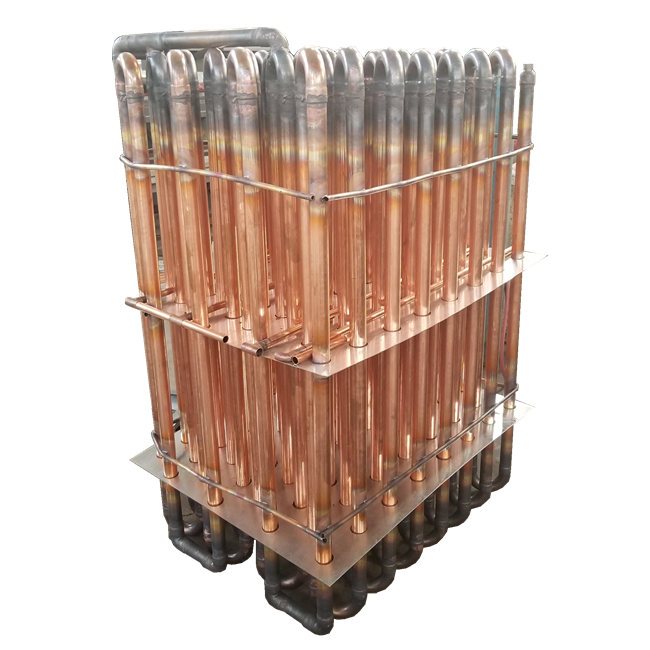

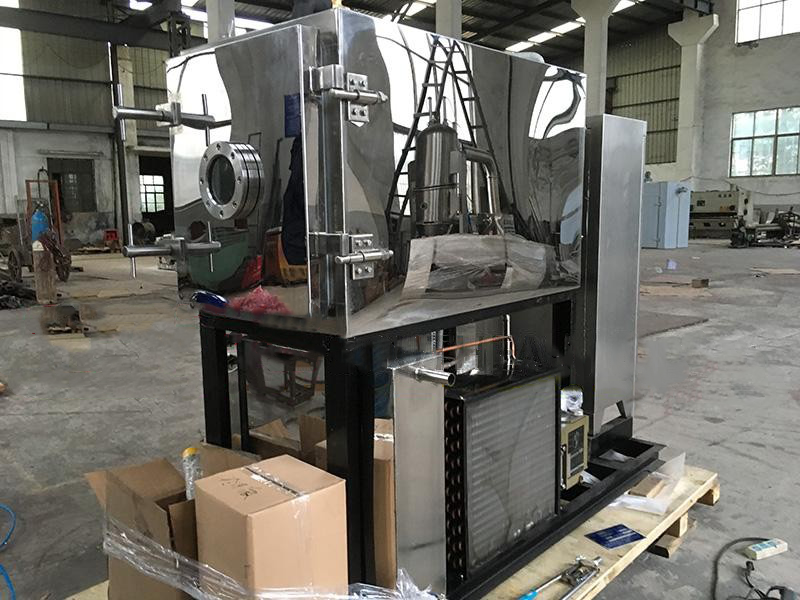

Cold trap

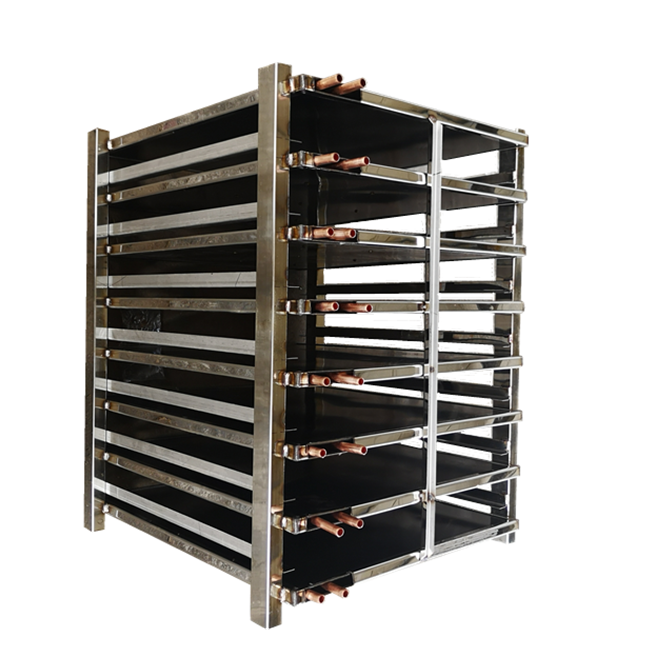

Shelf

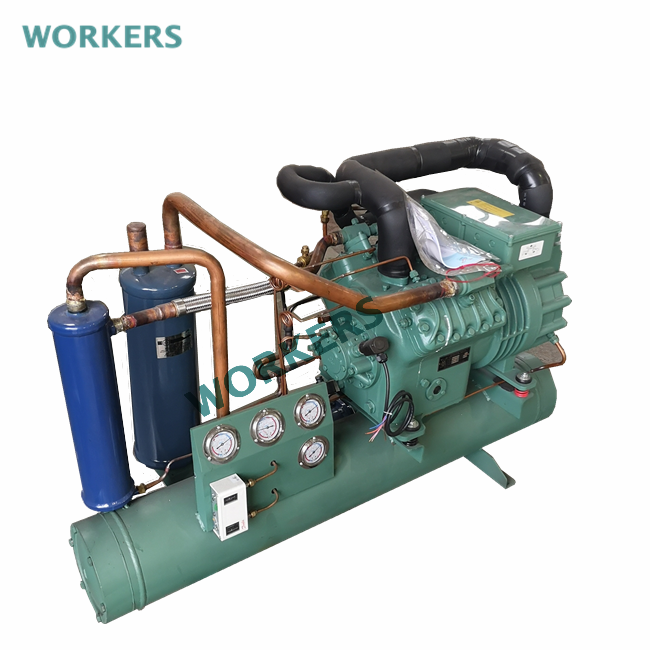

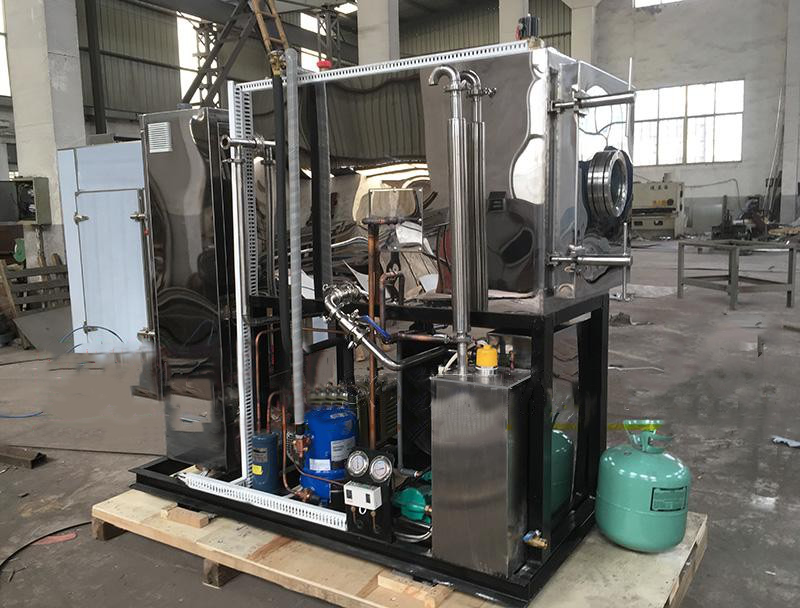

Refrigeration system

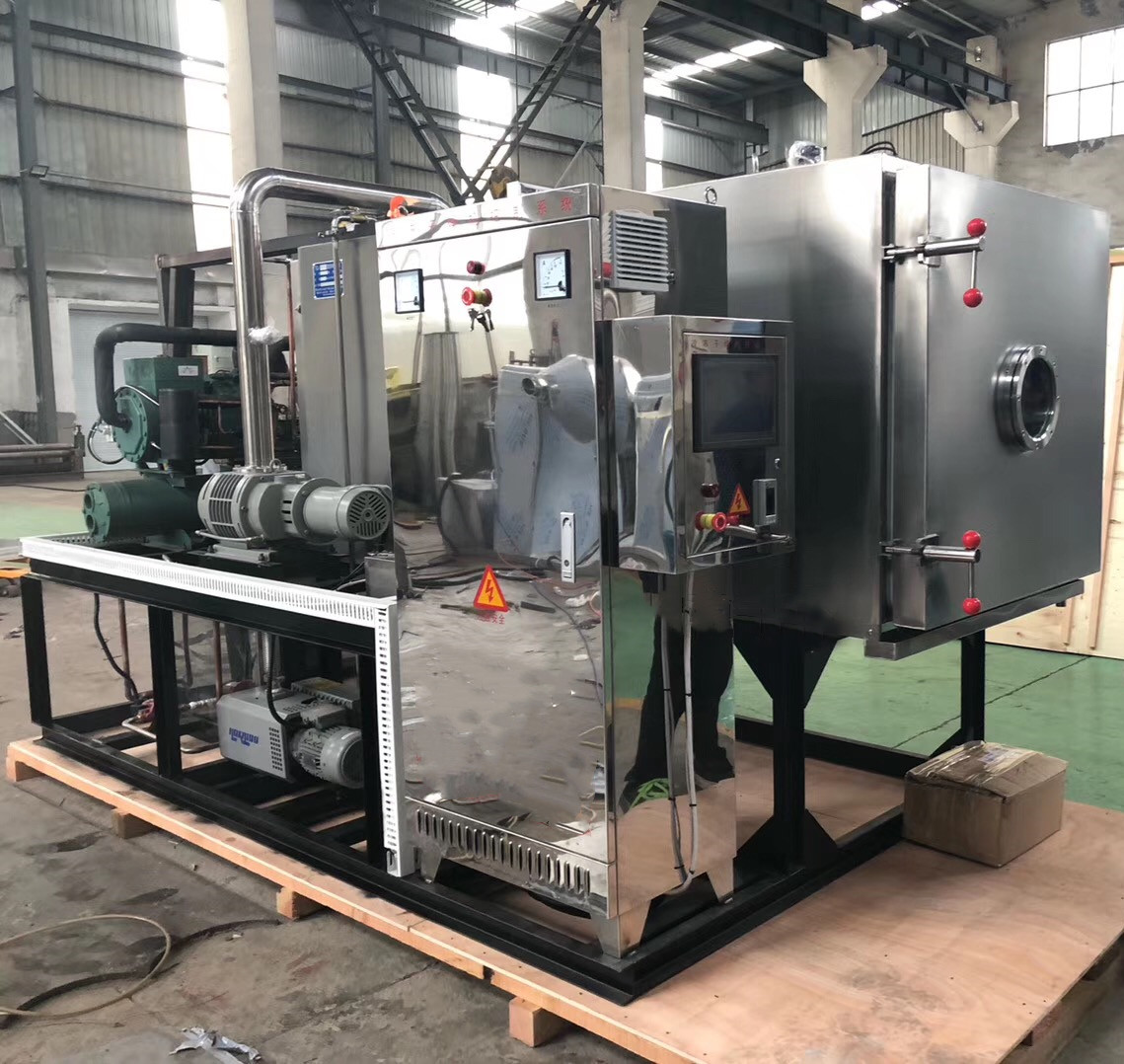

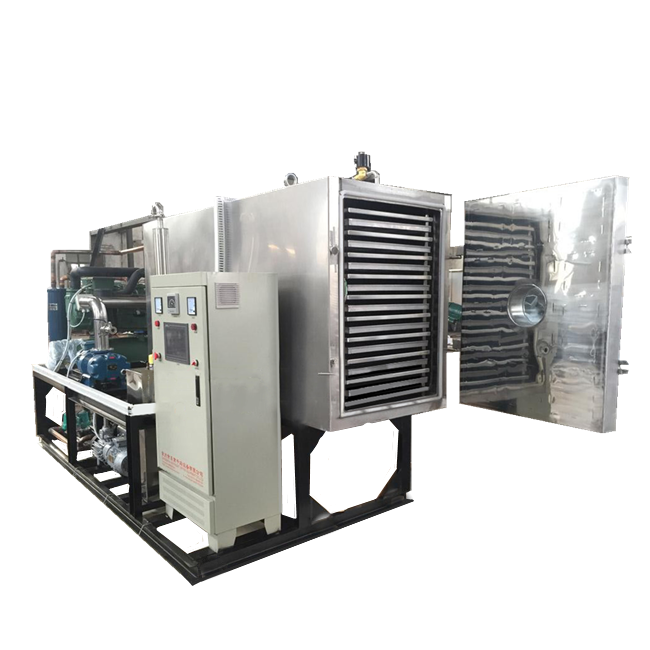

Main Host

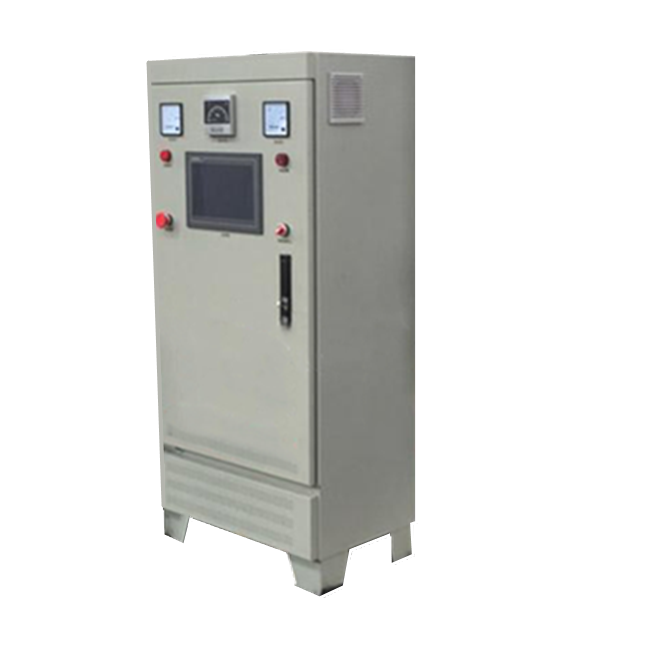

Control system

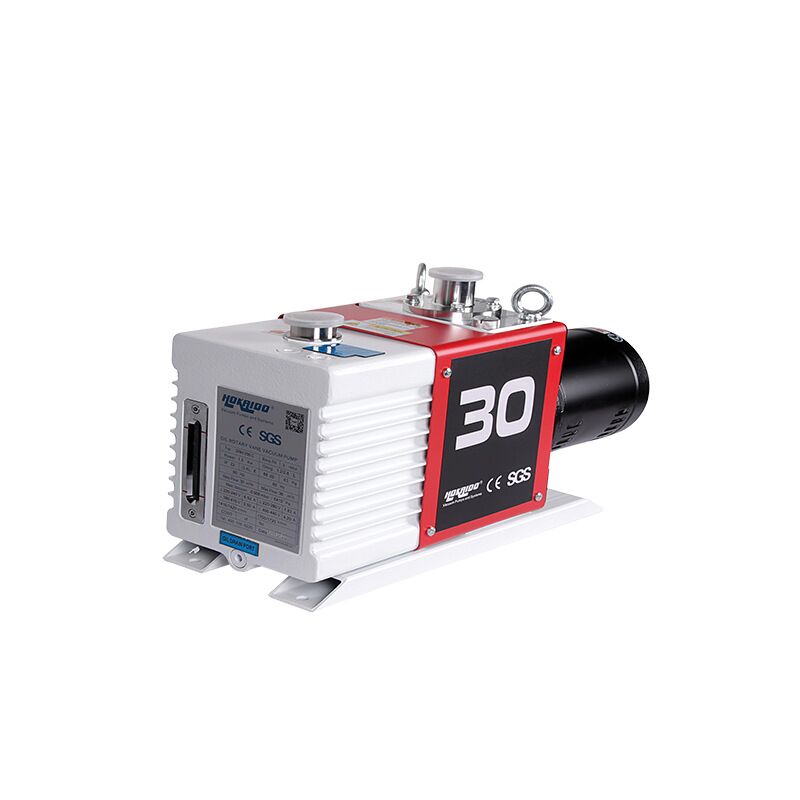

Vacuum pump
Product Application
1. Preservation of biological products: such as antibiotics, antitoxins, diagnostic supplies and vaccines.
2. Microorganisms and algae: long-term preservation of various bacteria, yeasts, enzymes, protozoa, microalgae, etc.
3. Biological specimens and biological tissues: For example, making various animal and plant specimens, drying and preserving peripheral tissues such as skin, bones, aortas, and heart valves for animal xenogeneic or homogeneous transplantation.
4. Make small tissue pieces for optical microscopy, electron scanning and transmission microscopy.
5. Drying of food: such as coffee, tea, meat, fish and eggs, seaweed, fruits, vegetables, seasonings, tofu, convenience foods, etc.
6. Advanced nutritional products and Chinese herbal medicines: such as royal jelly, honey, pollen, Chinese herbal medicine preparations, etc.
7. Other aspects: For example, for catalysts in the chemical industry, the catalytic efficiency can be increased by 5 to 20 times after freeze-drying; freeze-drying and preserving plant leaves and soil can be used to study the effects of soil, fertilizer, and climate on plant growth and the role of factors; Damp wooden cultural relics, flooded books and manuscripts, etc. can be dried by freeze-drying to maintain their original shape as much as possible.
Freeze dried flowers

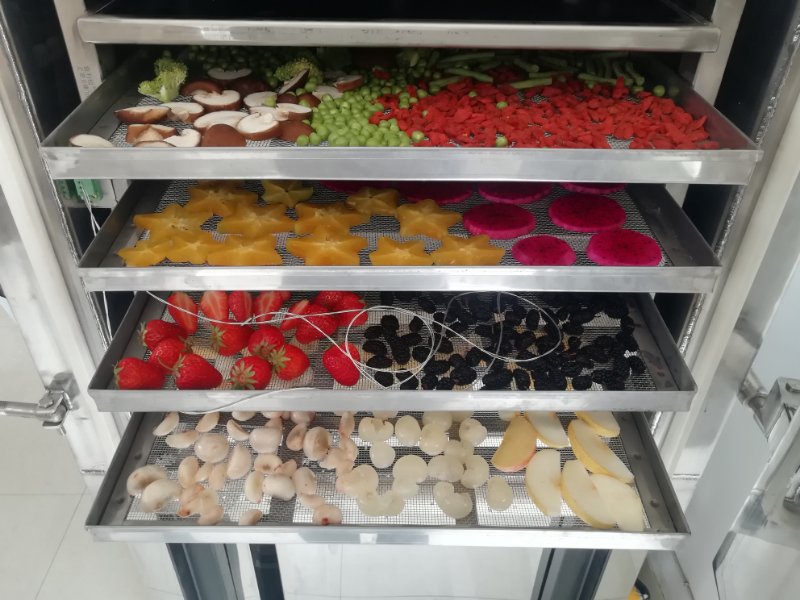

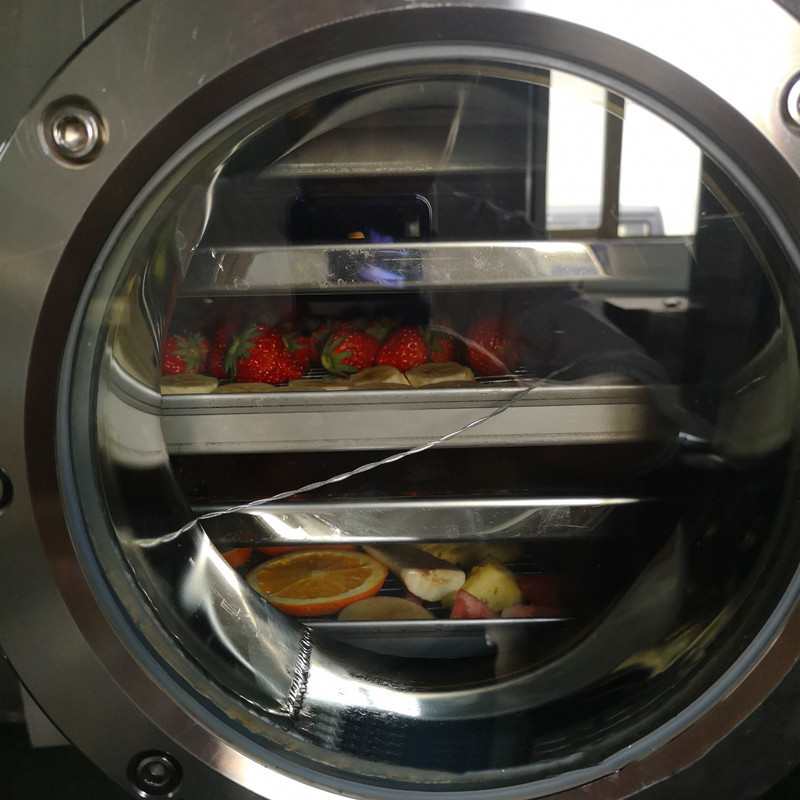

Freeze dried fruits
Freeze-dried fruit powder
Freeze dried apple
Freeze dried milk powder
Freeze dried food
Q: What information do I need to provide in order to obtain a professional and detailed quotation?
A: 1. What are you going to dry?
2. What is the capacity per batch?
Q: What is the lead time?
A:45-60 working day.
Q: What kind of after sale service you can provide?
A: 24 months warranty.
Installation, commissioning and training services as well as online help are provided free of charge.
Q: How is the product packaged and delivered?
A: After the product finished, it is packed in a fumigation-free wooden box and transported by sea or land.
Q: What standard models do you have? Does it support customized services?
A:We have the following standard models and support customized production.
Model Parameters
Model | FD-1C | FD-2C | FD-5C | FD-10C | FD-20C | ||||
Drying area(㎡） | 1 | 2 | 5 | 10 | 50 | ||||
Loading capapcity(kg) | 10 | 20 | 50 | 10 | 50 | ||||
Tray QTY.(pcs) | 5 | 7 | 18 | 25 | 50 | ||||
Cold trap medium | Low temp. silicone oil | ||||||||
Vacuum pump | Rotary vane pump | ||||||||
Degree of vacuum | ≤130P | ||||||||
Defrosting way | Hot water spray | ||||||||
Rated power(kw) | 5.5 | 8.7 | 16 | 24 | 28 | ||||

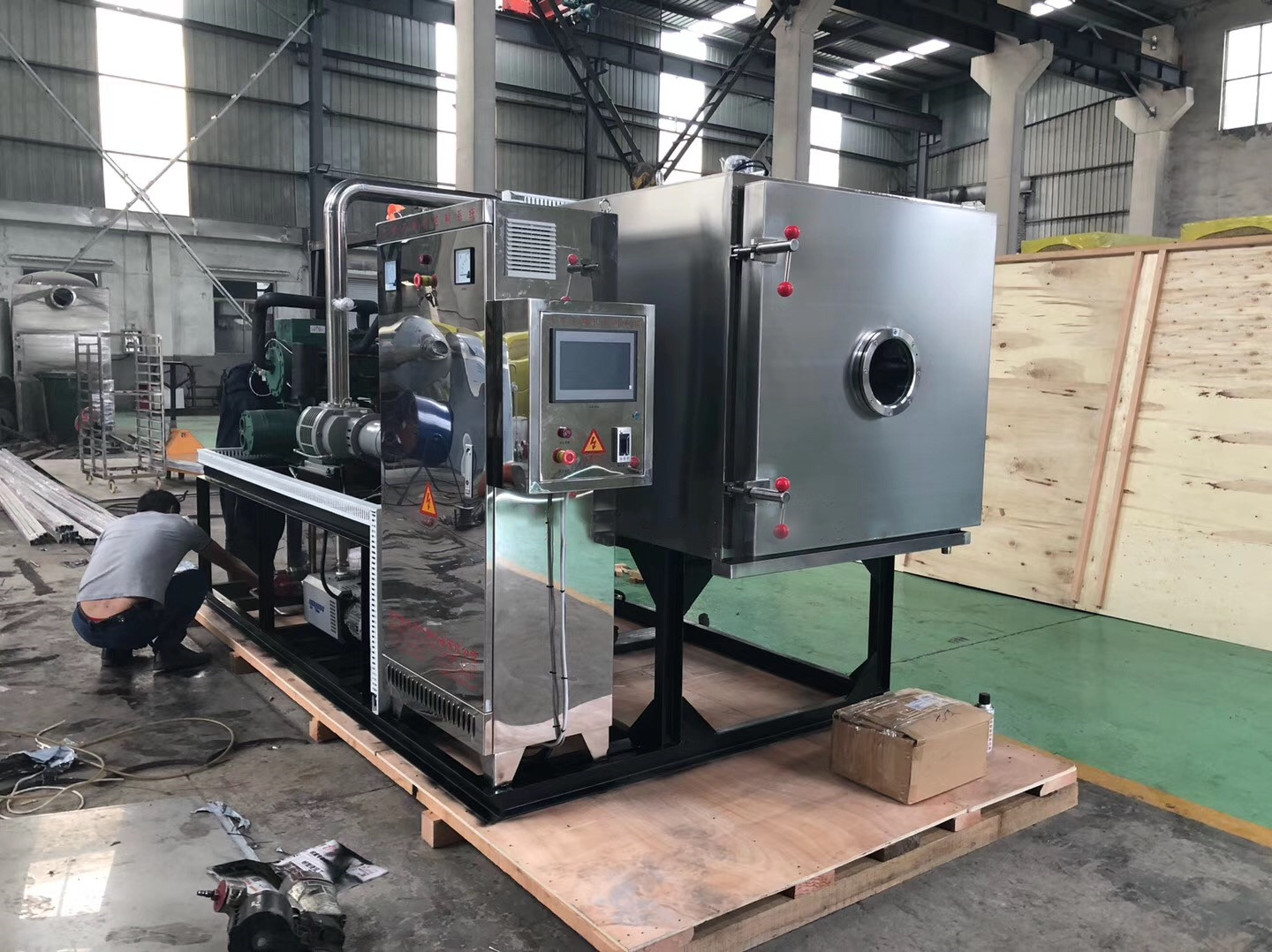

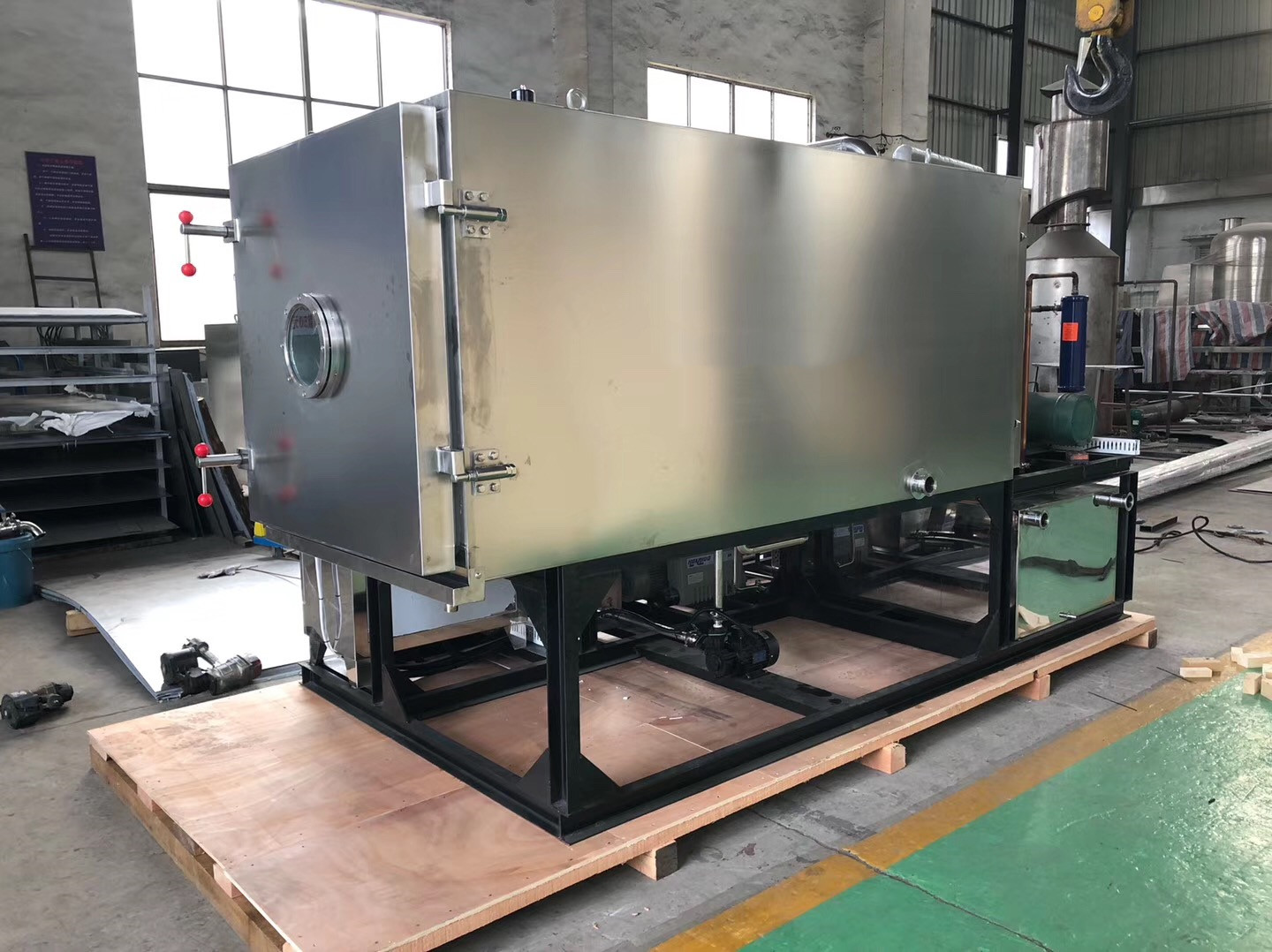

Packing & Shipping
Since 2017, Changzhou BRAVO Machinery LLC. has been committed to designing, manufacturing and selling various industrial dryers, crushers, mixers, granulators and packaging machines, providing thousands of customers with satisfactory services.
Attention to detail and real production data are essential in industrial machinery manufacturing. Unique designs for specific materials are always based on actual production experience or test data.
BRAVO Machinery has experienced technicians who have worked in this field for more than 30 years as well as a professional pilot plant. We offer free trials and material studies to our customers.
The same goes for after-sales service. BRAVO Machinery has a skilled and experienced after-sales service team that can reach customers in a short time and provide professional installation, debugging and training services.
In the Americas, Europe, Asia, Africa, and Oceania, BRAVO Machinery has won the trust of many customers with high-quality products and satisfactory services. We and our customers achieve each other and make progress together!
BRAVO Machinery is willing to be your reliable machinery supplier.
