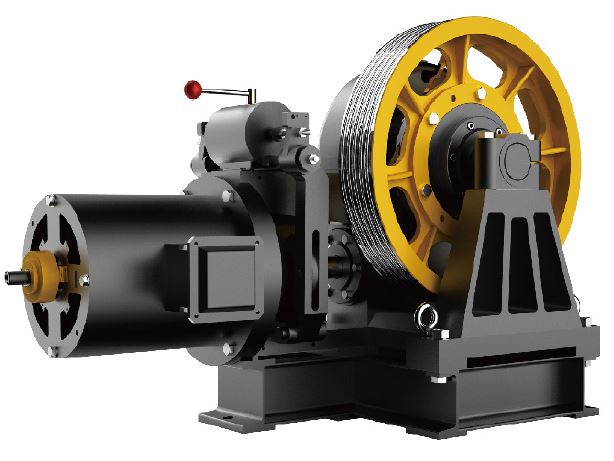

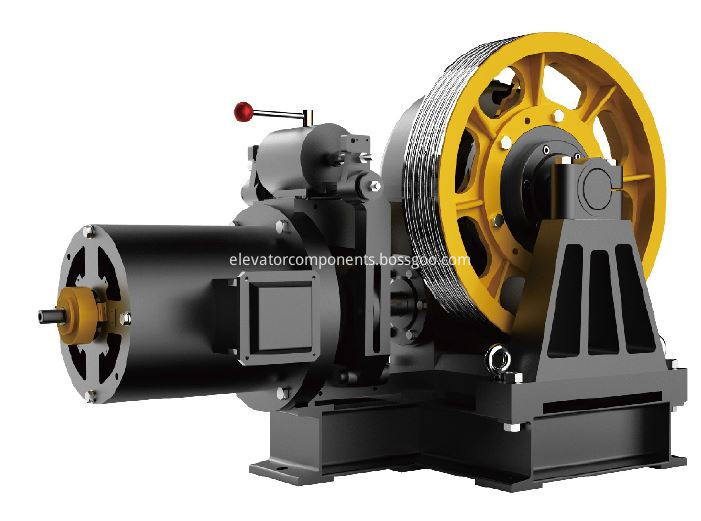

Cargo elevator geared machine, Freight elevator geared machine, goods elevator geared machine



Roping 1:1, Capacity 1000kg, Speed 1m/s, 11kW, AC380V, 25A, Sheave Dia. 610mm, 5*13*20

Roping 2:1, Capacity 2000kg, Speed 0.5m/s, 11kW, AC380V, 25A, Sheave Dia. 610mm, 5*13*20

Machine Arrangement: Right Hand | Left Hand
Control: VVVF

Standard Machine is coming with encoder

Diverting Pulley Recommendation: YES, As an Option at Extra Cost
Damping Pad Recommendation: YES, As an Option at Extra Cost

Roping 2:1, Capacity 2000kg, Speed 1m/s, 22kW, AC380V, 41A, Sheave Dia. 650mm, 5*13*20

Roping 4:1, Capacity 4000kg, Speed 0.5m/s, 22kW, AC380V, 41A, Sheave Dia. 650mm, 8*13*20

Roping 2:1, Capacity 3000kg, Speed 1m/s, 30kW, AC380V, 59A, Sheave Dia. 650mm, 8*13*20

Roping 4:1, Capacity 5000kg, Speed 0.5m/s, 26kW, AC380V, 50A, Sheave Dia. 610mm, 8*13*20

Roping 1:1, Capacity 1600kg, Speed 1m/s, 15kW, AC380V, 32A, Sheave Dia. 610mm, 8*13*20

Roping 2:1, Capacity 3000kg, Speed 0.5m/s, 15kW, AC380V, 32A, Sheave Dia. 610mm, 8*13*20

Roping 4:1, Capacity 4000kg, Speed 0.25m/s, 15kW, AC380V, 32A, Sheave Dia. 650mm, 8*13*20

Roping 4:1, Capacity 5000kg, Speed 0.25m/s, 15kW, AC380V, 32A, Sheave Dia. 650mm, 8*13*20



Machine Arrangement: Right Hand | Left Hand
Control: VVVF


Standard Machine is coming with encoder

Diverting Pulley Recommendation: YES, As an Option at Extra Cost
Damping Pad Recommendation: YES, As an Option at Extra Cost

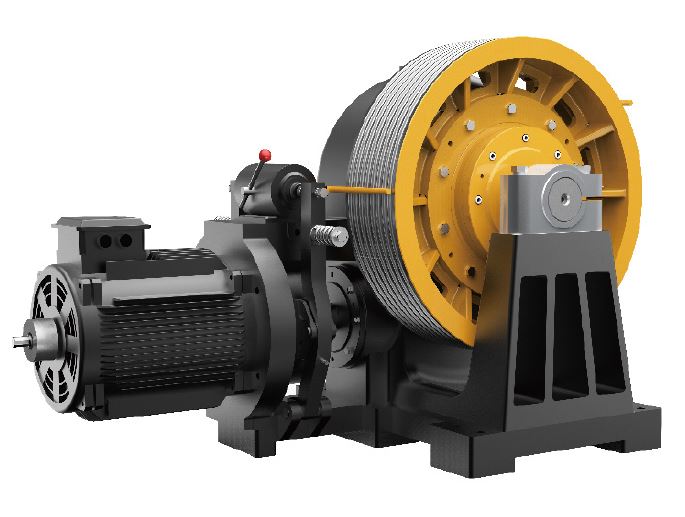

Roping 1:1, Capacity 2500kg, Speed 2m/s, 45kW, AC380V, 87A, Sheave Dia. 800mm, 8*16*25

Roping 2:1, Capacity 5000kg, Speed 1m/s, 45kW, AC380V, 87A, Sheave Dia. 800mm, 8*16*25

Roping 4:1, Capacity 10000kg, Speed 0.5m/s, 45kW, AC380V, 87A, Sheave Dia. 800mm, 8*16*25



Machine Arrangement: Right Hand | Left Hand
Control: VVVF

Standard Machine is coming with encoder

Diverting Pulley Recommendation: YES, As an Option at Extra Cost
Damping Pad Recommendation: YES, As an Option at Extra Cost
