FTA IPTV Encoder Headend Tuner RF DVB-T2 to IP Gateway Converter

Video

1 / 7

FTA IPTV Encoder Headend Tuner RF DVB-T2 to IP Gateway Converter

$1199.00

≥2 unit
$899.00

≥20 unit
$599.00

≥100 unit

Get Latest Price

Model No.
Brand Name
Place Of Origin	Zhejiang, China
Brand Name	Dibviewolo
Model Number	OTV-TP24
Input	24*Tuner(DVB-S/S2/C/ISDB-T/Tb/ATSC)
Output	480SPTS or 4MPTS over IP + 2*ASI
Nature	professional receiver
BISS Mode	BISS-1, BISS-E
Tuner in type	DVB-S/S2, DVB-C, ISDB-T/T2, ATSC
CI decryption	without CI slot(FTA)
Other function	BISS decryption, Multiplexing, SimulCryption etc
Application	IPTV, digital TV head-end distribution and contribution
Warranty	5

Overview

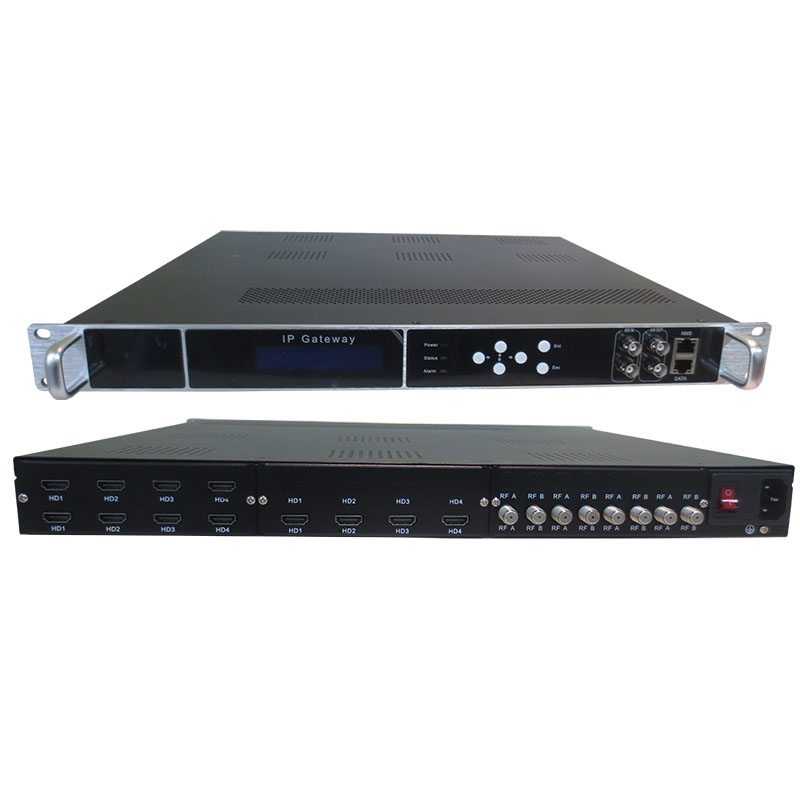

OTV-TP24 Multi-channels Professional Receiver, support Max.24 Independent Satellite DVB-S/S2 tuners /DVBT /ATSC/ISDB-T input to IP TS SPTS multicast or unicast outputs, has also 2*ASI inputs for external TS's sources. It is integrated with tuner demodulation, which can demodulates from 4/ 8/ 12/ 16/ 20/ 24 channel tuners, then output the IP package through different IP address and ports. The tuners support DVB-S/S2/T/T2/C/ISDB-T/ATSC optional input, demodulate to TS and encapsulated output IP packet, IP output port by 4*MPTS +512* SPTS+N*MPTS/SPTS for mapping tuner input. OTV-TP24 support convert various singal source, tuner, HD MI, ASI, IP to IP stream-UDP/ RTP/ RTSP for IPTV distribution, it is an ideal solution for environments where you have a large number of air channel, and widely used in IPTV system, hotel, entertainment facilities, education broadcasting systems at schools and government buildings or any kinds of source signals convert to Cable TV Broadcast System, largely cost down the source gathering of Digital TV Broadcasting System and IPTV/OTT system which based on IP construction. Being the ideal multi-channel professional receiver used for FTA (free to air) IP signal source capture from digital tuner.

Main Features

* Input Version: 1: Up to 24 FTA Tuners input

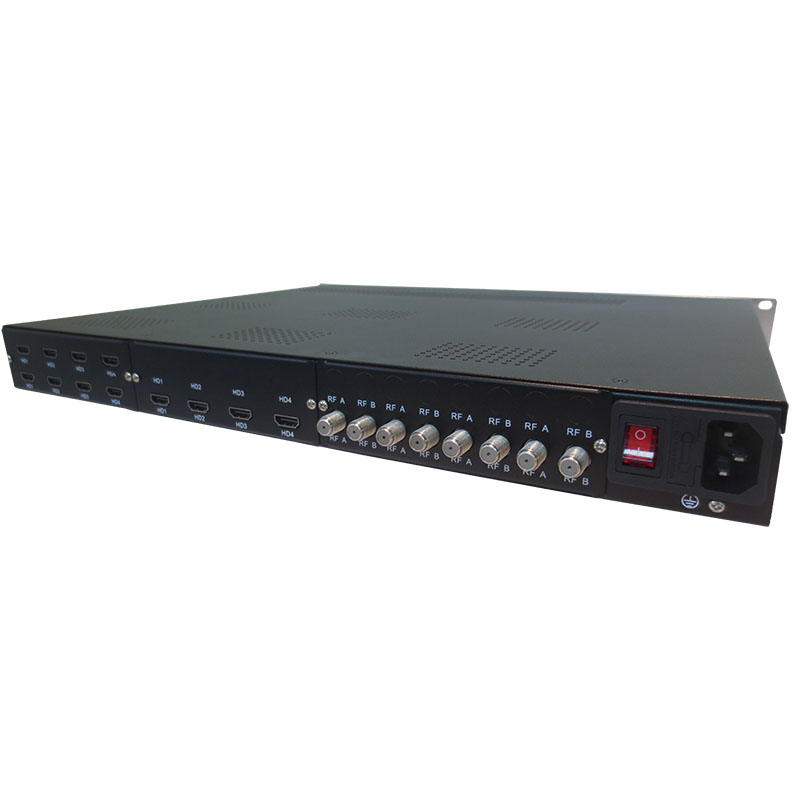

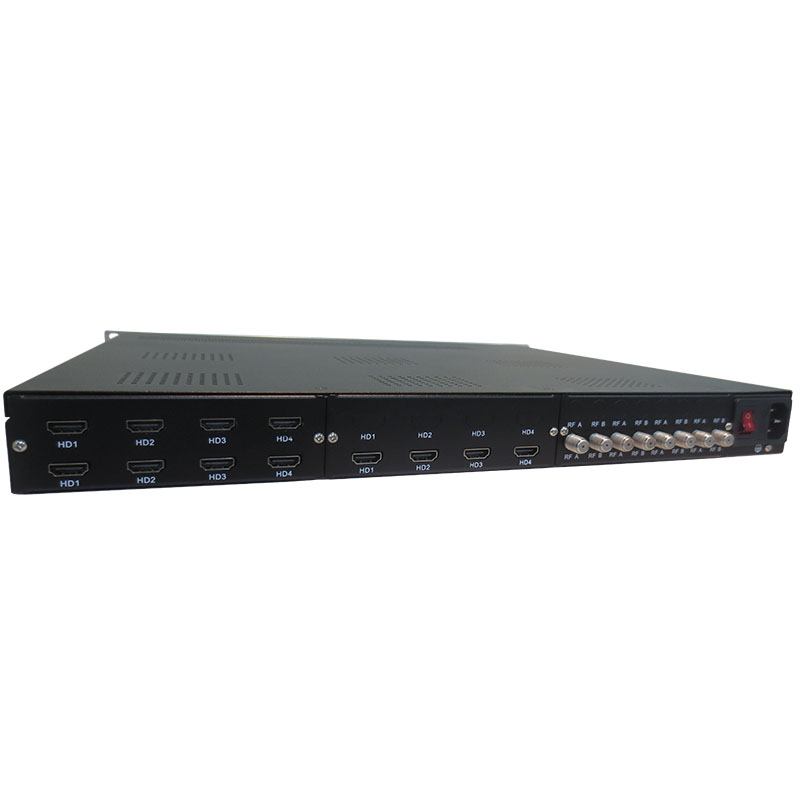

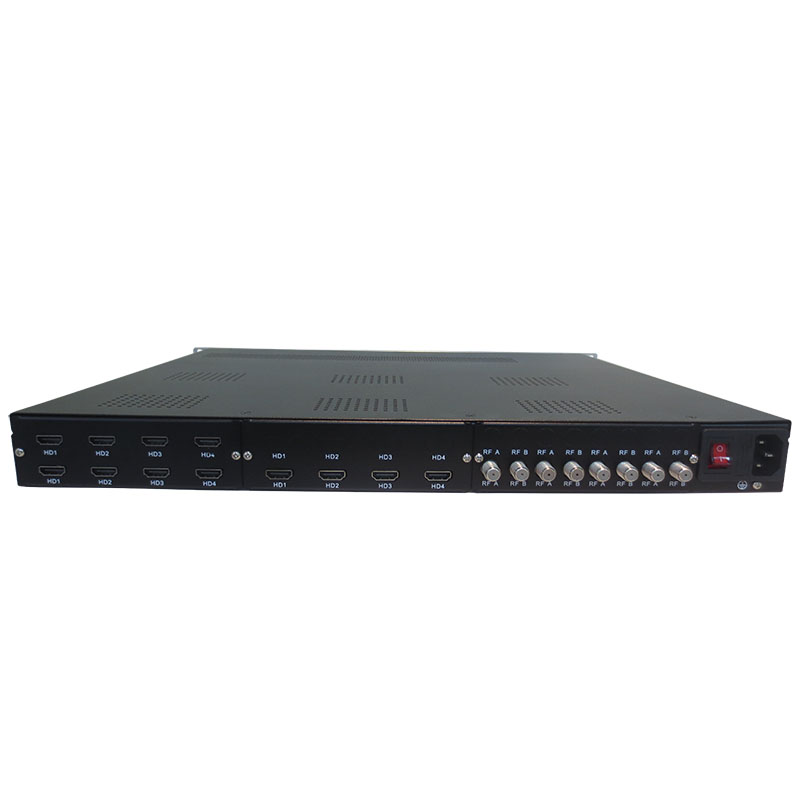

2: Two*Types Tuners+HDM I input-- for example: 8 DVB-S/S2+8*DVB-T/T2+8*HDM I
3: One type tuner+ HDM I input: 4 DVBSS2+12*HDM I
* Max 24 channels input whatever which types input, pls consult with our sales according your application.

* 2 Different Tuner standard option from DVB-S/S2, DVB-T/T2, DVB-C, DTMB, ISDB-T/Tb, ATSC-T

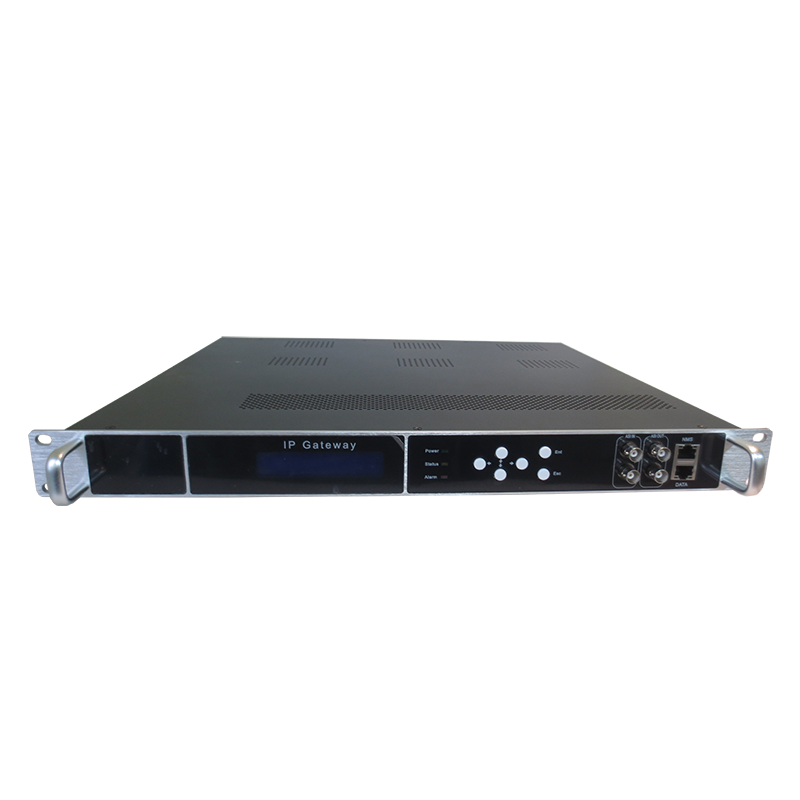

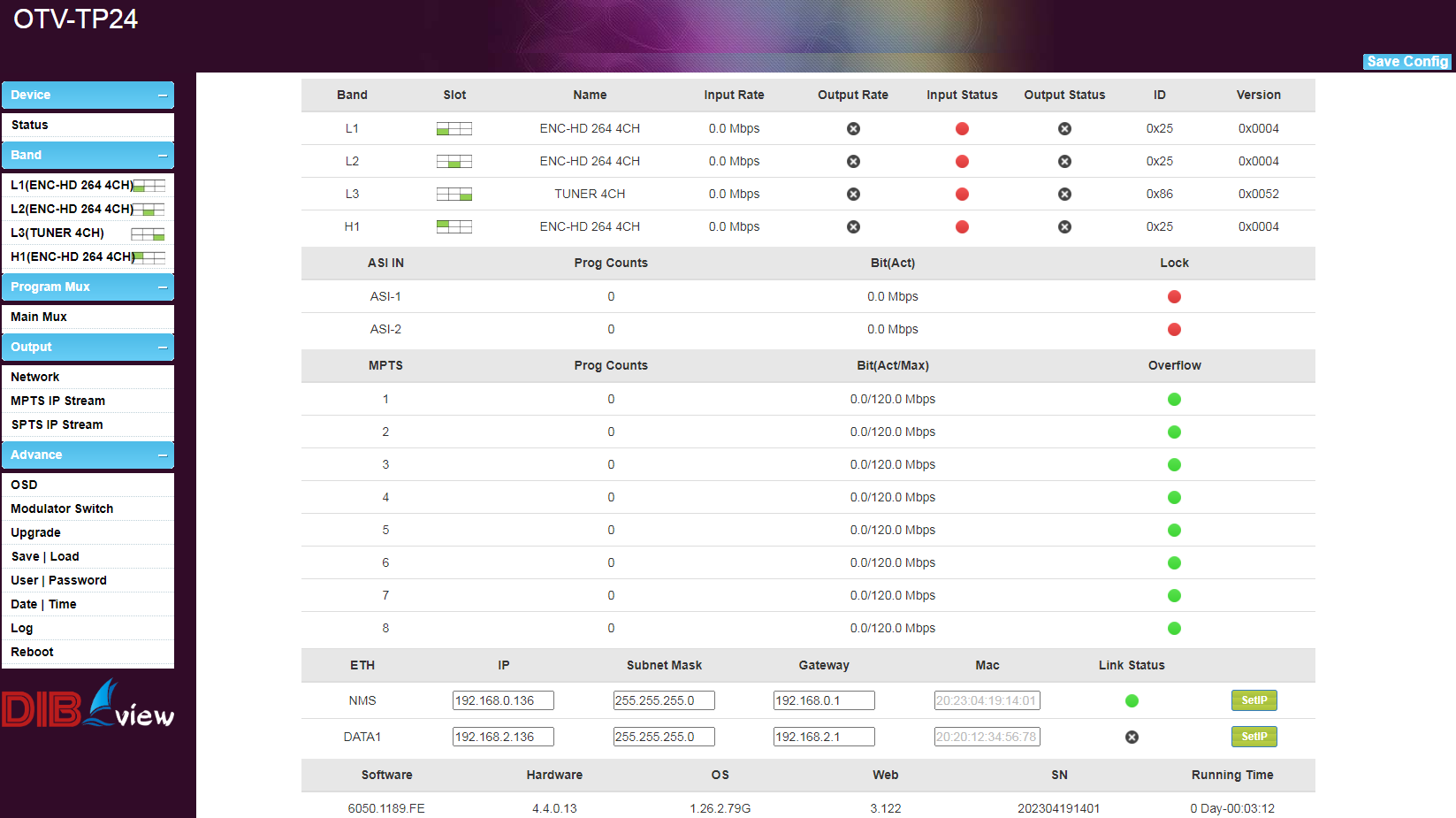

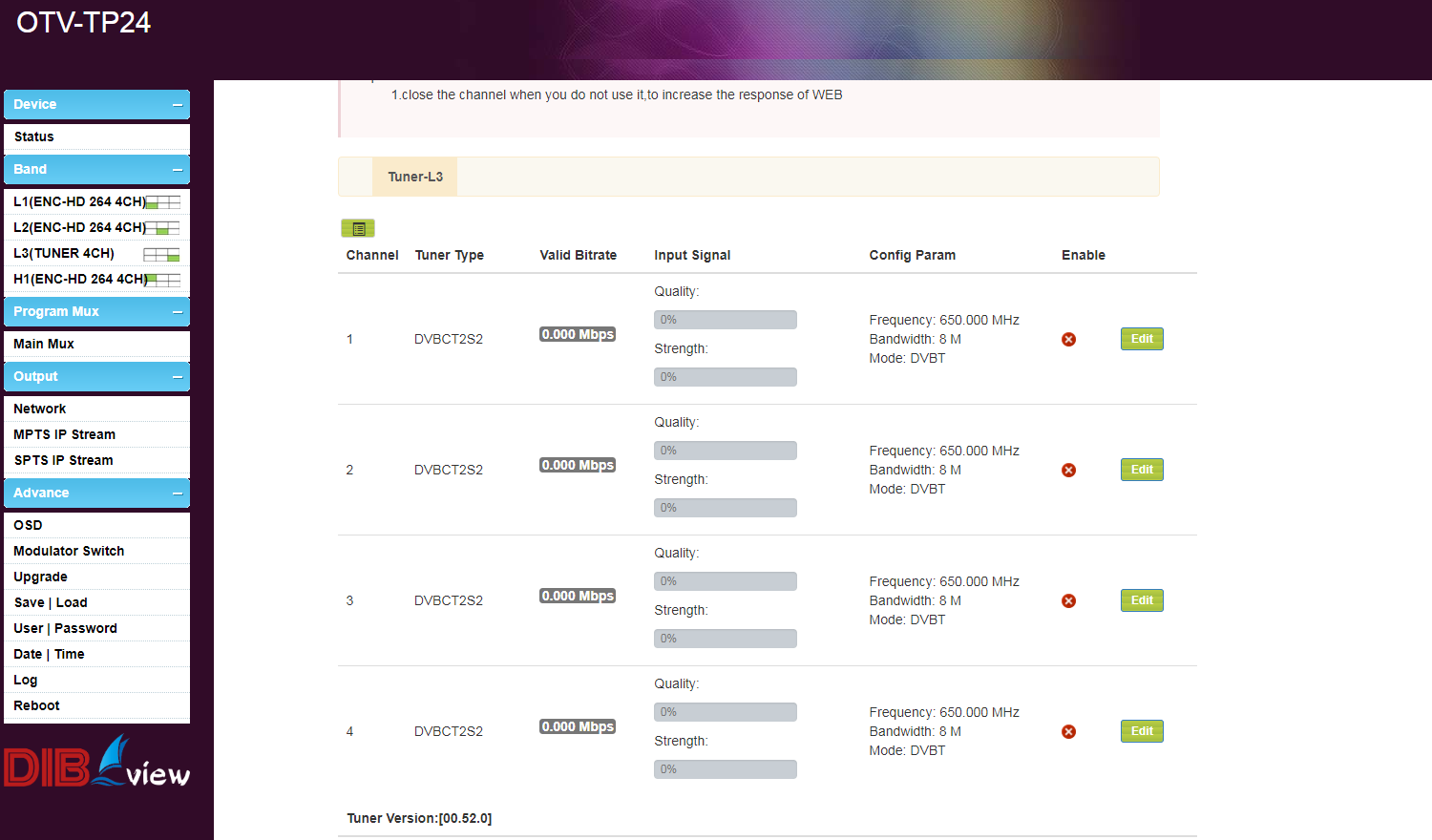

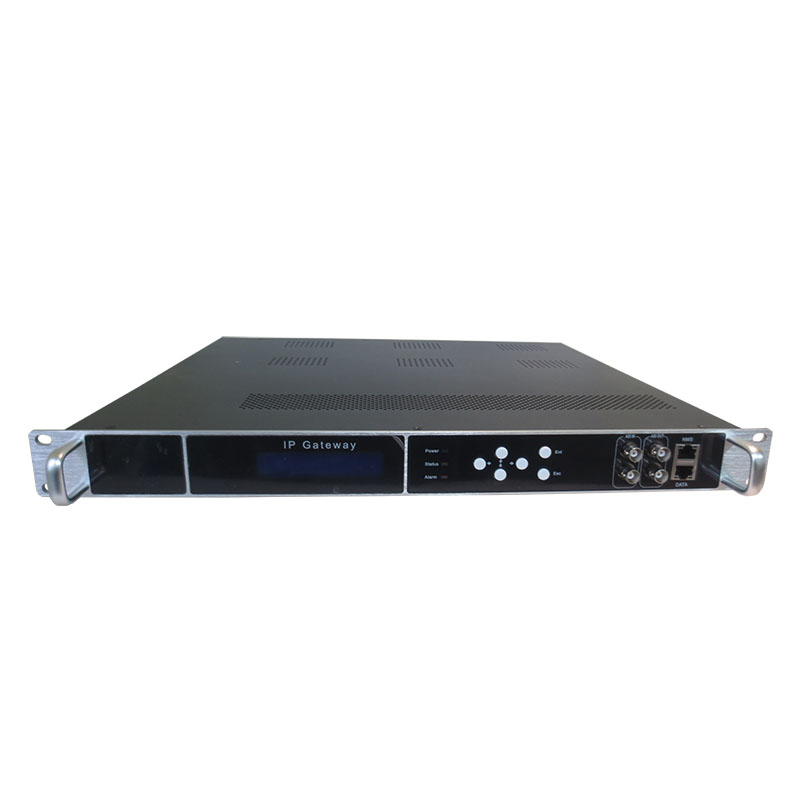

* Operation via LCD Screen and Web Management: Easy to read LCD color front panel that makes it easy to setup and monitor your
channels, check firmware, and identify IP addresses without a computer.

* Two separate ASI input for external TS multiplexing

* GigE DATA port can be used for input and output

* Capable of BISS descrambling

* IP stream output: 4*MPTS +512 SPTS IP protocol UDP/RTP/RTSP

* Low cost headend receiver for IPTV/OTT System

* Low power consumption and high reliability with MTBF(Mean Time Between Failure) ≥ 50000 Hours

* Highly compact, High-Integrate

* 24*7 hours working stable, broadcasting quality

Specifications
FTA TUNERS INPUT
IP STREAMING OUTPUT
DVB-T/T2 Tuner
Frequency Range 30MHz-1000Mhz? Bandwidth 6Mhz, 7Mhz, 8Mhz Level -87 ~ -20dBm Constellation QPSK, 16QAM, 64QAM, 256QAM (Only DVB-T2) FEC Demodulation DVB-T: 1/2, 2/3, 3/4, 5/6, 7/8 DVB-T2:1/2, 3/5, 2/3, 3/4, 4/5, 5/6 Guard Interval DVB-T: 1/4, 1/8, 1/16, 1/32 DVB-T2:1/4, 5/32, 1/8, 5/64, 1/16, 1/32, 1/64,1/128
DVB-ASI Input
Connector BNC female, 75Ω? Signal Level 200-800mVp-p Packet Length 188 bytes Maximum bit-rate per port ≤100Mbps Number of Input Ports Dual separate ASI ports
ISDB-T/Tb Tuner
Input frequency range 30 ~ 900MHz? Bandwidth 6MHz Constellation DQPSK, QPSK, 16QAM, 64QAM Interleave 0, 4, 8, 16 Guard Interval 1/32, 1/16, 1/8, 1/4 Transmission Mode 2K, 4K, 8K (FFT) FEC (Code Rate) 1/2, 2/3, 3/4, 5/6, 7/8
Multiplexing
Maximum PID Remapping 180 input per channel PID remapping by automatically or manually PSI/SI: SDI/PMT/TOT/PAT/BAT/CAT/TDT/NIT Insert Accurate PCR adjusting Max Numbers: 4 mux for RF and 1 Mux for 4MPTS(4MPTS channels can Separate MUX) IP out in Modulation 4 MPTS IP out in Tuners gateway
DVB-C Tuner
DVB-C (J83.A, J83.B, J83.C) Carrier Annex A Annex B Annex C Constellation (QAM) 16,32,64,128, 256 64 256 64/256 Bandwidth (Mhz) 8 6 6 6 Symbol Rate ( Mbaud) 5-7 5.057 5.361 4.2-5.3 Numbers of Boards 4 Tuners ports per module, Up to 6 Modules in Back panel Numbers of tuner 8, 12, 16, 20, 24 tuners for option Tuner type DVB-C,DVB-S/S2,DVB-T2/T, ISDB-T/Tb, ATSC, DTMB for option Tuner interface Connecter F-female type
Stream Output
DVB-ASI: 2 Separate ASI, 75Ω, BNC, 188Bytes MPEG-2 TS over DVB-ASI (EN 50083-9) Selectable Mirror of One MPTS RJ45 Port: 100/1000M GbE Port Simultaneous output with 512* SPTS and 4*MPTS MPEG-2 TS over UDP, unicast, and multicast streaming MPEG-2 TS over RTP/RTSP Configurable Packet size (2-7)x188 Bytes Filter Null Packet SPTS limit selectable: 2.3M, 2.5M, 2.9, 3.3M, 3.8M, 4.6M,5.7M, 7.6M, 11.5M, 23M
DVB-S/S2 Tuner
Input Frequency :950-2150Mhz? Symbol rate 2~45Mbauds (DVB-S QPSK) 1~45Mbauds (DVB-S2 QPSK) 2~30Mbauds (DVB-S2 8PSK) Signal Strength: -65 ~ -25dBm FEC Demodulation: 1/2, 2/3, 3/4, 5/6, 7/8(DVB-S QPSK) 1/2, 3/5, 2/3, 3/4, 4/5, 5/6, 8/9, 9/10 (DVB-2 QPSK/8PSK) Roll Off 0.20; 0.25; 0.35(Only DVB-S) Demodulation Mode QPSK, 8PSK (Only DVB-S2) LNB Polarity Selection Vol 0, 13V, 18V Selectable LNB Band Selection Tone 0/22Khz Selectable Input Impedance 75 Ω FEC (Code Rate) 1/2, 2/3, 3/4, 5/6, 7/8
System
Local interface LCD + control buttons? Configuration Interface Web-based, NMS Remote Upgrade via network Connector RJ45, 100M/1000M Ethernet interface
ATSC Tuner
Frequency range 50–860 MHz? Key reference specification ATSC A/53 Input level -34 to +40 dBmV Constellation 8-VSB
Physical and Power
Voltage 100 to 120/200 to 240V AC ±10%; 50/60Hz? Consumption 60W Operating temperature 0~50°C Storage Temperature -20 ~ 80℃ Dimensions 485mm(W)382mm(D)44.5mm(H) Weight 7.2kg/pc

Key Diagram or Application

Product Details

Why Choose Us

1. 12 years experience in DVB front-end equipments, more than 100 different items
2. All products are developed by our experienced R&D team, which allow us to provide best after-sale support
3. Excellent pre-sale and after-sale professional technical team
4. High quality control with competitive price, quality is very important and always be put at the first place. Dibview team members are always paying great attention to quality controlling from the beginning to the end. Inspections of each step will be done during the production process.
5. Fast feedback and fast delivery
6. OEM & ODM also supported
7. We can provide one or several sample for testing
