FTTH Drop Wire Suspension Clamp

Description

FACH-BW-17 Fiber Optic Drop Cable Suspension Clamps are used for enabling mobile suspension of round or flat drop cables ? 2 to 8mm on central poles used for distribution networks with spans up to 70m. For angles superior to 20°, it is recommended to install a double anchor.

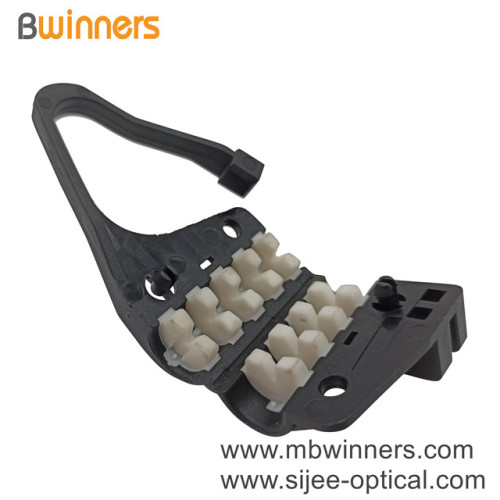

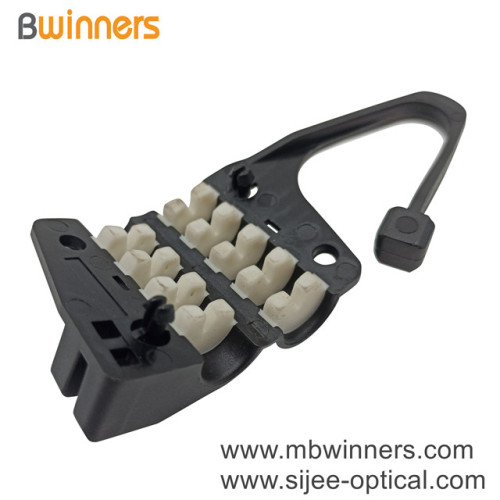

Suspension clamps are designed with a hinged plastic shell equipped with an elastomer protective insert and an opening bail. The clamp's body locks with 2 built-in clips, while the integrated cable tie allows securing the clamp once closed.

Specification

Name	Fiber Optic Drop Cable Suspension Clamps
Model	FACH-BW-17
Material	UV Resistant Nylon
Cable Diameter	Round cable 2-8(mm)
Breaking Load	0.3kN
Min. Failing Load	180 daN
Weight	0.012kg

Features

1)Material UV Resistant Nylon, Lifespan:25 Years.

2)Drop Wire Clamp for managing round drop cables diameter with ? from 2 to 8mm.

3)Dead-ending of round drop cable on poles and buildings.

4)Suspension of drop cable at intermediate poles by using 2 drop clamps.

5)Effective and cost-efficient for cabling.

6)Installation within a couple of seconds, requiring no tools

7)Suspension clamps offer more protection to prevent aeolian vibrations.



Application

FTTH drop wire clamp is used to fix the round cable.

Dead-ending of round drop cable on poles and buildings.

More photos:
