Full automatic multi-function eyebrow pencil eyeliner pencil cartoning machine
Full automatic multi-function eyebrow pencil eyeliner pencil cartoning machine

Video

1 / 2

Full automatic multi-function eyebrow pencil eyeliner pencil cartoning machine

  • $21000.00

    ≥1 Piece/Pieces

  • $19000.00

    ≥3 Piece/Pieces

power:

  • 0.75kw

Model:

  • GSZ-120
Get Latest Price

Basic Info

Model No. GSZ-120
Brand Name selection
Types of Multi-Function Packaging Machine
Applicable industry Food Shop
Out-of-warranty service No Service
Where to provide local services (in which countries are there overseas service outlets) None
Showroom location (in which countries are there sample rooms overseas) None
status New
Features Wrapping
application Food
type of packaging Cartons
Packaging Materials Plastic
degree of automation Automatic
Power type Electric
place of origin China
warranty period Unavailable
Core selling point Easy To Operate
Marketing type Other
Mechanical test report Provided
Video factory inspection Provided
Core component warranty period Not Available
Core components Motor
Show More

Product description

About The Product

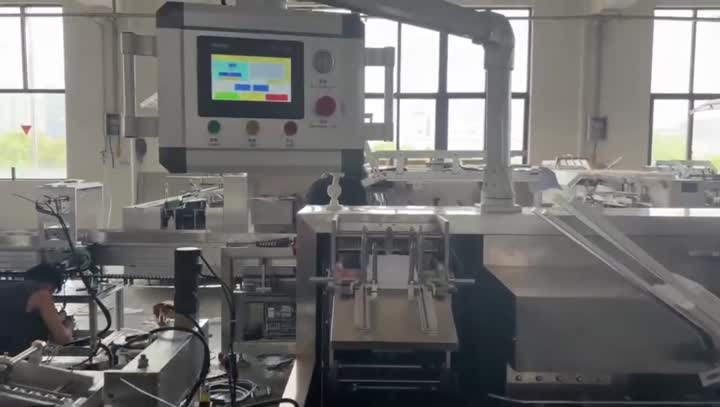

This equipment is new model developing base on integrated domestic and foreign vanguard technology it is high technology product incorporates pneumatic-photo-electro-mechanic which improve by a large on performance of equipment and working efficiency, realize encasing fast, keep running steady and reliable when fast running, This machine is suitable for automatic feeding product of multi-varety multi- specifications into carton(either forblister or bottle).Adjust automatic feeding structure conveniently setup quantity of blisters on touch screen randomly. On line product feeding and detecting, leaflet fold(1-4folds)and feeding.leaflet detecting, canton opening and forming. product sand leaflet pushing into carton, printing batch number, sealing carton with tuck-in or hot melt glue device. Automatically reject lacking of leaflet or product and finished product out.

Encasing Speed

30-120Cartons/min

Carton

Quality requirement

Dimension range(LxWxH)

250-350g/ Base on carton size

(65-155)mmx(30-85)mmx(14-50)mm

Leaflet

Quality requirement

Unfolded leaflet specification(LxW)

Fold range(LxW)

60-70g/

(80-250)mmx(90-170)mm

1-4(Fold)

Compressed air

Working pressure

Air consumption

20.6mpa

120-160L/min

Power supply

Motor power

220V/380V 50HZ

0.75kw

Machine dimension

Machine weight

1200mmx990mmx1700mm

About 1100kg
