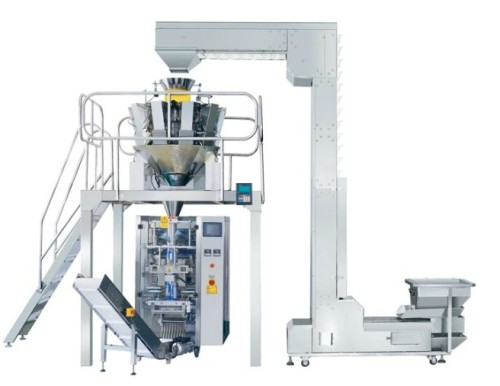

I. 420 complete set Include five parts:

① GQ-420 automatic vertical packaging machine

② 10-head computer combination scale

③ Z-type material conveyor (with vibration device)

④ Finished product conveyor

⑤ Working platform

Application:

Suitable for the packaging of bulk objects requiring high metering accuracy and fragility, such as puffed food, potato chips, potpourri, jelly, candy, pistachios, peanuts, beans, apple slices, dumplings, dumplings, herbs, etc.

II. Whole set of technical parameters.

1. Packaging speed: about 20-60 bags/min, depending on the quality of packaging film and materials.

2. Packing size: bag making width 60-200mm length 50-300mm. Changing different film widths need to change the shaper, length limited adjustable.

3. Bag-making form: packaging materials with rolled film, automatic bag-making machine for the top seal, bottom seal plus back sealing, easy to tear the mouth or flat mouth, with printing date device.

4. Whole set of power: about 3.8KW

5. With the air compressor for not less than 1 cubic (required party to purchase), such as nitrogen filling required party to purchase their own nitrogen machine, the packaging machine production has been equipped with a good source of gas.

6. overall height of the package: about 3.5 meters.

III, Introduction of the machine.

1. GQ-420 automatic vertical packaging machine

* Imported PLC full computer control system, full Chinese/English touch screen operating system, clearly display the working status and operation instructions.

* High precision servo film transport system, smooth film transport, with the photoelectric automatic positioning tracking system, high positioning accuracy.

* Intelligent digital temperature control system, stable temperature difference control, with a tooth-shaped sealer to ensure firm sealing.

* Including automatic fault alarm display function, such as low temperature, no packaging film, no ribbon, no material, servo fault, no color code signal, and automatic alarm or stop function when the glass protection door is opened.

* The machine can automatically complete the whole packaging process of metering, feeding, bag filling, date printing, and finished product output with the matching of the metering device.

Technical parameters:

Model	GQ-420
Packing speed	5-80 bag/min
Bag size	(L)50-300mm (W)60-250mm
Film thickness	0.04-0.08mm
Air consumption	0.6m3/min
Bag material	Heat sealable laminates film（OPP/CPP、OPP/CE, MST/PE、PET/PE）
Total power/voltage	3KW/220V 50-60Hz
Overall dimension	3500×2000×3700mm
Gross weight	700kg

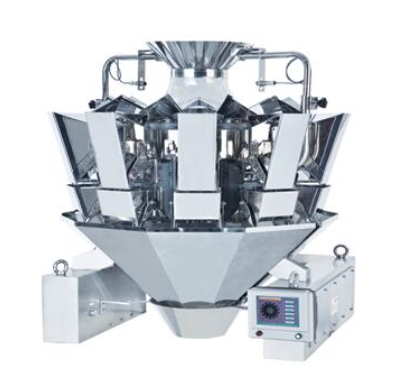

2. 10-head computer combination scale

Applicable products:

Candy, melon seeds, potato chips, pistachios, peanuts, jelly, frozen dumplings, cookies, chocolate, nuts, pet food, puffed food, small hardware, plastic parts and other kinds of granular, flaky, strip, irregular-shaped materials quantitative weighing.

(2) Technical parameters：

Model	Ten-head computer combination scale
Single  weighing range	10-1000g
Max. weight	3000g
Weighing  accuracy range	0.1-1.5g
Max. weighing speed	70bag/min
Hopper  capacity	1300ml
Hopper type	Double row without memory bucket
Drive mode	Stepper motors
product preset number	99
Overall dimension(mm)	1150(L)X950(W)X1129(H)



3. Z-type material conveyor (with vibration device)

1）Introduction

This elevator is suitable for vertical lifting of granular materials in the departments of grain, food, feed and chemical industry. The elevator is driven by the chain drive to lift the hopper, used for vertical conveying of granular and small lumpy materials, with the advantages of large lifting capacity and high lifting degree.

2）Technical parameters

Lifting height ：can be determined by customer

Total power ：500w

Lifting speed ：0-17m/min

Lifting capacity：5.5m3/hour

Size: can be made according to customer requirements material, carbon steel spraying or stainless steel, and material contact parts for food-grade plastic.

3）Vibrating feeder：Vibrating way to convey the material from the magazine to the material conveyor.

Equipped with stepless regulator to adjust the conveying volume.

Maximum conveying capacity: 2㎡/hour

Volume: 0.5m3

4. Finished product conveyor

(Function: Convey the automatically packed finished bags to the post-packaging inspection equipment or packing platform)

Size：2110×340×500mm

Voltage： 220V/45W

Conveying speed ：30m/min

4. Working platform
