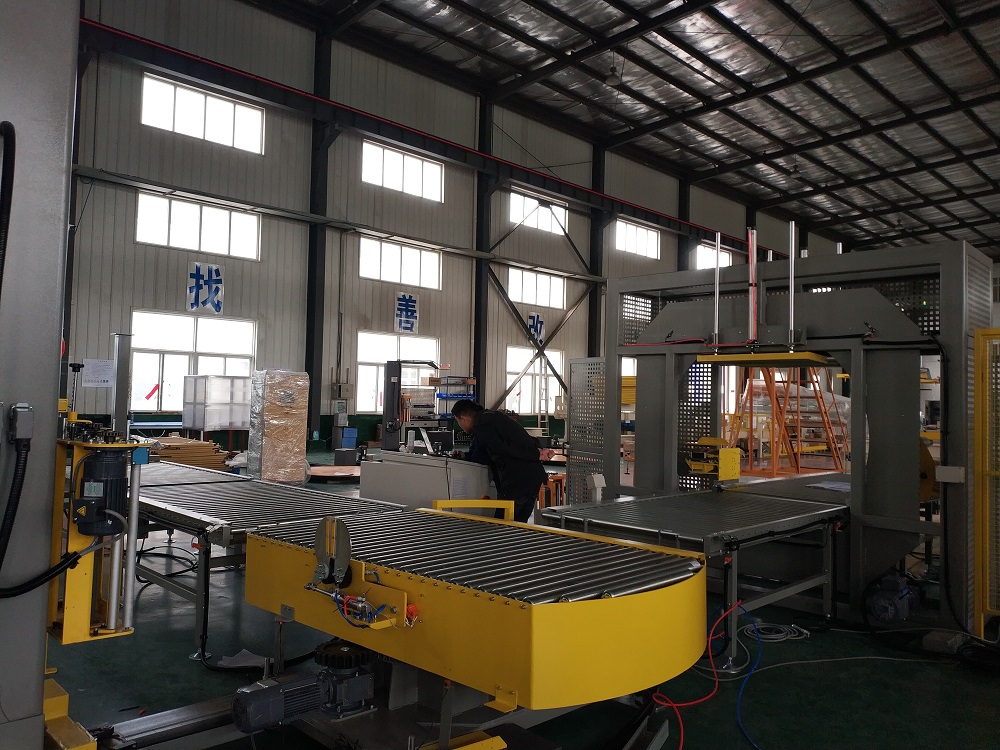

This packing line is suitable for cupboards, cabinet, kitchenware, household appliances, etc.

Project system packaging process:The whole pallet goods enter the packaging line,roller conveyor conveys palles. The S  Series Horizontal Stretch Wrapping Machine packs in four directions firstly. After wrapping, pallet comes to T Series pallst Stretch Wrapping Machine position to package on both sides automatically. At last goods will be unloaded in turn.

Machine Introduction

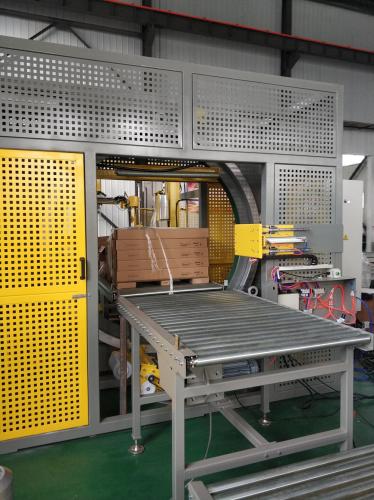

1. Horizontal stretch wrapping machine wraps tube or plate that won't fit on a turntable, require banding, compression or extra packing for shipment. It has a proven record of success in many industries such as profiled product, tubular product and plank stuff etc.

We offer a wide variety of options to meet your specific requirements. Each application is evaluated to provide the right solution to your needs.

1.2. Specification

Rotating ring inner diameter:	1400mm
Wrapping dimension:	Width: 600-800mm Depth: 50-800mm Length: ≥1200mm
Weight:	max.2000 kgs
Rotating ring speed	Max. 50-60rpm
Compressed air pressure	0.5Mpa Air consumption 10L/M
Motor power rotating ring:	2.2kw  Conveyor: 1.1kw*2pcs  380V, 60HZ, 3phase
Stretch film	Width: 250mm;
Core size:	Diameter: max 260mm
Thickness:	14-35μm
Color Main machine:	Sinolion Standard






1.3. Control System

PLC electric control system, touch screen panel
Ring rotating speed controlled by the inverter
In-feed & out-feed conveyor speed controlled by the inverter
Start and finish cycles are controlled by photocells

Auto film cutting and conveying unit

2. AutomaticTurntable Stretch Wrapping Machine

2.1. Technology data:

Max load size(mm): 1200 x 1000 x 2400mm
Max .Packing efficiency : 30-40 pallets / hour
Turntable turning speed : 3-15rpm
Turntable diameter:  1800mm
Max load capacity: 2000kgs

2.2 Film carriage

Powered pre-stretch system up to 1:3.5 to min film consumption(Pre-stretch ratio can be specially made )
Carriage door opens for effortless roll change and thread stretch film

2.3  Turntable
Diameter: 1800mm
Slew bearing transmission: shown as below

2.4 Control system

No.	Item	Brand	Original
(1)	PLC& Inverter	Omron	Japan
(2)	Touch screen	Omron	Japan
(3)	Photo eye	Contrinex	Switzerland
(4)	Proximity switch	Omron	Japan
(5)	Air cylinder	Festo	Germany
(6)	Solenoid valve	Festo	Germany
(7)	Motors	SEW	Germany
(8)	Breaker	Schneider	France
(9)	Contactor	Schneider	France
