Fully Automatic Servomotor Controlled Plastic Cup Thermoforming Machine

Video

1 / 6

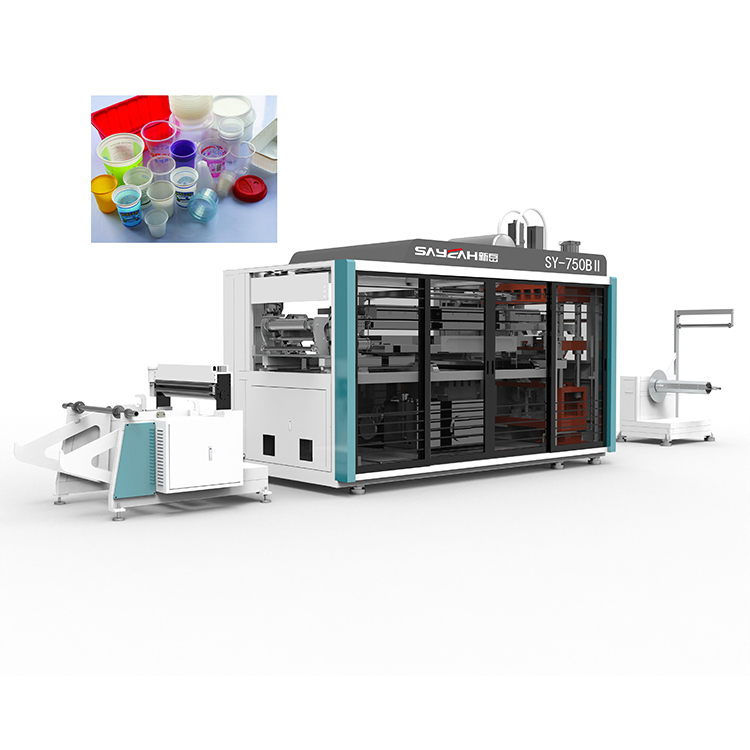

Fully Automatic Servomotor Controlled Plastic Cup Thermoforming Machine

$60000.00

≥1 set
$40000.00

≥3 set

Options:

SY-750B I

Get Latest Price

You might also like

Customized Automatic Plastic Thermoforming Pet Pp Ps Yoghurt Cup Making Machine

1 set (MOQ)

Automatic Thermoforming Machine for Cheap Price: Plastic Bowl and Cup Production Line

1 set (MOQ)

Fully Automatic Servomotor Controlled Plastic Cup Thermoforming Machine

1 set (MOQ)

Full-Automatic Biodegradable Cup Making Machine | Plastic Thermoforming Equipment

1 set (MOQ)

Automatic Thermoforming Machine for Disposable Plastic Cup Production

1 set (MOQ)

Automatic Thermoforming Machines for Biodegradable Flowerpot Plastic Cups

1 set (MOQ)

Manufactory Price: Plastic Thermoforming Machine for Ice Cream and Coffee Cup Production

1 set (MOQ)

2024 New Full Automatic Plastic Cup Making Machine: Corn Starch Cup Manufacturing Equipment

1 set (MOQ)

4 Pillar Plastic Cup Thermoforming Machine for Plastic Product Manufacturing

1 set (MOQ)

Best Selling Cheap Disposable Plastic Cup Forming Machine

1 set (MOQ)

Basic Info

Model No.
Brand Name
Processing type	Plastic Thermoforming Machine
Plastic type	Hips
Max.Forming Height(mm)	220 mm
Forming Width (mm)	450 mm
Forming Length (mm)	750 mm
Production Speed(Cycles/min)	35
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Warranty of core components	1 Year
Core components	Plc
Air Pressure(MPa)	0.6 MPa
Sheet Thickness(mm)	0.2 - 2 mm
Heating Power (kW)	181 kW
Air Comsumption(L/min)	2000 L/min
Water Comsumption(L/min)	100 L/min
Condition	New
Product Type	Plastic Cup
Place of Origin	Zhejiang, China
Brand Name	SAYEAH
Voltage	380V/50HZ
Dimension(LWH)	400017302600mm
Weight (T)	6.8 T
Power(KW)	181
Warranty	1 Year
Applicable Industries	Hotels, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Food & Beverage Shops
Key Selling Points	Easy to Operate
Showroom Location	None
Product name	Disposable glass machine price
Control method	PLC
Pillar	Four pcs
Forming Area	750*450mm
Machine Type	making machine
Sheet Thickness	0.2-2mm
machine	glass machine
Power(W)	181KW

Product description

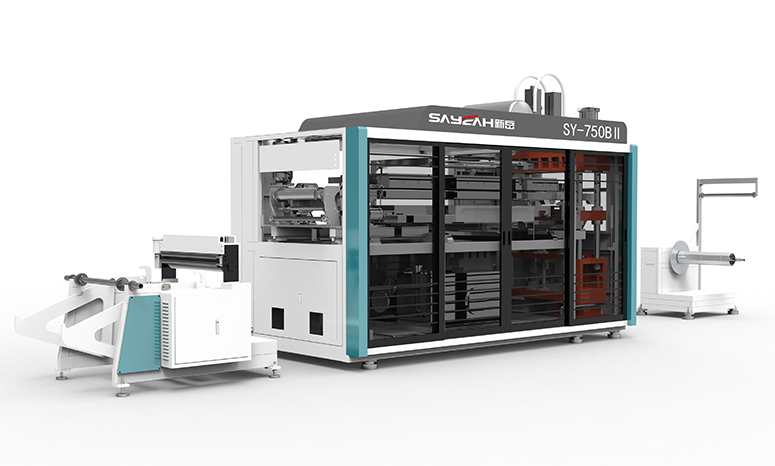

Model	SY-750B I	SY-750B Il	SY-750B Ill	SY-750B I H
Max.Forming Area	750X450mm
Running Pattern	Hydraulic	Hydraulic	Servomator	Eccentric wheel
Max.Dry Cycle Speed	35Cycles/min	35Cycles/min	40 Cycles/min	35Cycles/min
Feeding Patern	Motor With Encode	Servomator			Motor With Encode
Sheet Specification	THK: 0.2-2mm, W: Max.780mm
Max.Forming Depth,Sample Height	? ? ?≤130mm with robot , ≤150mm by blowing					≤220mm(with robot) ,≤240mm(by blowing)
Max.Sheet Roll Dia.	1100mm,1T
Power Consumption	65KW/H	65KW/H	60KW/H	65KW/H
Overall Power	181KW	189KW	189KW	190KW
Dimension	L4000W1730H2600
Weight	6.8T	7T	7T	8T

Production Product Display

Products Description

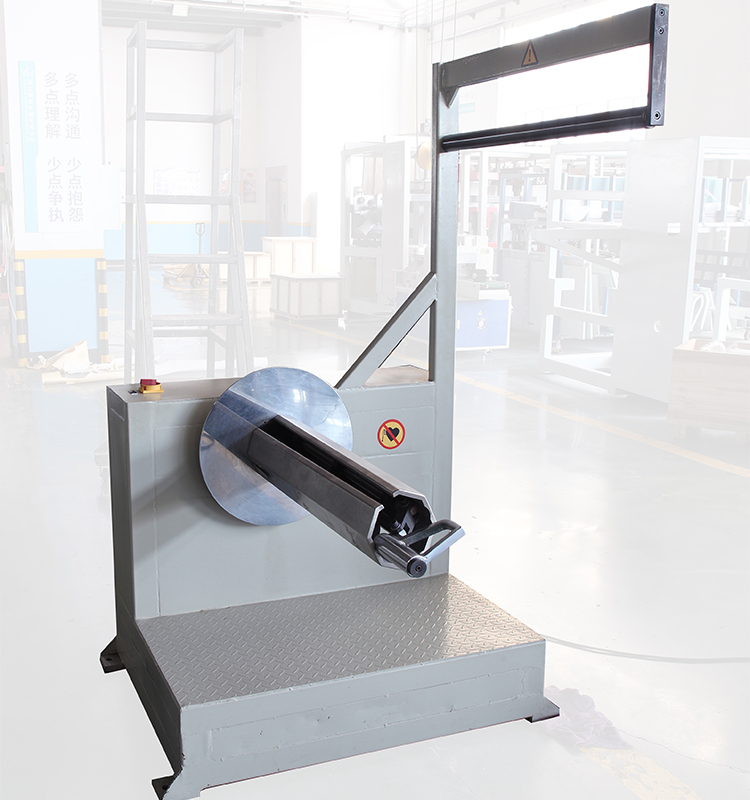

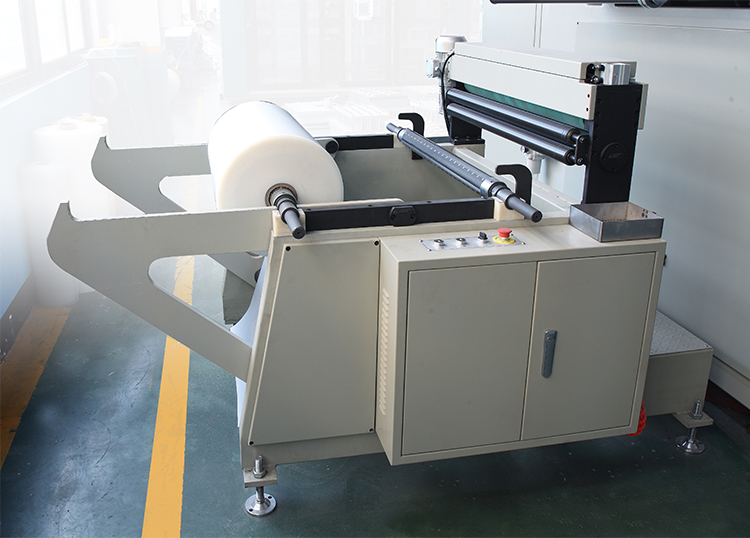

Unwinder

The unwinder was lifted by the electricity, and the sheet roll max load weight is 1T. It can put two rolls one time for easy
replacement.

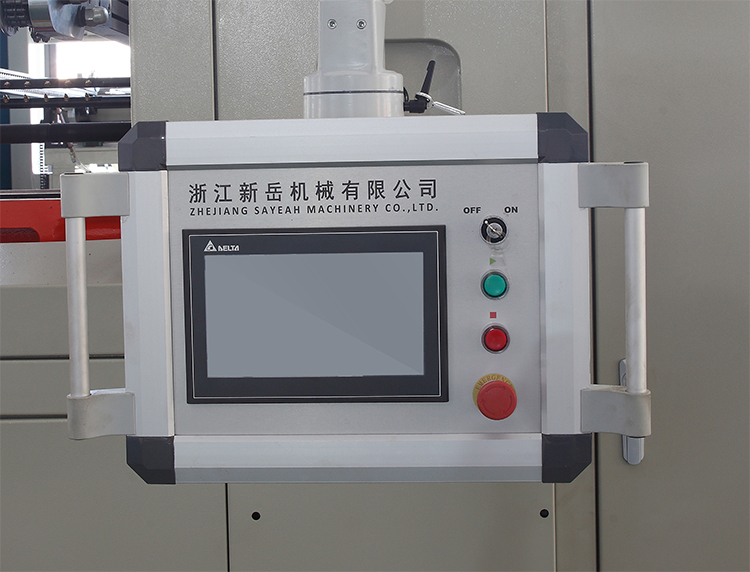

Touch Screen

Easy to operate, all-electric adjustments can be done on the touch screen.

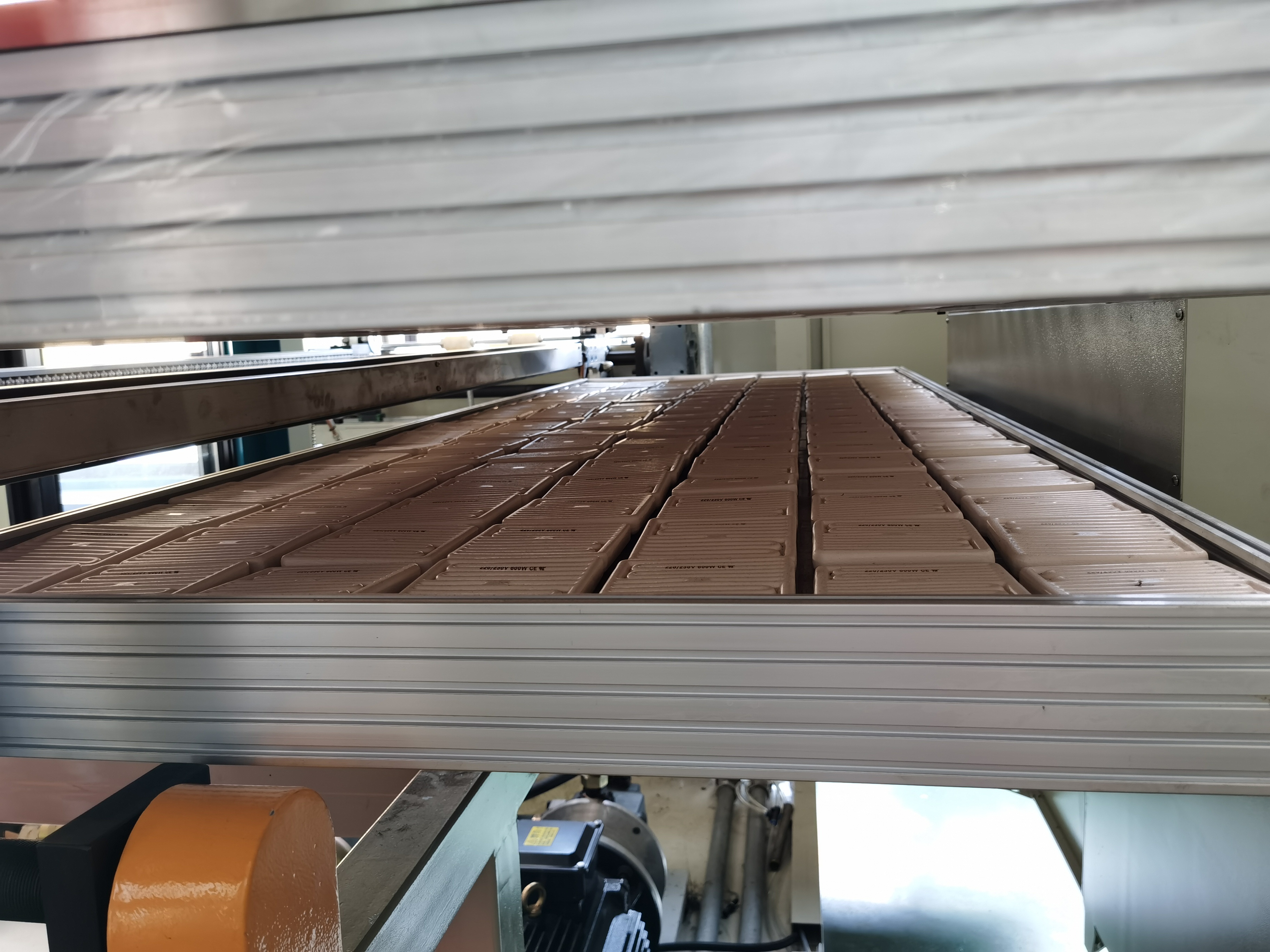

Chain

Aluminum alloy can make sure the cooling effect better. The width of the chain, forward or backward was adjusted by the motor.

Heater

It can adjust the temperature quickly and control the temperature precisely, which can save energy.

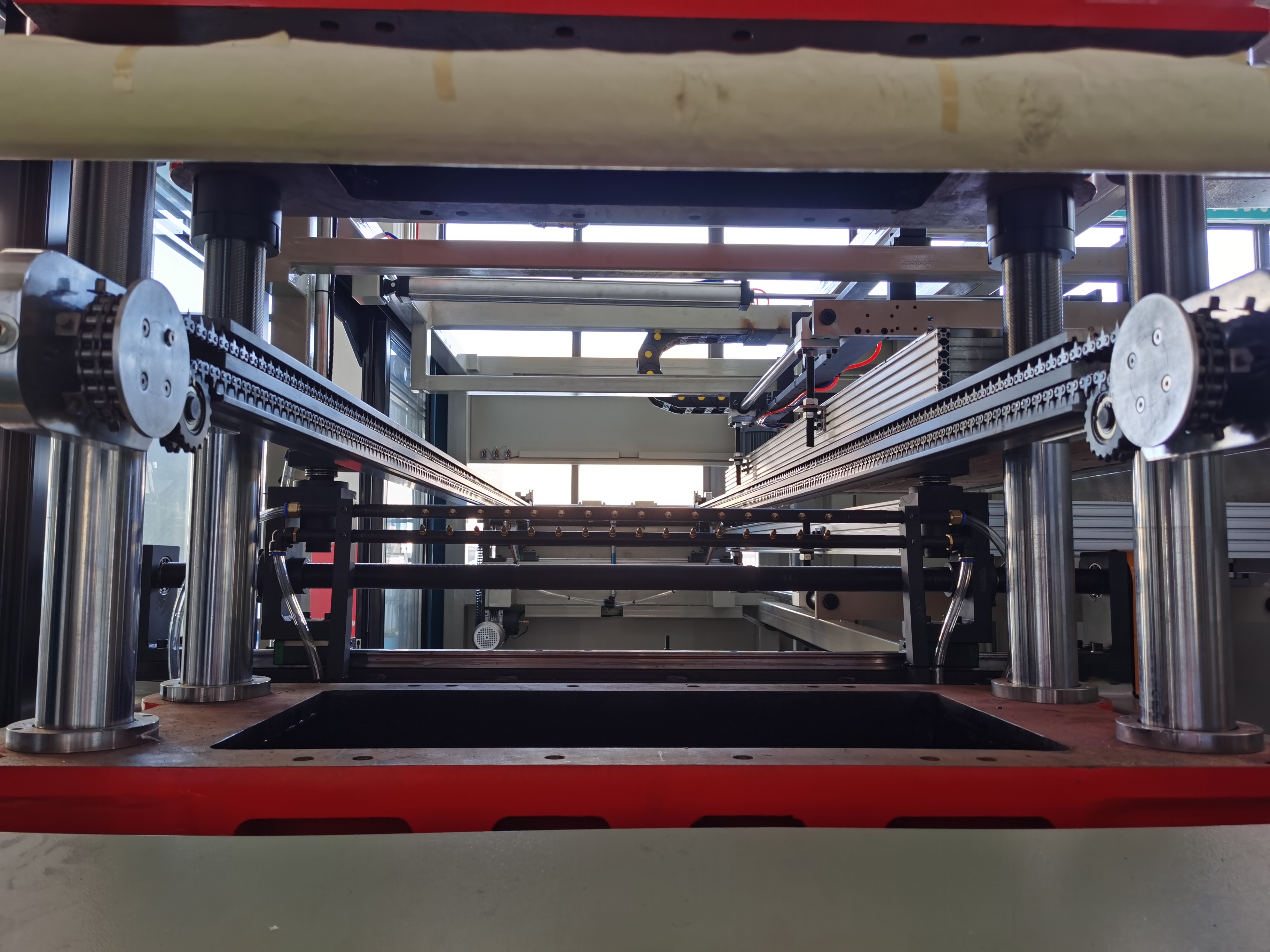

Guides

It can option for hydraulic or servo motor-driven mode and has strong power. Four-pillar can sure the guides run smoothly. And the servo stretch will make the product more uniform and the mold forming more perfect. The automatic lubrication can prolong the life of the machine.
