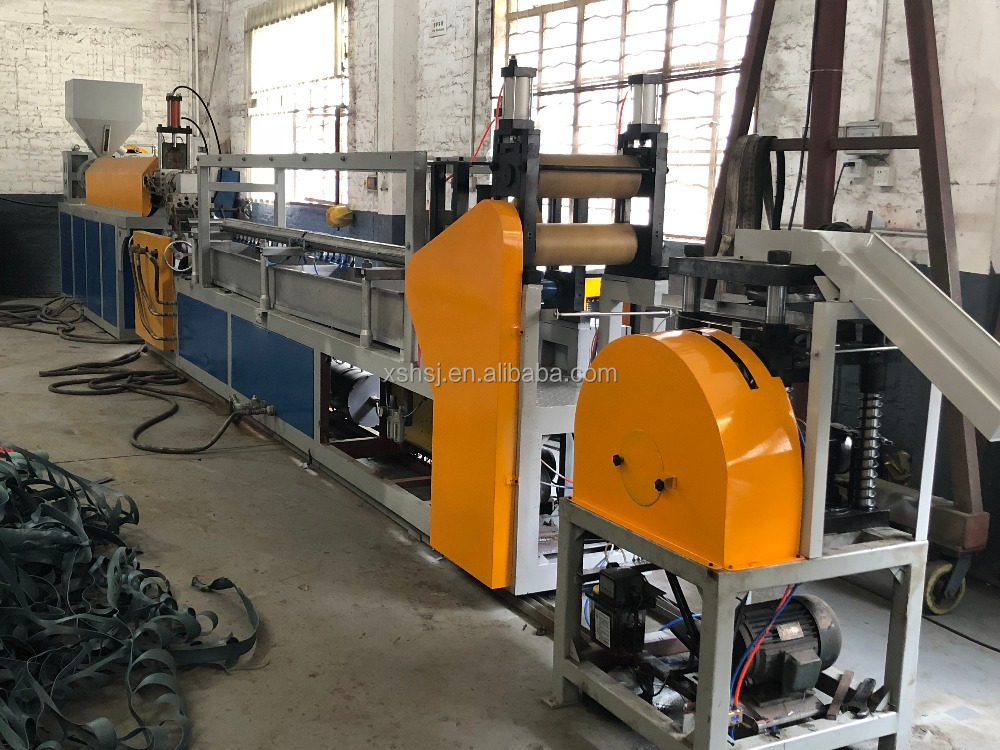

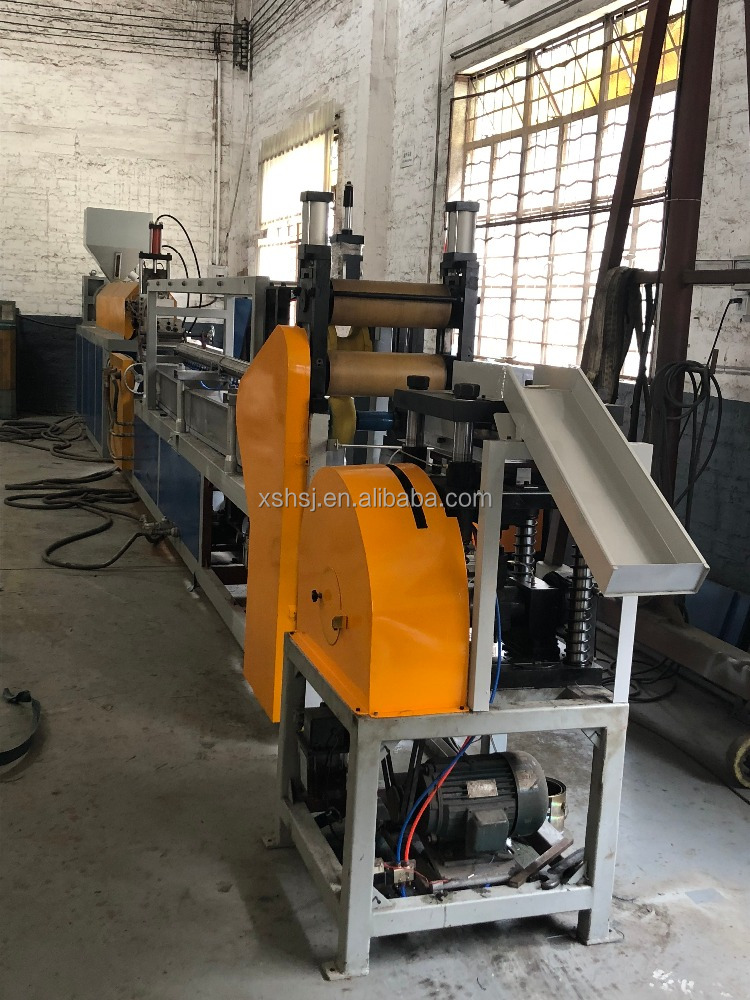

Plastic foamed sheet extruding machine introduction:

?

Strengths

?A modular construction system placing the following at customers’ disposal:
? a range of extruders including 36 models with 67 - 173 mm screw diameter and ratios from 22 to 36 D screw lengths;
? each extruder is specifically manufactured according to customer’s requirement;
? competitive prices;
? highly specialized extruders for each application;
? high performances at low rpm;
? very high melt homogeneity;
? high thrust capacity also with considerable counter pressure;
? low maintenance costs;
? long life operation.

?

?

1. Working procedure

feeding→ extruder→ filter (screen changing) →Foaming(die head) → three roller polishing →edge cutting (after cooling) → haul-off →guillotine →rewinding→ inspection→ storage

?

?

2. Product parameters:

2.1. Product layer number:?single –layer sheet

2.2. Product thickness tolerance: ±0.01mm

2.3. Useful width: 1200mm (Max), thickness range 0.8mm~3.5mm

2.4. Extruder Output: 200kg/h

2.5. Material to be extruded: PP PE PS EVA ABS

?

3. Main components of the full line

Motor: ?Germany SIEMENS;

Frequency converter: ?Japan MITSUBISHI;

Speed reducer motor:? Taiwan CHENGBANG;

Magnetic power clutch: Taiwan WEIZHENG;

Temperature Control Meter:? Japan RKC;

Auxiliary Relay:? Japan OMRON ;

Ammeter and Voltmeter:? Taiwan RISESUN;

Indicator, Switch and Button:? Taiwan TEND ;

Contactor:? Taiwan SHIHLIN ;

Line Speed Meter:? Taiwan CONCH

Haul-off tension test: ?America- TEDEA

Laser diameter measure: ?Japan-TAKIKAWA

?

3.1. Size of extruder: Single screw φ120mm (L/D:32:1)?,

3.2. hydraulic high-speed screen changer???????????????????????????????

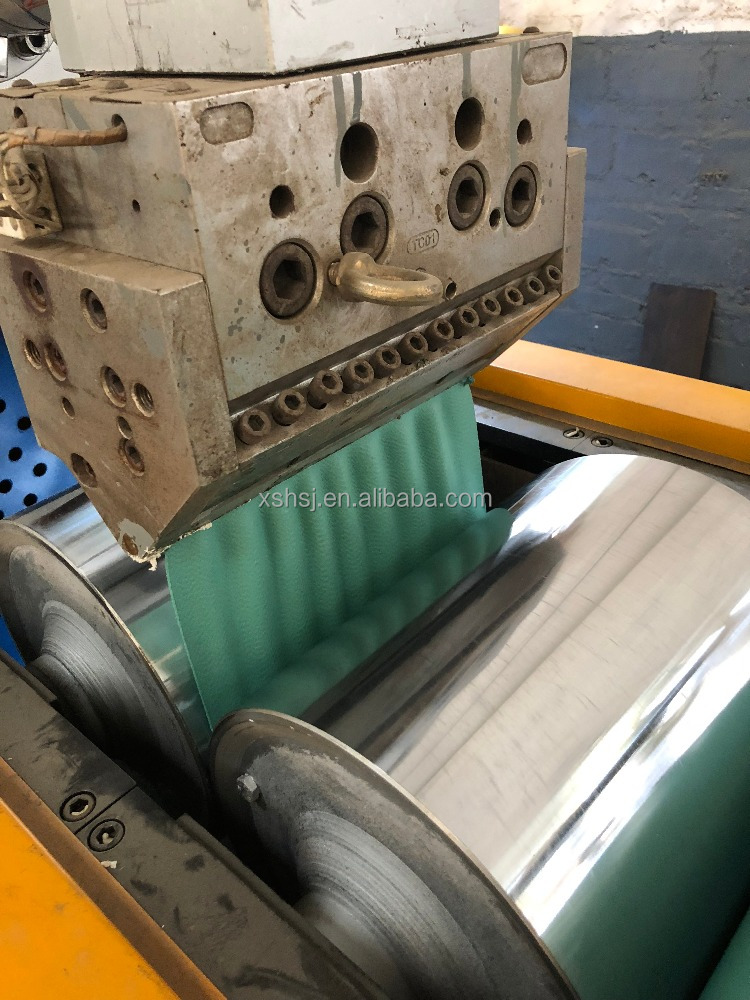

3.3. T-die head width 1300mm????????????????????????????????????????????????

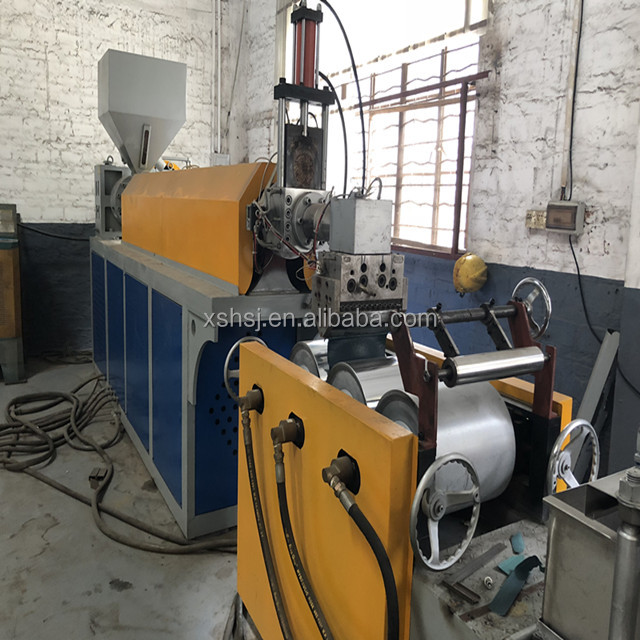

3.4?Horizontal three roller polishing machine??????????

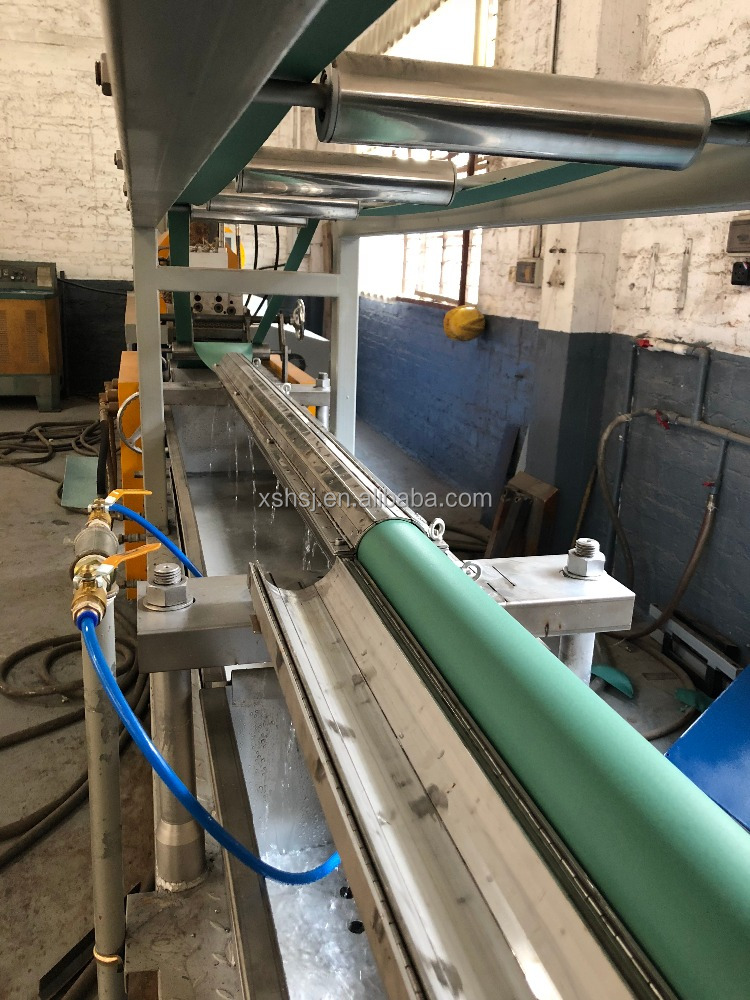

3.5 cooling device with side cutter and rewinder????

?

4. Features??

1.??Design with high technology, ensure high precision and high quality.

2.??Extruder screw with latest technology, ensure not only high extrusion output and?100% plasticization but also high gloss for finished cable

3.???Electric appliances all imported, ensure high running stability and service long life

4.???Japan RKC temperature control, improve high precision

5.???Gearbox of chromed steel alloy with high-cycle rigidifying and carefully grinding treatment to against abrasion and noise

6.???All electric elements are imported; ensure high running stability and long life

?

5. The main technique parameters

?

??

6 . Other Parameters:

?

?

?

?

?

?

If you need more information, please contact us at your free time without any hesitation. Of course, we would like to welcome you visit our company! You must be treated warmly!

?
