Product features:

Good heat dissipation

--Blade design of copper alloy contacts,good conductivity

Super high impact resistance and thermal stability

--Cover pans are made of high quality polycarbonate

Chemical corrosion resistance

-- Fingerprint-resistant zinc plated mounting brackets

Grounding

--One-piece grounding design

Mechanical characteristics

Mechanical life

--Unloaded plug≥5000Sec Loop detection

with automatic monitoring function

Product application:

Products for commercial,household,lighting



Meet the standard

UL498  UL943 CSA-C22.2 NO.42               ---UL498 UL943 CSA-C22.2 NO.42

---Housing material flame retardant grades

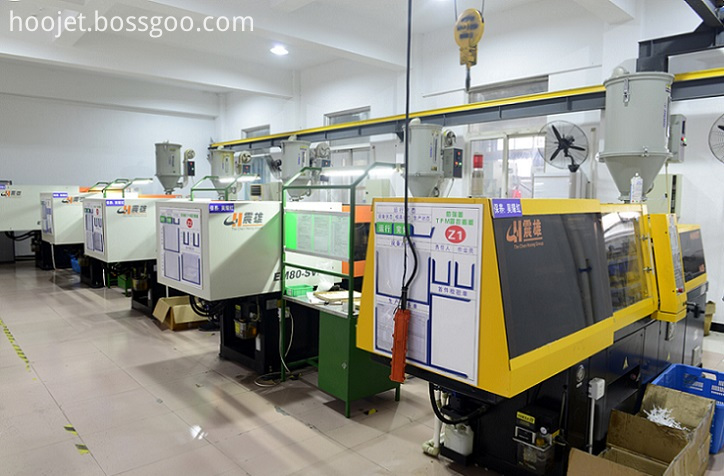

With 1 NO-DUST Chip workshop. like below.

Specifications.Electrical performance.Ambient  temperature

---Rated working current:15A

---Rated working voltage:125V

---Power frequency:     60Hz

---Tripping threshold:5mA   Tripping time＜25ms

---Surge current:6000V/3000A  6000V/10KA

---Electric strength:Pressure resistance1500V 50Hz Duration 1Min

---Working temperature:-35℃~66℃

---Insulation resistance:＞50MΩ(DC500V)

----Short-circuit current:10KA

Color:  Black   Brown  White  lvory  Almond   Gray



Products are 100% tested before packing in.

All the GFCI is produced with UL2015, self testing standard.

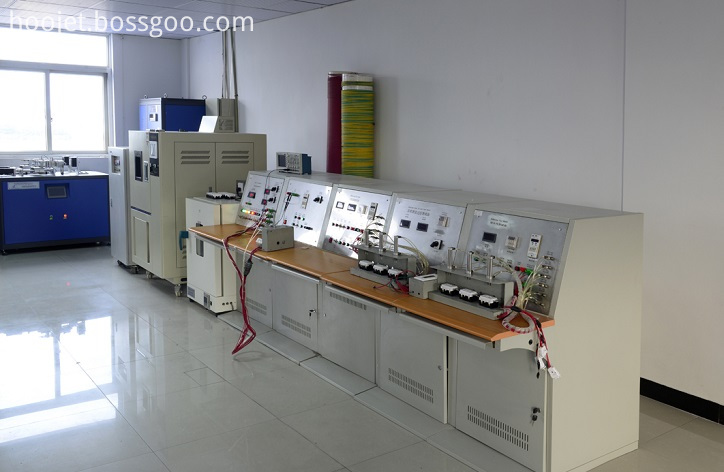

Lab is approved by UL, all the Ul listed testing can be proceeded on our Lab.
