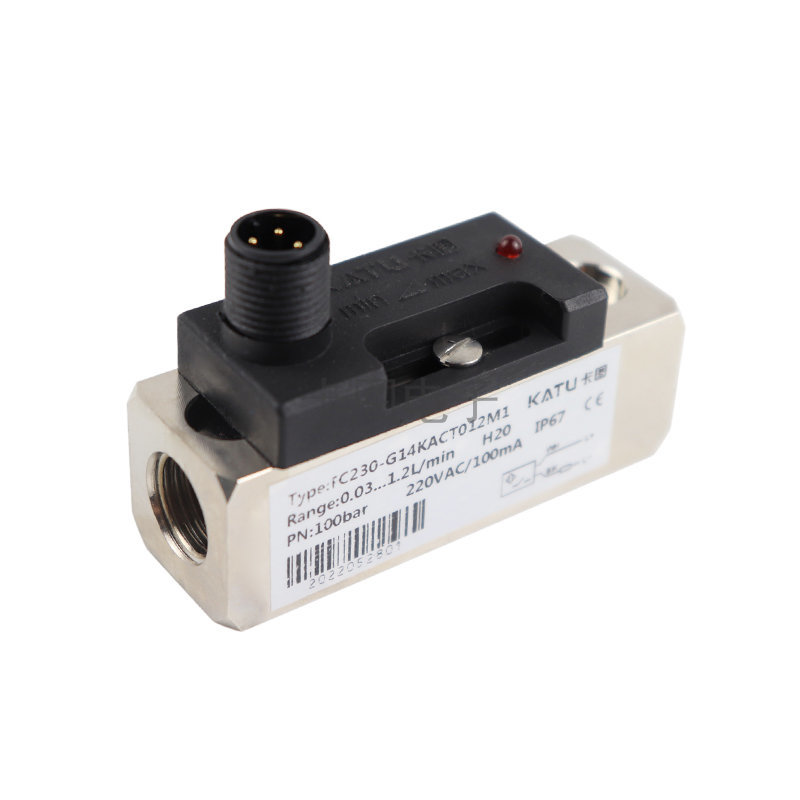

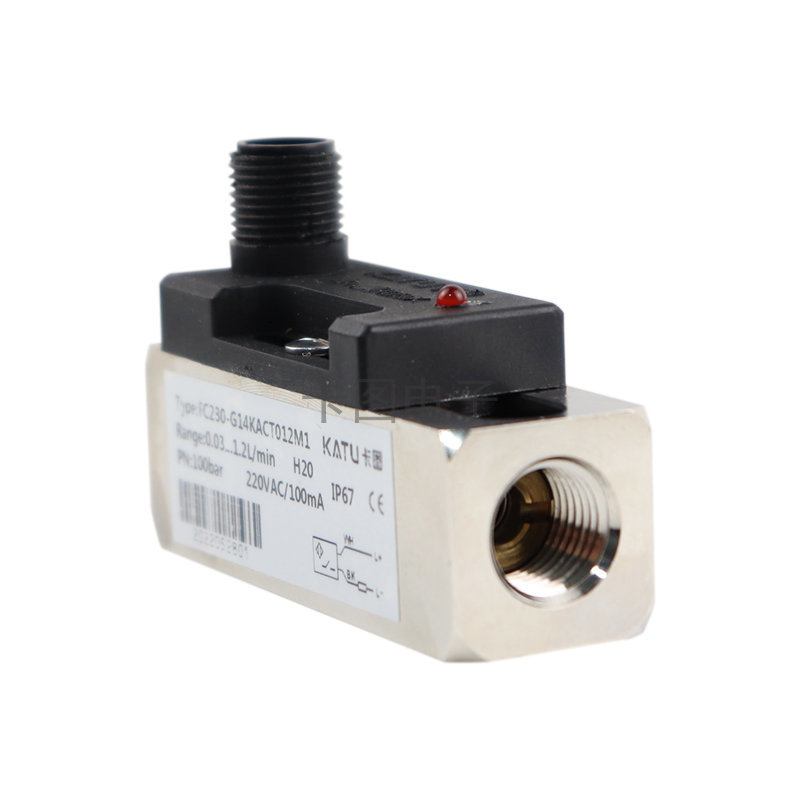

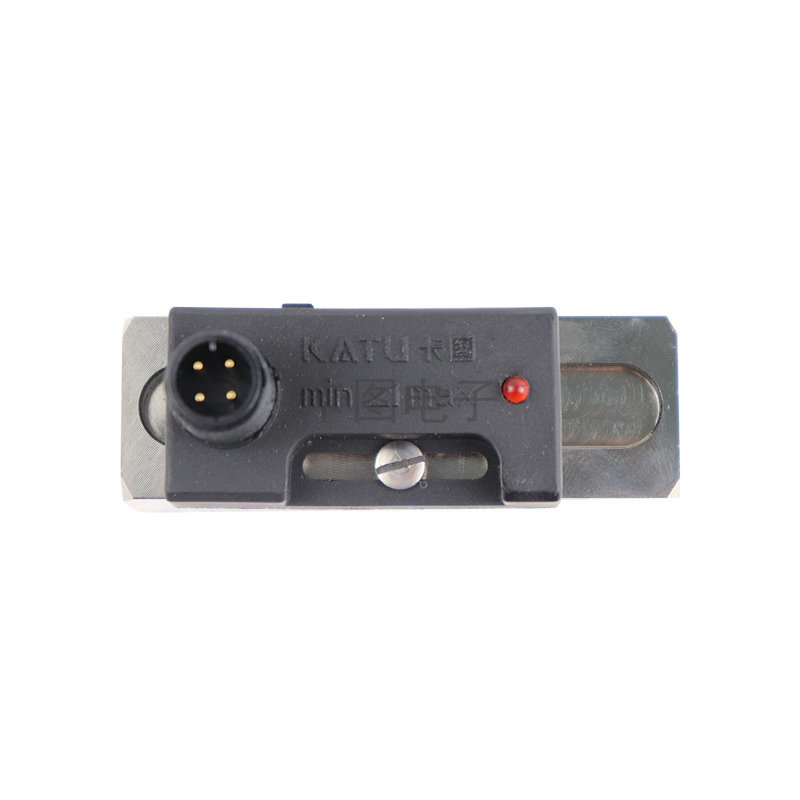

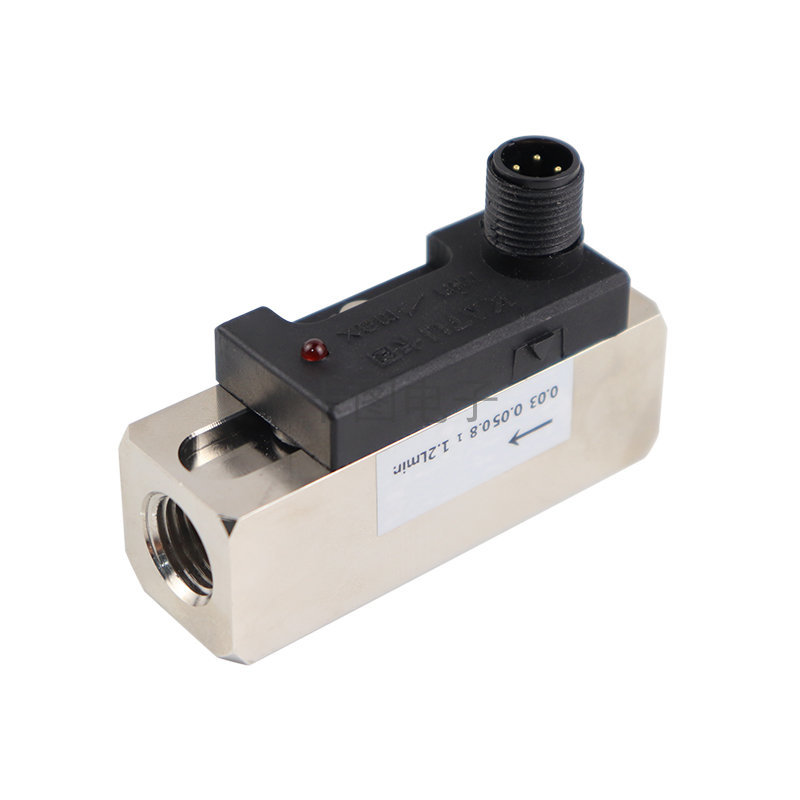

G1/4 Internal Thread Connection FC230 Piston Type Flow Sensor Switch
$31.00
≥5 piece
$28.00
≥20 piece
$26.00
≥50 piece
Basic Info
| Place of Origin | Jiangsu, China |
|---|---|
| Brand Name | KATU |
| Model Number | FC230 |
| Type | Switch |
| Application | testing |
Product description
Product name | G1/4 internal thread connection mechanical flow switch/FC230 piston type flow sensor switch | ||||||
Keyword-1 | sensor switch | ||||||
Keyword-2 | flow sensor | ||||||
Keyword-3 | flow switch | ||||||
Setting range:? | 0.03-1.2L/min |
Accuracy:? | ±5% of total range |
Hysteresis:? | depends on the switching point |
Switch setting scale:? | It is calibrated in the state of medium 46# lubricating oil, temperature 20°C, and horizontal installation. Mounting position, medium and temperature changes will slightly affect the switching value |
LED display:? | DC power supply LED display switch status, AC no LED display |
Connection method:? | M12 connector |
Output:? | Reed switch, capacity 24VDC/250VAC, 100mA |
Pressure resistance:? | 10bar (plastic), 50bar (aluminum type), 100bar (stainless steel) |
Medium temperature: | ?up to 100°C |
Protection level:? | IP65 |
Material: Shell:? | Nickel-plated brass Piston: Brass Spring: Stainless steel |
