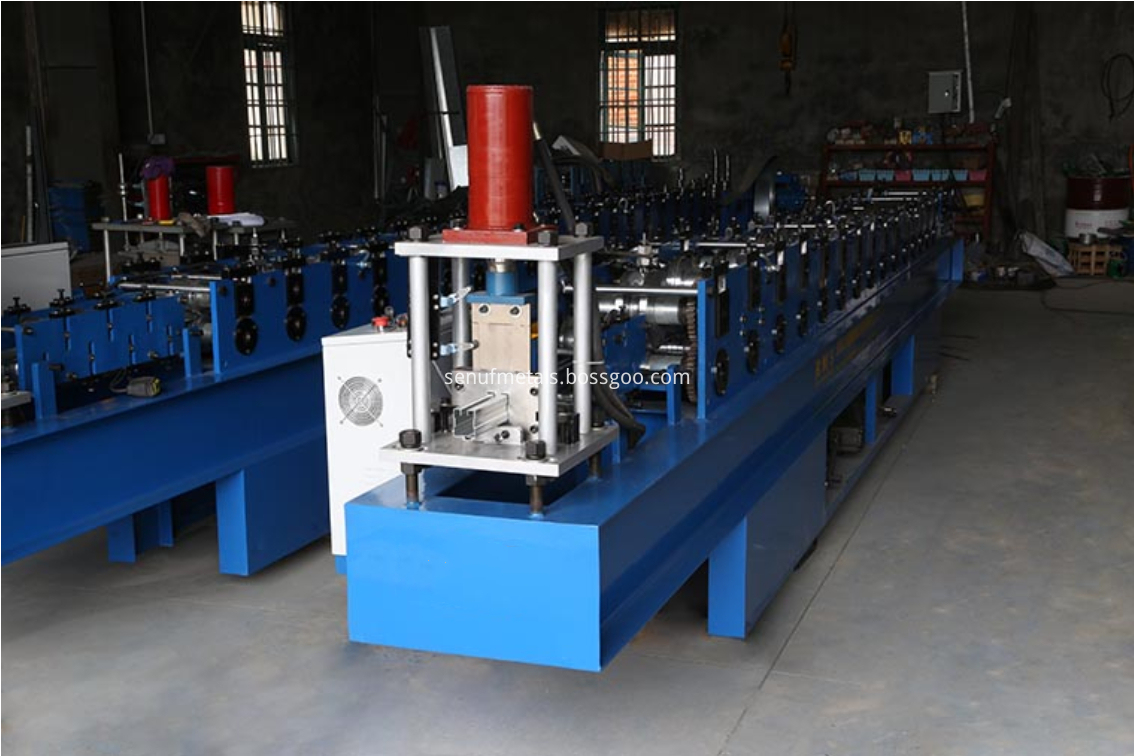

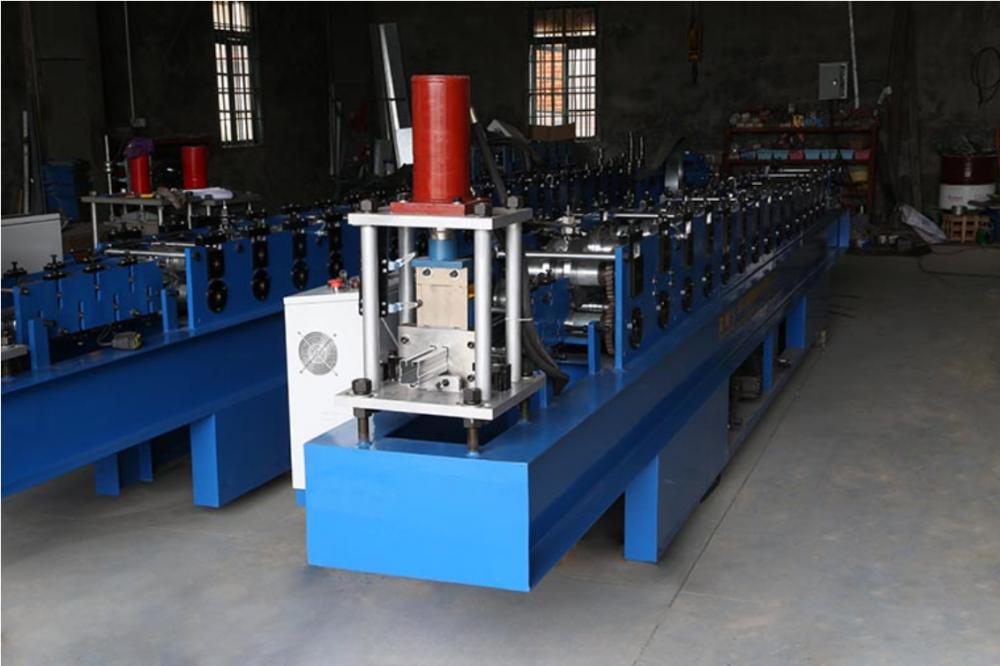

Garage roller shutter doors panel making machine

  Steel Garage Roller Shutter Doors Making Machine, roller door or sectional overhead door is a type of door or window shutter consisting of many horizontal slats (or sometimes bars or web systems) hinged together. The door is raised to open it and lowered to close it. On large doors, the action may be motorized. It provides protection against wind and rain. In shutter form, it is used in front of a window and protects the window from vandalism and burglary attempts.



Main features of Garage Roller Shutter Making Machine

The advantages of Roller Shutter Doors Panel Making Machine are as follows:

1. Accuracy profile,

2. Save space, more convenient,

3. Easy operation, low maintenance cost,

4. Stable and durable.

Detailed Images of Garage Roller Shutter Doors Making Machine

Machine parts

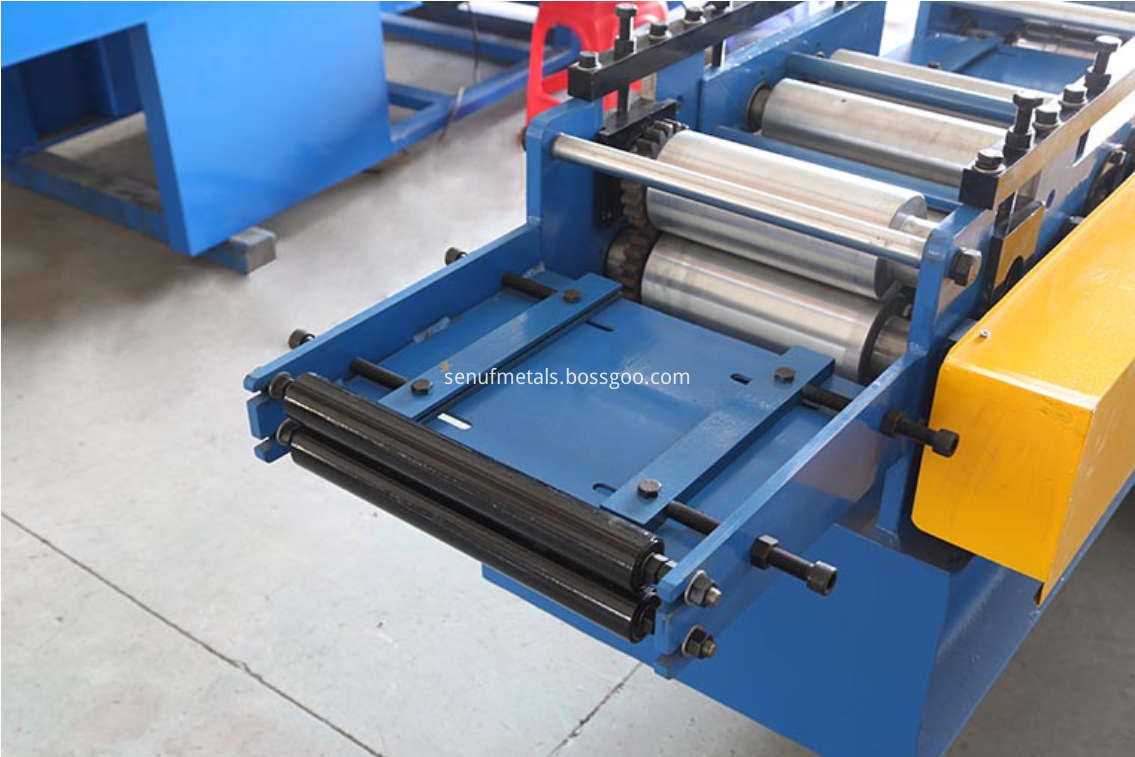

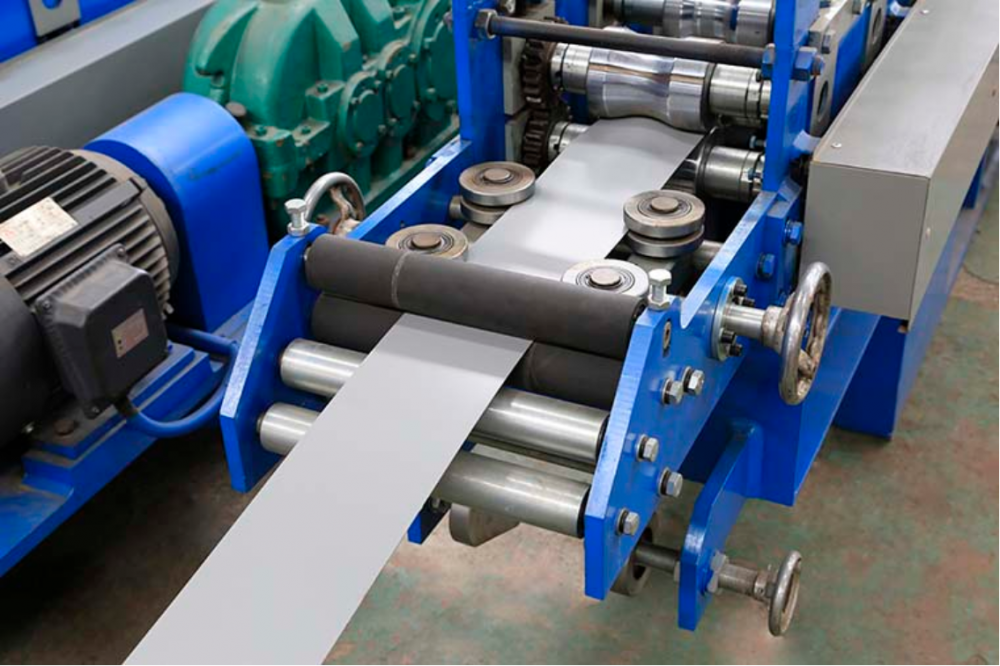

1. Garage roller shutter doors panel making machine Guiding

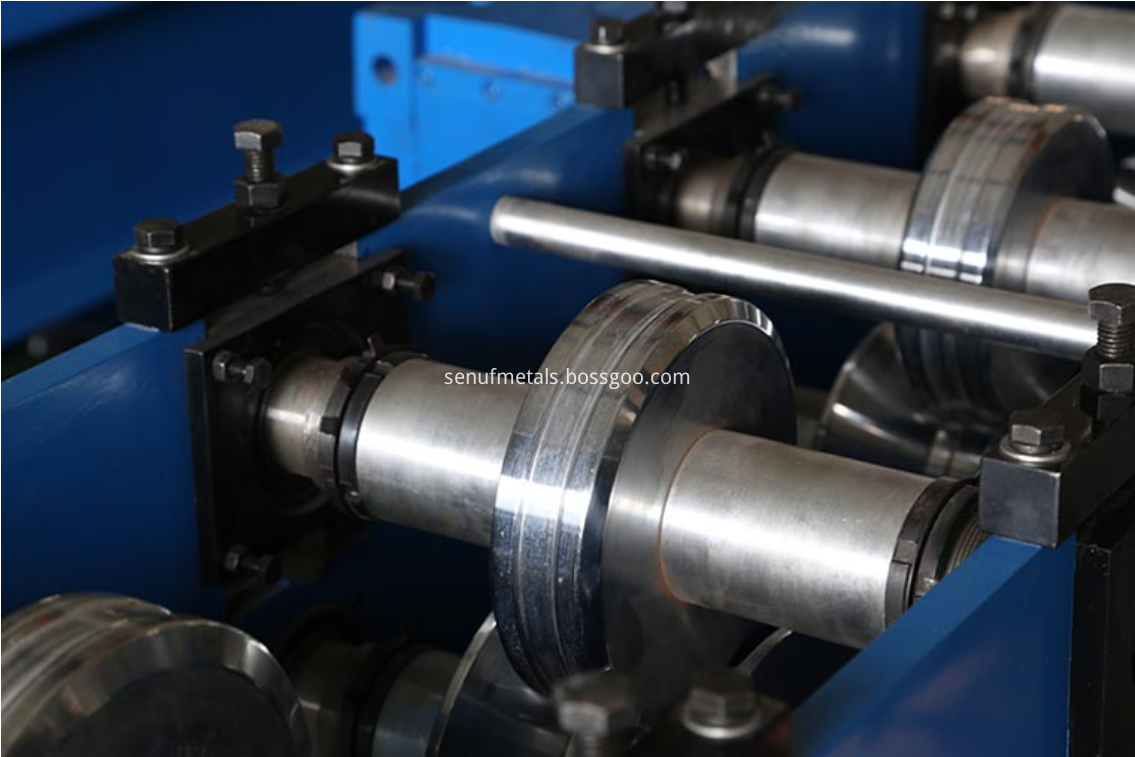

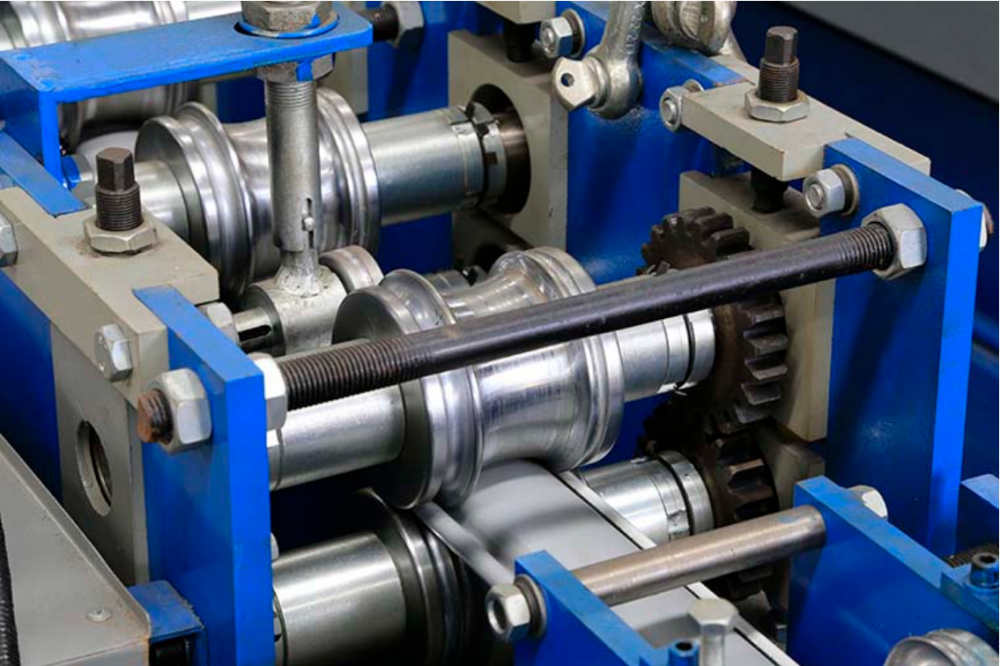

2. Garage Roller Shutter Making Machine Rollers

Rollers manufactured from high quality 45# steel, CNC lathes, Heat treatment, with black treatment or Hard-Chrome coating for options,

Body frame made by 300# H type steel by welding.

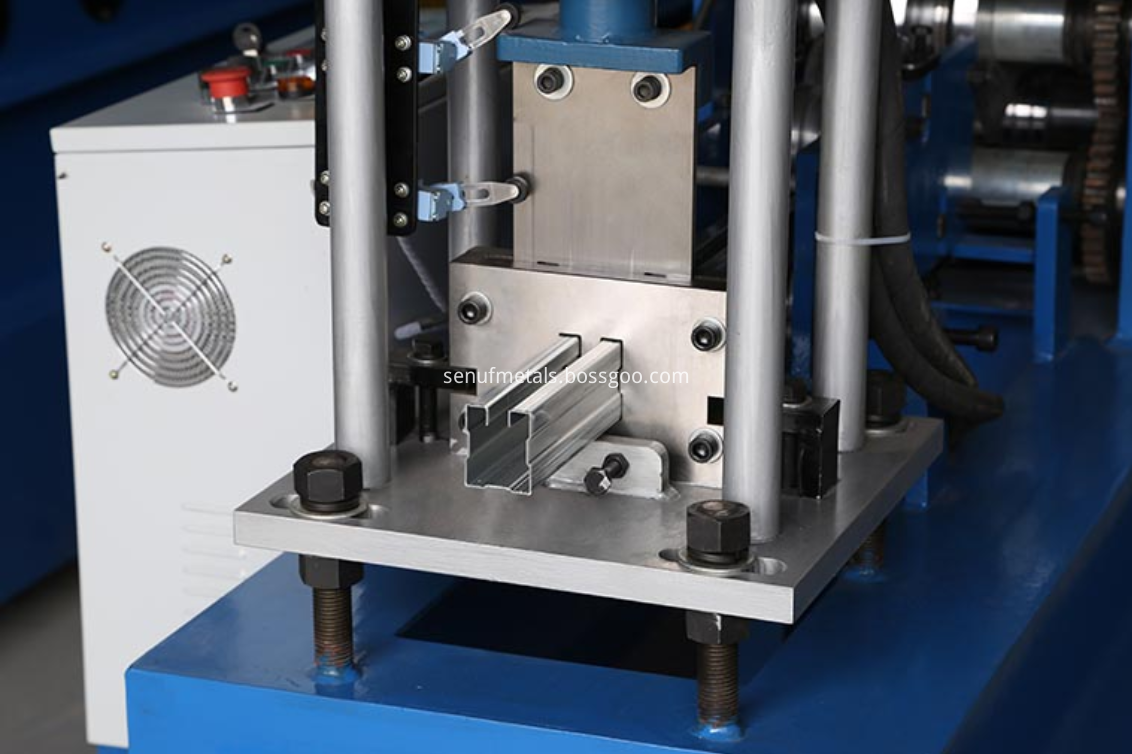

3. Roller Shutter Doors Panel Making Machine Cutter

Made by high quality mold steel Cr12 with heat treatment, cutter frame made by high quality 20mm steel plate by welding

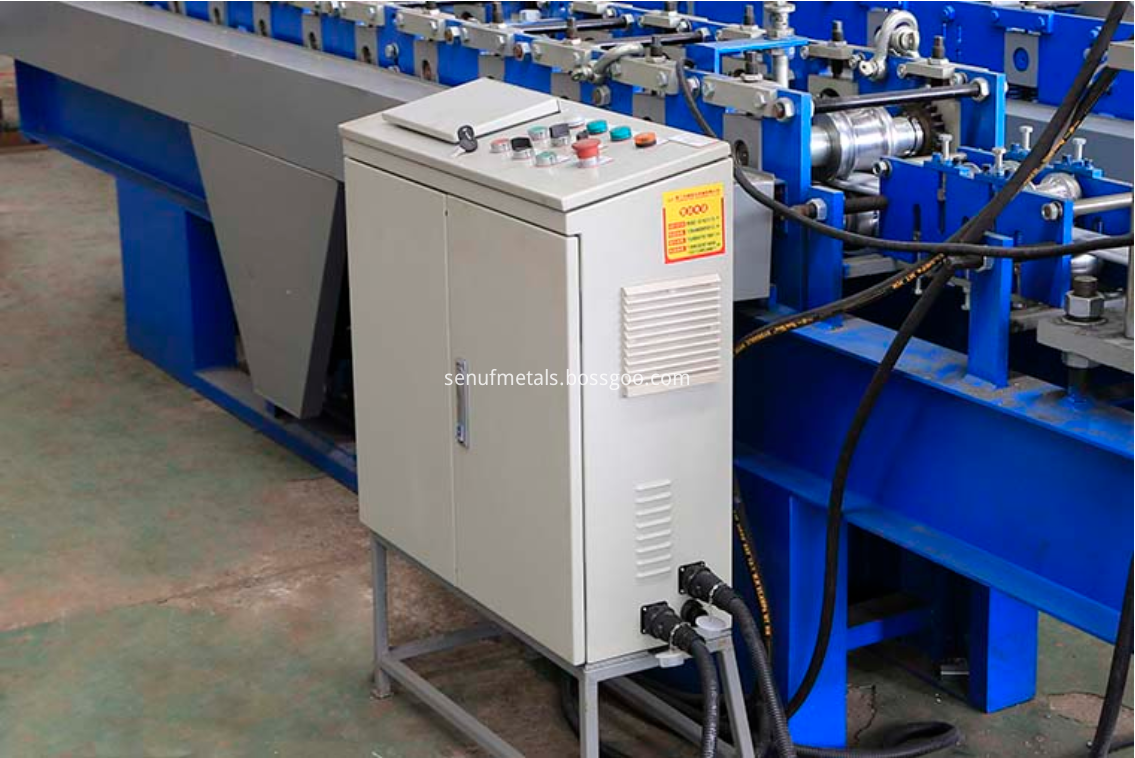

4. Steel Roller Shutter Sheet Forming Machine PLC control system

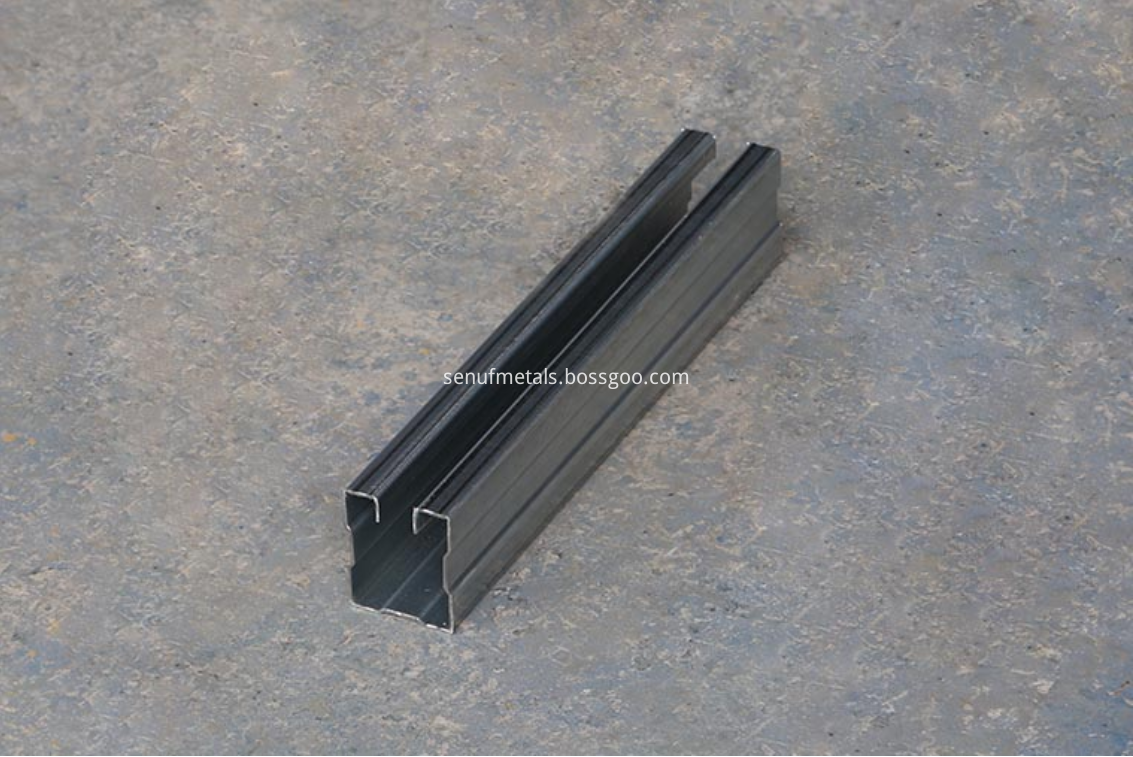

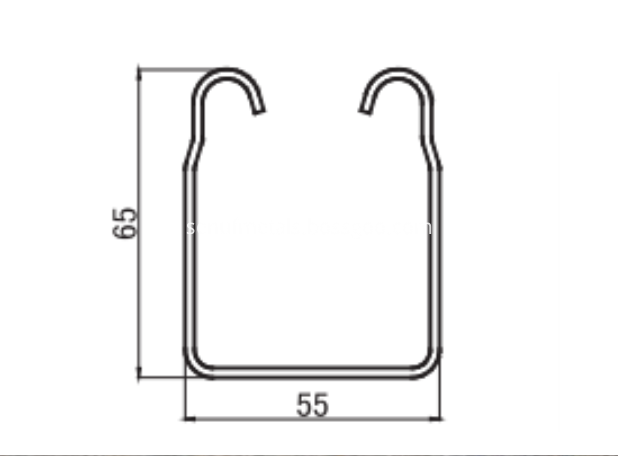

5. Garage Roller Shutter Doors Making Machine Sample display

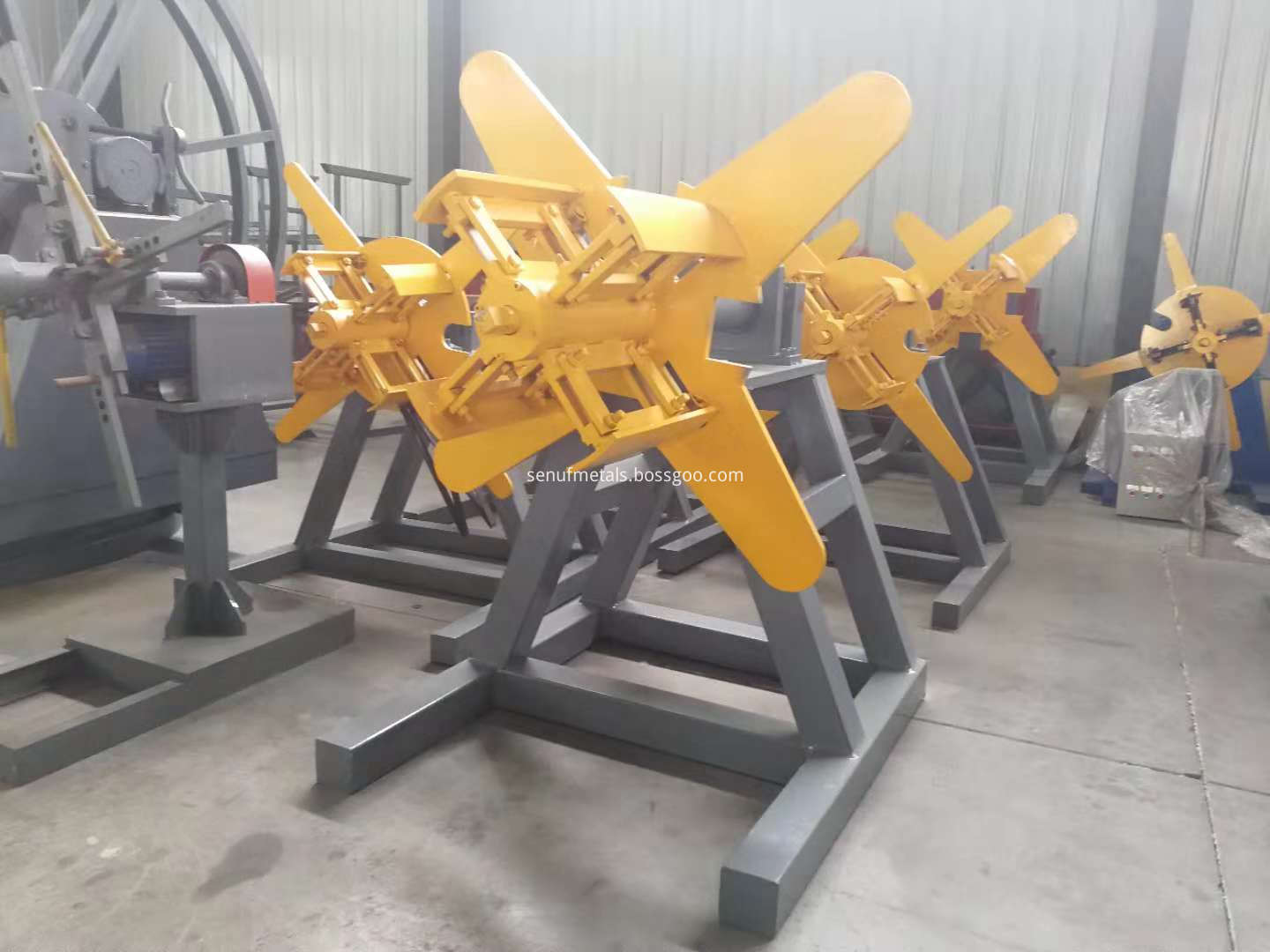

6. Aluminum shutter door guide frame roll forming machine Decoiler

Manual Decoiler: one set

Un-powered, manually control steel coil inner bore shrinkage and stop,

Max feeding width: 300mm, coil ID range 470mm±30mm,

Capacity: 3 tons

7. Aluminum Door Frame Roll Forming Machine Run-out table

Un-powered, one unit

Other details of Garage roller shutter doors panel making machine

Shafts manufactured by 45#, Main shaft diameter ?45/57mm, precision machined,

Motor driving, gear chain transmission, 14/19 steps to form,

Main motor: 4kw/5.5kw,

Frequency speed control, forming speed 12-15m/min.

PLC control system (Touch screen brand: German Schneider Electric / Taiwan WEINVIEW, Inveter brand: Taiwan Delta, Encoder brand: Japan Omron)
