Windows Door Frame Roll Forming Machine
Basic Info
| Model No. | SF-M015 |
|---|---|
| Brand Name | SUF |
| Types of | Steel Frame &Amp; Purlin Machine |
| Applicable industry | Hotels, Food &Amp; Beverage Factory, Printing Shops, Advertising Company, Farms, Building Material Shops, Machinery Repair Shops |
| Where to provide local services (in which countries are there overseas service outlets) | Egypt, Germany, Turkey, Canada, Viet Nam, United Kingdom, United States, Brazil, France, Indonesia, Japan |
| Showroom location (in which countries are there sample rooms overseas) | Egypt, Germany, Pakistan |
| Video factory inspection | Provided |
Product description
Features and Advantages of Window Frame Making forming Machine
Ground pit/overground accumulating unit, non-stop hole punching unit, and flying tracking cutting and automatic stacking devices are available for the choice to improve production speed greatly.
> Cassette type platform quick-change Machine base for multi-profile purposes is available for choice.
> With fully automatic non-stop standard configurations, the Max production speed can reach 30m/min
> Certified with Multi-Patents; CE Certified, EUROPEAN quality standard
> Most of hot & popular profiles models, we have ready machines in stock for prompt delivery.
Window Frame Making Machine Introduction
This machine is used to make various frames. Our machine is for manufacture of steel window frame, steel door frame, bronze window frame, bronze door frame, fire rated window / door frame and so on.
Window Frame Making Machine Working Flow

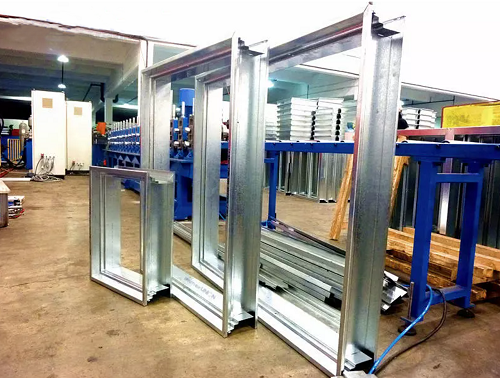

Steel Window Frame Roll Forming Machine Roll formed door frames, from galvanized steel, Nowadays they have become more and more competitive. The whole door frame can be produce in one roll forming line through hole punching, forming, cutting to length, and the subsequent quick assembly.
Experienced engineers of SENUFMETALS Machinery are ready to serve for your unique profile metal frame production line. By SENUFMETALS Roll Former, increase production efficiency and reduce cost for steel door manufacturers. Other metal frame roll forming application are also available

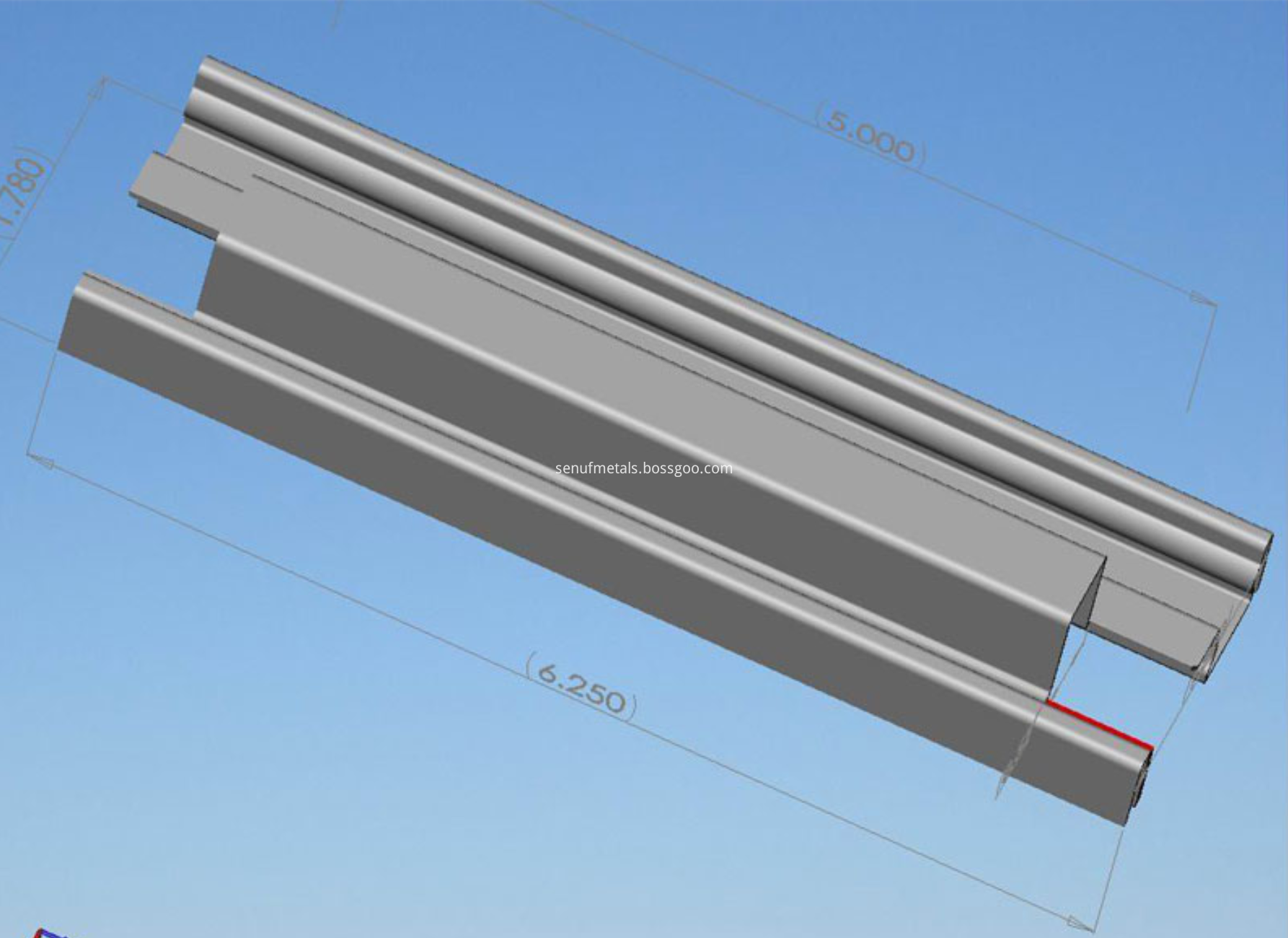

Window Frame Profile Drawings
Window Frame Roll Forming Line Layout
Production line Components and Parameters
Related information
|
Machine Condition |
Fully New, A Grade quality |
|
Panel Shape |
As profile drawing and customer's requirements |
|
Operator |
needed 1-2 persons |
|
Power Supply |
220V/380V/415V/460V, 50/60H乙 3P (as requests) |
|
Equipment Weight |
about 18t |
|
Dimension |
(L*W*H) about 25*3*2m |
|
LOADING SIZE |
Normally need 2 x 40' container. |
|
Equipment Color |
normally Blue/White, or as requests; |
|
Place of Origin |
Hebei, China (Mainland) |
|
Packing |
Standard and careful export packing |
|
Decoiler |
3t/8t |
|
leveling device |
|
|
ground pit/ over ground accumulating unit |
(optional) |
|
Servo Feeding Device |
|
|
Holes punching device |
|
|
ground pit/ over ground accumulating unit |
(optional) |
|
Guiding device |
|
|

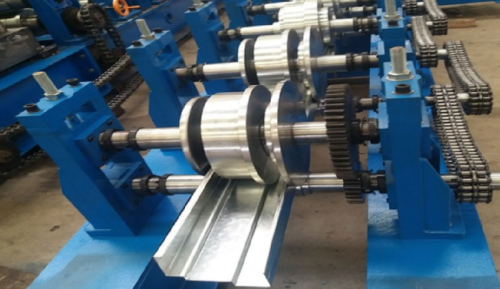

Roll forming system |
20/30m/min |
|
Safety cage |
optional |
|
Post cutting device |
flying cutting, tracking cutting and stop to cut are available for choice |
|
Output System |
Manual supporter/ Automatic Stacker (optional) |
|
Stackmaster
Hydraulic system
Electric control system |
(Output direction) Lateral/Longitudinal (optional) Power supply for holes punching /post-cutting system
Touch screen brand: German Schneider Electric / Taiwan WEINVIEW, Inveter brand: Taiwan Delta, Encoder brand: Japan Omron (optional or as requested ) |
|
|
|
