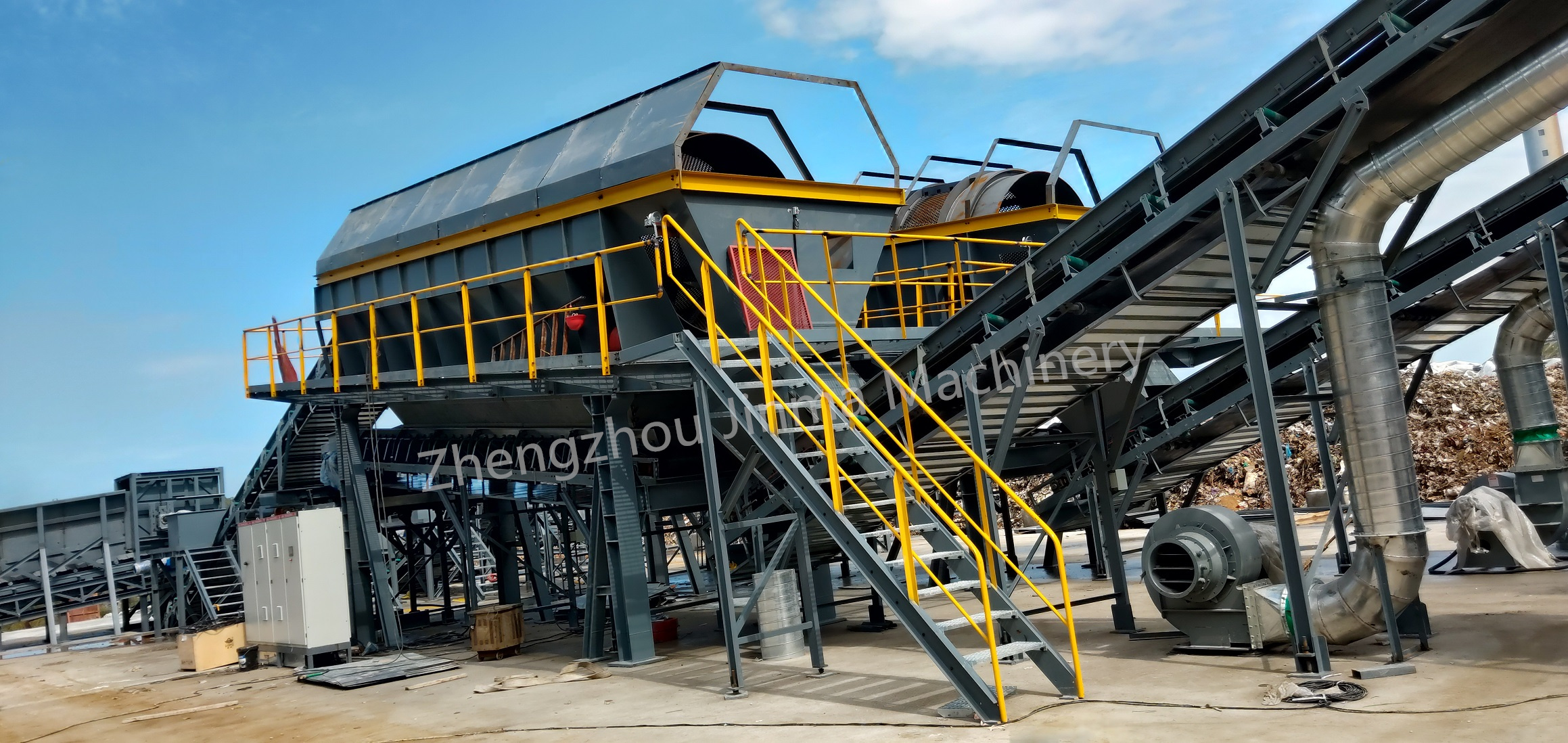

Garbage Recycling Line: Solid Waste Sorting Plant

Video

1 / 7

Garbage Recycling Line: Solid Waste Sorting Plant

$10000.00

≥1 set

Options:

Get Latest Price

You might also like

Garbage Recycling Line: Solid Waste Sorting Plant

1 set (MOQ)

City Waste Sorting and Recycling Plant: Garbage Collection and Solid Waste Recovery

1 set (MOQ)

City and Construction Waste Sorting Machines: Plastic Separation Solutions

1 set (MOQ)

Basic Info

Model No.
Brand Name
Condition	New
Applicable Industries	Garbage disposal equipment
Showroom Location	None
Place Of Origin	Henan, China
Brand Name	Jinma
Model Number	trommel screen
Type	trommel screen
Warranty	1 Year
Production Capacity	95%
Machinery Test Report	Provided
Video Outgoing-inspection	Provided
Marketing type	New Product 2020
Warranty Of Core Components	6 months
Core components	Motor
Weight (KG)	1500 kg
color	as required
product name	Municipal waste recycling plant sorting and recycling line
Keywords	Waste Recycling Plant Sorting
Application	Household (solid Waste)
Raw material	Q235 Steel
function	Garbage Recycling
Market	world wide
After service	Life long
Certification	Iso9001:2008

Product description

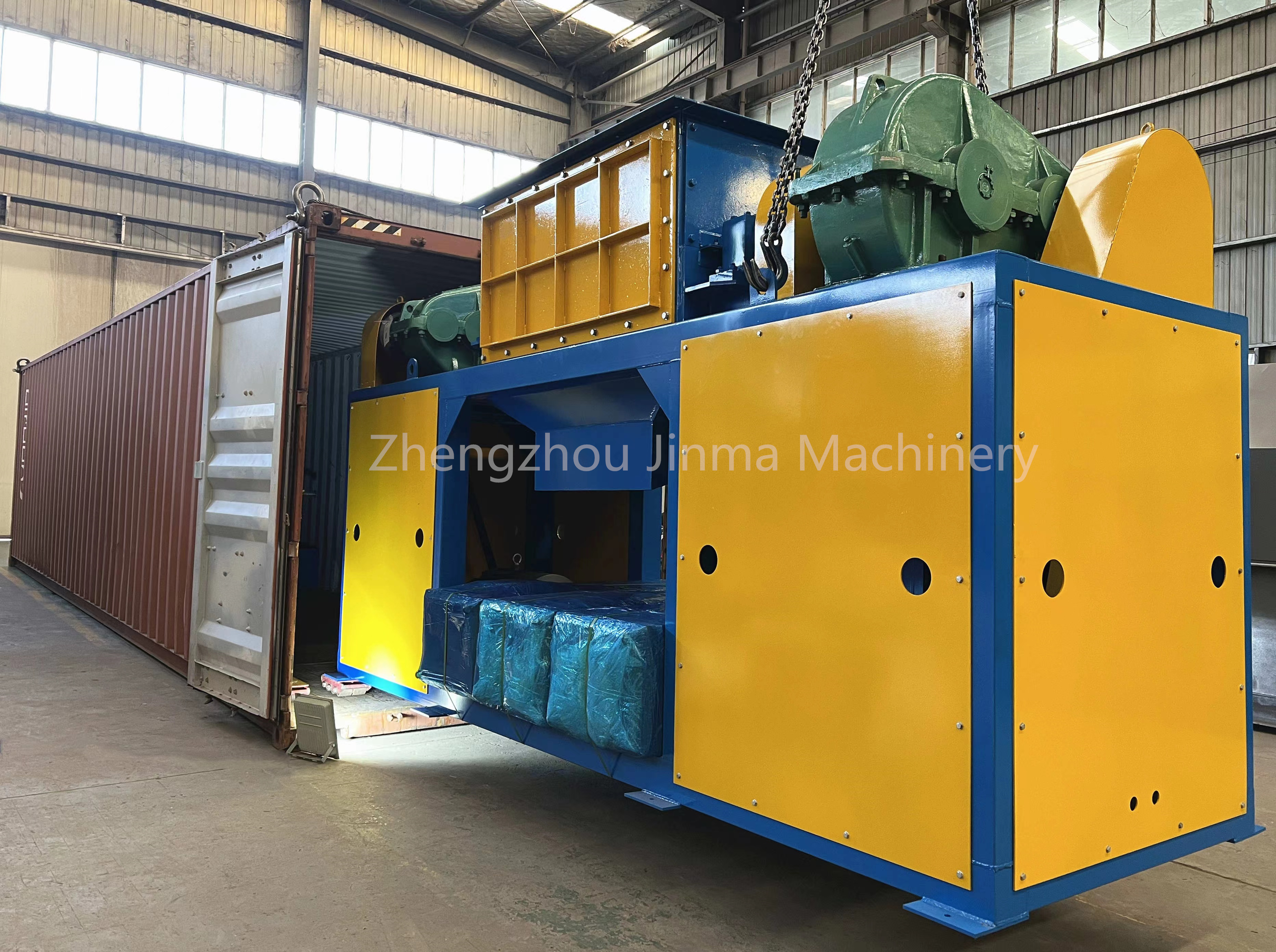

Zhengzhou Jinma factory manufacture waste sorting machines for more than 30 years. Our main equipment include chain plate feeder, trommel screen machine, air separator , magnetic separator, bag opener, waste shredder, manual sorting platform, hydraulic baler, belt conveyor.etc. We will can provide suitable design for based on customer’s request.

Waste sorting line raw materials:

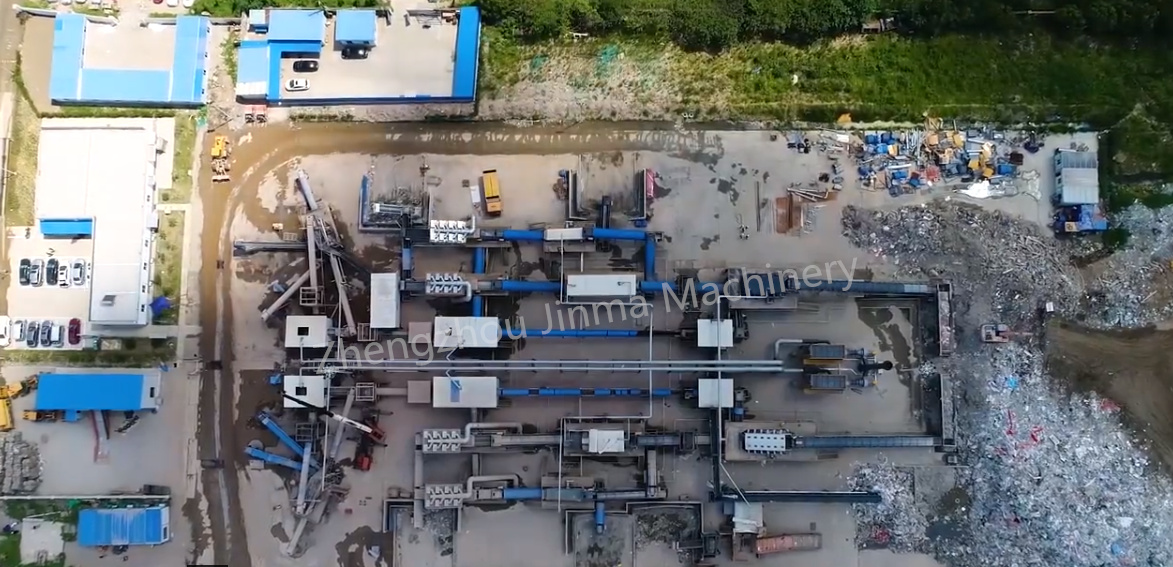

Through waste production line

Model	JM-20	JM-50	JM-100	JM-200	JM-300	JM-500	JM-1000
Raw materials	Municipal solid waste, household waste, industrial waste, landfill waste, mineral waste
Capacity T/D	20	50	100	200	300	500	1000
Working time H/D	8-24 hours / day
Power/kw	57.8	69.6	89.2	130.9	149.9	194	217.5
Land space /㎡	600	850	1200	1650	2250	2500	3200
Workers required	3	6	10	12	13	15	18

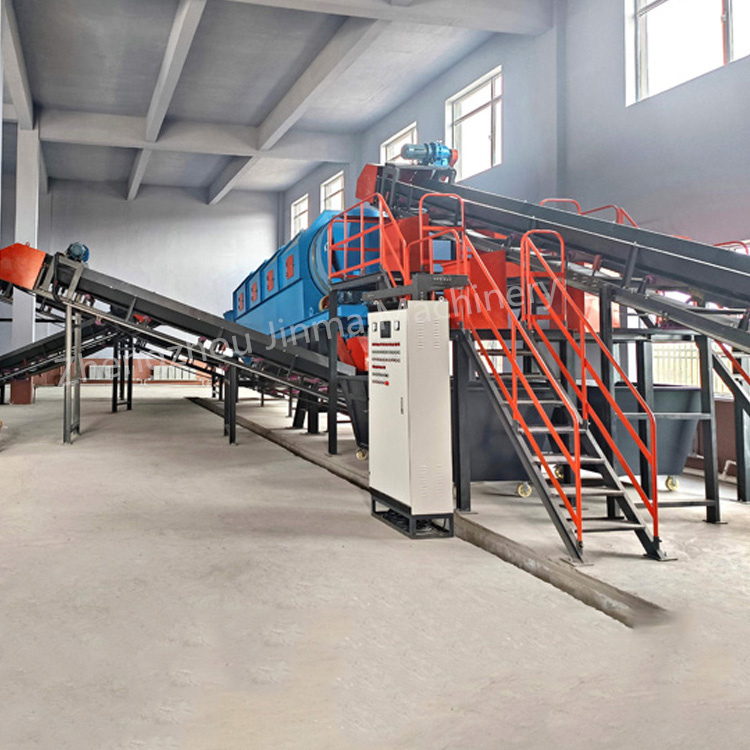

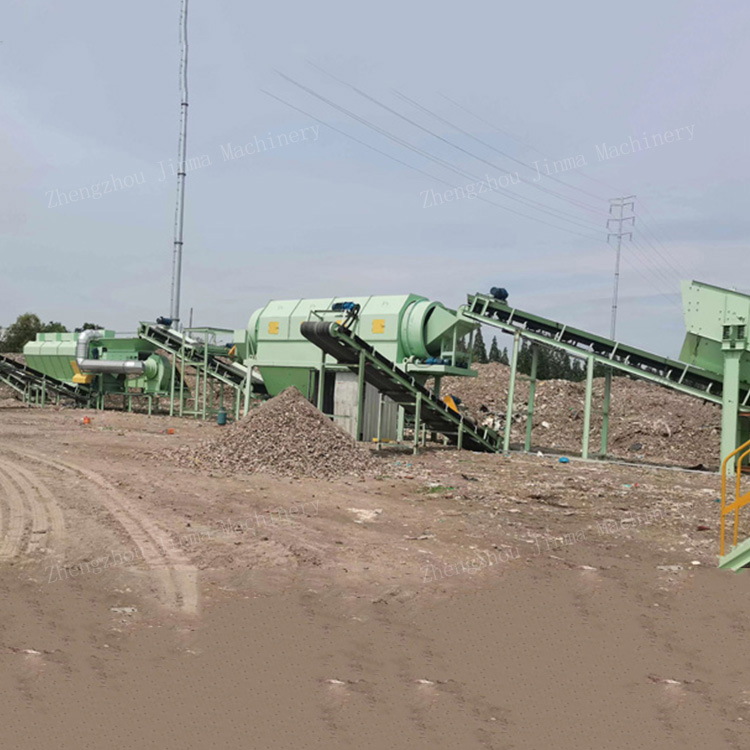

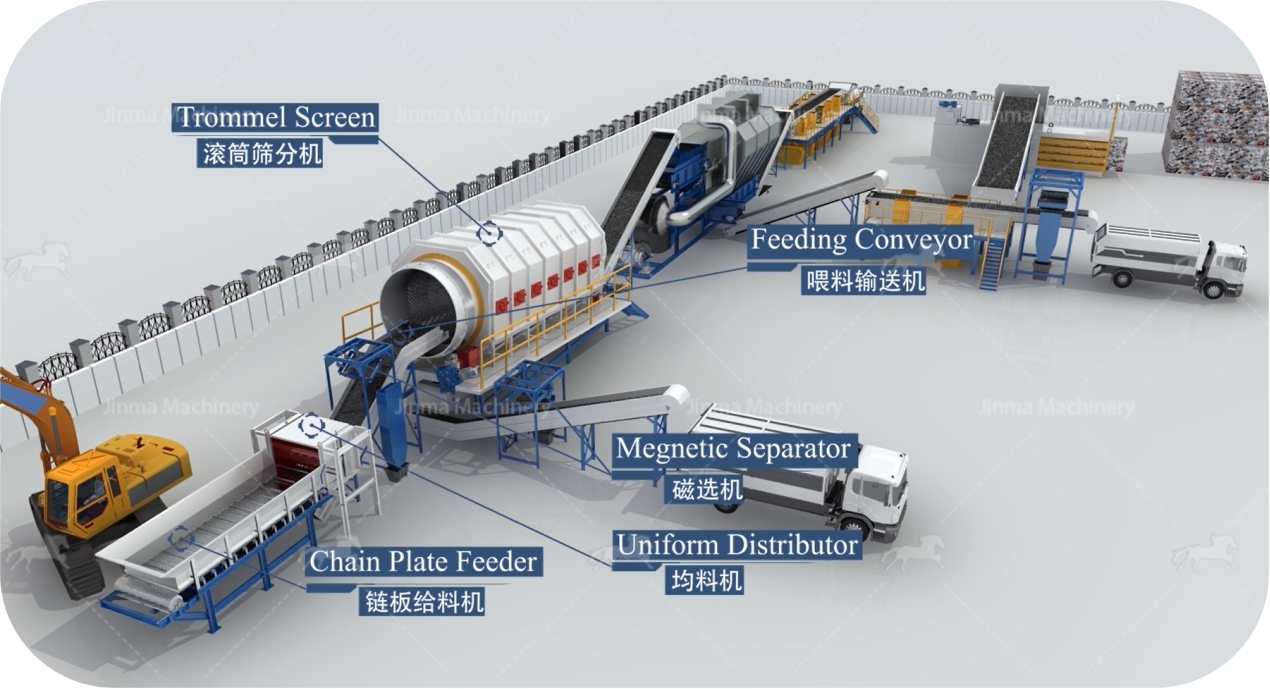

Working flow chart of waste sorting line

Municipal solid waste, household waste, construction waste or stale waste chain plate conveyor→trommel screen (Mesh size can be customized based on customer’s request. It is for organic waste or non-organic waste) → Magnetic separator(sorting metal) →Air separator(light materials and heavy materials)→Manual sorting platform(To sort different garbage, like, waste plastic, waste paper, waste can, etc...)→Baler

machine (To pack the recycled waste paper or plastic).

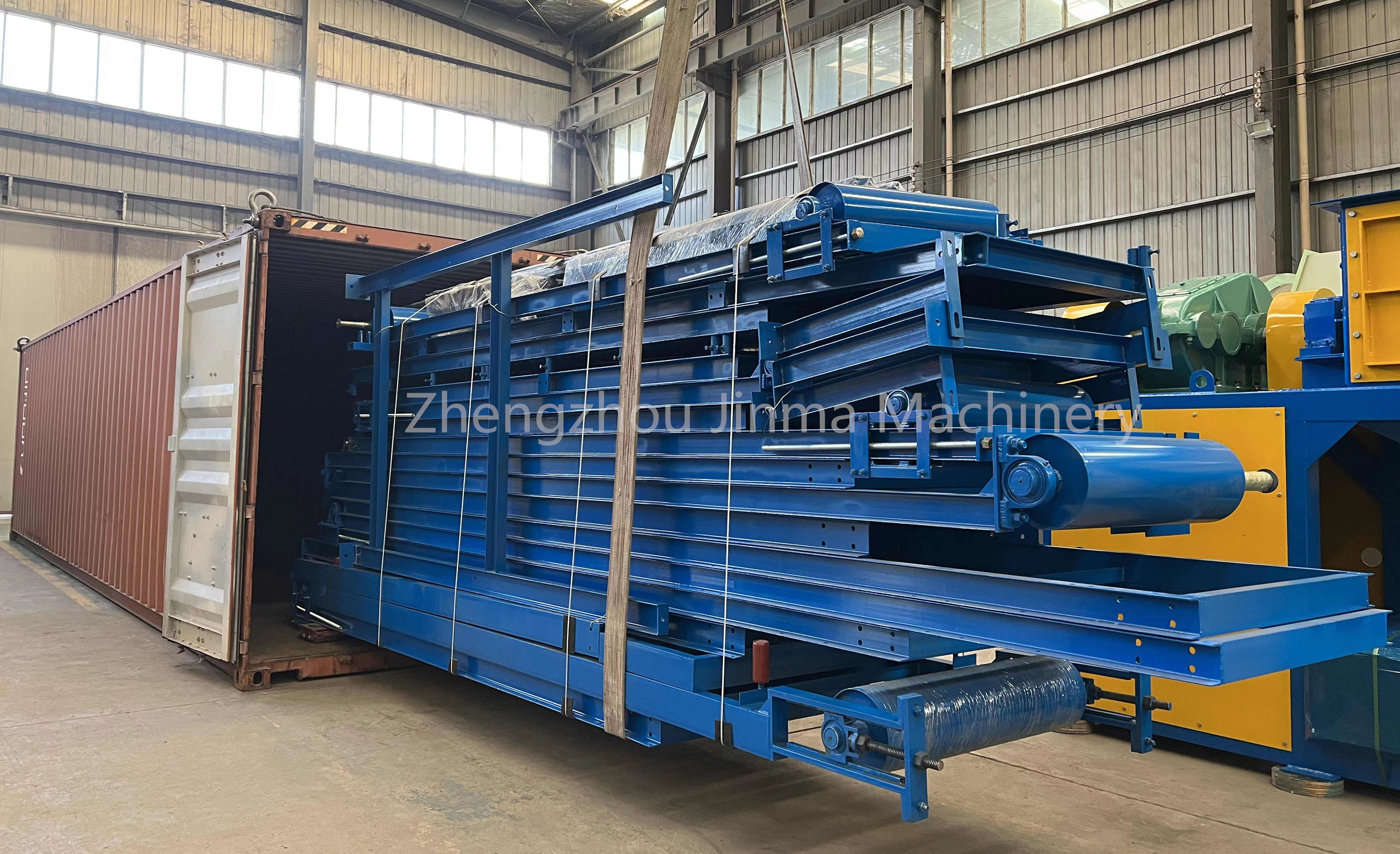

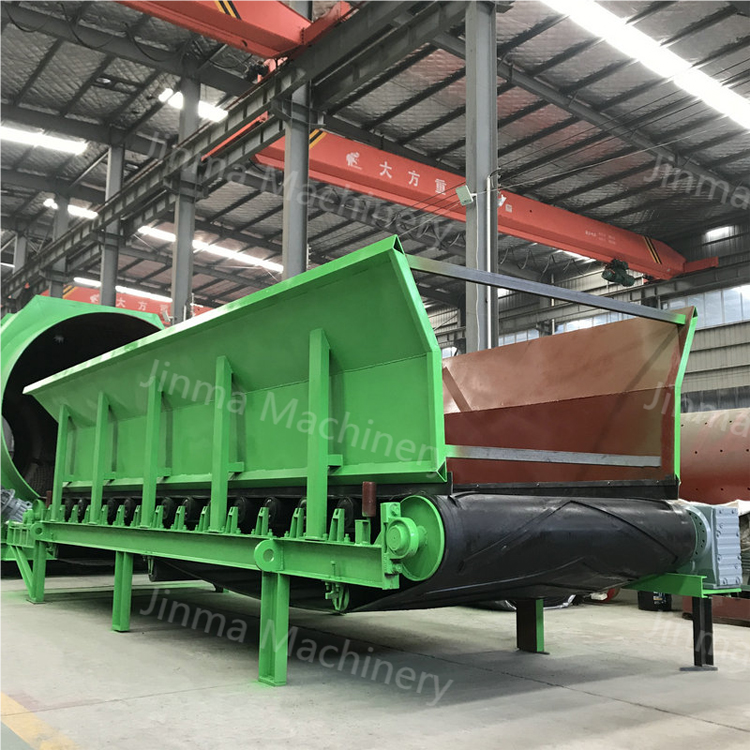

Box feeder

Stable quality and high efficiency

1. Large storage capacity.

2. Achieving continuous and uniform quantitative feeding.

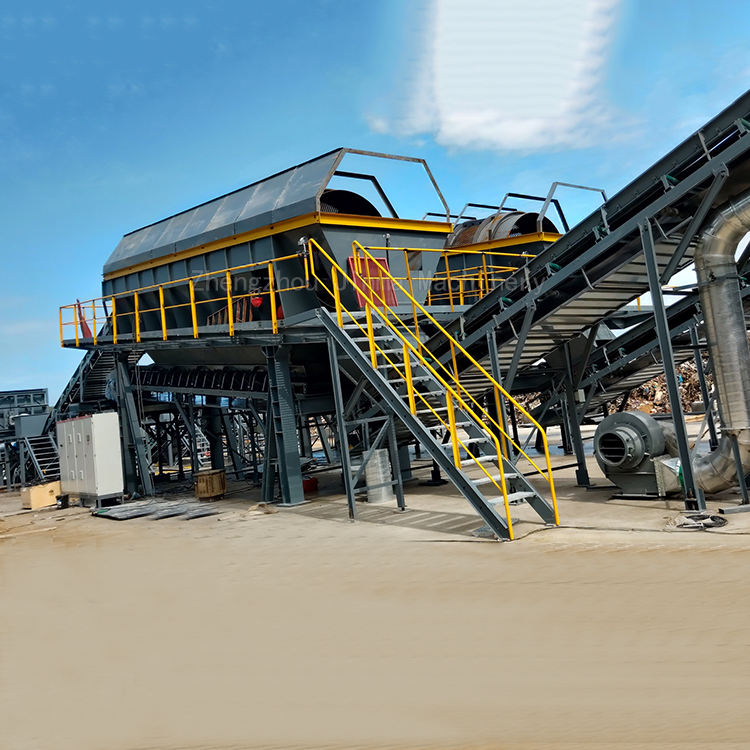

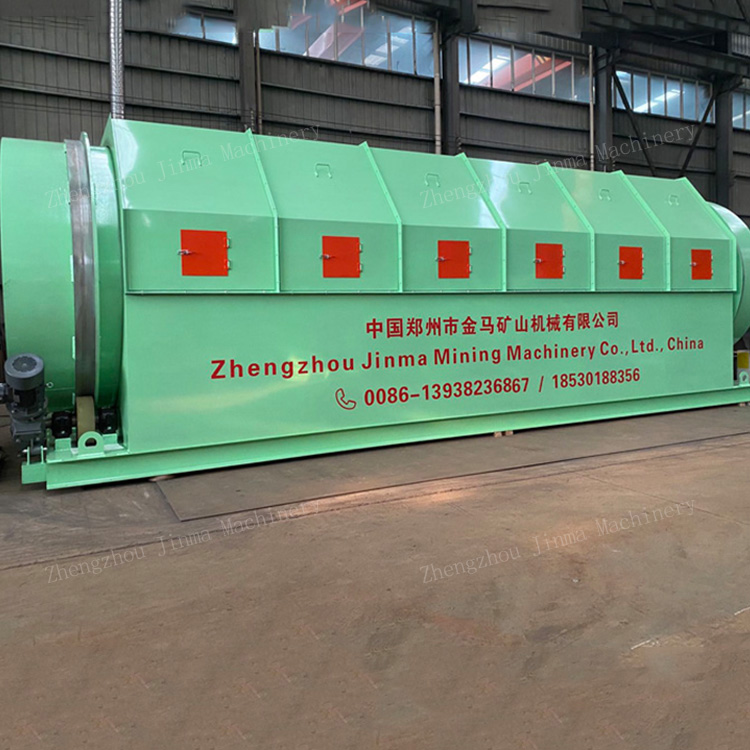

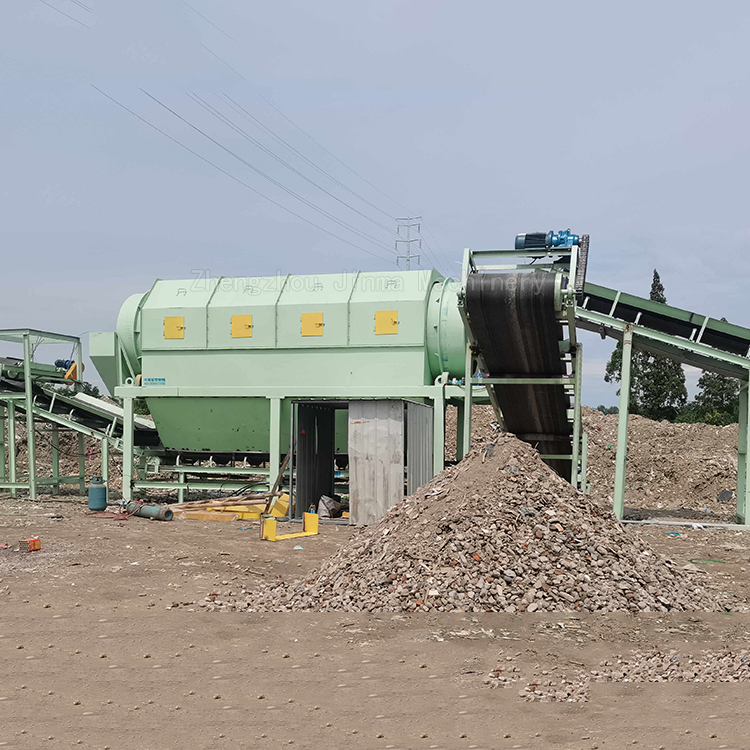

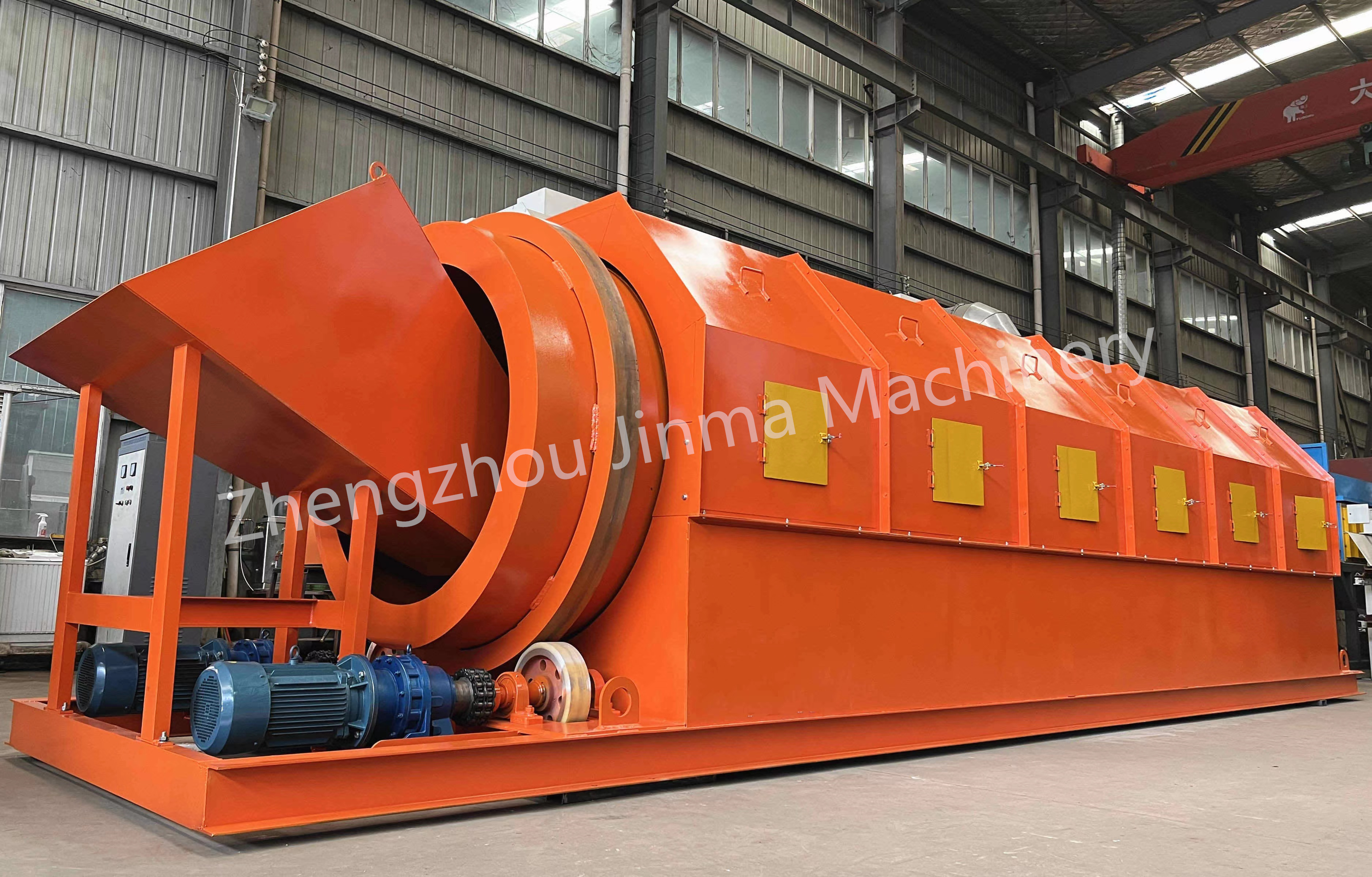

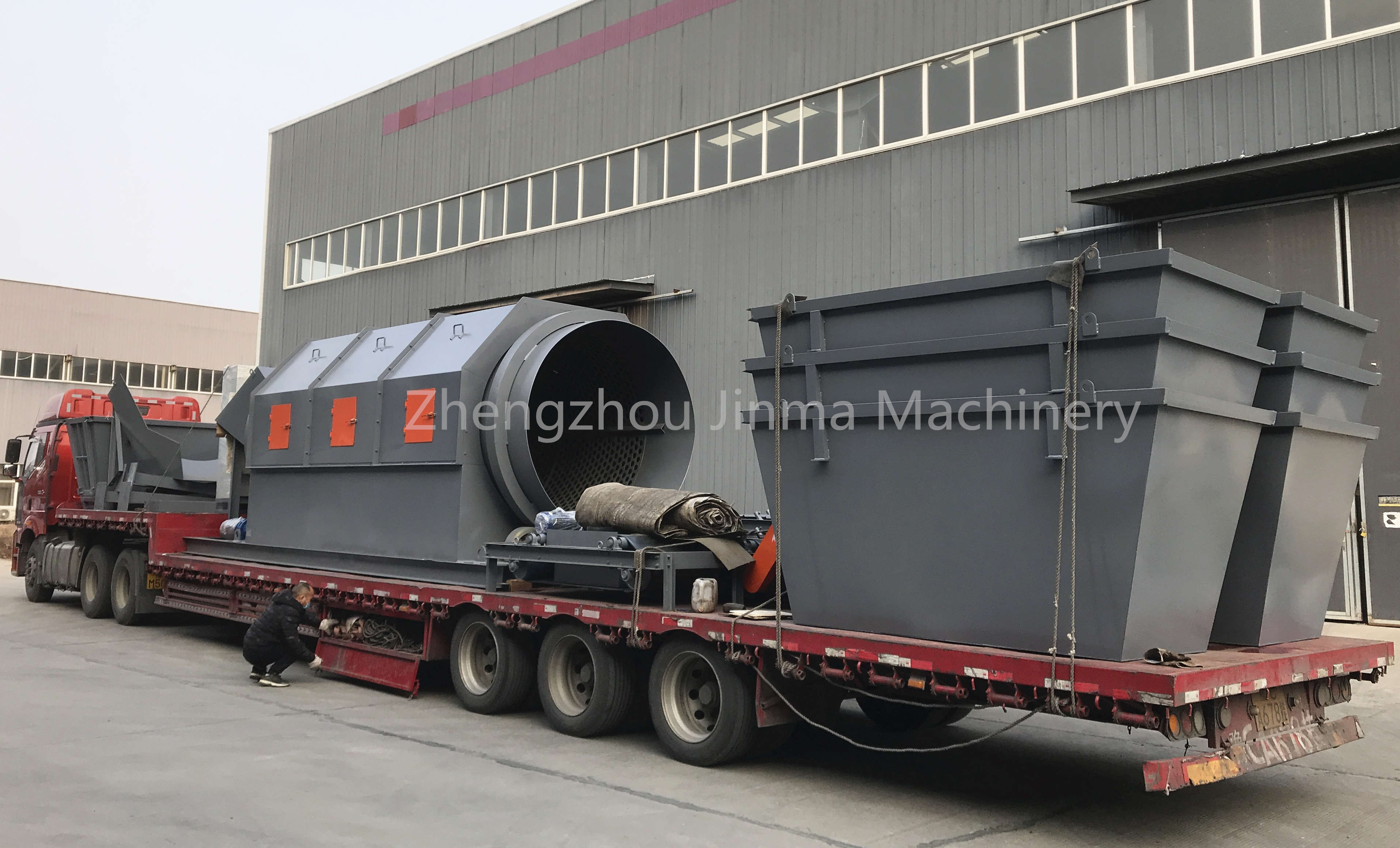

Trommel screen machine

Large capacity and easy operation

1. Strong sorting ability.

2. Non clogged sieve holes.

3. Simple structure and convenient
maintenance.

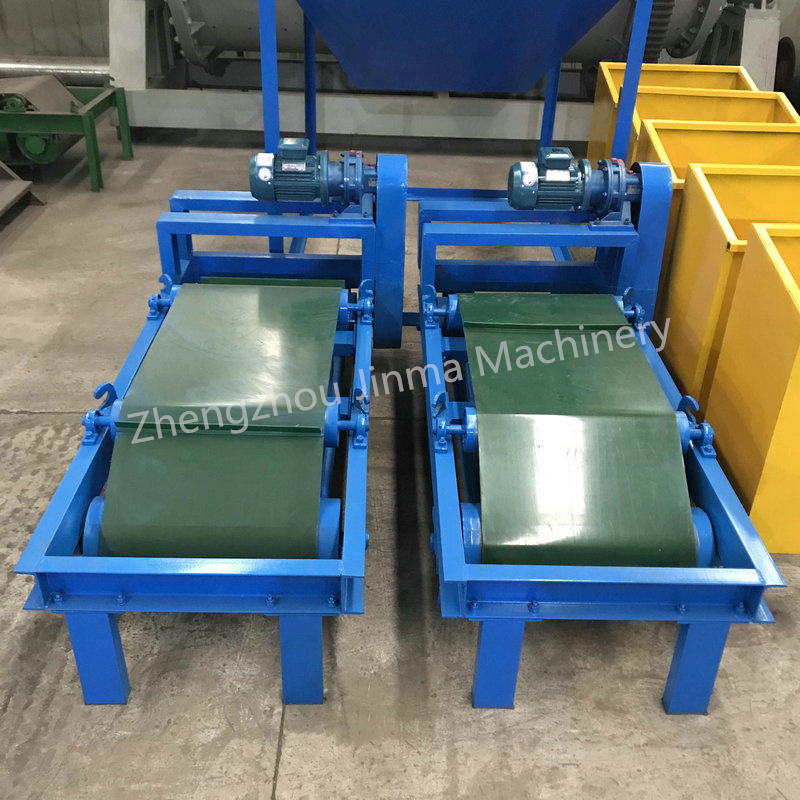

Magnetic separator

It's used to separate iron and metal from garbage.

1 . special structure design to work smoothly.

2 . The strong suction pulls all the iron out.

3 . reducing the wear of the conveyor belt.

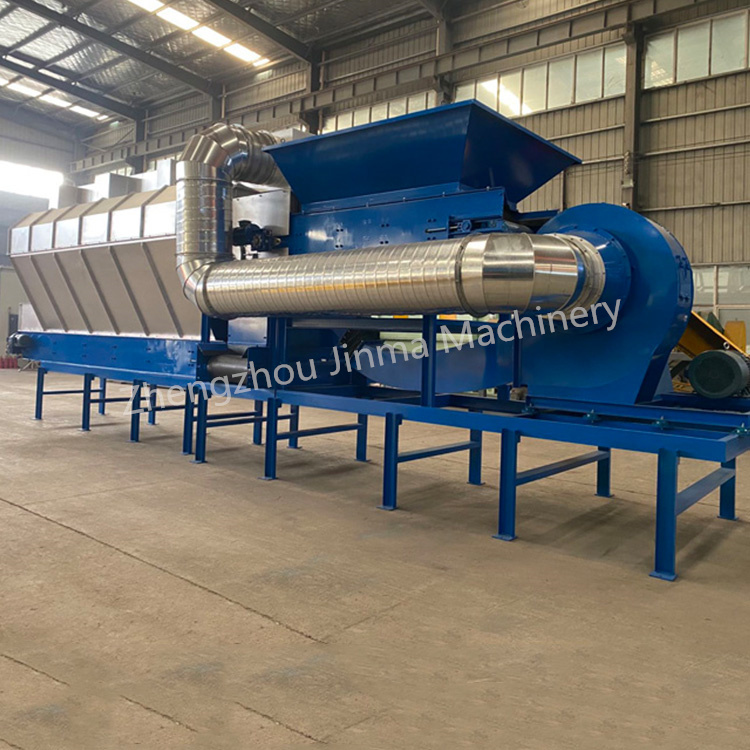

Air sorting system

Equipped with fans to separation garbage.

1 . High sorting accuracy and high efficiency .

2 . Large processing capacity .

3 .Fully sealed sorting,no dust leakage.

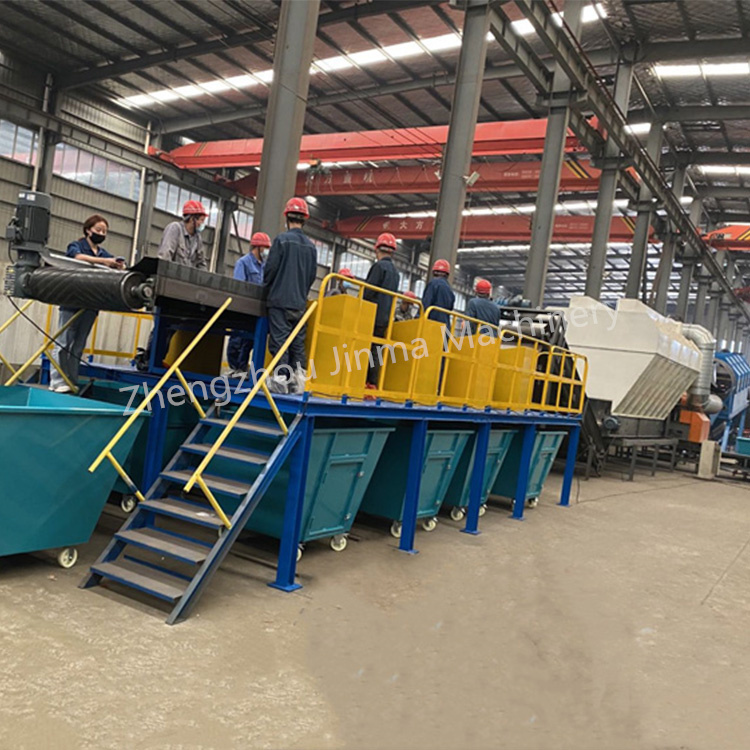

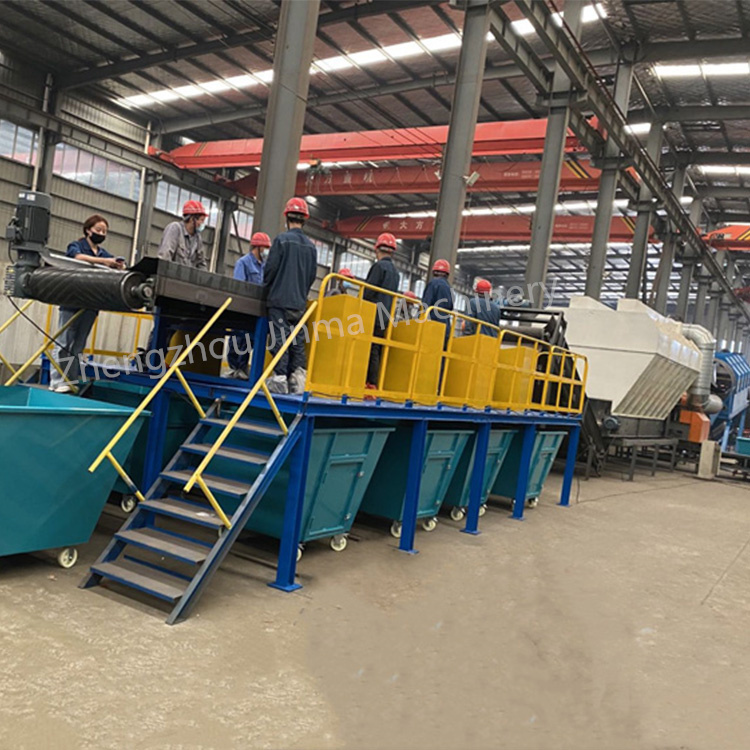

Manual sorting platform

To screen which cannot be screened by machines.

1 . Good working environment .

2 . Fireproof and heat insulation performance.

3 .Equipped with large garbage boxes.

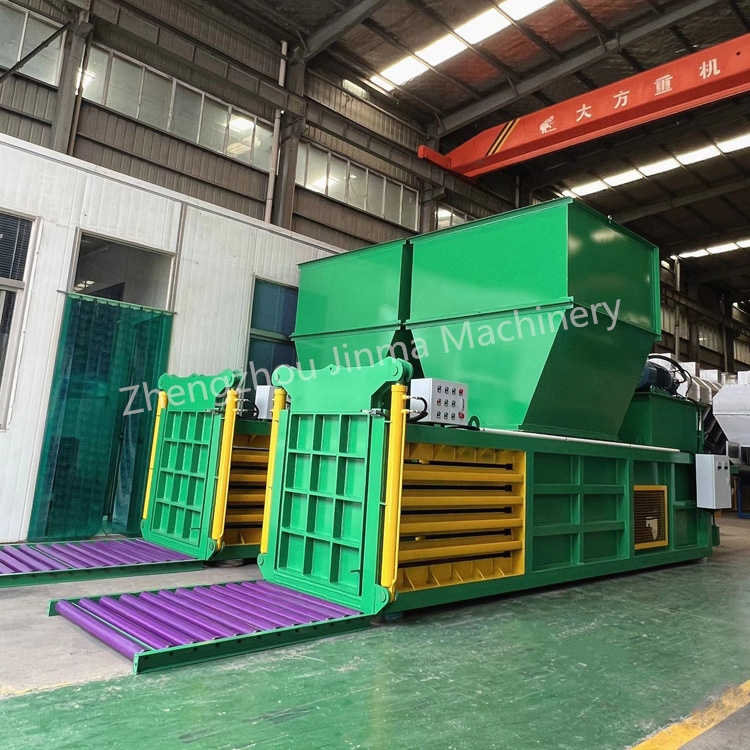

Baller machine

Used to bale lighter waste materials.

1 . Adopt advanced hydraulic forming technology.

2 . Adopt automatic control system.

3 . By changing mold to achive various block sizes.

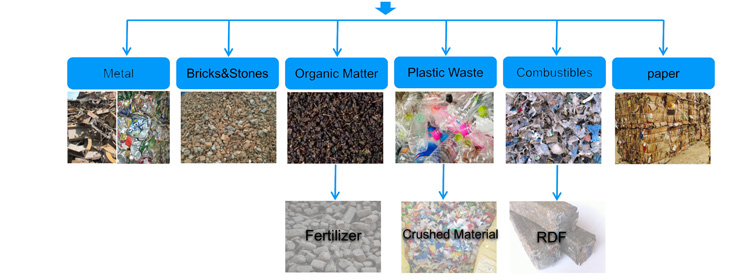

Final products:

Zhengzhou jinma is the old brand professional design and manufacturing factory special for waste sorting machines. Always actively striving and pursuing progress, developing and producing various garbage sorting equipment; Strive to create a first-class level in research technology, artificial Intelligence, scientific management, and other fields.

Main business: Design, production, and sales (independent export): A complete set of solid waste sorting equipment for household waste, decoration waste, staled waste, etc., mainly include the equipment such as bag opener, trommel screen, magnetic separators, air separators, sortingTables, hydraulic baler and conveyors, etc.

Q1: Are you a factory or a trading company?
A1: We are a professional manufacturer in China, passed Alibaba field certification.

Q2: How long is the warranty period?
A2: Normally 12 months. Except for wearing parts.

Q3: What’s your delivery time??
A3: We will arrange for shipping in factory within 15 working days after receiving the advance payment.
