General Use Solid Carbide Spiral Chucking Reamers

$1.00 ~ $100.00 / Piece/Pieces

Reamer size:

1-20mm

Slot length:

custom

Types:

Chucking Reamer
Hand Reamer
Machine Reamers
Tapered Reamers

Get Latest Price

Model No.
Brand Name	OEM
Support customization	Odm, Oem, Obm
place of origin	China
Material	Tungsten Steel

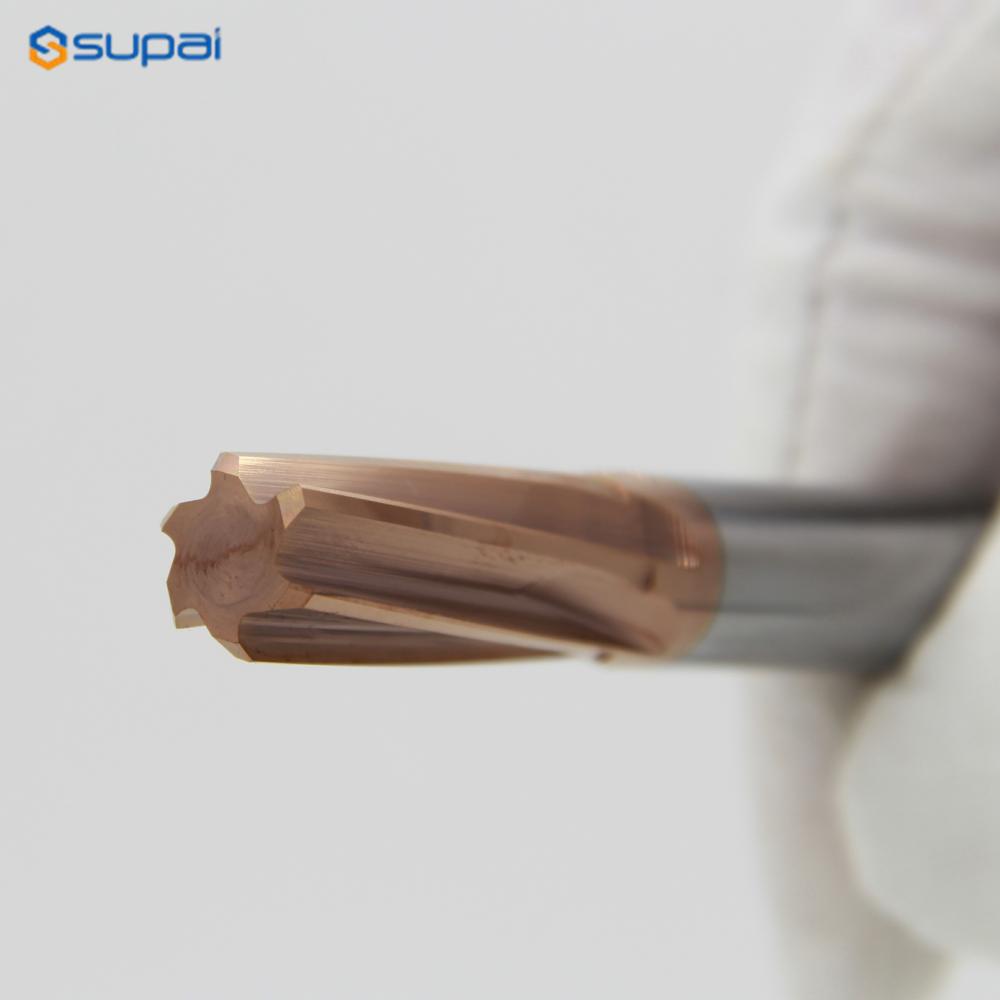

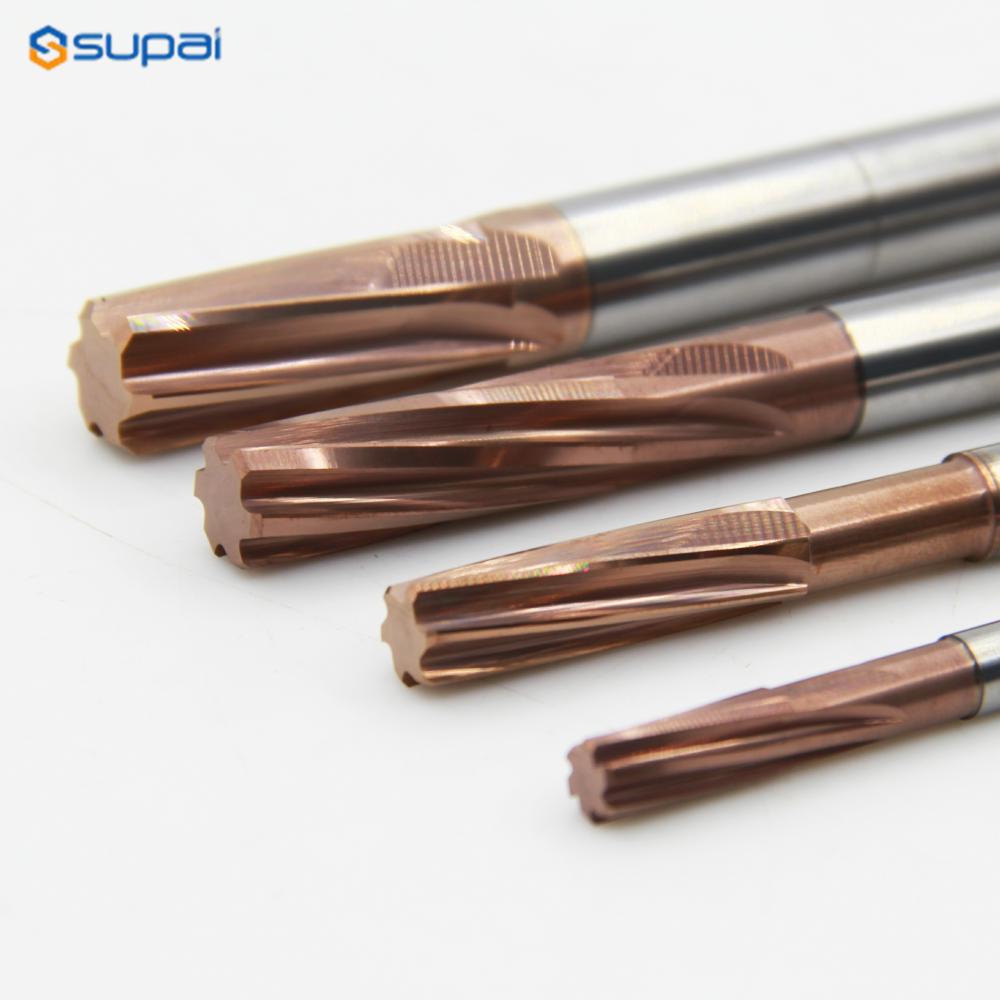

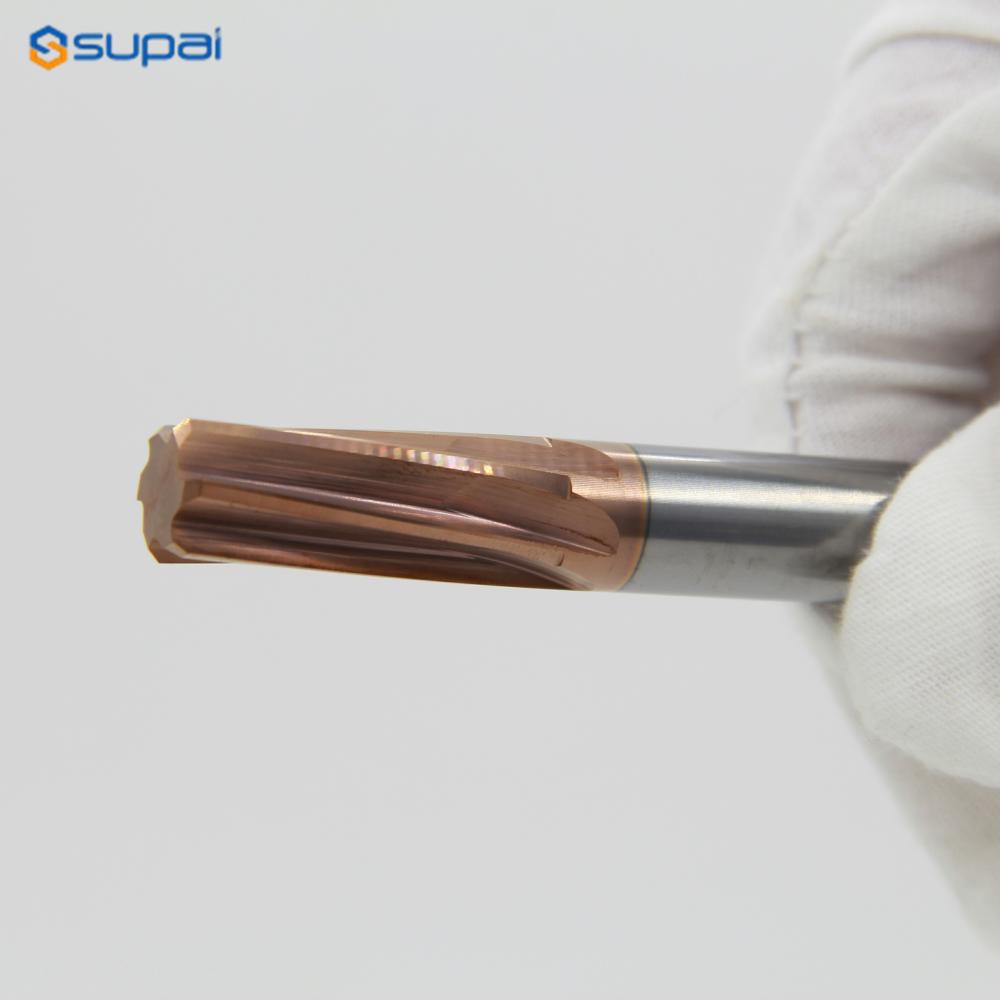

Carbide Machine Reamer Coated Straight and Spiral Flute H7 Tolerance 4/6 Flute

The standard reamer for the tungsten steel screw machine is right-handed and right-cut, and left-handed and right-cut (reverse) spirals can be customized, and there are also straight groove reamers. The reamer is usually 4-blade and 6-blade spiral reamer or straight groove reamer.

Mainly used for CNC computer gongs, engraving machines, CNC lathes, automatic lathes, drilling machines, milling machines or other machine tools for precision small margin machining of workpieces.

Product details

HRC	70
Suitable for	Cast iron, carbon steel, alloy steel, non-ferrous metals, etc
Material	Solid carbide
Dc	0.8-30.00
Solid/internal cooling	Solid Carbide
Length	L50-L450
Flutes	2-8 flutes

Super Raw Material

Item Grade	HRC45 (YG10X )	HRC55 (YL10.2 & WF25)	HRC60 (Germany K44 &K40)	HRC65 (Sandvik H10F)
Details	Grain size 0.7um Co10% Flexural strength 3320N/mm2	Grain size 0.6um Co10% Flexural strength 4000N/mm2	Grain size 0.5um Co12% Flexural strength 4300N/mm2	Grain size 0.5um Co10% Flexural strength 4300N/mm2

Reamer Parameter

FLUTE DIAMETER	SHANK DIAMETER	OVERALL LENGTH	FLUTE LENGTH	FLUTE DIAMETER	SHANK DIAMETER	OVERALL LENGTH	FLUTE LENGTH
4.00	3.50	56	20	12.00	10.00	80	28
4.50	4.00	63	22	12.50	10.00	80	28
5.00	4.00	63	22	13.00	10.00	80	28
5.50	5.00	63	22	13.50	12.50	90	32
6.00	5.00	63	22	14.00	12.50	90	32
6.50	5.00	63	22	14.50	12.50	80	32
7.00	6.00	71	25	15.00	12.50	90	32
7.50	6.00	71	25	15.50	12.50	90	32
8.00	6.00	71	25	16.00	12.50	90	32
