1)Basic Info.

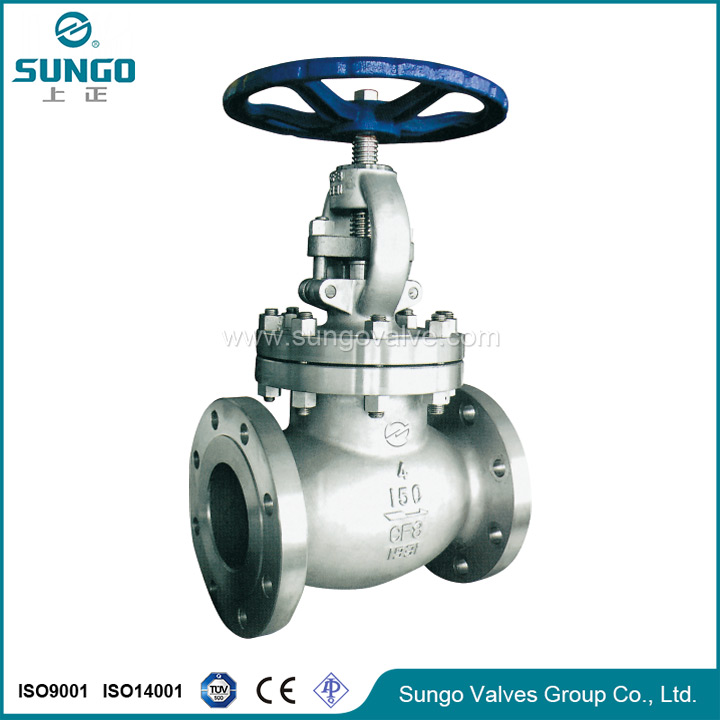

Structure:Through Way Globe Valve
Stem Thread Position:Outside Screw Stem Globe Valve
Sealing Form:Gland Packings Globe Valve
Standard:DIN, GB, ANSI
Export Markets:Global

2)Additional Info.

Trademark:SUNGO
Packing:Wooden Case
Standard:BS1873, ASME B16.34
Origin:China
Production Capacity:8000PCS/Year

3)Product Description

1)Design Feature:

1.Meet design requirements of ANSI B16.5, B16.34, B16.10, B16.25, API-600 or BS 1873
2.Inspection and Test: Accord with API 598
3.Full range of body/bonnet & trim materials
4.Back seating / OS&Y construction design
5.Renewable seat rings--seal welded
6.Choice of plug or ball disc
7.Flanged or butt weld ends
8.Optional impact hand wheel

2)Products Range:
Size: 2"-12"
Pressure: 150LB-2500LB
Material: WCB, WC6, WC9, C12, C5, CF8, CF3, CF3M, CF8M
Trim: 1#, 5#, 8#, etc.

Operated Way: Handwheel, Bevel Gear, Pneumatic, Electric
