Grain Horizontal Packaging Machine

$16999.00 ~ $20999.00 / Set/Sets

power:

3.4KW

Model:

GQ-350

Get Latest Price

You might also like

Grain Horizontal Packaging Machine

$16999.00

1 Set/Sets (MOQ)

Thermal Contraction Horizontal Packaging Machine

$18099.00

Smll Automatic food packaging machinery

1 Set/Sets (MOQ)

small vertical banana chips granule packing machine

1 Bag/Bags (MOQ)

Automatic food packer machine low price

1 Set/Sets (MOQ)

Basic Info

Model No.	GQ-350
Brand Name	GUOQIANG
Types of	Multi-Function Packaging Machine
Applicable industry	Food &Amp; Beverage Shops, Food &Amp; Beverage Factory, Food Shop
Out-of-warranty service	Video Technical Support, Online Support
Where to provide local services (in which countries are there overseas service outlets)	None
Showroom location (in which countries are there sample rooms overseas)	None
status	New
Features	Filling, Labeling, Laminating, Sealing
application	Food, Beverage, Commodity, Medical, Chemical
type of packaging	Film, Bags
Packaging Materials	Plastic
degree of automation	Automatic
Power type	Pneumatic
place of origin	China
warranty period	1 Year
Core selling point	High-Accuracy
Marketing type	New Product 2020
Mechanical test report	Provided
Video factory inspection	Provided
Core component warranty period	1 Year
Core components	Motor, Gearbox, Pressure Vessel, Pump, Plc, Gear, Bearing
Model	Gq-350
Film width	60-350mm
Film Thickness	0.03-0.07mm
Bag making length	60-190/120-280mm
Bag making width	50-160mm
Production Height	Max.40mm
Packing speed	40-230 Bag/Min
Film Roll Diameter	Max.320mm
Power Specification	3.4kw/220v,50/60hz
Gross	600kg

Product description

Grain Horizontal Packaging Machine

Grain Horizontal Packing Machine

Grain Horizontal Packing Machinery

Grain Horizontal Packaging Machinery

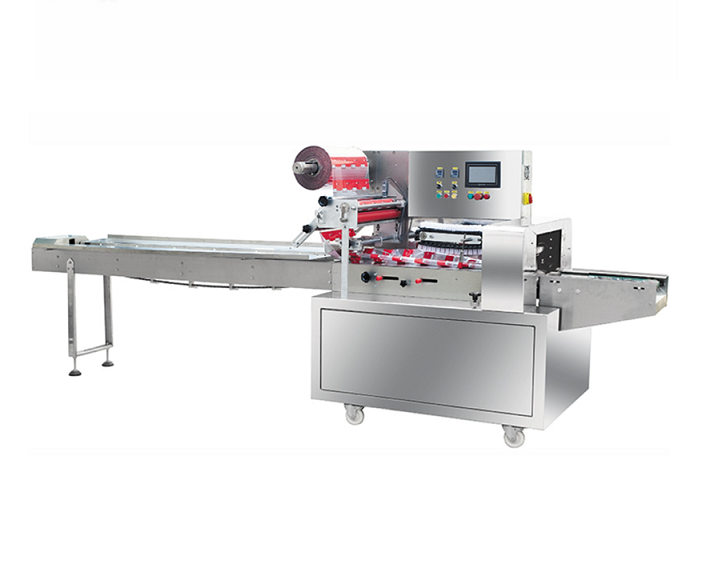

Cereal Pillow Packaging

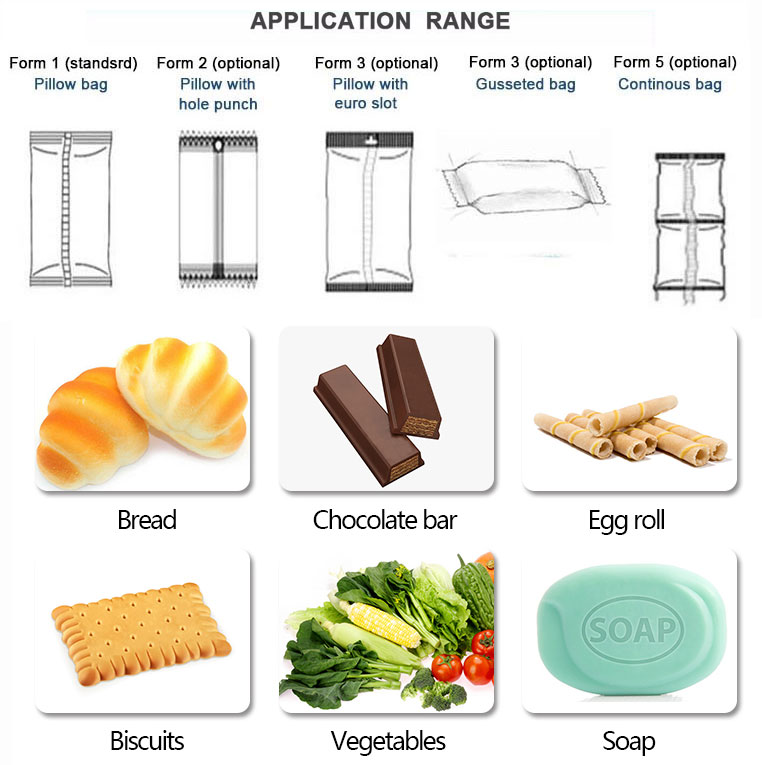

Sample Bags And Materials

Packaging Machine Features:

* Double transducer control, flexible bag length cutting, the operator needn't adjust the unloading working, saving time and saving films.

* Human-machine operation, convenient and quick parameter setting.

* Self-diagnosis failure function, clear failure display.

* High sensitivity optical electric color mark tracking and digital input cut position which makes the sealing and cutting more accurate.

* Separate PID control to temperature, suitable for various packing materials.

* Stopping the machine in selected position, no sticking to the knife and no waste packing film

Applications:

They are widely Suitable for packaging soft, strip, and unorganized objects like towels, tissues, noodles, egg rolls, sausages, fish, ice-lollipop, soft candies, biscuits, fresh fruits, etc.

Technical Parameters:

Model	GQ-350	GQ-350A
Film Width	60-350mm
Film Thickness	0.03-0.07mm
Bag Making Length	60-190/120-280mm	60-220/140-330mm
Bag Making Width	50-160mm
Production Height	Max.40mm	Max.60mm
Packing Speed	40-230 bag/min
Film Roll Diameter	Max.320mm	Max.320mm
Power Specification	3.4Kw/220V,50/60Hz
Outside Dimension	4020x770x1450mm
Gross	600kg
Packaging material	OPP/PE/PVC,OPP/CPP,KOP/CPP,ALU-FOIL
Optional device	Printer, Air-filling device, feeder, Tidier, alcohol spray device
