Basic Info
| Model No. | DSG6320LH0815 |
|---|---|
| place of origin | China |
| status | New |
| warranty period | 1 Year |
| Video factory inspection | Not Available |
| Mechanical test report | Not Available |
Product description

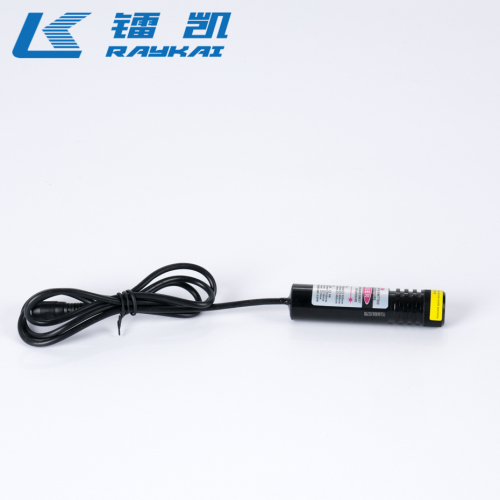

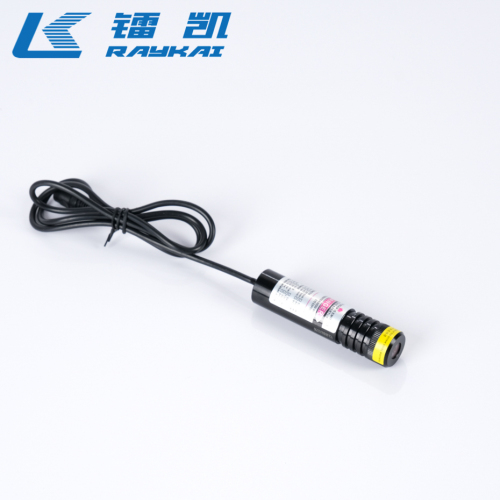

A diffractive optical element (DOE) utilizes a surface with a complex microstructure for diversified optical patterns. Raykai can offer this kind laser source with such patterns. According to our customers' demends, we can control and change its beam's shape flexibly.
So far, our products can be widely used in a range of different field, which including imaging systems, photoelectric detection, such like bar code scanners, 3S sensors, viewfinders, as well as suited to serve many other application field.
MODEL
DSG6320T0815
WAVELENGTH
635nm
WAVELENGTH ERROR
±5nm
BEAM SHAPE
10 X 10 Grid (customized)
OUTPUT POWER
20mW (customized)
FOCUSABLE
Focus fixed
POWER SUPPLY
3-5V (customized)
DRIVE MODE
CW/TTL
WORKING TEMPERATURE
-10~50℃
STORAGE TEMPERATURE
-40~80℃
DIMENSION
Φ8mm*15mm
WEIGHT
2.2g
Notice
Laser connection can be customized.
eg. red and black wires, black cable with DC connector, M12 connector, JST connector and etc.
