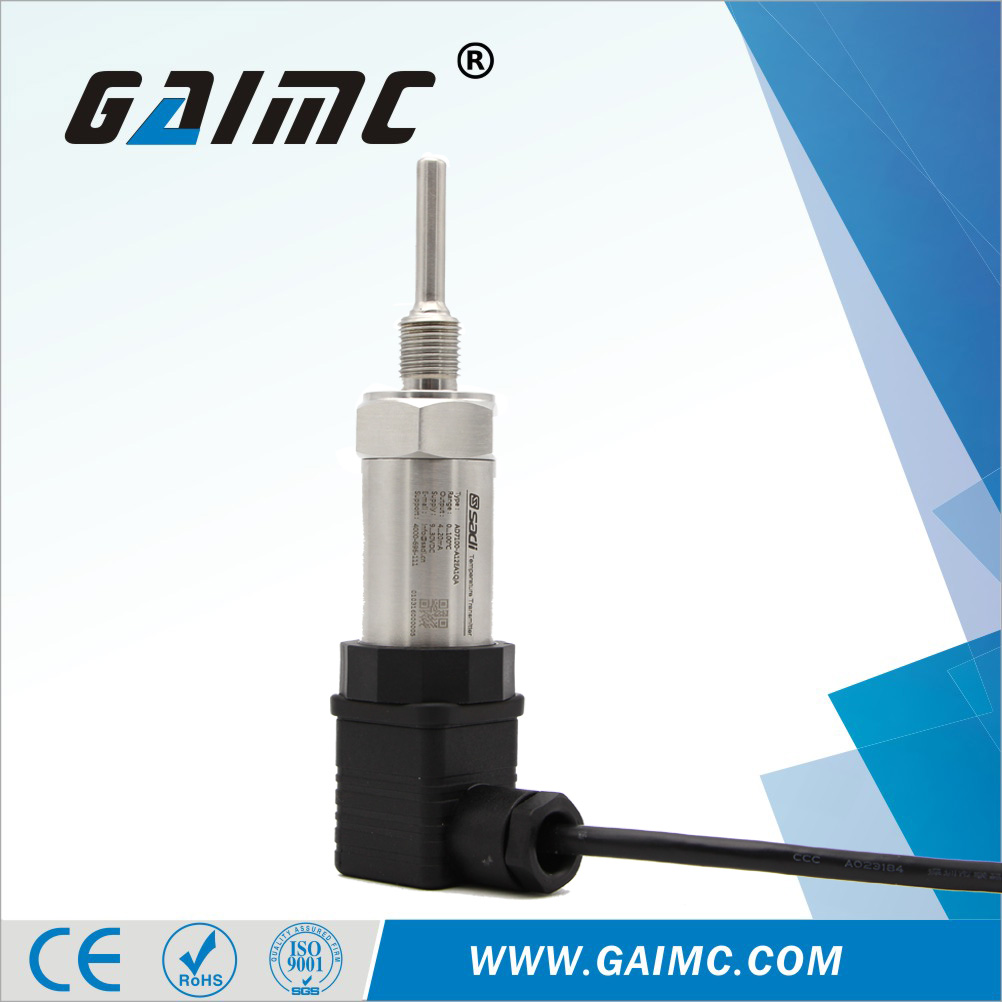

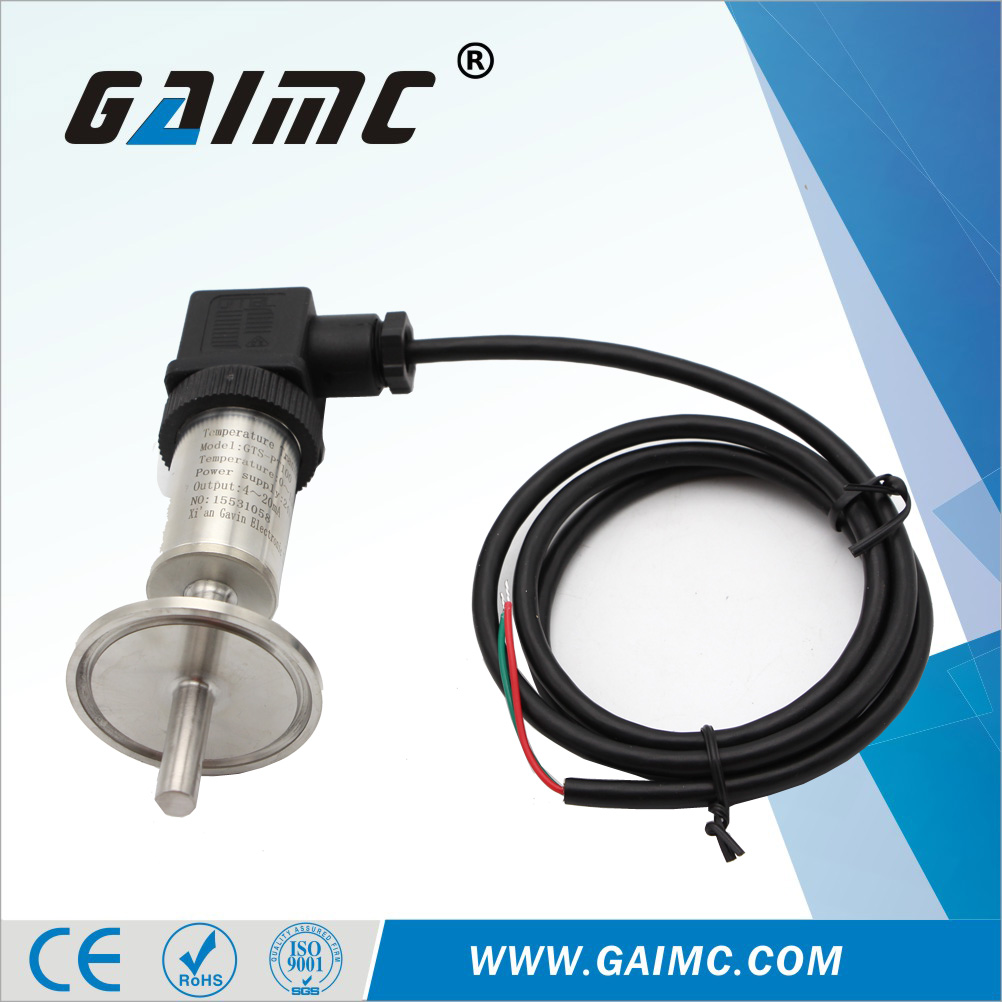

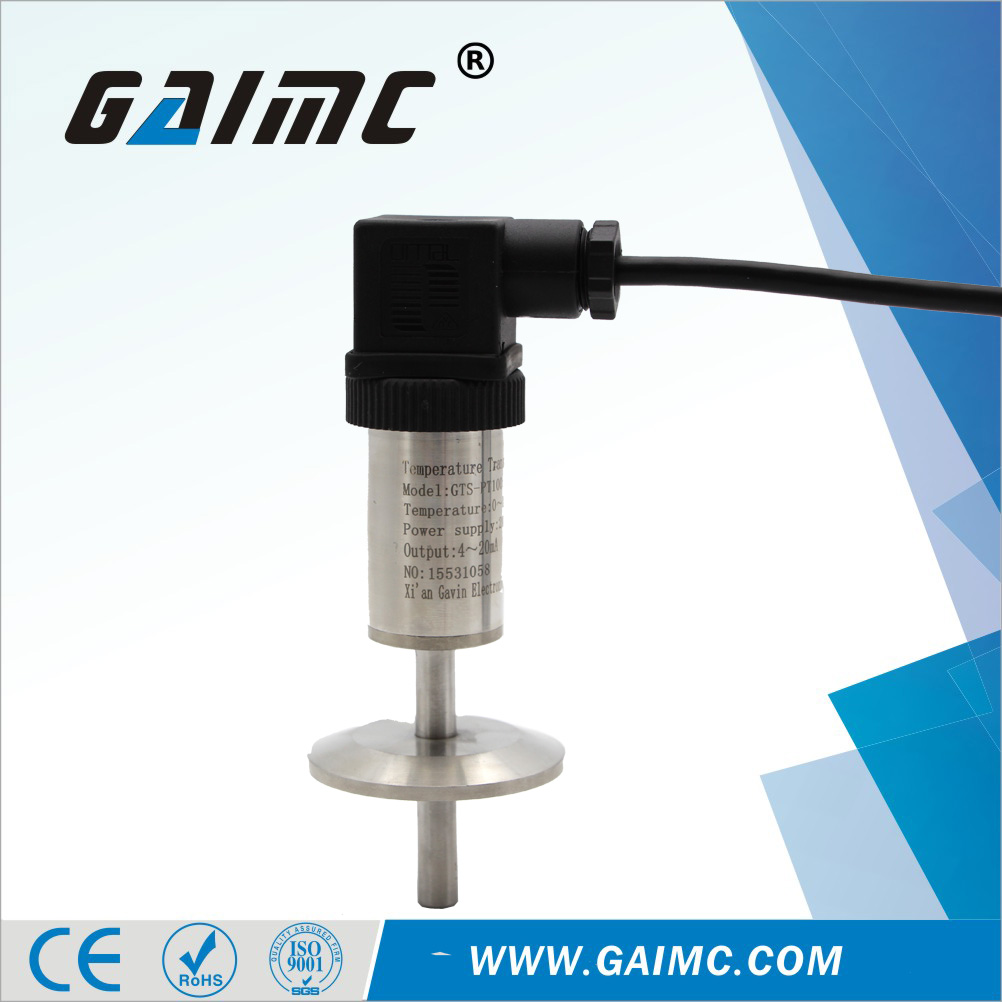

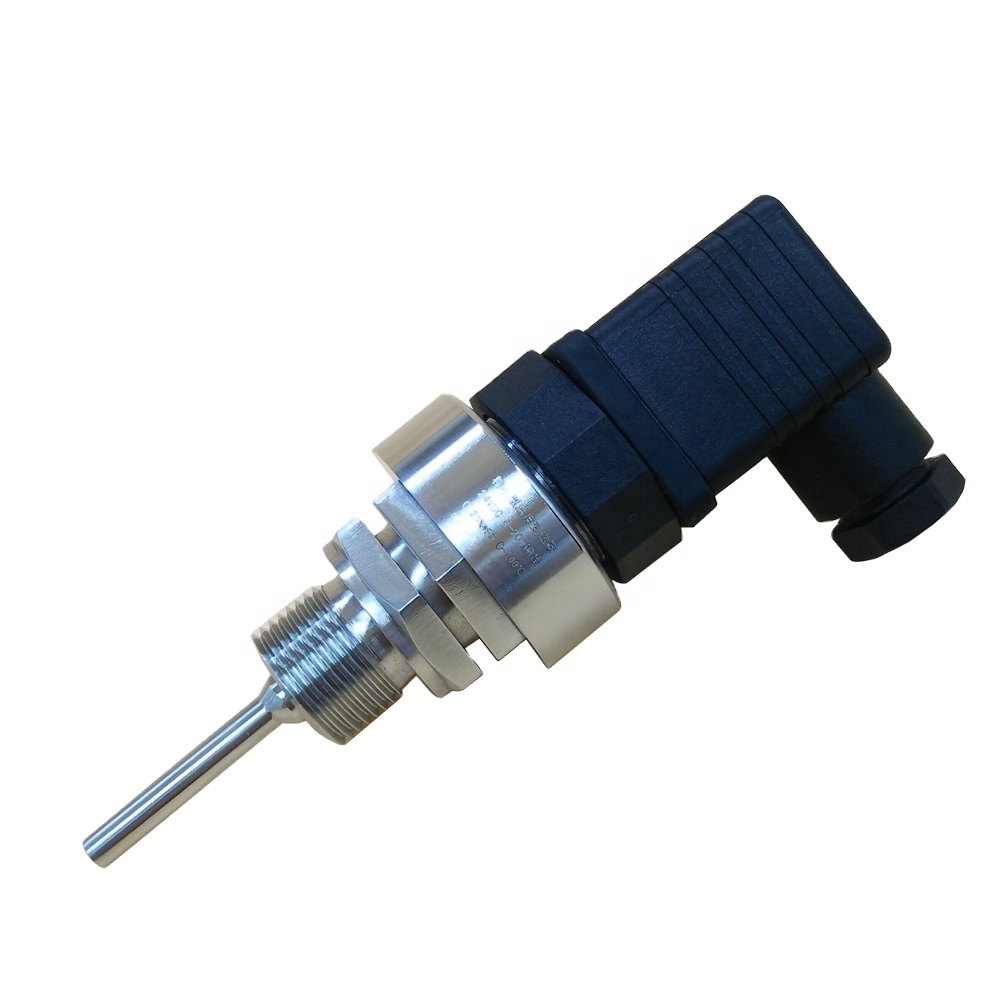

GTT200 Integrated modbus temperature sensor

$38.00 ~ $75.00 / Piece/Pieces

Get Latest Price

Model No.	GTT200
Brand Name
Brand Name	Gaimc
Model Number	Gtt300
Input	Pt100, Pt1000, Cu50
Responding time	≤250ms
Lighting protection	±4000v (≤5 Times)
Repeatability	0.1% Of Span
Anti-radio frequency interference	>10v/M (80mhz~1000mhz)
Output	4~20ma, Two-Wire System
Ambient temperature	-40~+85℃
Temp. drift	0.008%fs/1℃
Product Name	Gtt200 Integrated Modbus Temperature Sensor
place of origin	China
Place of Origin	Shaanxi, China

Temperature transmitter is a device that connects to a temperature sensor to transmit the signal elsewhere for monitoring and control purposes. Typically, the temperature sensor is either an RTD pt100 pt1000, Thermisor or Thermocouple type sensor and will interface with a PLC, DCS, data logger or display hardware.

Features

1. Handy installation;

2. RTD and standard analog output signal options;

3. With lightning protection function and high accuracy;

4. Main application: heating, ventilation applications in fields of air conditioner, agriculture, greenhouse, machinery, etc.

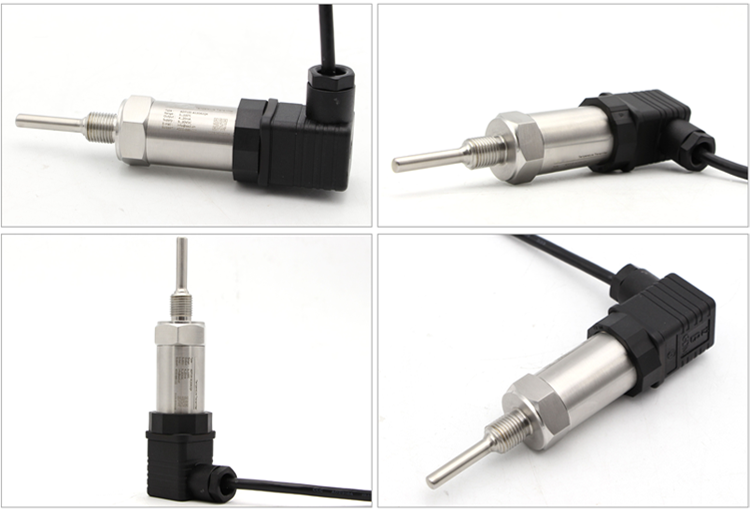

GTT200 Integrated modbus temperature sensor

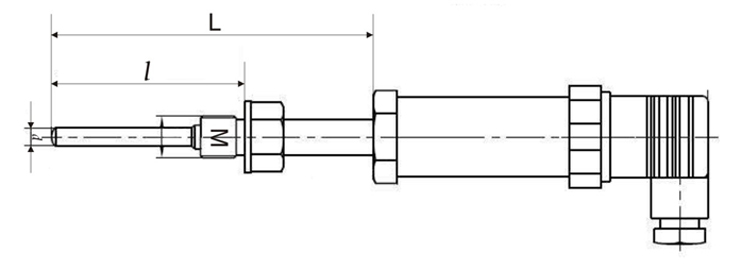

Dimension

Medium	liquid,gas
Input	PT100,PT1000
Range	-200~+350℃
Accuracy	±0.5%
Temperature change effect	For 0.5 grade:0.05%F.S/℃
Protection tube diameter	φ5,φ6,φ8(mm)
Protection tube material	SUS304
Output	4~20mA(two-wire);1-5V(three-wire)
Display	Without display,With display
Installation	Fixed thread,adjustable thread,Fixed flange, adjustable flange,tri-clamp
Electrical Connection	Hersman joint
Power Supply	12~36VDC,nominal voltage 24VDC
Operating temperature range	-25~+85℃
Storage Temperature	-45~+125℃
Relative humidity	5~95%,No condensation

GTT200-										Note
Sensor	A									PT100
Sensor	B									PT1000
Accuracy		1								±0.5%
Protection tube diameter(d)			5							φ5(mm)
			6							φ6(mm)
			8							φ8(mm)
Total Length (L)				***						Customized(mm)
Insert length (Contains the thread)					100					100(mm)
Insert length (Contains the thread)					***					Customized(mm)
Display						0				Without-display
Display						1				With-display
Connection							M			M20*1.5
							G			G 1/2
							N			1/2 NPT
							K			Tri-clamp
							X			Customized
Output								1		4-20mA(two-wire)
Output								2		1-5V(three-wire)
Temperature measurement range									***
