Sonostar Wireless Ultrasound Scanner

 Specifications:

-Scanning mode: Electronic Convex array，Linear array

-Frequency: Convex /Micro-convex probe: 3.5/5.0MHz,

           Linear probe: 7.5/10.0MHz, 10.0/14.0MHz

           Trans-vaginal probe: 6.5/8.0MHz,

-Elements: 80 / 128 / 192 elements

-Scanning Depth: convex probe: 90-305mm,

                    Linear probe: 20-100mm

-Field of view (convex array): 80-120 degree

-probe Radius: R60, R20, R15

-Screen: by Mobile phone, tablet/ computer screen

-Supporting system: iOS, Android, 64-bit Windows

-Display mode: BW Probe: B, B/M

              Color Probe: B, B/M, Color, PW, PDI

-Frame rate: 14-20f/s

-Image gray scale: 256 level

-Imaging processing: Dynamic, Focus point, Harmonic, Noise Deducting, TGC.

-Image Storage: JPG, MP4, Dicom files Saved on Mobile phone or computer

-Measure: distance, area, obstetrics and other；

-Applications: Thyroid, Small Parts, Pediatrics, Vascular, Carotid, Breast, MSK; Abdomen, Gynecology, Obstetric, Cardiac, Urology, Kidney

-Power: by built-in battery, wireless charging support

-Power consumption: 10W (Working) / 4W (freeze)

-Battery working time: 3-5 hours

-Size: 156mm×60mm×24mm

-Net Weight: 200 gram

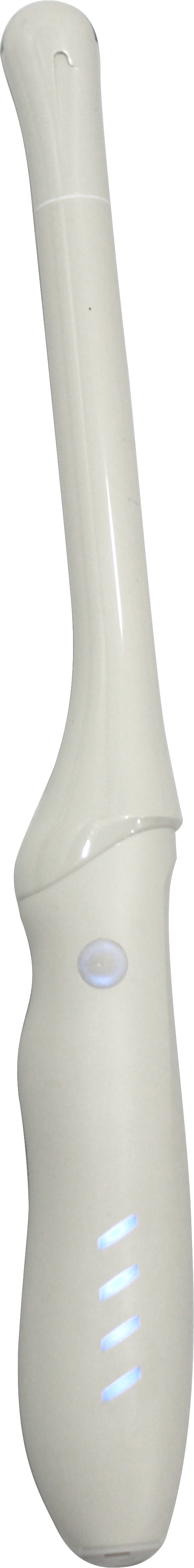

Portable Wireless Ultrasound is a mini ultrasound scanner without screen. probe device combined with integrated ultrasound boards,ultrasound probe integrated with usg board,imaging transmission done by special wifi to pad and phone.We have Single Head Ultrasound Series and Double Head Ultrasound.

Through professional  ultrasound software APP,wireless probe wifi connected with smart phone or tablet to become a ultrasound scanner.

Single Head Ultrasound Series have different Specification to chose, including B/W Ultrasound Scanner (80E, 128E, 192E) and  Color Doppler Ultrasound (80E, 128E, 192E).

Double Head Ultrasound is Color Doppler Ultrasound with difference probe head to chose, also with different element (128E,192E).
