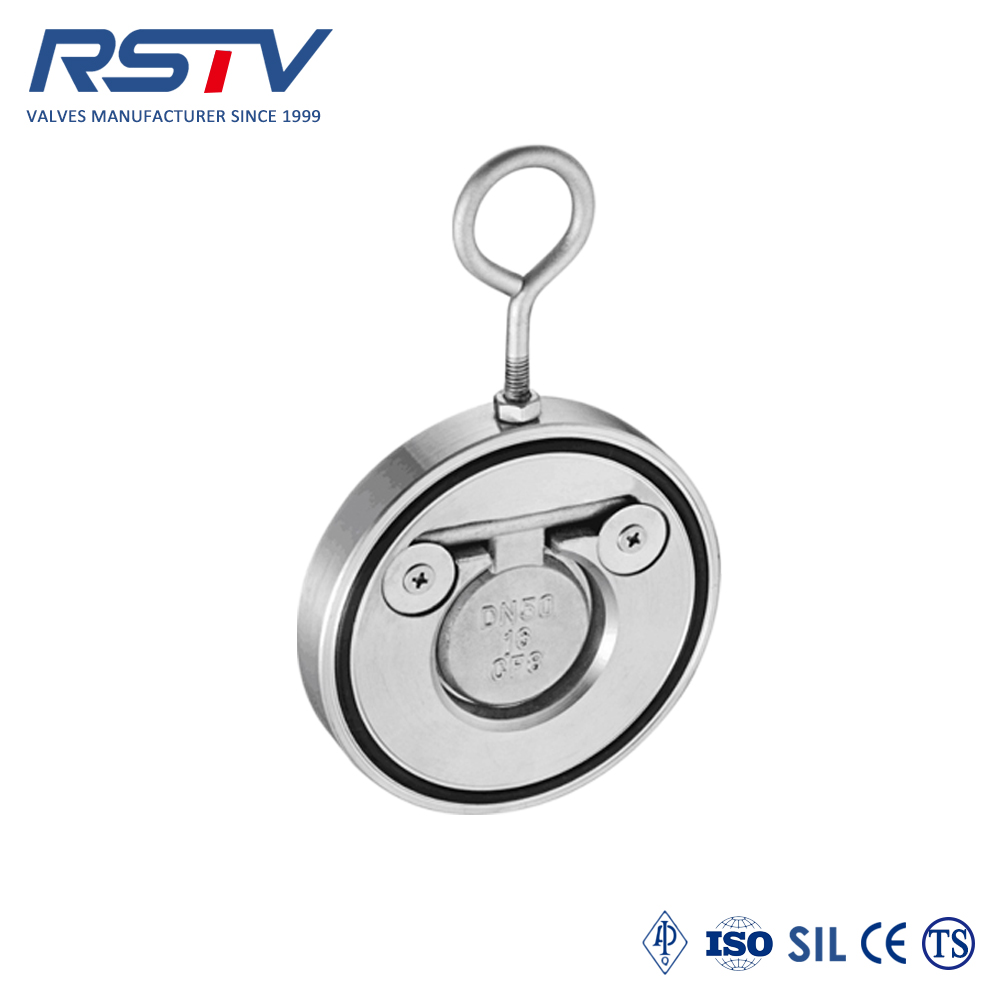

H74 Single Disc Non Return Wafer Check Valve

Wafer type check valve, has single disc type and double disc type, but all type open and close automatically by spring. So check valve are also named as one way valve, spring return valve, or non-return valve. Check valve has swing type and vertical type, but generally speaking, wafer type check valve could install both in horizontal and vertical direction. Single disc wafer type check valve, it has a spring in it to control the disc. When fluid come, it will give pressure to spring to control open and close. So spring is a very important part in a valve.

Specifications:



Product Name	Stainless Steel Single Disc Wafer Check Valve
1. Material	SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M), WCB, WCC, LCB,LCC,WC6,WC9, C5,C12, etc
2. Size	2’'~24'' ( DN50~DN600)
3. Thread standard	ISO9001 & CE, TS
4. Type	Wafer Type
5. Working Pressure	150LB/300LB/600LB/900LB/1500LB
6. Applicable standard	API 594, API 6D, standards
7. Working Temp.	-29~425℃, or according to customer requirements for different industry.
8. Suitable Medium	Water, Natural Gas, Oil and some corrosive liquid
9. Inspection & Testing	According to API598/DIN3230
Shipment
Delivery Time	15~20 Days
Package	Standard Exporting Plywood Case
Shipping Port	Ningbo/Shanghai, China
Shipping Terms	Exw, FOB, CFR, CIF, etc.
Payment Terms	T/T, Western Union, PayPal, etc.
	30% prepayment, 70% balance paid before shipping or against copy of BL
Country of Origin	Wenzhou city, China
Production Capacity	6000 ton/year
MOQ	10 PCS/size



Features:

1. Light weight,versatile design— 80% to 90% less than conventional full-body swing check valves

Simplifies piping

Reduces thermal and seismic considerations

Optimizes space utilization

Lowers installation costs

Reduces pipe supports

Requires less number of man-hours

2. Single Disc opening

Unobstructed flow

Stable disc at lower flow velocities

3. Single integrated arm/disc assembly Spring-loaded disc calculated to increase the responsiveness of the disc

No shearing of disc from arm

Non-rotating disc for longer life

No nut to back-off disc stem

4. Elastomer o-ring seat secured in body with dove-tail groove

Alleviates water hammer and resultant damaging effects

5. Integrated body seat

Field replaceable seat

Seat is out of the direct flow stream

6. Non-blow out shaft design

Improved safety to personnel and surrounding equipment

7. Outside mounted accessories externally supported

Increased control of valve performance

Long body seal life

Enhanced fugitive emissions control

Competitive Advantages:

1. Our products is guaranteed within 18 months after delivery.

2. We offer free sample if interest before orders.

3. Technology renovation, process improvement, structure optimization and quality improvement.

4. Excellent after-sales service system, providing timely and optimal service, which help you to win the market.

5. Convenient shipping sea port, and standard exporting carton boxes & plywood cases.

6. 100% inspection & testing before delivery.

7. Third party inspection on customer requirement.

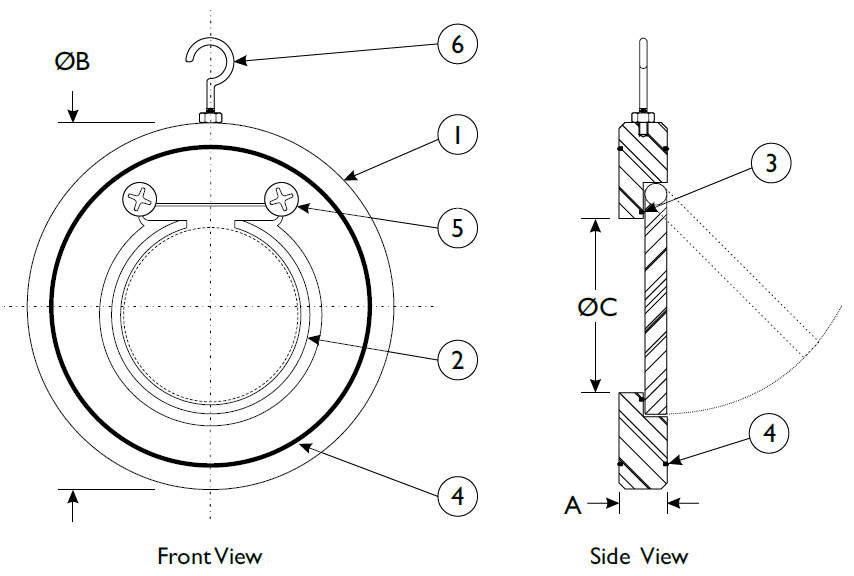

Material List:

No.	Part Name	Material
1	Body	ASTM A216 WCB/A351 CF8M
2	Disc	ASTM A216 WCB/A351 CF8M
3	Seat	Buna-N/PTFE
4	Body Seal	Buna-N/PTFE
5	Bolt	SS304/SS316
6	Eye Bolt	SS304
