Hand Arbor Press Machine
Nominal force (kN):
- 3
Basic Info
| CNC or Not | Normal |
|---|---|
| Machine type | Punching Machine |
| Power Source | Mechanical |
| place of origin | China |
| Brand Name | LONROY |
Product description
Arbor press hand /manual arbor press/arbor press machine
Use

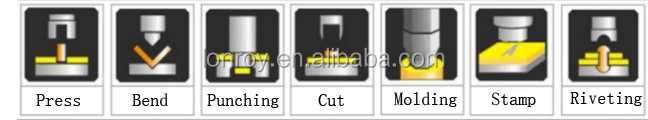

This press machine is applicable to many industries such as hardware,?electronics, electric appliance, automobile, machinery, clock, instrument,in the process of equipment, blanking, cutting, molding, flanging, pressing,?riveting, punching, sewing, proofreading and stamping.
?

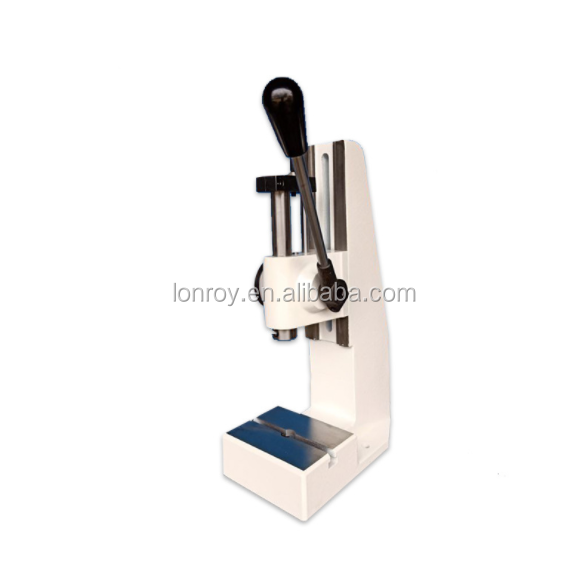

Arbor press hand /manual arbor press/arbor press machine
Character
The pressure of the press is almost constant during the downward ,?It has the following remarkable characteristics:
1.small operation force, high pressure and wide range of travel
2.Stroke, height and handle position are fully adjustable and easy to operate.
3.equipped with stroke block and optional travel self locking mechanism to??ensure product quality.
?
?

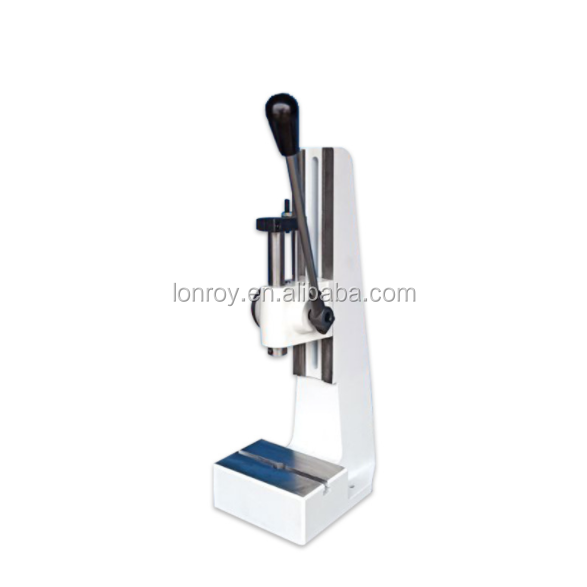

Arbor press hand /manual arbor press/arbor press machine

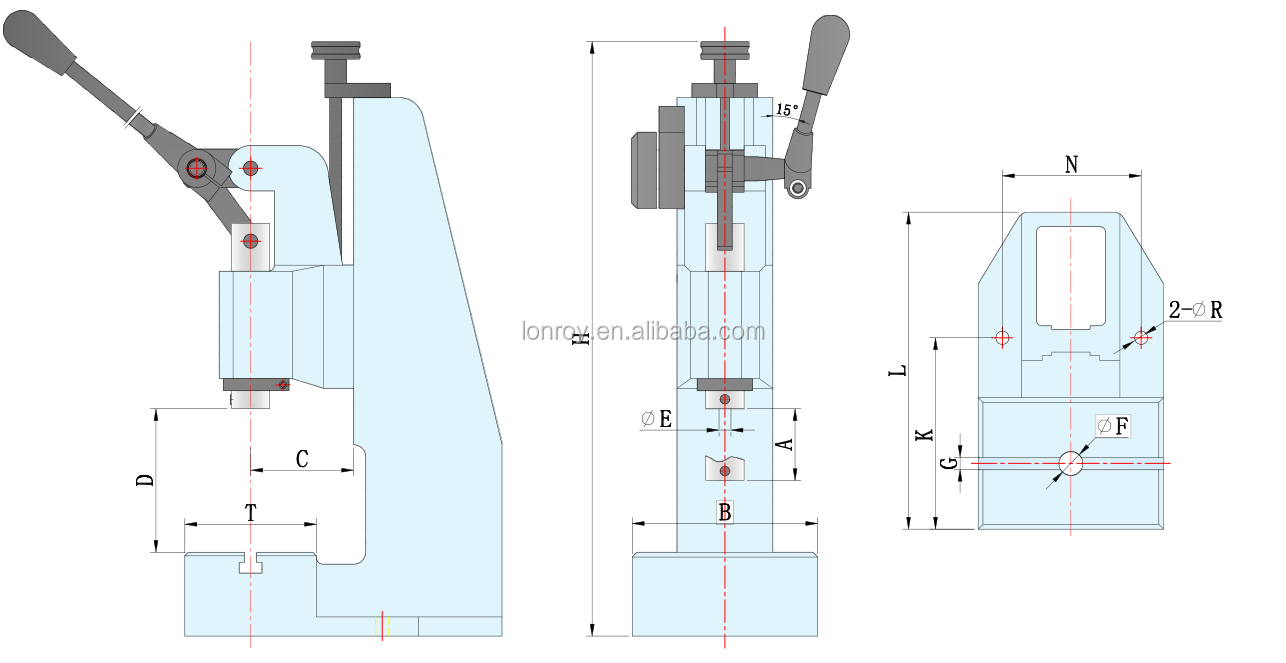

Specification
| Model | ? | A | B×T | C | D | E | F | L | H | G | R | N | ? |
| pressure | stroke | work table size |
spindle span |
adjust?height | install hole diameter | work table hole diameter | base length | base height | Tgroove width | install hole diameter | hole diameter | Weight | |
| ? | KN? | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | KG |
| AHP-1 | 12 | 0-60 | 185*115 | 86 | 120-360 | 10H7 | 20H7 | 265 | 610 | 10 | 11 | 146 | 31 |
| AHP-1R | 12 | 20-60 | 185*115 | 86 | 120-360 | 10H7 | 20H7 | 265 | 610 | 10 | 11 | 146 | 32 |
| AHP-2 | 12 | 0-60 | 150*110 | 86 | 80-265 | 10H7 | 20H7 | 260 | 500 | 10 | 11 | 116 | 23 |
| AHP-2R | 12 | 20-60 | 150*110 | 86 | 80-265 | 10H7 | 20H7 | 260 | 500 | 10 | 11 | 116 | 24 |
| AHP-3 | 5 | 0-40 | 110*80 | 65 | 65-180 | 10H7 | 20H7 | 195 | 410 | 8 | 11 | 96 | 12 |
| AHP-3R | 5 | 20-40 | 110*80 | 65 | 65-180 | 10H7 | 20H7 | 195 | 410 | 8 | 11 | 96 | 13 |
| Note: the ordering model with suffix (R) indicates that the product has self-locking mechanism for return trip. | |||||||||||||
?
?
?
?
?
?
?
?
?
?
?
