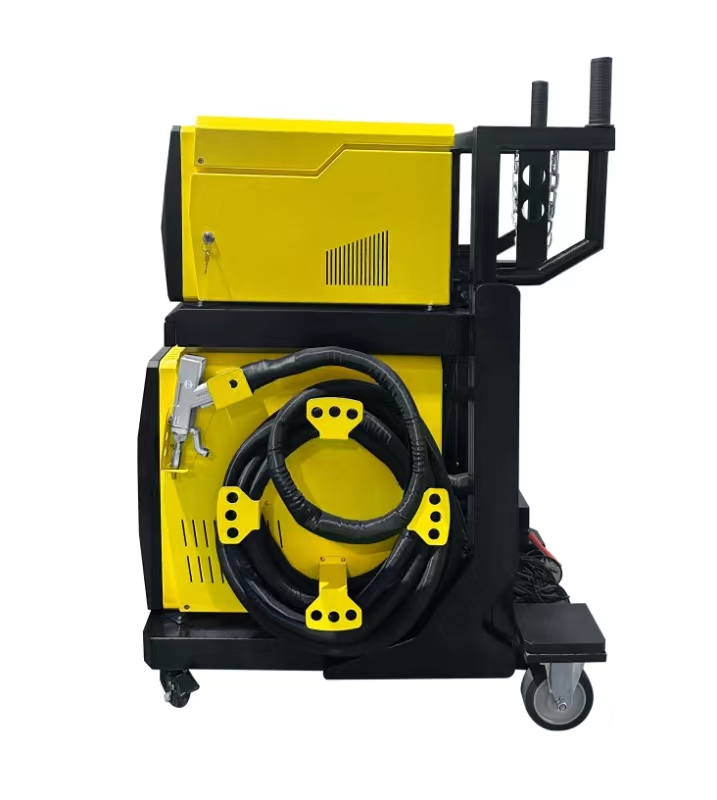

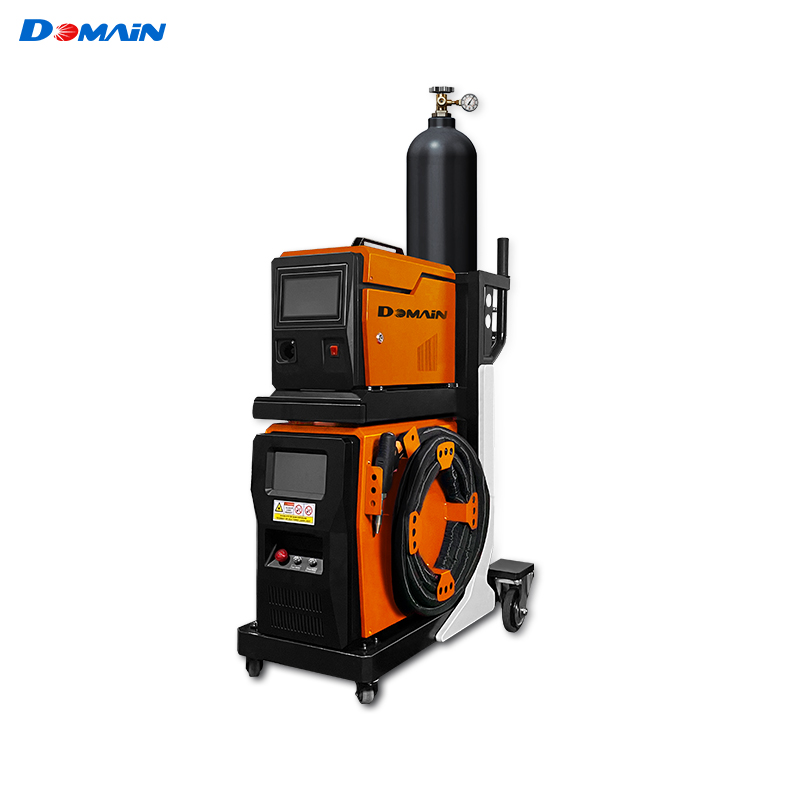

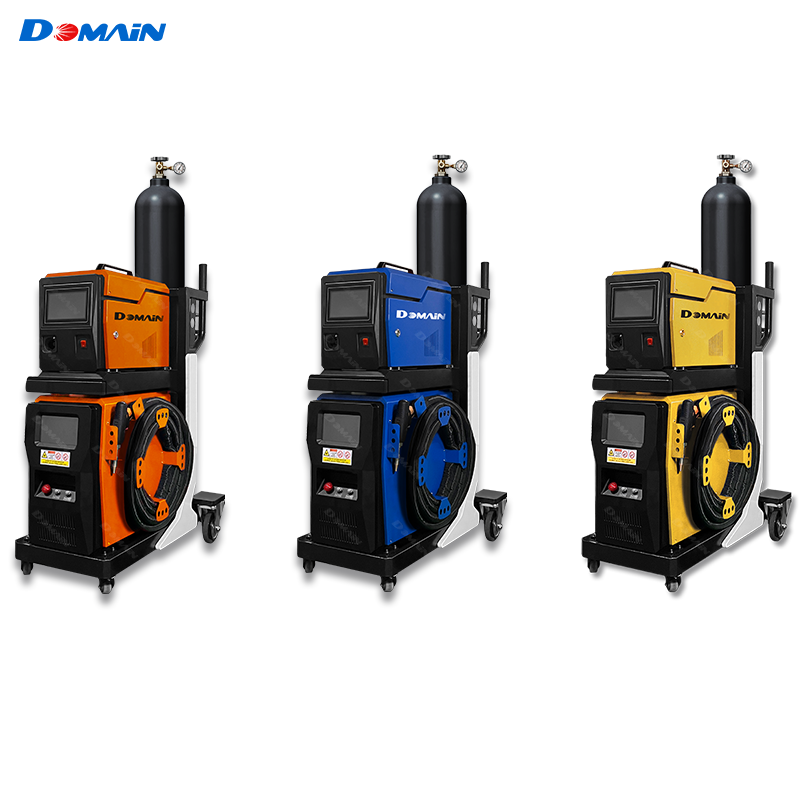

Handheld Portable Laser Welder with 1500W Air Cooling System for Optical Fiber
$400.00
~ $3400.00
/ set
Options:
- 1500W
- trolley
- wire feeder
- laser welder host
Get Latest Price
You might also like
Basic Info
| Condition | New |
|---|---|
| Max. Output Power | 1500w |
| Use | welding |
| Place Of Origin | Hubei, China |
| Brand Name | Domain Laser |
Show More
Product description

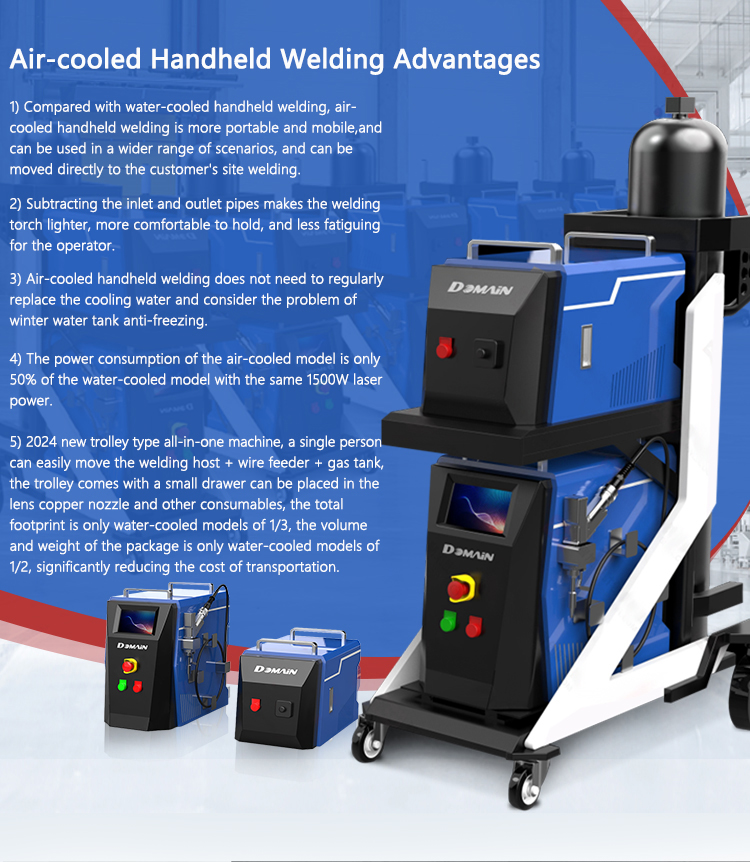

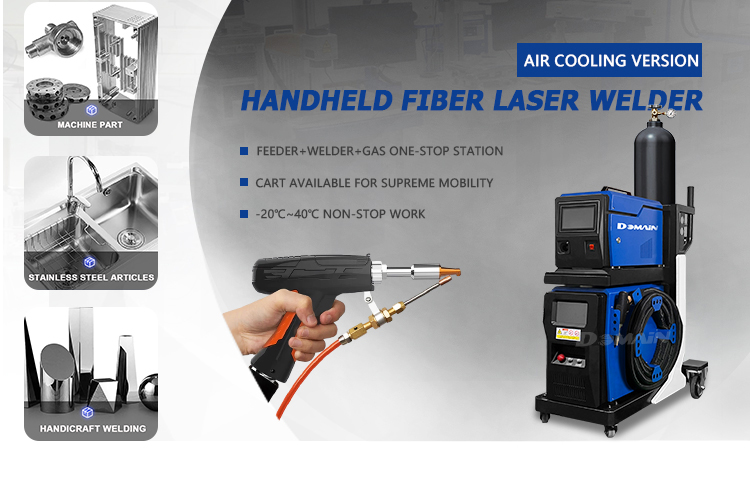

Air-cooled Handheld Welding Advantages
1）Compared with water-cooled handheld welding, air-cooled handheld welding is more portable and mobile, and can be used in a wider range of scenarios, and can be moved directly to the customer's site welding.
2）Subtracting the inlet and outlet pipes makes the welding torch lighter, more comfortable to hold, and less fatiguing for the operator.
3) Air-cooled handheld welding does not need to regularly replace the cooling water and consider the problem of winter water tank anti-freezing.
4) The power consumption of the air-cooled model is only 50% of the water-cooled model with the same 1500W laser power.

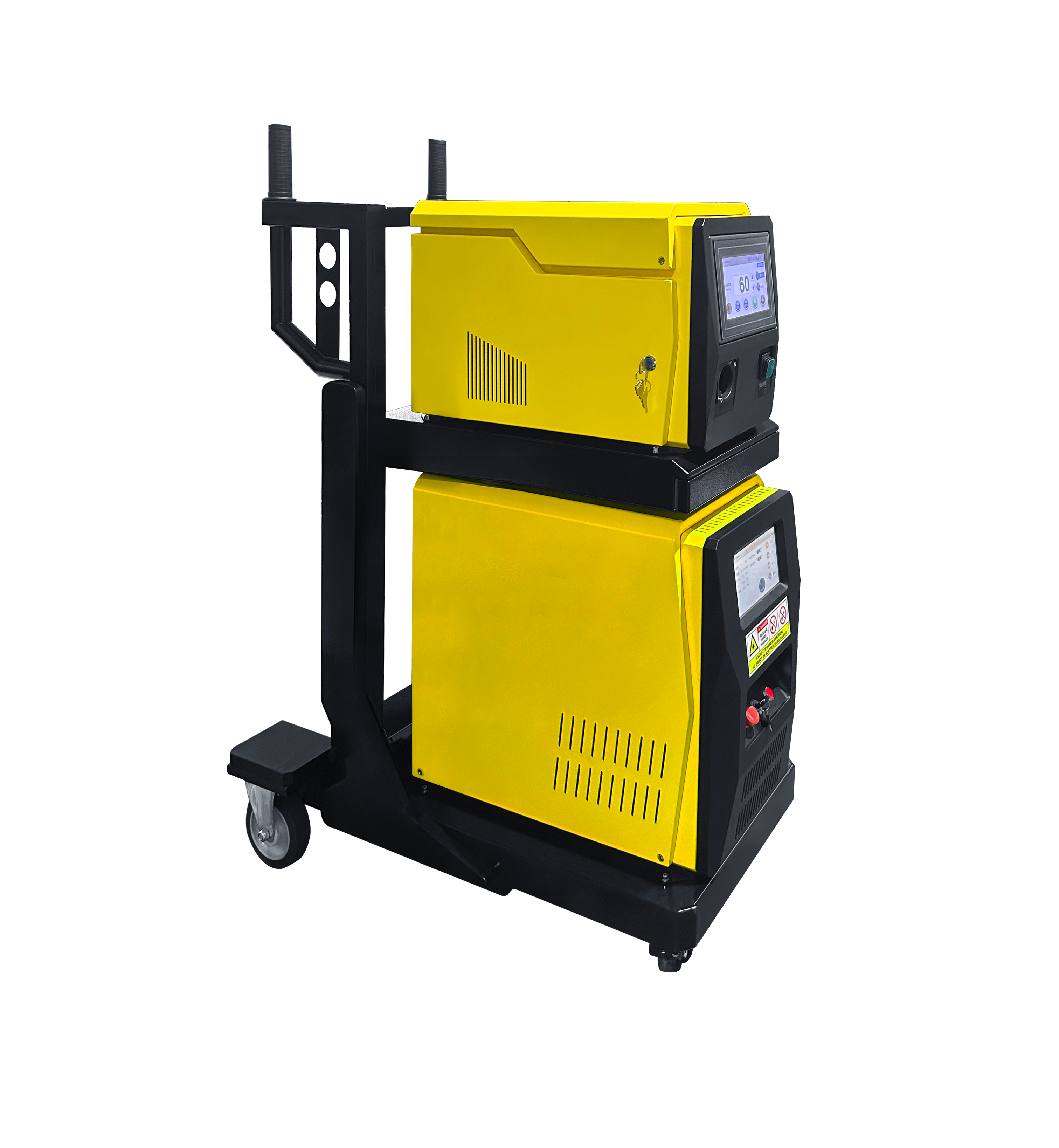

5) 2024 new trolley type all-in-one machine, a single person can easily move the welding host + wire feeder + gas tank, the trolley comes with a small drawer can be placed in the lens copper nozzle and other consumables, the total footprint is only water-cooled models of 1/3, the volume and weight of the package is only water-cooled models of 1/2, significantly reducing the cost of transportation.
Technical Parameter
Output Power | 1500W |
Laser Wavelength | 1064nm |
Working Mode | continuous or modulate |
Optical Fiber Length | 10 m (customize) |
Diameter of Fiber Core | 50um |
Adjustment Range of Power | 10-100% |
Auxiliary Gas | Nitrogen / Argon |
Suitable Material | Carbon steel, stainless steel, galvanized sheet,Aluminum, etc |
Power Supply | 220V ±10 % ; 50/60 HZ AC |
Welding Speed Range | 0-120mm/s |
Welding Thickness Range | 0.5-6mm |
Cooling Type | Air cooling |
Dimension | L85*W40*H117cm? |
Weight | 90KG(Laser 40KG, Feeder 17KG, Cart 33KG) |

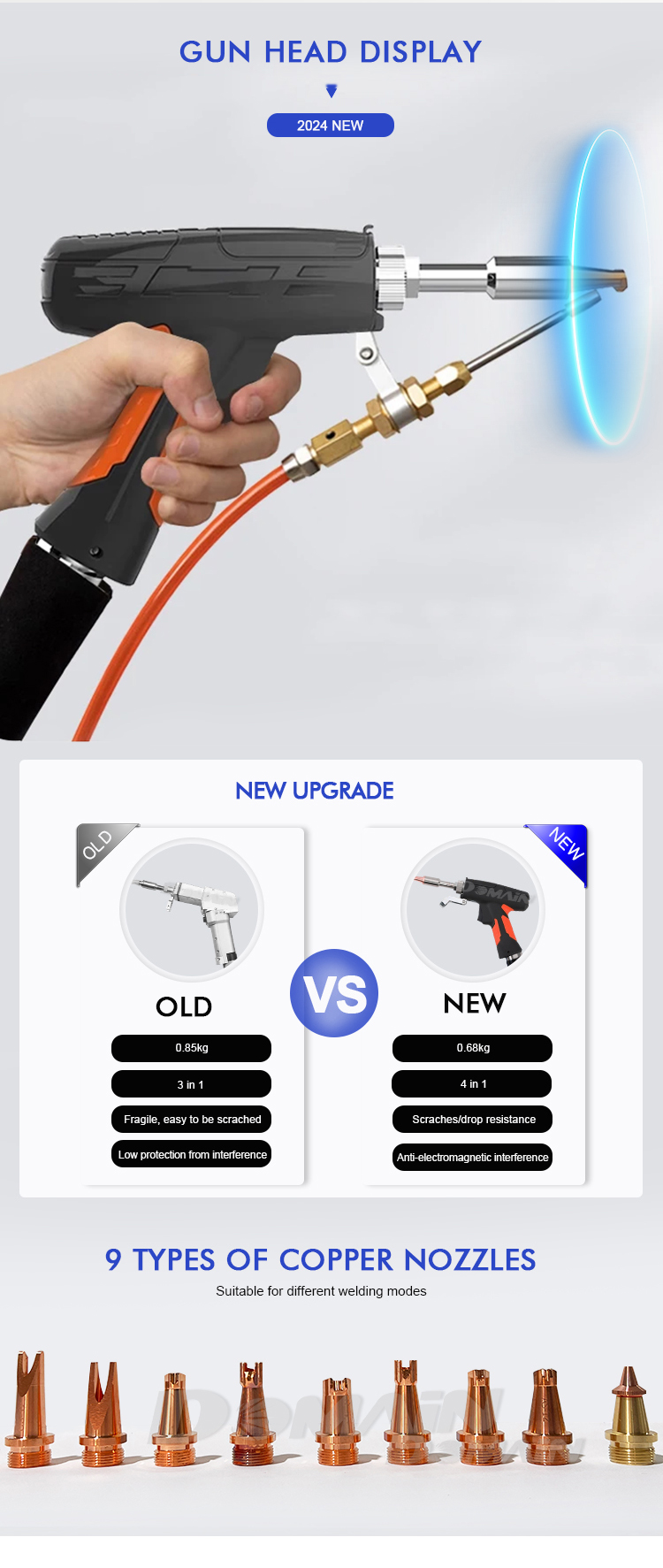

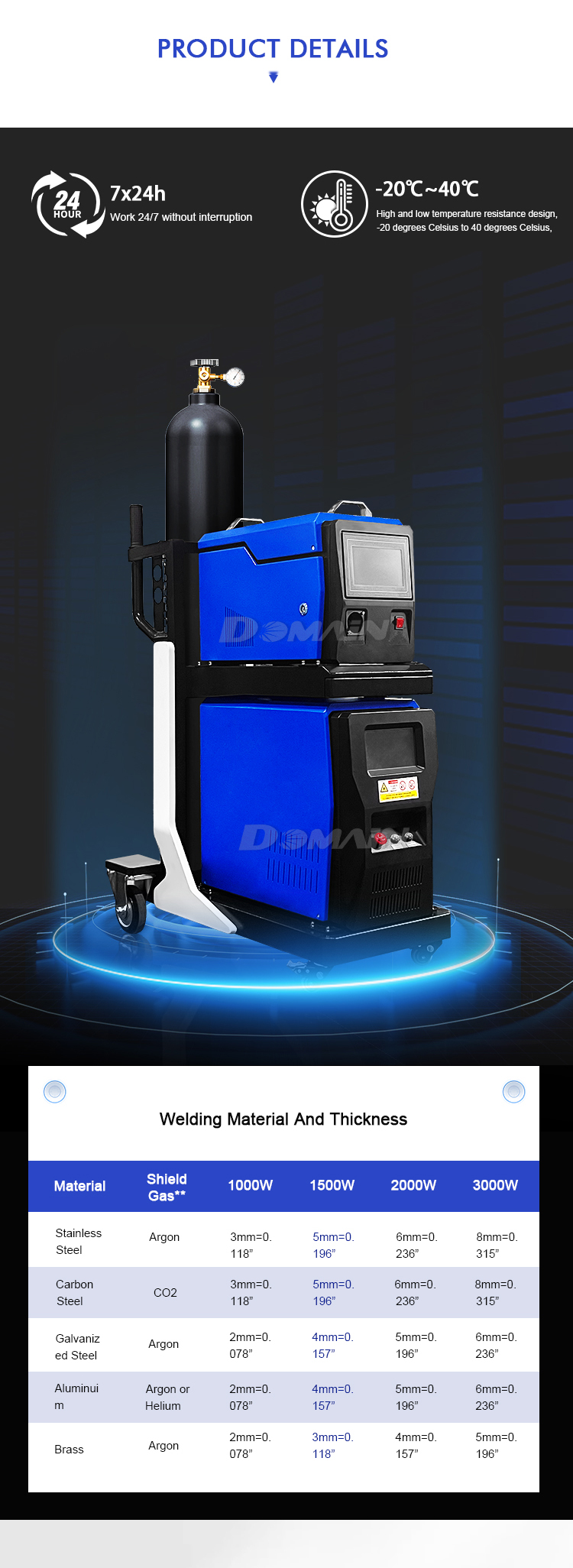

Product Detail

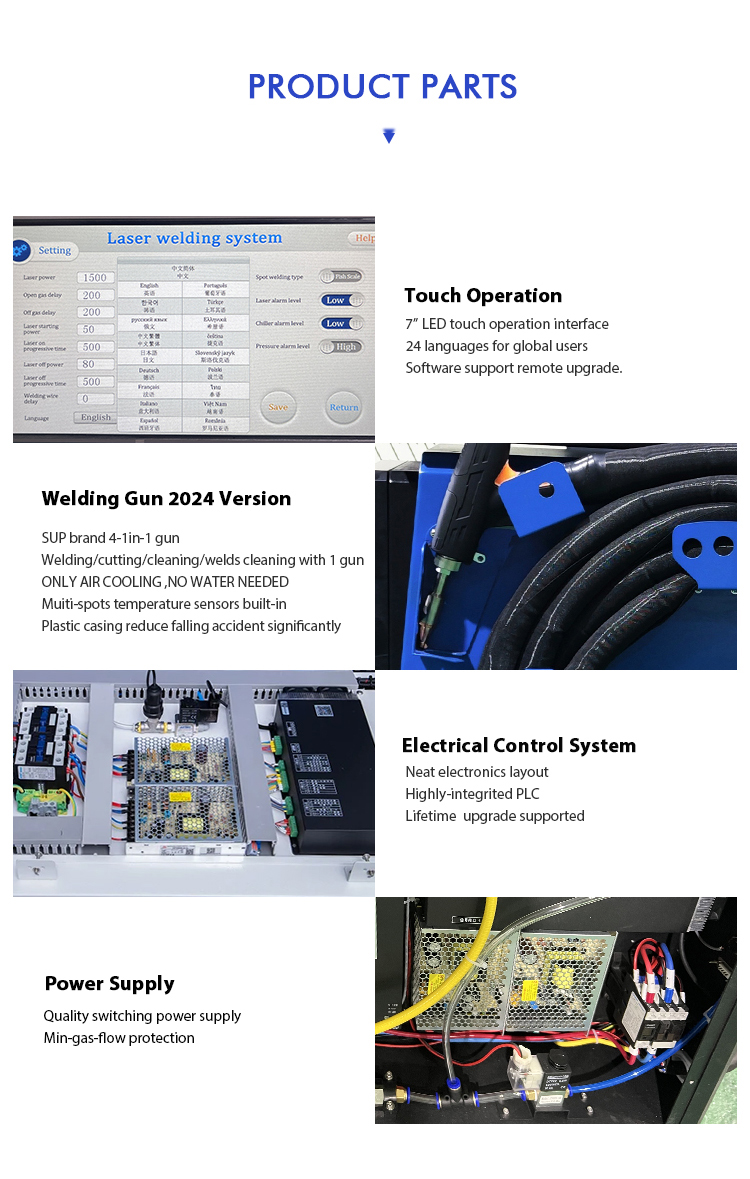

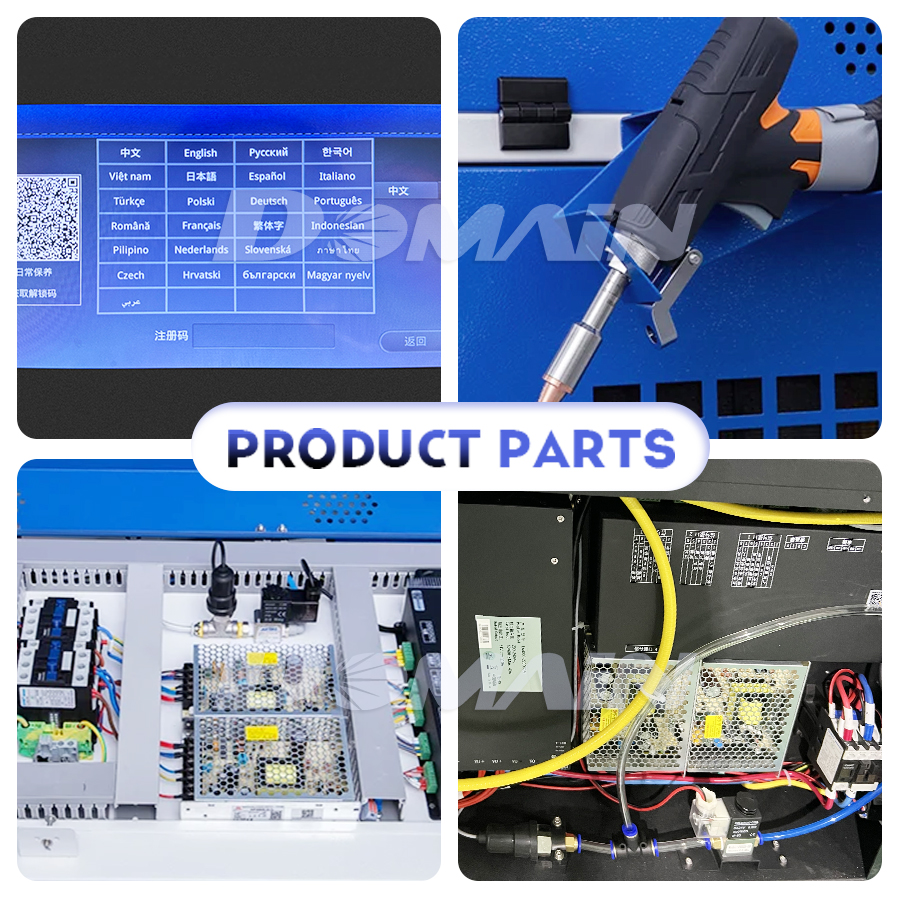

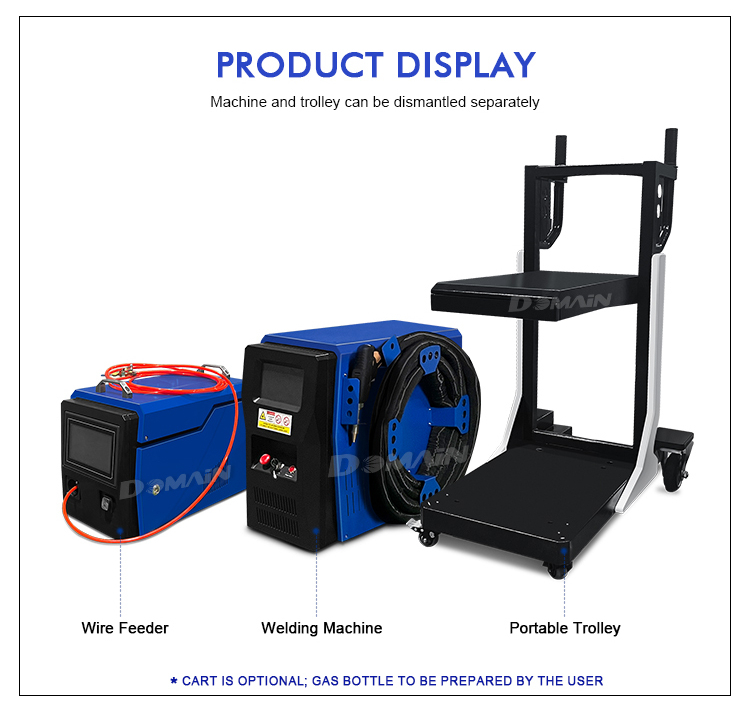

Product Parts
Samples Show

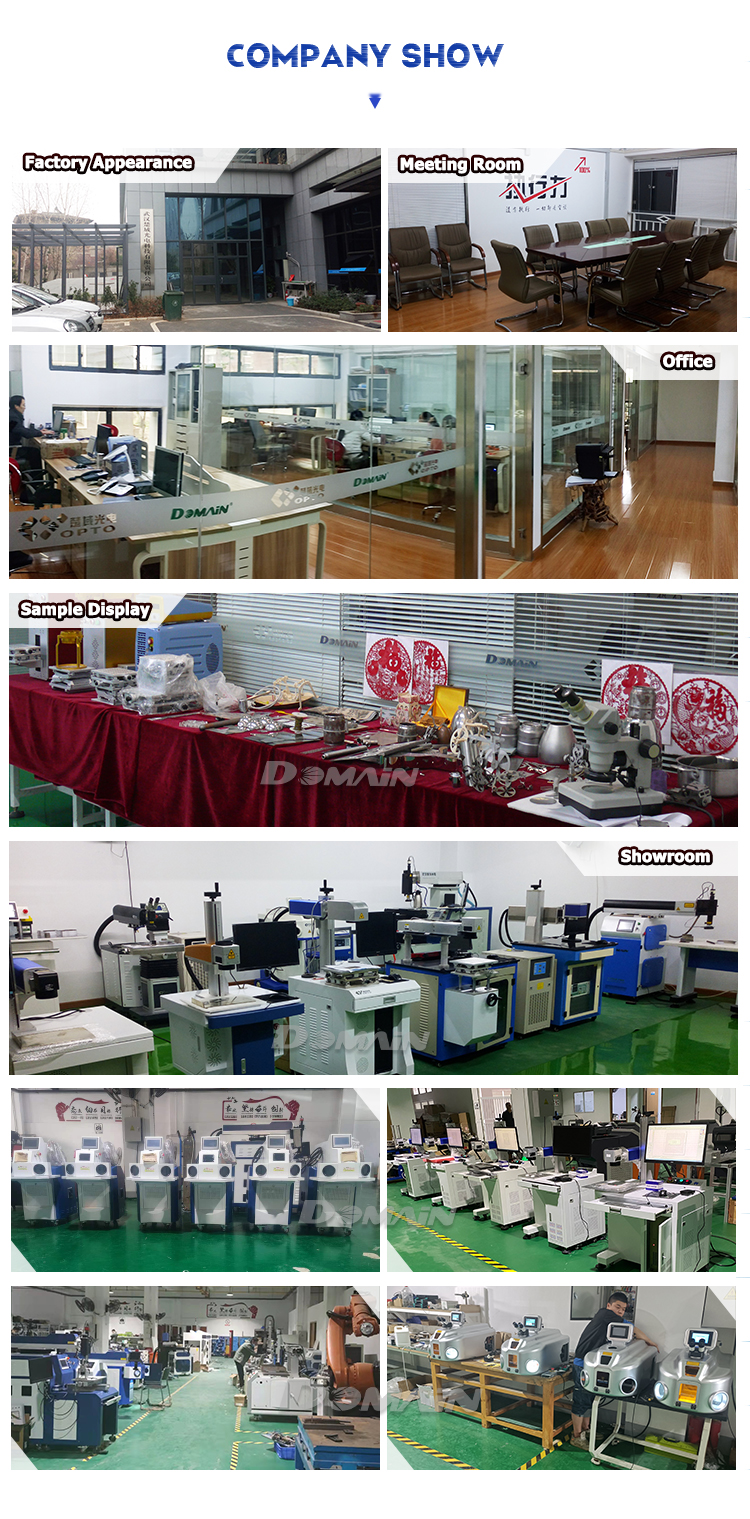

Company Introduction
Packaging and Delivery
Q1：What's your warranty policy?
>> We offer 1 year free overall warranty and life-time technical support to our customers .Thorough check will be done with the help of customer when any problem comes out. After professional diagnosis, we will send you any necessary part via international express and guide you how to replace them in the form of image or video. We’ll cover all the expenses relative.
Q2：Is this machine stable to use and is it complicated to maintain?
>> YAG laser welder is already very mature and of cause stable to use after more than 20 years development. It is known as easy operation and easy maintenance. Based on the statistics figure of 2013,our total rework rate is only 0.5% and failure rate only 3%. For daily maintenance, you just need to change the water in the chiller tank every two weeks and do some regular cleaning work.
Q2：How can I do if the machine goes wrong?
>> If happens, you can contact our sales directly. We will offer engineer delivery service.
But, pls don't try to fix the machine by yourself or someone else. We will response within 12 hours as soon as we can do for you!
