HD Live Streaming Video Encoder & Decoder: VGA, SDI, DVI, CVBS, YpbPr, H265, H264, RTMP

$539.00

≥10 unit
$509.00

≥50 unit

Get Latest Price

Model No.
Brand Name
Place Of Origin	Zhejiang, China
Brand Name	Dibviewolo
Model Number	OTV-TE5D
Function	Support encoding & decoding
Interface	HD MI/VGA/CVBS/YPbPr/SDI/DVI
Encoder Decoder	for Real Time IPTV
Compression	H.265 Main Profile / H.264 High Profile and AAC audio
Input	HD MI/VGA/CVBS/YPbPr/SDI/DVI inputs (SDI with loopout)
Output	2 IP streams simultaneously output
Protocol	HTTP/ RTSP /UDP/RTP/RTMP
Audio Compression	AAC , MP3
Resolution	Support up to 720P, 1080P HD video input
Bitrate	16kbps~12Mbps, CBR/VBR

Overview

OTV-TE5D Encoder Decoder is a professional audio and video codec integrated network audio and video coding products. It is a multi-functional device integrated cost-effective product with very strong professionalism, low latency for IPTV/OTT systems. And it adopts state-of-the-art compression technology of H.265/H.264, which realizes its resolution to be up to 1080P. This is a broadcast-quality professional device supporting 6 kinds of video interfaces and 3.5 audio acquisition. These interfaces are follows: HD MI/VGA/CVBS/YPbPr/SDI/DVI, which can compatible with all kinds of video signal source access in the industry. OTV-TE5D Encoder Decoder with HD MI /VGA /SDI /CVBS and other loop-out interfaces, and support the function of HTTP/ RTSP /UDP/RTP/RTMP and other audio and video streams, and support picture-in-picture. OTV-TE5D Encoder Decoder can work simultaneously with two different sources, select SDI signal source input and then choose one of VGA/HD MI/CVBS/YPbPr/ DVI signal sources. Each of these signal sources can output one main stream and one second stream. Two protocols can be selected for each IP stream, RTMP and one of HTTP/RTSP/UDP/RTP. This product can output eight IP streams with different protocol, different resolution. OTV-TE5D Encoder Decoder can be applied to education, health care, IPTV, conference, remote education, news interview, court, public security, banking, transportation and other industry application

Main Features

1 Channel HD MI/VGA/CVBS/YPbPr/SDI/DVI inputs (SDI with loopout) Support2 IP streams simultaneously output Offer transcoding function,IP input, IP output, protocol, format, resolution, etc. HD MI loopout resolution, customizable resolution Provide picture-in-picture coding output Support built-in hard disk storage OTV-TE5D Encoder Decoder accepts both SDI and 1*VGA/HD MI/CVBS/YPbPr/ DVI input working at the same time. Support one computer and multiple devices simultaneously display Up to full HD1080P output, and supports Blu-ray HD Support OSD, support OSD scrolling, image overlay Offer external independent audio input, supports audio gain, and can adjust the volume separately. Workable under RTSP/RTP/RTMP/HTTP/UDP unicast,multicast and other protocols (Username and password verification allowed under RTMP),supports DHCP/ON VIF protocols

Once settings finished, it will be effective immediately, no need restart Settings are complete and effective immediately, no restart required. Provide network direct connection and don't need to work with a HD capture card. Compatible with streaming media servers such as Wowza/FMS/RED5,the encoder pushes live streaming to the streaming media server to achieve live video Video packing: FFMPEG/VLC Transport method: TCP,UDP,1000M(RJ45 duplex interface) Support code stream to add watermark function (OSD), XY axis, font can be set. Provide DHCP to obtain IP automatically , support one-key restore and version upgrade and remote maintenance. Support WEB English web page access,change password, support WAN remote management Image settings: contrast, brightness, hue, saturation, noise detection, sharpness, filtering

Specifications
Model: OTV-TE5D Encoder Decoder VGA/HD MI/CVBS/YPbPr/ DVI Encoder
Video Encoding
Video compression: H.265/HEVC, H.264 High/Main/Baseline Profile? Video input: VGA/HD MI/CVBS/YPbPr/ DVI? Resolution: 1920x1080/1680x1050/1280x720/1600x1200/960x540/720576/704576? Bit-rate: 16kbps~12Mbps, CBR/VBR? Video pre-processing: Noise reduction, Sharpen, Filtering
Audio Encoding
Audio compression: AAC/MP3? Audio input: 1 HD MI embedded audio, 1SDI embedded audio; 2* 3.5MM independent audio (supports audio gain) ?Sampling rate: 32KHz, 44.1KHz, 48KHz, etc.? Sampling accuracy: 24-bit? Audio bit-rate: 48kbps~320kbps
IP Streaming output
Transport protocol: SDI to IP output,4*TS over IP stream out(HTTP RTSP UDP RTP or RTMP)
Each HD MI to IP Out
For 1* VGA/HD MI/CVBS/YPbPr/ DVI to IP output, 4*TS over IP streams output can be set with different resolution, bitrate, protocol. Connector: RJ45, 1000M
General Option
System Configuration Interface: Web-based management? Upgraded: via network? Connector: RJ45, 1000M Ethernet interface
Physical And Power
Voltage: 220V? Consumption: 12w? Operating temperature 0~45℃(operation), -20~65℃(storage)? Dimensions: 250mm(W)430mm(D)45mm(H) Weight: 3.5 KG

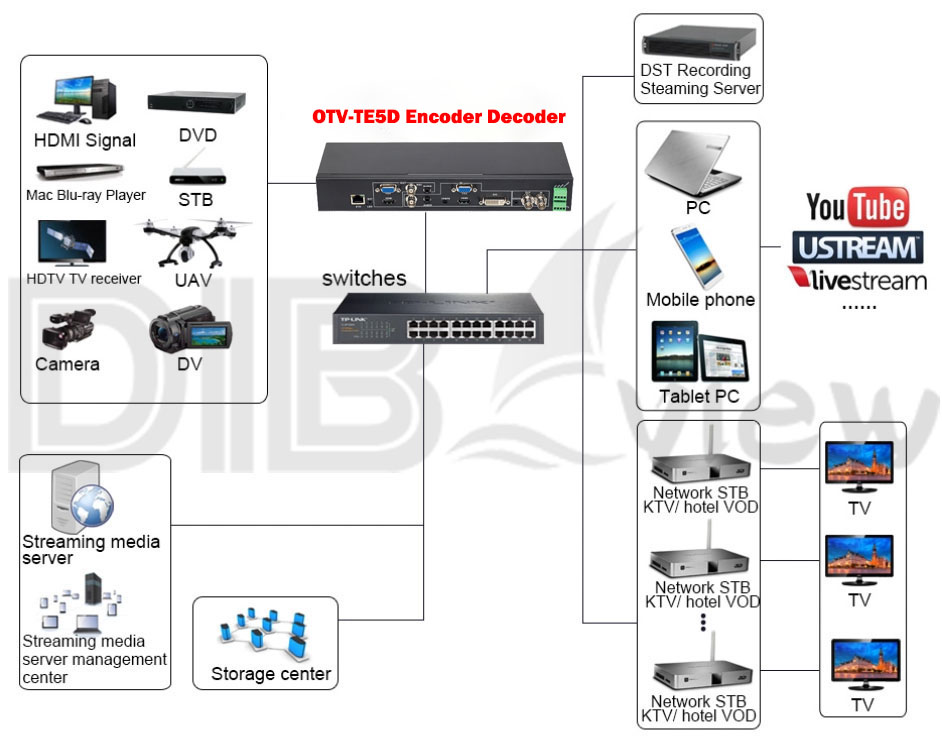

Key Diagram or Application

Product Details

Why Choose Us

1. 12 years experience in DVB front-end equipments, more than 100 different items
2. All products are developed by our experienced R&D team, which allow us to provide best after-sale support
3. Excellent pre-sale and after-sale professional technical team
4. High quality control with competitive price, quality is very important and always be put at the first place. Dibview team members are always paying great attention to quality controlling from the beginning to the end. Inspections of each step will be done during the production process.
5. Fast feedback and fast delivery
6. OEM & ODM also supported
7. We can provide one or several sample for testing

FAQ

1Q: Where is your Factory located? How can I visit your company?
1A: Our factory is located in Xihu District, Hangzhou City, Zhejiang province of China.

From Shanghai, about 1.5 hours by Train, 30mins by intercity high-speed rail. From Shenzhen, 11 hours by Train, 2 hours by Air Global Clients are warmly welcome to visit Dibview!
2Q: What’s your Quality Control policy? 2A: Quality is the most important. Dibview team members always pay great attention to quality controlling from the very beginning to the end. Inspections of each step will be done during the production process.

3Q: Can I get some Samples? Is it free? 3A: We are honored to offer you samples with best price,moreover, some products can be tested by remote for clients’ evaluation.

4Q: What is your Lead time and method of Transportation? 4A: All goods are in stock , just need 100% QC testing and Aging before sending out. Usually it takes 1~6 working days after the full payment received.

Transportation by International Express like FedEx, UPS, DHL, TNT, EMS etc, takes 3-6 days from China to world.

5Q: Can you provide OEM service ? Is it free? 5A: We can provide OEM service by replacing your company logo on box as well as software interface. About charges,It depends,please contact sales with specific product model number.

6Q: What's your Payment method supported? 6A: We accept T/T bank transfer, Paypal, Western Union, Aliexpress pay, MoneyGram, Alibaba Trade Assurance,etc.

7Q: How can i order online (on alibaba website)? How can I pay? 7A: Firstly, make sure you have an alibaba account registered with your frequency-used email address . Then find the product you want to order. Click the button. Follow the steps alibaba guided or contact the supplier to start the order. At last,after the order informations are confirmed by both buyer and seller, you can pay whether to the appointed Citibank account by bank transfer or by your credit card online. Kindly inform the supplier you’ve paid the payment, and send the bank slip or screenshot, So the supplier will prepare the goods in advance. As soon as the payment is arrived,the products will be sent out immediately. Credit card: Takes 1~3 days for the payment to be received. Citibank transfer: Takes 1~5 days for the payment to be received.

8Q: If the customer is not satisfied with the shipping cost or he is not satisfied with the product price. 8A: Please contact our sales directly to confirm the latest price, tell the salesperson your budget, Generally speaking, our prices are fluctuated according to the actual application of customers, and ultimately based on the actual application of customers, which can be communicated and coordinated.
