Product Description

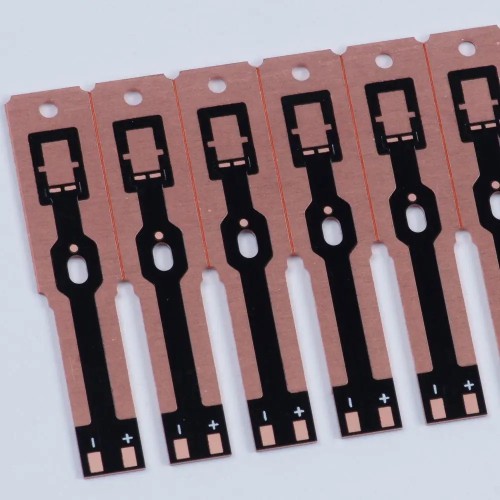

Heavy Copper PCB Panel Software.Copper PCBs are widely used in outdoor lighting, stage lighting, automotive lighting, violet UV curing equipment, medical equipment, electric power and other fields.

Technical Capability:
1.Material:Aluminum,Copper
2.Layer:Single-Sided/Double-sided
3.Board Thickness:0.5-6mm
4.Copper Thickness:35um/70um/105/um/140um/175um/210um/245um/280um/315um
5.Max. Board Size:1500mm*500mm
6.Min.Board Size:5mm*5mm
7.Surface Finshed:HASL/ENIG/OSP/Silvering
8.Line Width/Space:0.1mm/0.1mm
9.Min Punching Hole:Board thickness below 1.0mm,is 1.0mm
10.Min. Punching Square slot:Board thickness below 1.0mm,is 1.0mm*1.0mm
11.Min.Drill Hole Diameter:0.6mm
12.V-cut Degree Tolerance:±5degree
13.V-CUT Board Thickness:0.6mm-4.0mm

Related Products



PCB&PCBA file requite:

1.Gerber file or Schematic diagram of printed circuit board.

2.Material,Board thickness,Copper thickness and Surface finish of PCB

   (please write in Gerber file or send data to us.)

3.BOM (list of components)

4.Number of circuits you need.

Company Information

                                           ABOUT US

Huizhou Liandajin Electronic Co.,Ltd is a solutioner for high precision double-sided and multi-layer printed circuit board.

PCB manufacture workshop

LDJ has 15 years of PCB production experience.Our factory covers more than 20000m² and the output had reached 500000m² per month.We had mature production lines,professional production equipments and testing machines.

Founction Test

PCB Assembly





In 2015,the company has transferred from a single PCB manufacturer to a one-stop solutioner for PCBA and electronic products by resource integration and huge investment of SMT and X-Ray examing equipment.
