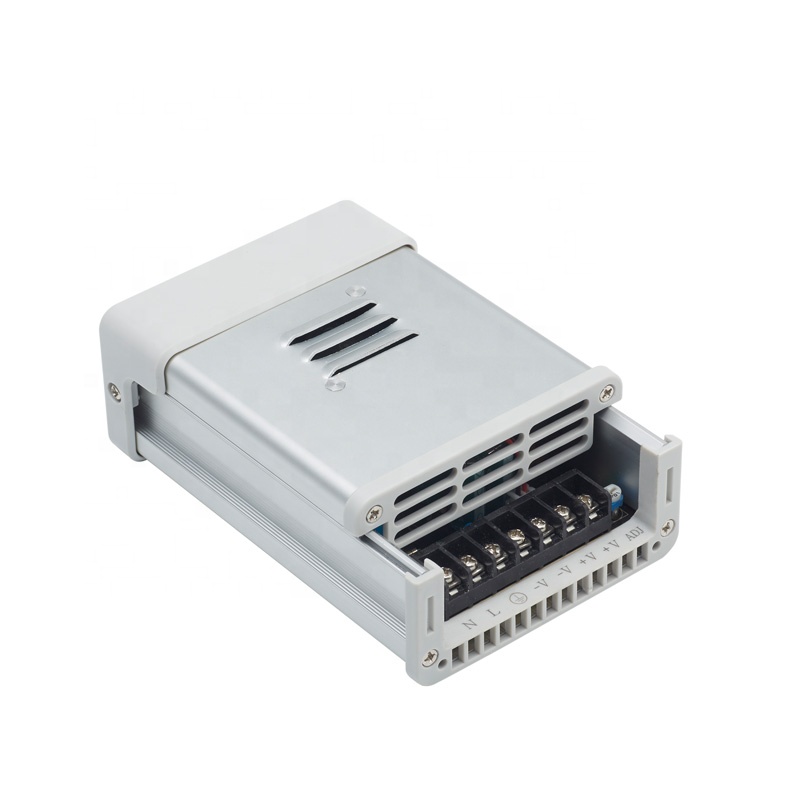

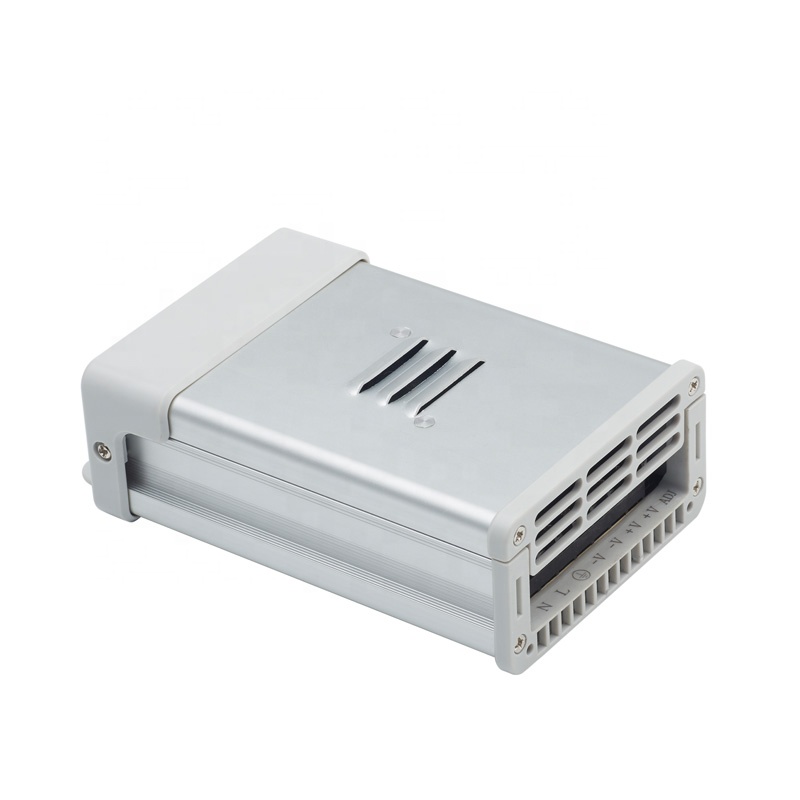

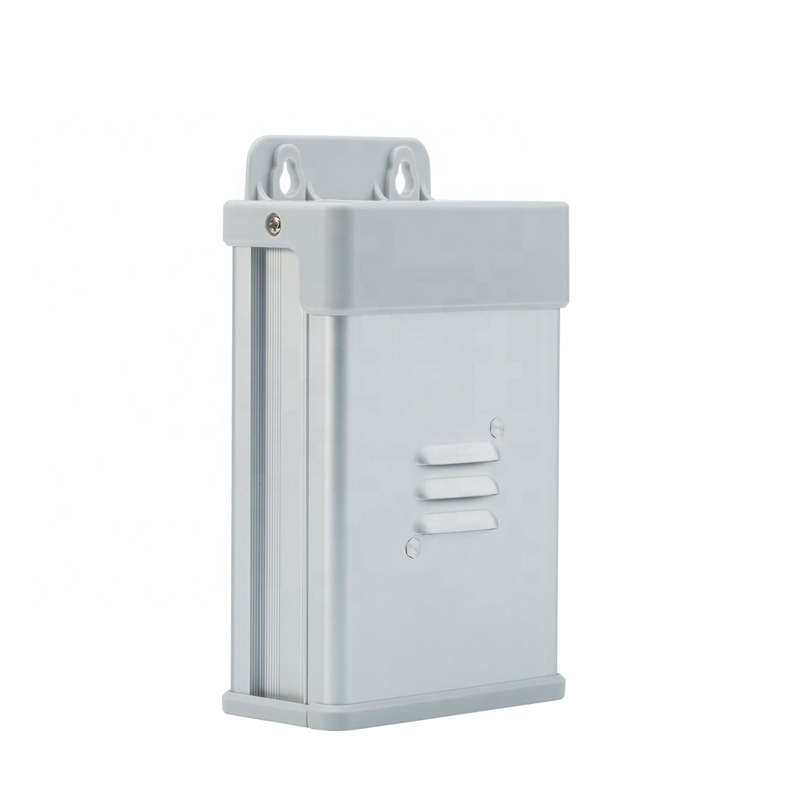

Rainproof AC to DC 120watt power supply CCTV 12v 10A:

Rated?power:?120W

Output: 12VDC 10Amp

Rainproof

Slidable cover

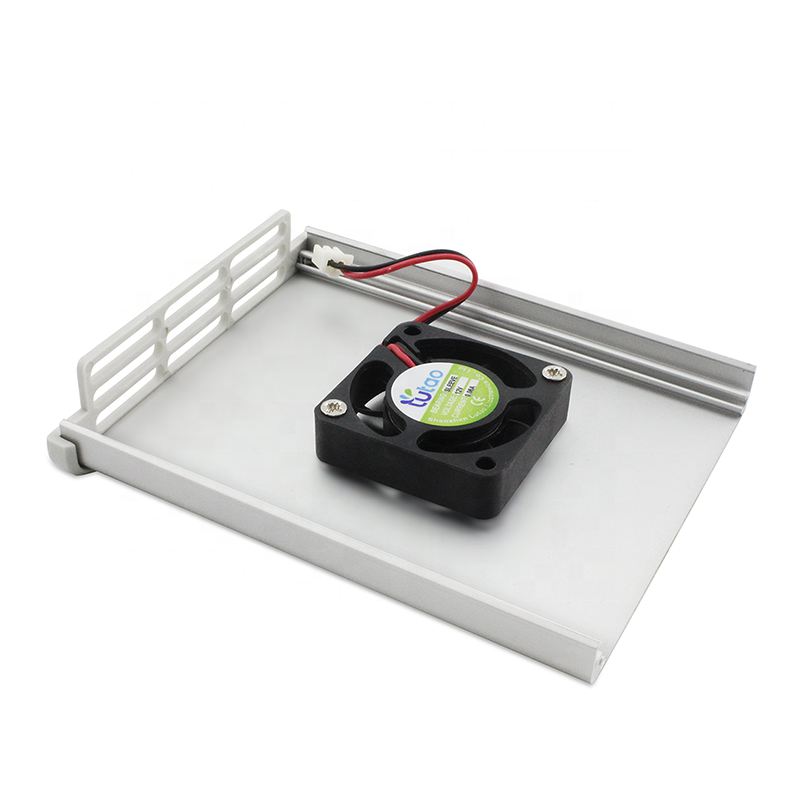

Forced air cooling by built-in DC ball bearing fan

?

?

?

AC to DC 120watt power supply CCTV 12v 10A?features:

?

v?Slidable cover?

v? ?Rainproof--Suitable for dry/damp/wet locations

v?2?hrs?and?100%?full?load?bult-in?test

v?Built-in?constant?current?limiting?circuit

?

?

?

AC to DC 120watt power supply CCTV 12v 10A?details:

Model	?	HK-120W-3.3V	HK-120W-5V	HK-120W-12V	HK-120W-15V	HK-120W-24V	HK-120W-36V
Output	DC Voltage	3.3V	5V	12V	15V	24V	36V
	Rated Current	36A	24A	10A	8A	5A	3.5A
	Current Range	0~36A	0~24A	0~10A	0~8A	0~5A	0~3.5A
	Rated Power	118.8W	120W	120W	120W	120W	126W
	Ripple & Noise (max.)	100mVp-p	100mVp-p	100mVp-p	150mVp-p	150mVp-p	150mVp-p
	Voltage Adj. Range	3.14~3.63V	4.75~5.5V	11.4~13.2V	14.3~16.5V	22.8~26.4V	34.2~39.6V
	Voltage Tolerance	±2.0%	±2.0%	±2.0%	±2.0%	±1.0%	±1.0%
	Line Regulation	±1.0%	±1.0%	±1.0%	±1.0%	±0.5%	±0.5%
	Load Regulation	±5.0%	±5.0%	±5.0%	±5.0%	±5.0%	±5.0%
	Setup,Rise time	600ms,30ms at full load
	Hold Up Time(Typ.)	13ms at full load
Input	Voltage Range	90~132VAC or 180~264VAC available(Standard configuration is 180-264vac)?
	Frequency Range	47~63HZ
	Efficiency(Typ.)	83%	83%	83%	86%	88%	91%
	AC Current (Typ.)	5A/115VAC???????? 3A/230VAC
	Inrush Current (Typ.)	20A/115VAC???????? 40A/230VAC
	Leakage Current	<2mA / 240VAC
Protection	Over Load	110~200% rated output power
		Protection type: Shut down O/P,recovers automatically?
	Over Current	110~200% rated output current
		Protection type: Shut down O/P,re-power on to recover
	Short circuit	Protection type: Shut down O/P,recovers automatically after fault removed
Environment	Working Temperature	?-20~+40°C??
	Working Humidity	20~90% RH? Non-condensing
	Storage temp.& humidity	-20~+85°C, 10~95%RH
	Temp. coefficient	±0.03%/°C?(0~50°C)
	Vibration	10 ~ 500Hz, 3G 10min./1 cycle,60min.each along X,Y,Z axes
Safety & EMC	Safety Standards	UL60950-1
	Withstand Voltage	I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG:0.5KVAC
	Isolation Resistance	I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH
Others	MTBF	10000hrs???? MIL-HDBK-217F (25°C)
	Dimension	159*95*50 mm
	Packing	?
Note	1. All parameters NOT specially mentioned are measured at 220VAC input, rated load and 25°C of ambient temperature.
	2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 10uf parallel capacitor.
	3. Tolerance: includes set up tolerance, line regulation and load regulation.

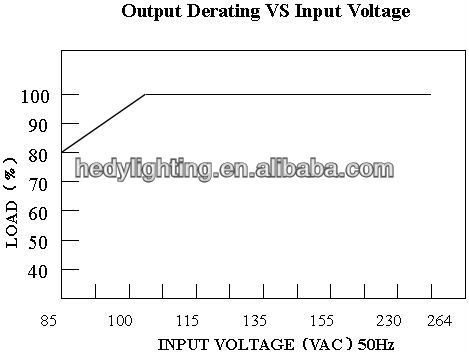

	4. Derating may be needed under low input voltages.

?

?

?

?

?

?

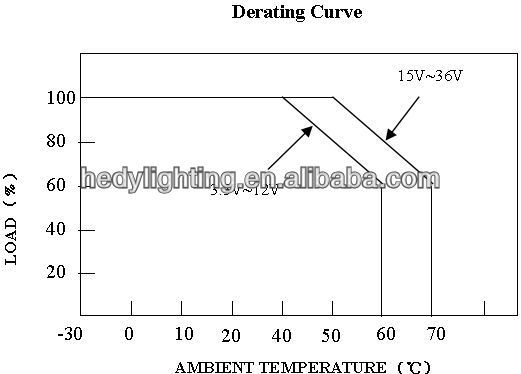

120watt power supply CCTV 12v 10A? derating?curve:

?

?

??

Our Advantage:

?

v?ODM: Design & Manufacturing based on your request

v?OEM:?can use your customized sticker, manual, inner box/color box, master carton

v?After-Sales Service: Simple procedure for warranty; Flexible warranty machanism

v?22 years experience, provide?stable quality?and?reasonable price

v?Professional sales team,?greatly enhance communication efficiency

?

?

?

FAQ:

?

v?Q:Is sample free?

? ??A: Yes, sample is free, but you should bear shipping freight by yourself

?

v?Q:How many days does it take for sample?

? ??A: Normally 1 days, but if no the sample you need in stock, then it takes arround 1 week to prepare sample.

?

v?Q:What kind of certificate do you?have for your product?

? ??A: TUV MARK, GS, CB, EMC, LVD for power adapter & LED Driver;?CE & RoHS for power supply.

?

v?Q:What's the lead time for order?

? ??A: 20-25 days

?

v?Q:What's your payment term?

? ??A:?Normally, T/T: 30% advance before production, 70% balance before delivery;

? ? ? ? For small amount, Western Union/Paypal/Moneygram are acceptable;

? ? ? ? For order with large amount, Irrevocable L/C is acceptable.

?

v?Q:What's MOQ?

? ??A: Normally, our MOQ is 500pcs/model, but if we have the model you need in stock, then no MOQ, please? ? ? ? ? ? ? contact with our sales for inventory status.

?

?

?
