Height limiter main hook assembly

Security has always been an eternal topic.

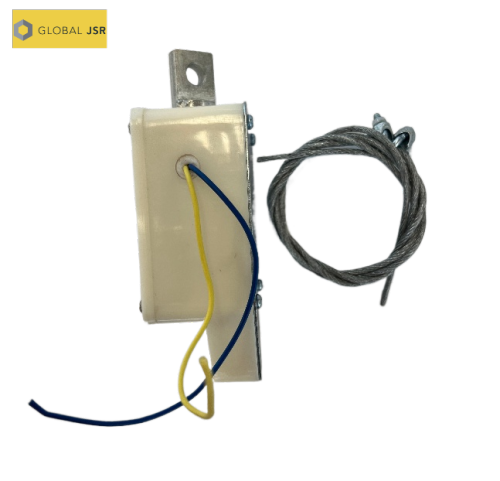

In order to prevent damage to the net, we installed a height limiter at the end of the digging arm. The height limiter senses that the positive and negative wires are connected to the starting power supply of the excavator, and one end is fixed on the support of the digging arm shaft, while the other end is installed on the digging arm. When the digging arm is raised too high, the two positive and negative wire iron rods contact the iron column on the digging arm, the current will short circuit and the excavator will stall. From the technical control measures to ensure that the digging arm elevation is not too high.
The working principle of the height limiter is to limit the lowering height of the main hook by the position of the height limiter pin. When the main hook descends to a certain height, the height limiter pin will come into contact with the height limiter pin seat, thereby preventing the main hook from continuing to descend.

Our company's main products:Original working device of excavator，Excavator working device accessories，Excavator working device parts，Excavator Work Equipment.



Specification

316502067 TOOL KIT

No. PART NUMBER QTY NAME

1 819906631 2 LOCK

2 316502666 1 GEARBOX BODY

3 805238371 4 NUT M10 GB/T6170-2000

4 329900302 8 THICKENED FLAT WASHER

5 316502071 2 LOCK CATCH

6 805011330 4 BOLT M10×25 GB/T5783-2000

7 801969719 1 RUBBER STRIP L=2214

8 316502098 1 UPPER COVER PLATE COMPONENT

9 316502068 1 UPPER ANTI-SKID PLATE

10 329900301 16 THICKENED FLAT WASHER

11 805046504 8 BOLT M8×16 GB/T5783-2000

12 316500635 1 PULL ROD COMPONENT Ⅱ

13 805603553 4 PIN 2.5×14 GB/T91-2000

14 329900296 4 THICKENED LARGE WASHER

15 316502070 1 HOSE COVERⅠ

16 316502069 1 LOWER ANTI-SKID PLATE

17 316502089 1 LOWER COVERING PLATE COMPONENT

18 805006414 6 BOLT M12×45 GB/T5783-2000

19 329900298 6 THICKENED LARGE WASHER

20 801969720 1 RUBBER STRIP L=2064

21 316500633 1 PULL ROD COMPONENT Ⅰ

22 316502072 2 HOSE COVERⅡ

23 805046508 8 BOLT M8×20 GB/T5783-2000
