HF RFID Reader Module with UART Interface for Arduino Boards
Options:
- PORTABLE
- nfc
- rfid
- OEM, ODM
- RF-880
Basic Info
| Place Of Origin | Guangdong, China |
|---|---|
| Brand Name | RF |
| Frequency | 13.56Mhz, 13.56mhz |
| Protocol | ISO14443A |
| Product Name | 13.56MHz Read/Write RFID NFC Reader Module With External Antenna |
Product description
hf rfid reader module UART for Arduino board free SDK moduled
?Introduction
?

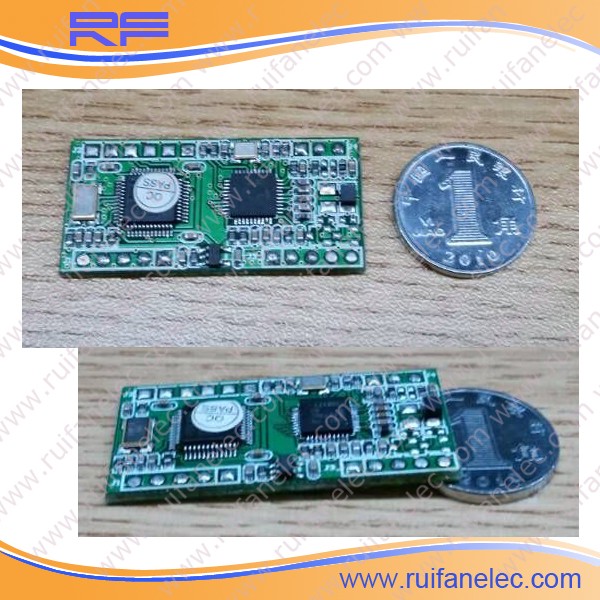

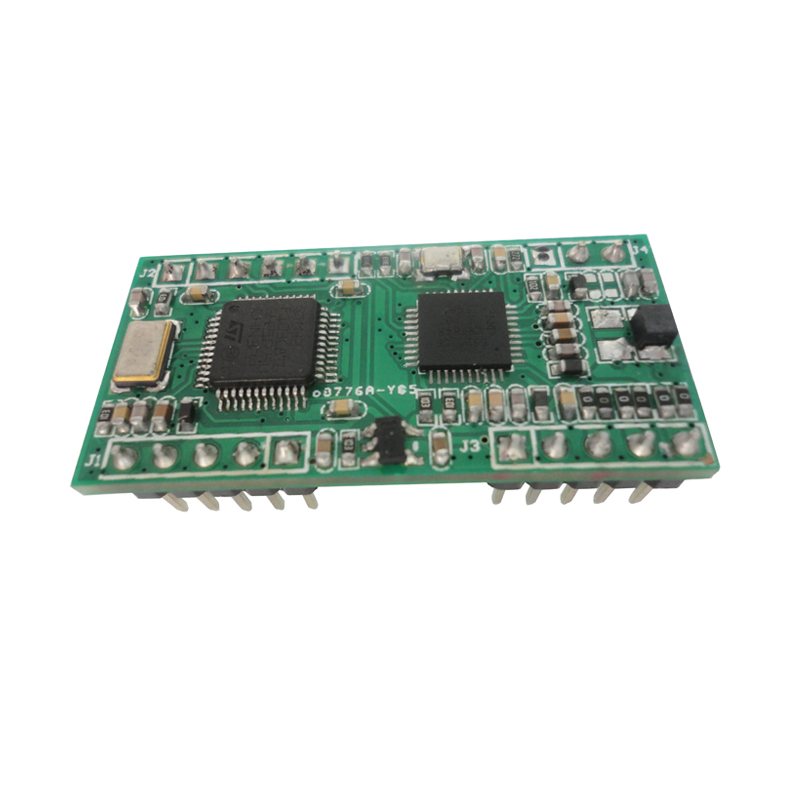

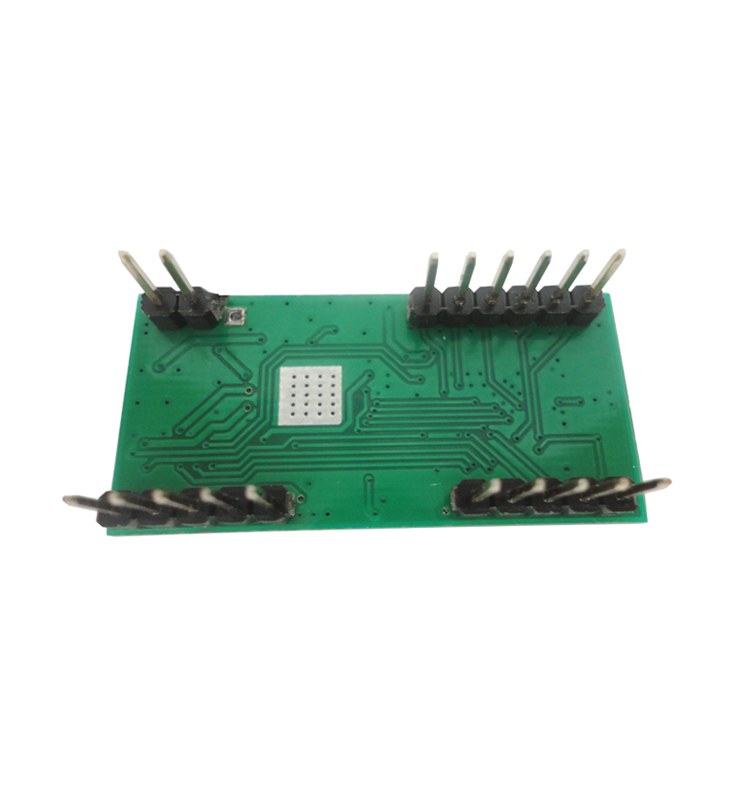

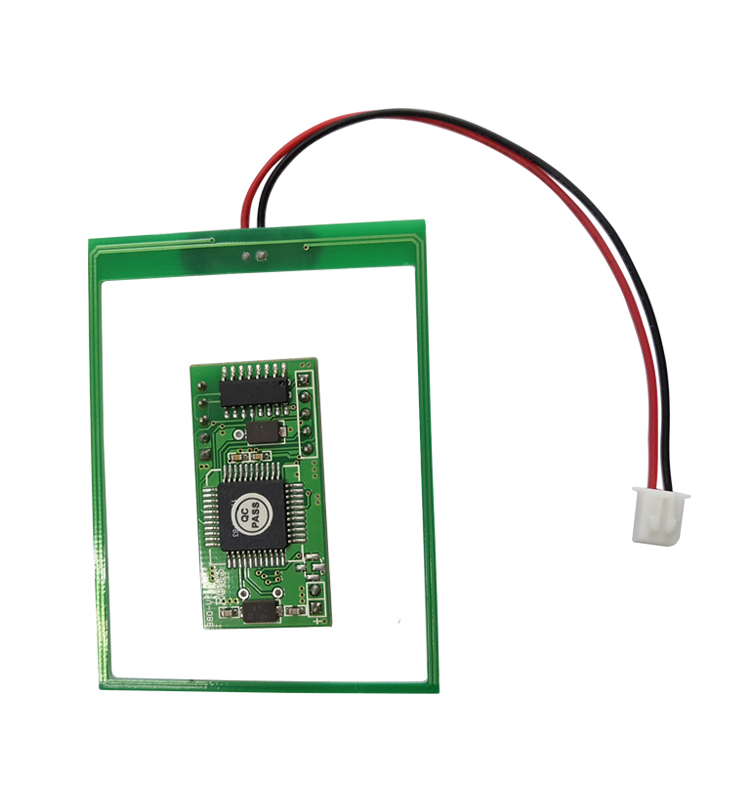

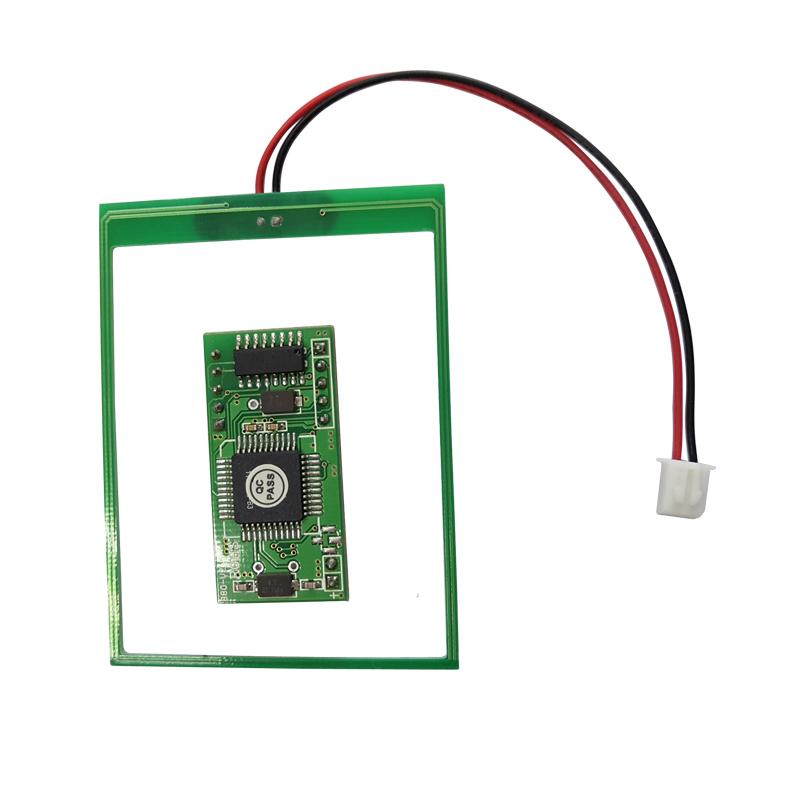

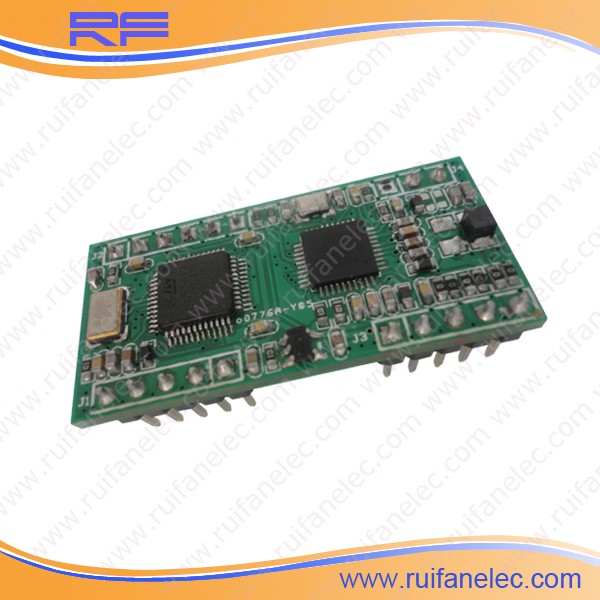

RUIFAN RF-880 NFC reader-writer module applied with ISO14443A/B ,ISO15693, ISO18092 standards, it can encode information into NFC card easily. We will offer free DEMO and SDK for testing and programming. It adopts highly integrated special card reading chip, advanced watchdog and voltage monitoring circuit project design and features a high degree of integration, strong anti-interference ability, small size and more stable performance.
?

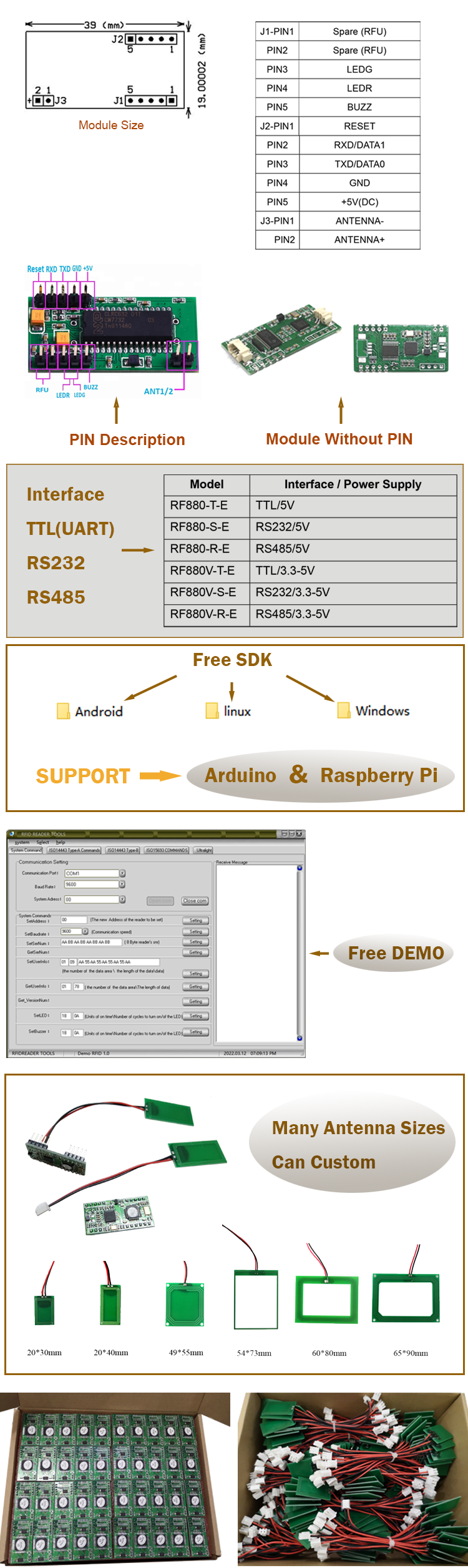

Specifications
?
|
Model |
RF-880 |
|
Standard |
ISO/IEC 14443-A/B ; ISO/IEC 15693; ISO/IEC 18092 |
|
Support Card |
FM1108, Mi? fare S50/S70/Ultralight, Desfire, N- Tag213/215/216,AT88RF020, 66CL160S, SR176, SRIX4K, I-CODE SLI-X, Tag-it etc. |
|
Frequency |
13.56MHz |
|
Baud Rate |
9600-115200bit/s(Configurable, default 9600) |
|
Interface |
TTL(UART), RS232, RS485 (Can custom USB, ABA) |
|
Power Supply |
DC 5V or 3.3V~5V |
|
Current |
<70mA |
|
Read distance |
0~14cm (according to tag and environment) |
|
Module size |
39*19*9mm |
|

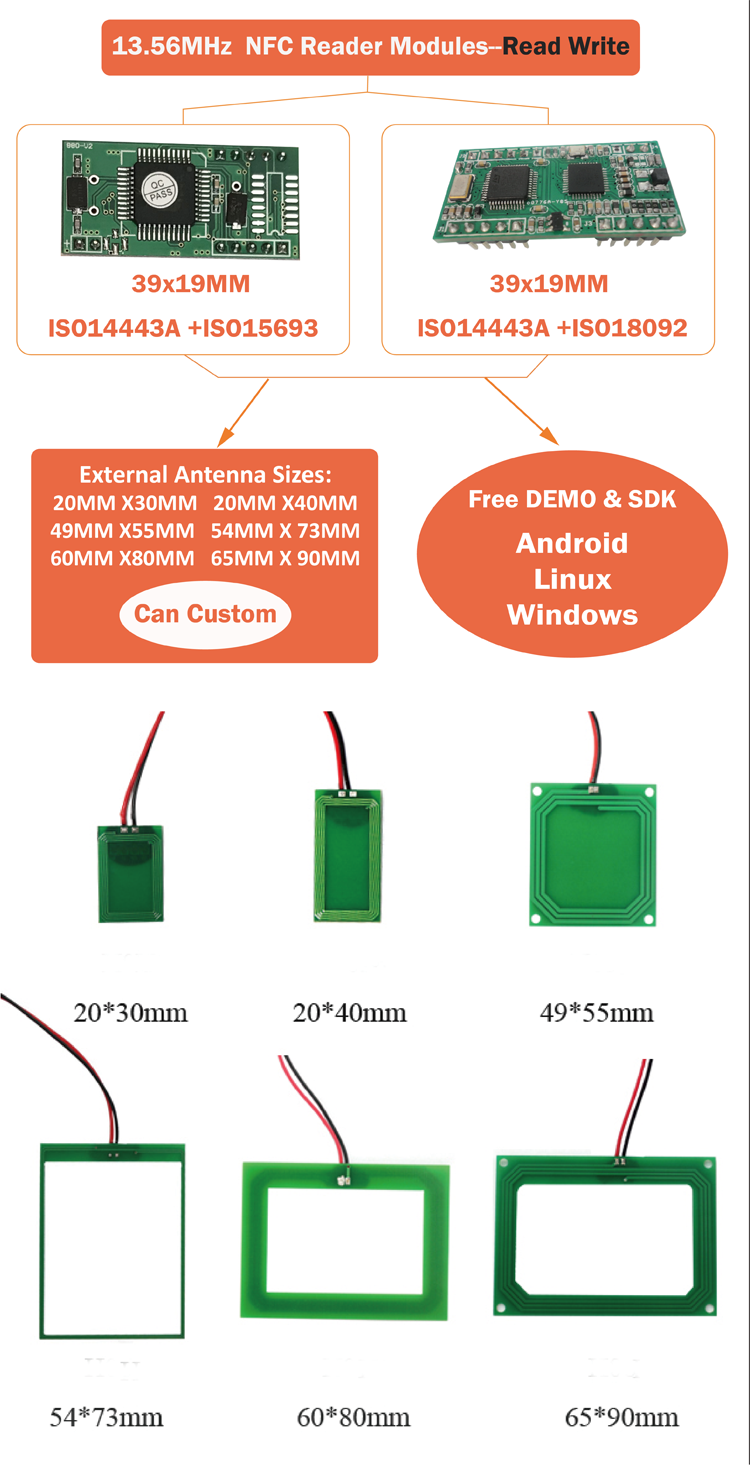

Antenna size |
20*30mm, 20*40mm, 49*55mm, 54*73mm, 60*80mm, 65*90mm |
|
Free DEMO & SDK |
Yes (Windows, Android, Linux) |
|
Working Temperature |
-10℃~+50℃ |
|
Storage Temperature |
-20℃~+80℃ |
|
Application |
Attendance machine, medical electronic equipment,identification card scanner, hand-held intelligent terminal?etc |
?
?
?

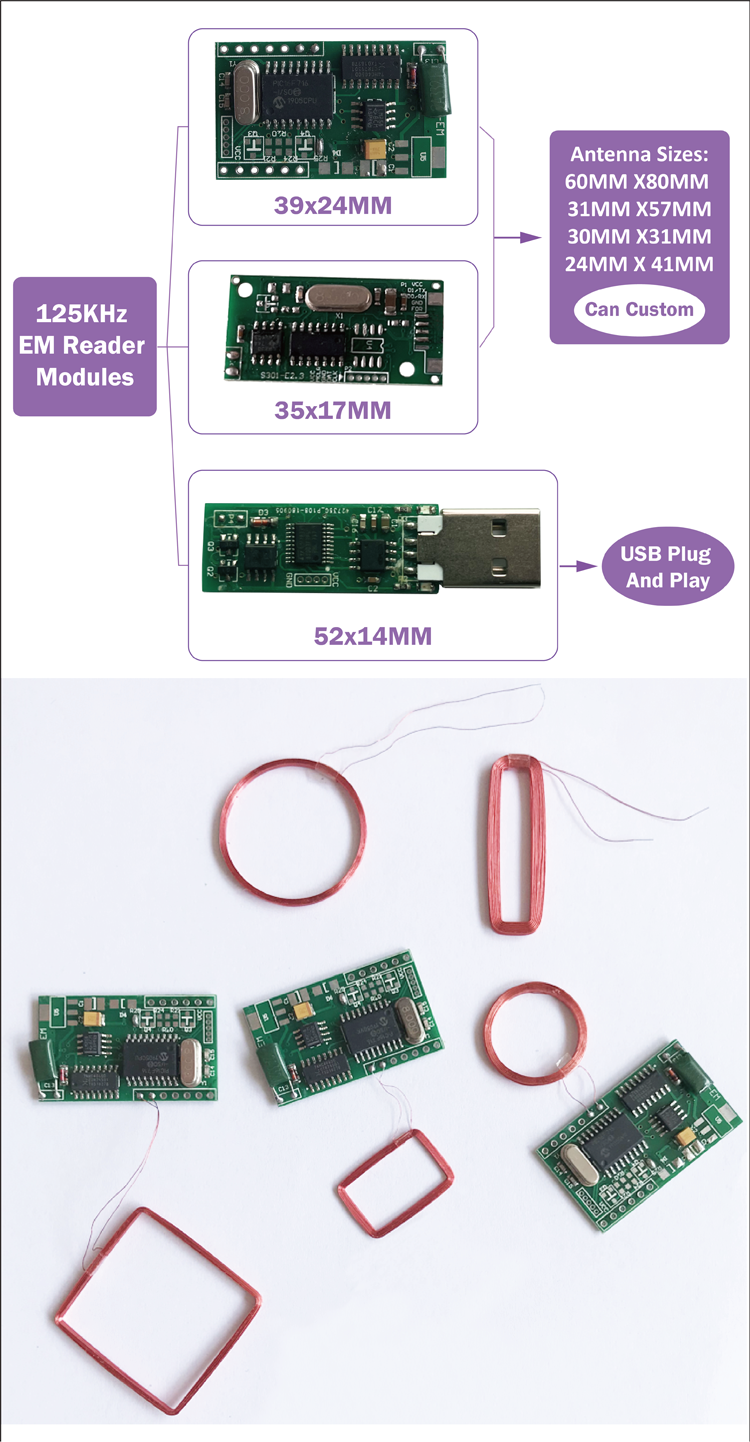

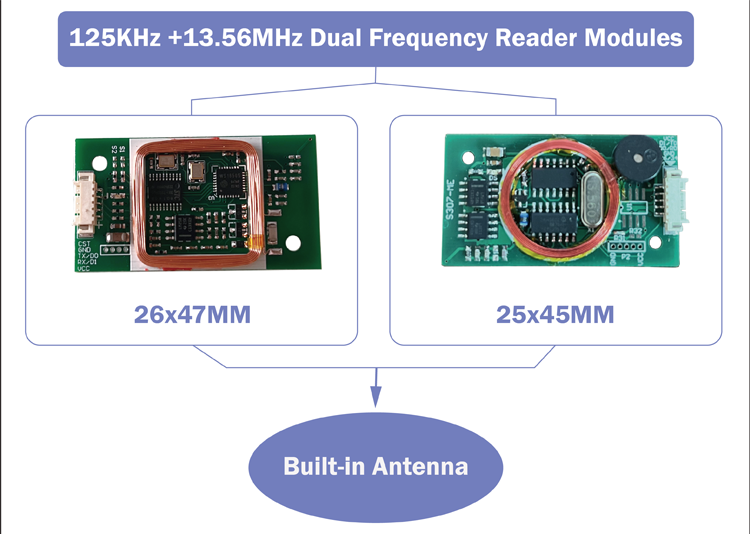

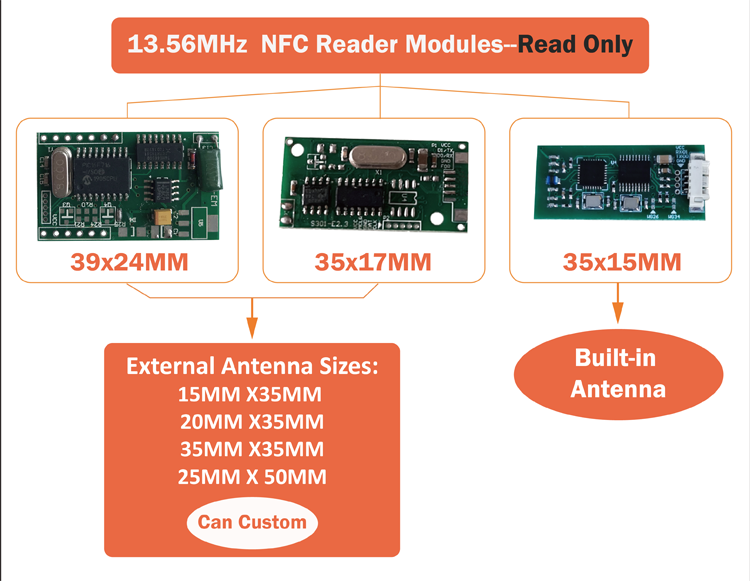

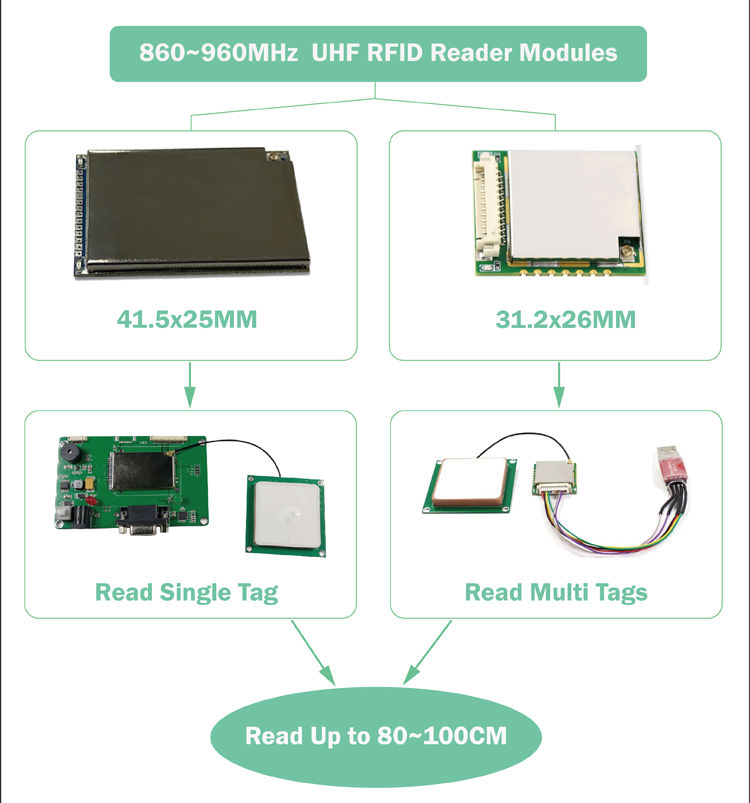

Overview Of RUIFAN RFID Reader Modules
?
?
?
?
?
?
?
?
?
?
