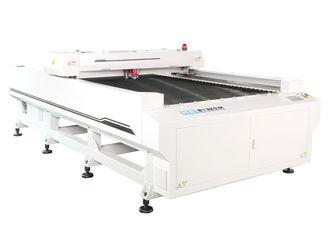

HS-2513M model mixed laser cutter for cut both metal and nonmetal material

Features:

1. The metal and non-metal laser cutting bed of HS-M series is produced with 600°C high-temperature treatment and 24-hour furnace-cooled technology.
2. Coming with 8-meter gantry manufactured with milling and argon arc welding technology, the metal laser cutter offers normal operation up to 20 years, with little deformation.
3. This non-metal laser cutting machine employs sensor imported from America and high-precision cutting head for wide applications.
4. The installation and debugging of the guide rail utilize precise calibrating device for high machining precision less than 0.01mm.

Specifications of Metal and Non-metal Laser Cutting Bed

Model	HS-1390M / HS-1610M / HS-2513M
Working Area (mm)	1300×900mm / 1600×1000mm / 2500×1300mm	Laser Power	RECI 150W to 200W
Volume (m3)	4/6/9	Weight (kg)	600/ 900/ 1300
Overall Dimensions (mm)	1900×1500×1200 / 2200×1600×1200 / 3470×1870×1200	Max. Acceleration (G)	0.2

Detailed Pictures

Application:

The laser cutting equipment is applicable for thin stainless steel plate, carbon steel plate, as well as the non-metallic plate such as acrylic board, plank, etc. It is widely seen in medium-sized metal plate processing factory, advertisement company, and so on. The high cutting accuracy of the metal and non-metal laser cutting bed makes this product highly appraised by our client.

Technical Parameters:

Drive Mode	Driven by movable gantry
Max. Operating Speed	24m/min
X/Y Axis Accuracy of Positioning	0.1mm
X/Y Axis Accuracy of Repositioning	±0.1mm
Working Voltage	220V±10% 50Hz
Laser Power	60W-200W
Operating Temperature	10°C-35°C
Max. Total Power	≤2KVA-3KVA
Applicable Format	CDR, BMP, PLT, GPEG, DXF, DST
Applicable Material of Metal and Non-Metal Laser Cutting Bed	Thin stainless steel and carbon steel plate with the thickness from 0.5 to 2.0mm, and non-metallic plate such as acrylic board of 30mm in thickness.
