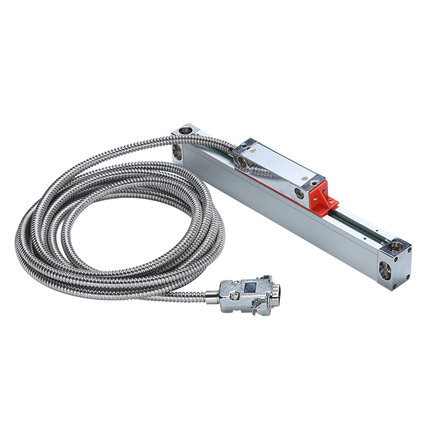

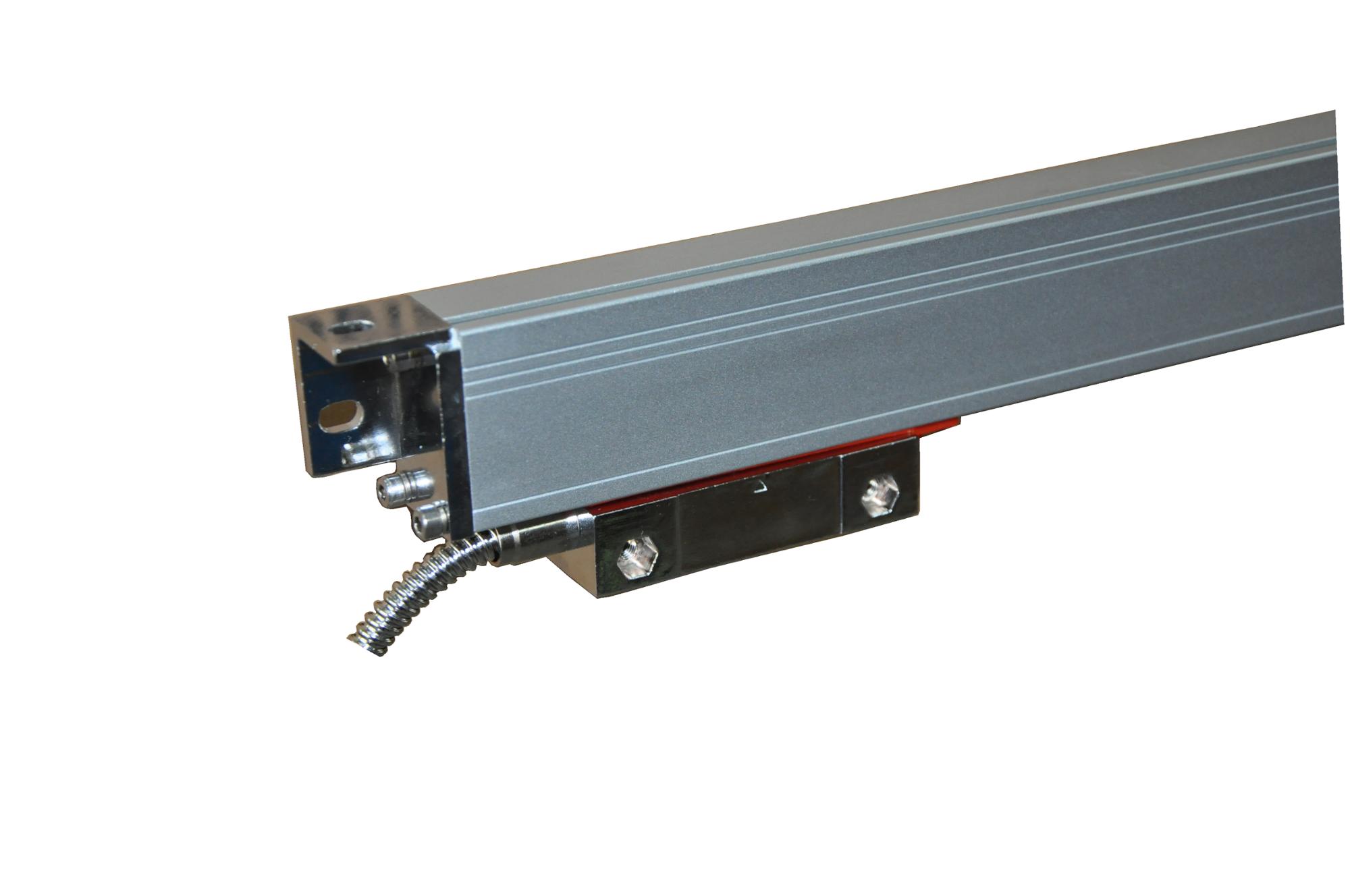

High Accuracy Linear Glass Scale Encoder for CNC Machining
$70.00
≥5 piece
$60.00
≥50 piece
$55.00
≥100 piece
Basic Info
| Warranty | 3 Years |
|---|---|
| Customized Support | Oem, Odm, Obm |
| Place Of Origin | Sichuan, China |
| Brand Name | Ditron |
| Product Name | Linear Scale for Milling Machine |
Product description
LINEAR GLASS /OPTICAL SCALE FOR DIGITAL READOUTS ON UNIVERSAL MACHINES - DITRON?
Features :?
- Resolutions: 0.1um /0.5um/1μm /5μm/10um
- 20μm Optical grating glass scale

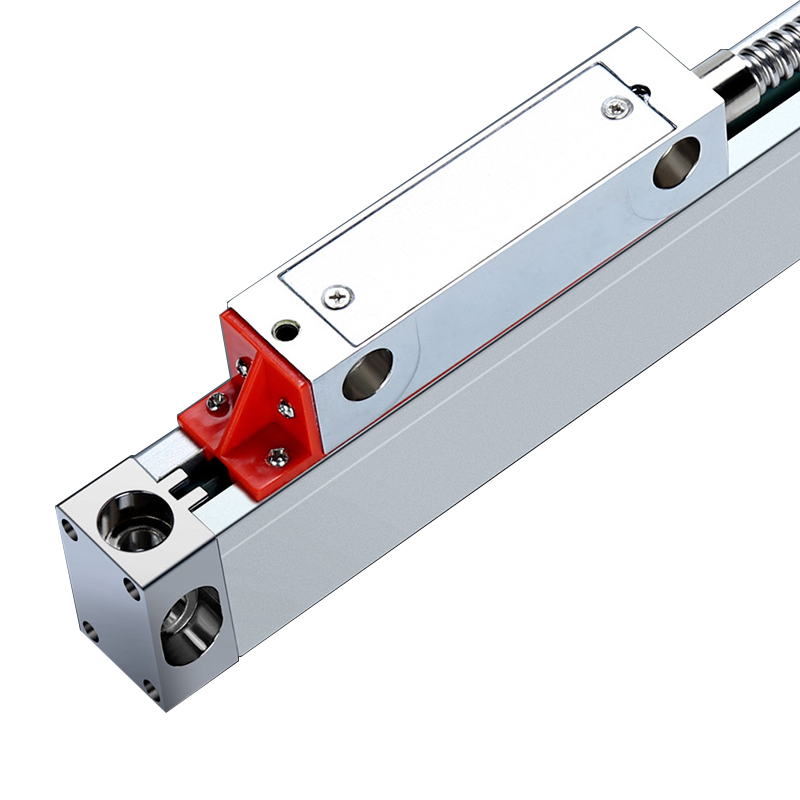

- ball-bearing carriage

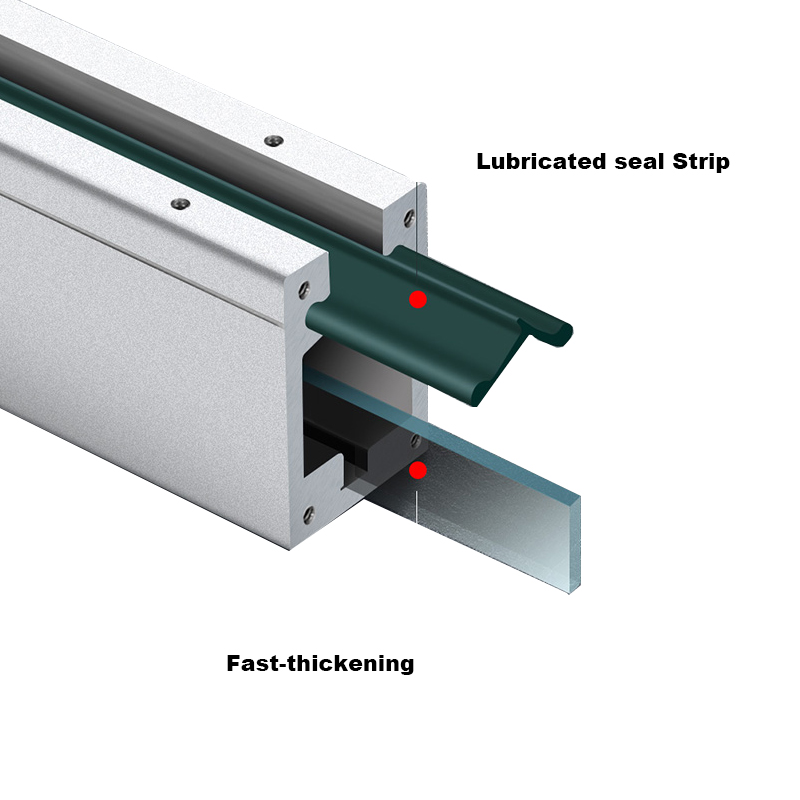

- Rubber-seal protection
- TTL / EIA-422-A output signal options
- Measuring Lengths 50 mm – 3000 mm
- 60 m/min Max.?

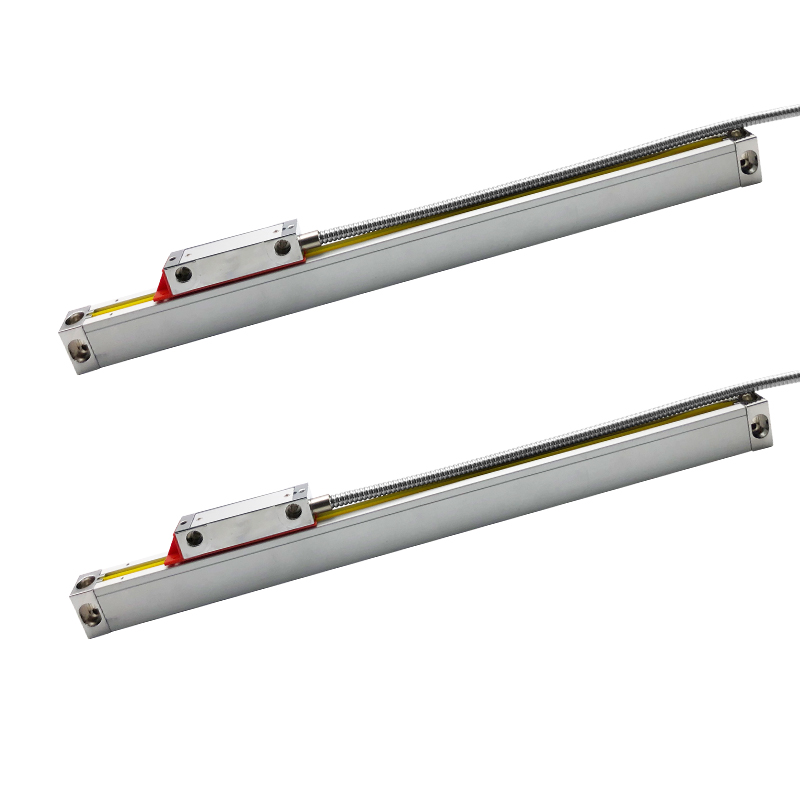

---We mainly supply 3 types linear scales :

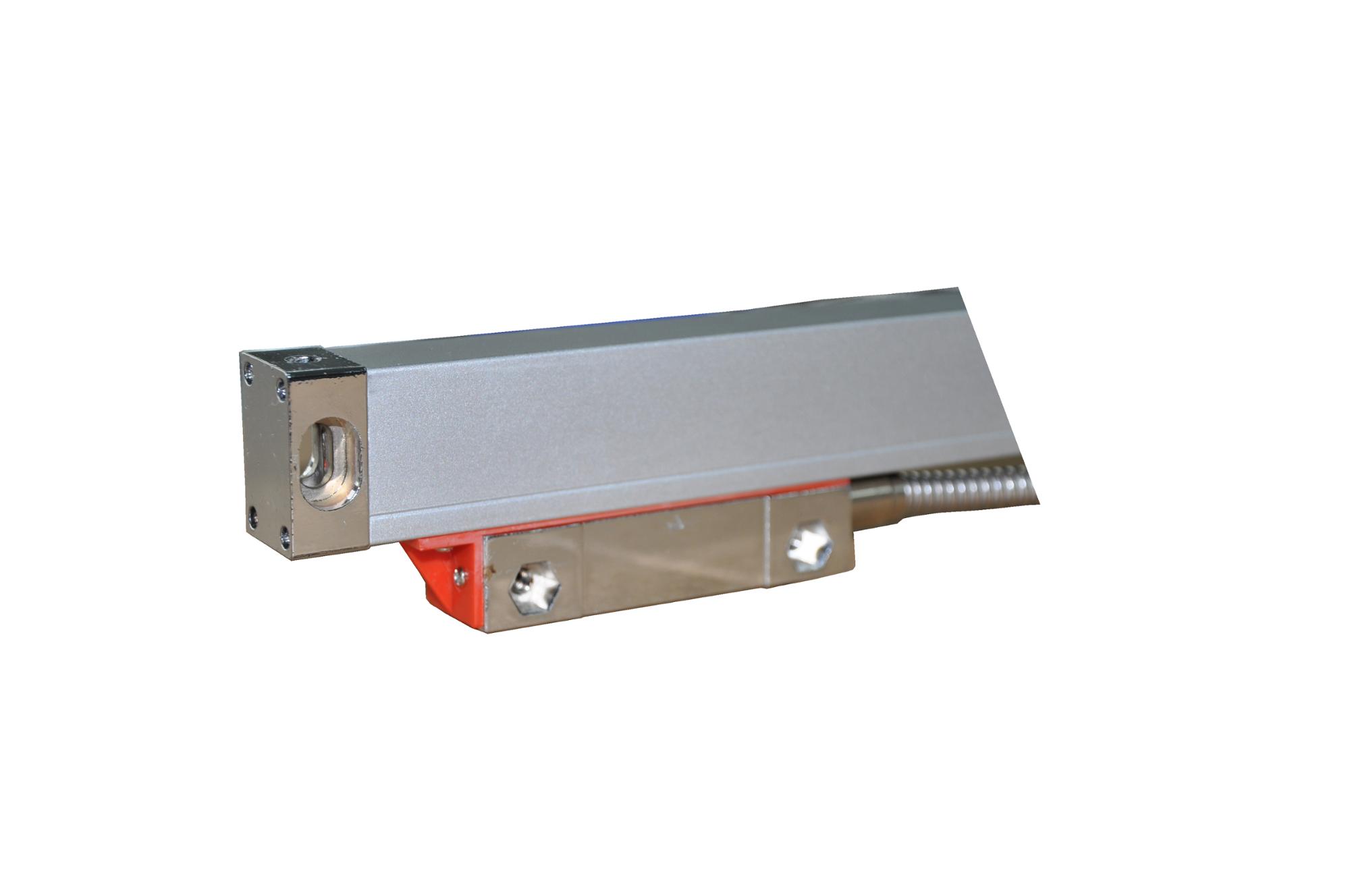

DC10F,mini scales (50mm-600mm) ,suits Lathe cross slide ( X axis)?
DC10,normal scales (50mm-1100mm),suits most machines .

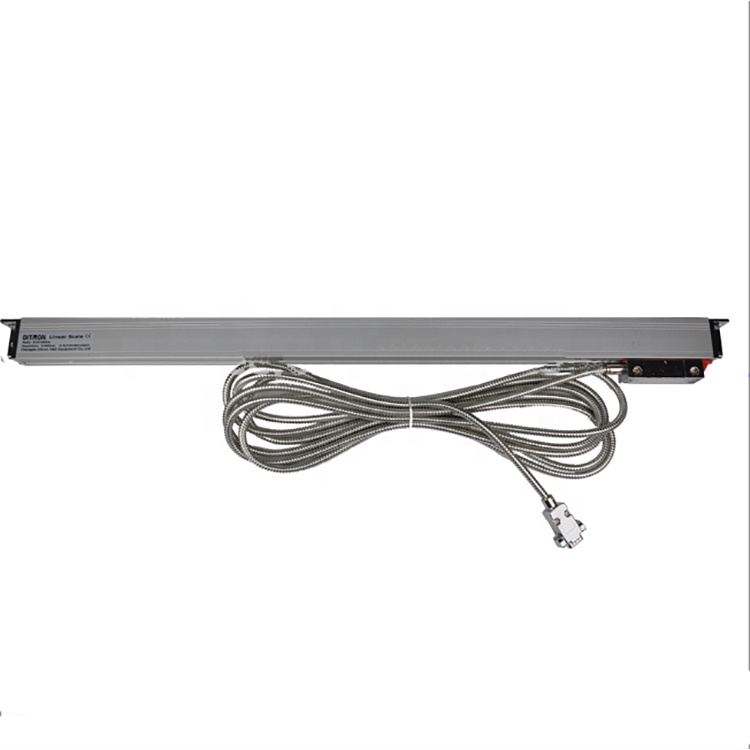

DC20,big scales (1100mm-3000mm),suits longer travel size .?
Comparison of various parameters of DC10, DC10F, DC20:
| ? |
DC10F |
DC10 |
DC20 |
|
Measuring Length |
50-600mm |
50-1100mm |
50-3000mm |
|
Resolution |
0.5μm,1μm, 5μm,10μm |
0.1μm,0.5μm,1μm, 5μm,10μm |
|
|
Output?Signal |
5V TTL,5V RS422 |
||
|
Cross Section |
18*23mm |
20.5*31mm |
27*44mm |
|
Accuracy |
±5μ, ±10μm/M |
±3μm, ±5μ, ±10μm/M |
|
|
Working Temperature |
-10℃-60℃ |
||
|
Sealing Protection |
lP55 |
||
|
Max.Moving Speed |
60M/Min |
||
|
Reference Point |
Every 50mm |
||
DC10F :
DC10 :
DC20 :
