Introduction:

Our dynamic rotating ceramic membranes are produced using advanced materials and technologies and have excellent properties such as high purity, high hardness, and high wear resistance.We can provide ceramic membrane products of different materials, thicknesses and pore sizes according to customer requirements and application scenarios.Our products can be used in many different application scenarios, including but not limited to filtration, separation, medical, sensors, etc.

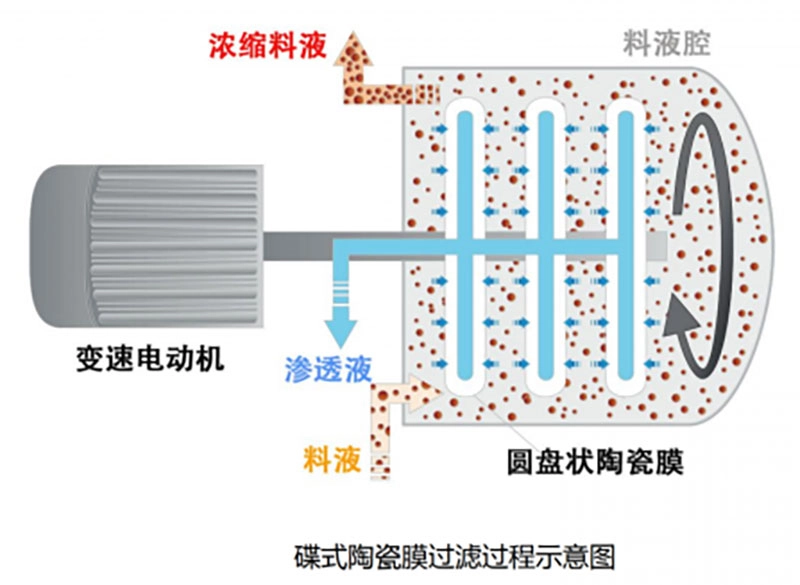

principle:

Selection of dynamic rotating ceramic membrane:

Dynamic rotating ceramic membrane is a high-performance and efficient filter material with good mechanical strength, thermal stability and corrosion resistance. It is widely used in electronics, chemical industry, medicine, food, environmental protection and other fields.Based on customer needs, we provide ceramic membrane products with different pore sizes, thicknesses, shapes and materials to meet the requirements of different application scenarios.



Specifications and models:

name	diameter	thickness
Ceramic membrane 800	Ø 800mm / Ø 200mm	d=20mm
Ceramic membrane 600	Ø 800mm / Ø 200mm	d=15mm
Ceramic membrane 374	Ø 800mm / Ø 200mm	d=5.85mm
Ceramic membrane 312	Ø 800mm / Ø 200mm	d=5.85mm
Ceramic membrane 152	Ø 800mm / Ø 200mm	d=4.5mm



Filter area selection: 0.5m²(Testing machine); 1.5-50 m²;Processing capacity: 150-50000L/H

Material: AL2O3, SiC (including recrystallization)

Micropore selection: 0.2um-2um microfiltration; 0.08um-0.2um ultrafiltration; 0.01um-0.08um nanofiltration. We can provide products with different pore sizes and materials according to customer needs.
