High Density Rectangular Connector Plug Socket J30J Series

Video

1 / 7

High Density Rectangular Connector Plug Socket J30J Series

$10.00

≥10 piece
$9.00

≥100 piece
$8.00

≥500 piece

Options:

Get Latest Price

You might also like

600V Industrial J30J Series Rectangular Connector 8-Way Plug Insert

1 piece (MOQ)

J30J Series 21 Pin Micro-D Electrical Connector - Fast Connect J30J-21ZKSP

1 piece (MOQ)

J30J Series Crimped Straight Outlet Connector - 21-Core Micro Moment Type Fast Connector

1 piece (MOQ)

4-Pin Connector Assembly - 14 Pin J30J Rectangular Connector

1 piece (MOQ)

High Density Rectangular Connector Plug Socket J30J Series

1 piece (MOQ)

High Quality and High Speed J30J-66TJL Connectors - J30J Series Micro Moment Type Fast Connector

1 piece (MOQ)

High-Quality J30J Series Miniature Rectangular Micro Connectors with Wire Harness

1 piece (MOQ)

150W J30J Rectangular Power Heavy Duty Connector - 14 Pins

1 piece (MOQ)

J30J Series Miniaturized Rectangular Connector with Wire Harness

1 piece (MOQ)

High Speed Transmission J30J Series Rectangular Micro-D Connector with Wire Harness

1 piece (MOQ)

Basic Info

Model No.
Brand Name
Place of Origin	Jiangsu, China
Brand Name	HZ
Model Number	J30J, J30J-21ZKSP
Type	Din
application	Automotive
Gender	MALE/FEMALE, Female
Connector Type	J30J series rectangular connectors
Material	aluminum with nickel plated
Contacts	21pins
Pin Plating	Gold
Contact resistance	≤10mΩ
Insulation Resistan	≥5000MΩ
Dielectric Withstan	600v
CONTACT LAYOUT	9, 15, 21, 25, 31, 37, 51, 66, 74, 100

Product description

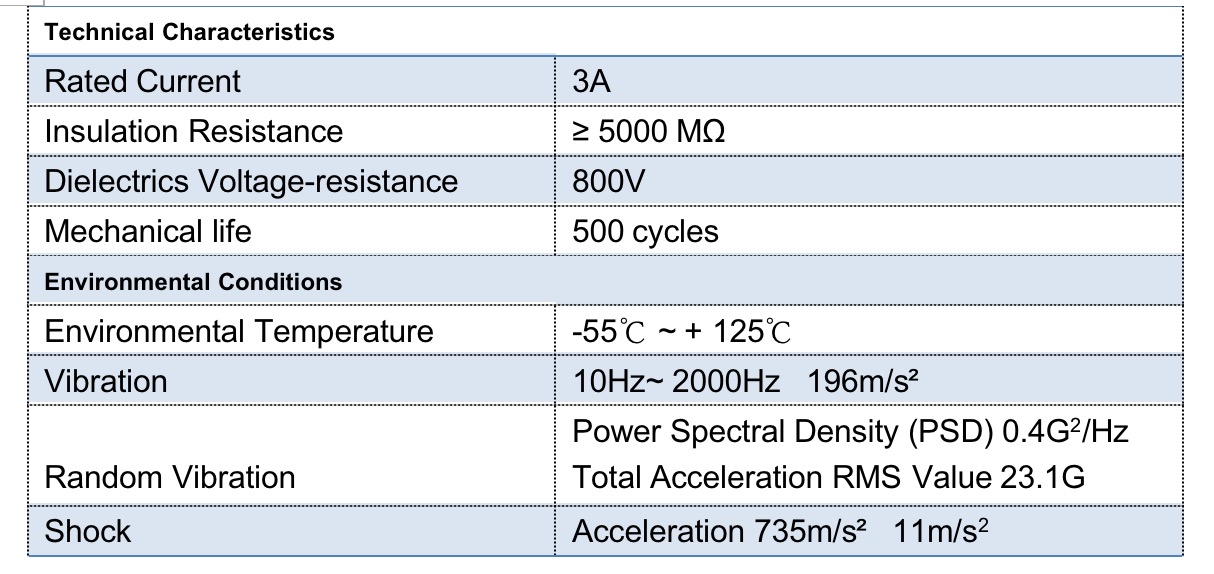

Product Paramenters

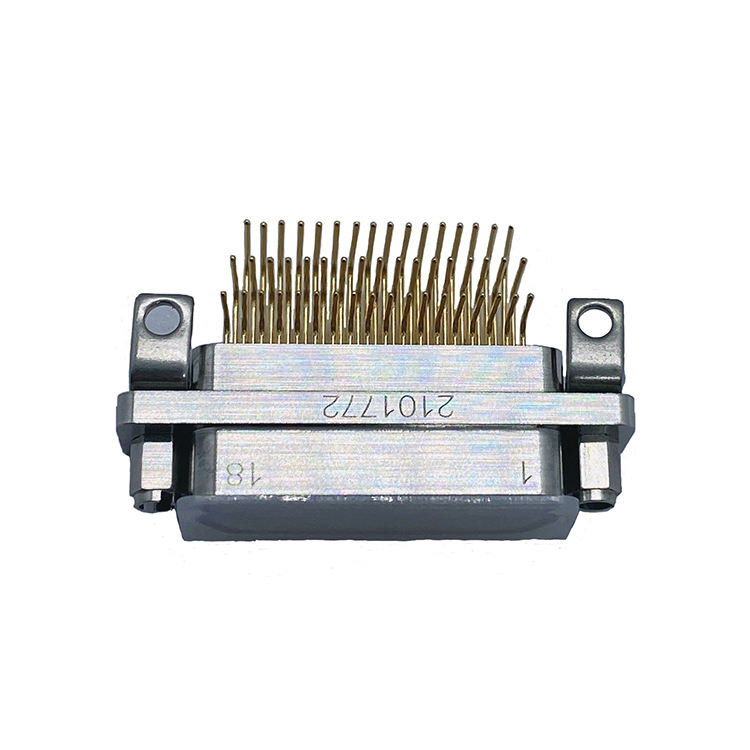

J30J Series Quick Insertion Male Micro Rectangular J30j Connectors

J30J series products correspond to American MDM series products, and the number of pins including 9, 15, 21, 25, 31,37, 51, 66, 100. It adopts a twisted wire probe (twist pin) with high contact density and the section area of suitable cable is
0.1mm2~0.15mm2.
Out Shell: aluminum alloy,
Contact Spacing: 0.05'' / 1.27mm

Features:
1.1, 2, 3 ,4-raw options
2.9-100contacts
3.MIL-DTL-83513 qualification

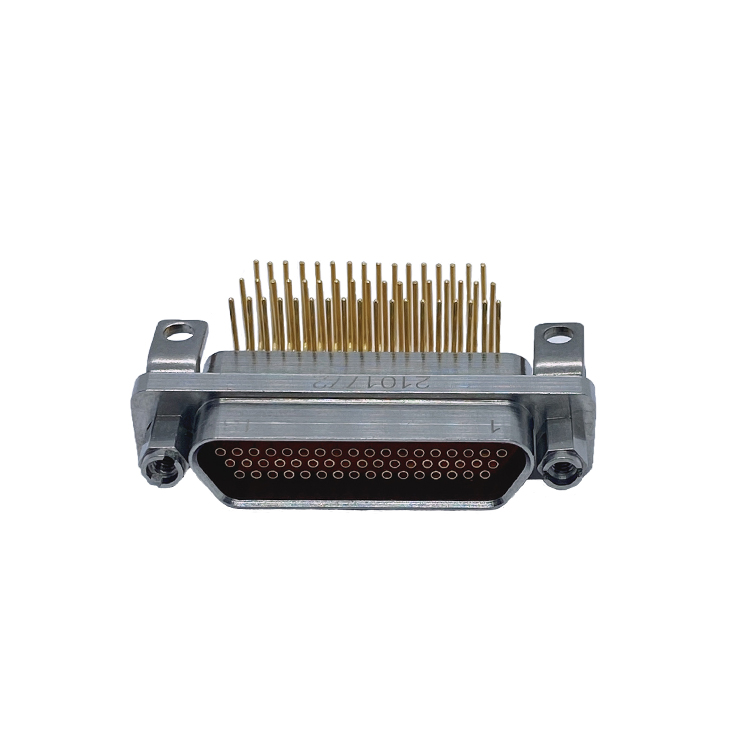

4.Straight, right-angle models choice
5.Space and weight saving.
6.Excellent resistance to shock and vibration.
7.Low contact resistance, high current capability, high dielectric strength.
8.Custom designed connectors and cable assemblies.

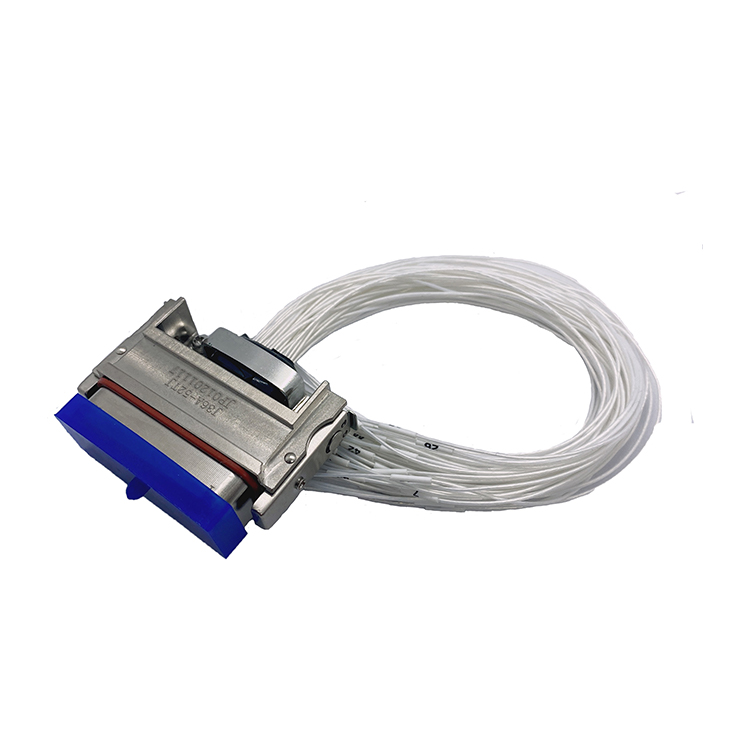

Product Display

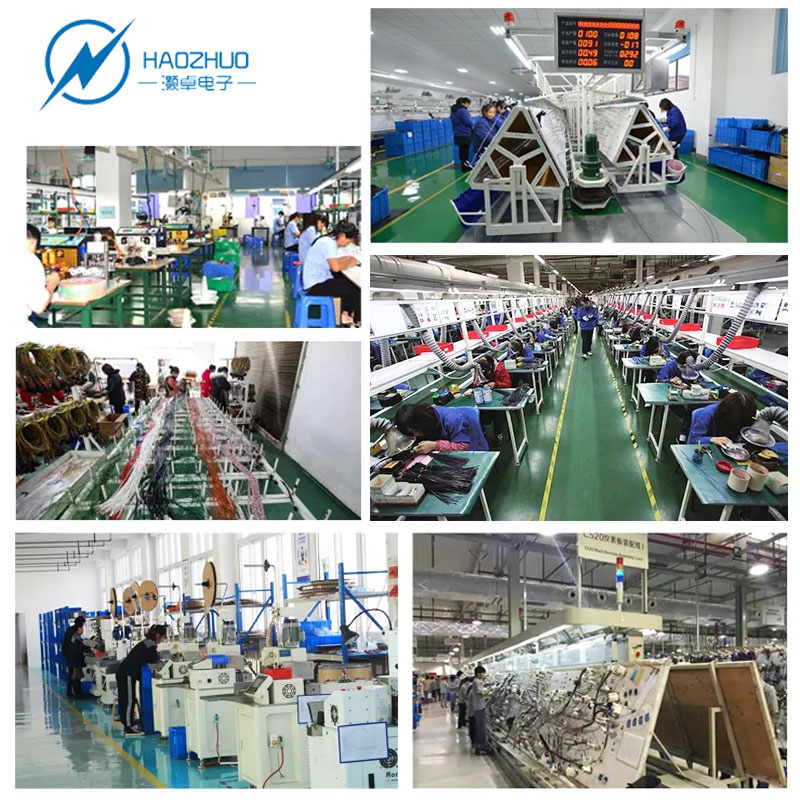

HaoZhuo represents a professional manufacturer of higher-quality precision connectors, cable assemblies and worldwide custom made solution provider .Connections from HaoZhuo ensure reliable transfer of power, signals, data and media in numerous application areas: in future-oriented growth markets such as medical technology, security and communications technology and test and measurement technology, as well as in established sectors such as industrial electronics, automotive/Mobility and energy technology. Most of our products have been distributed all over the world, such as Europe, Asia, the USA, Africa, the Middle East and Australia.

Certificate Qualification

Logistics

Q1. Are you a manufacturer or trading company? HZ:We are a professional manufacturer of waterproof connectors with our own factory and Marketing Department.

Q2. What is the lead time? HZ:Normally speaking, it asks for 5-20 days for mass production except during observed holidays.

Q3.What certification do you have? HZ:Our electrical connector have got CE Rohs2.0 certification for our products.

Q4: Where is the Distribution of product's industrial base? HZ:Taizhou city, Jiangsu province, China

Q5.Where can be used this kind of connector HZ:Our connectors now widely used in the fields of measurement,medical,audio-video,military,navigation,security,aviation,industrial control,automo-tive and power etc.
