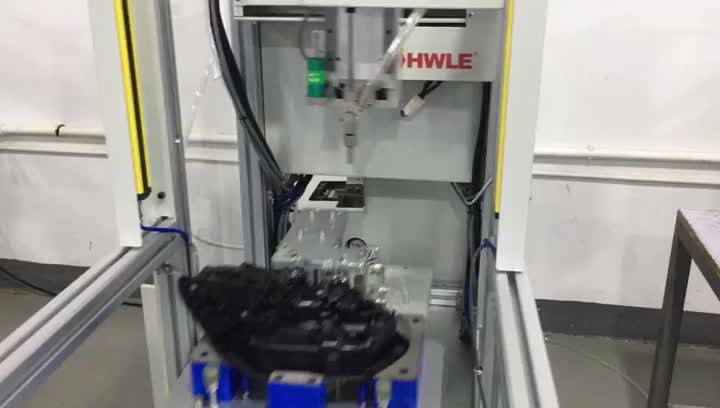

High Efficiency Automatic Screw Locking Machine

Get Latest Price

You might also like

Customized Dual-head Robotic Screw Driver Machine Automatic

1 Set/Sets (MOQ)

Online Fully Automatic Desktop Screwdriver Robot

1 Set/Sets (MOQ)

Robot Fully Automatic Platform Screwdriver Machine

1 Set/Sets (MOQ)

Dual Head Robot Auto Feeder Screwdriver Machine

1 Set/Sets (MOQ)

XYZ Coordinate Robotic Fully Automatic Locking Screw Machine

1 Set/Sets (MOQ)

Customized Fully Auto Screw Locking Machine Robotic

1 Set/Sets (MOQ)

High Efficiency Automatic Screw Locking Machine

1 Set/Sets (MOQ)

Multifunctional Full Automatic Screw Locking Machine Robotic

1 Set/Sets (MOQ)

Automatic Multi-spindle Synchronous Screw Locking Equipments

1 Set/Sets (MOQ)

Pneumatic Robots Screw Locking Machines Automatic

1 Set/Sets (MOQ)

Basic Info

Model No.
Brand Name	HWLE
place of origin	China
status	New
Service system	Engineers Available To Service Machinery Overseas
Applicable industry	Manufacturing Plant
Out-of-warranty service	Online Support, Spare Parts, Field Maintenance And Repair Service, Video Technical Support
Video factory inspection	Provided
Mechanical test report	Provided
Marketing type	New Product 2020
Core component warranty period	1 Year
Core components	Motor, Plc

Product description

Multi-head rotary dispensing machine can pneumatic feed, multi-head mechanical fixed lock, intelligent detection, according to the workpiece and screw design.According to the screw to determine the number of lock shaft, more than one screw synchronous lock pay, suitable for a single kind of work piece lock flat face.

Multi-head Synchronous Screw Locking Machine

Apply to screw
specifications	M2.0-20 mm a total length of 2.0 mm or more
category	Cross hexagonal head of plum double head gasket screw
The Multi-head Synchronous Screw Locking Machine parameters
Working power supply	AC220V 50Hz 2000W
Work pressure	5.5±0.5kgf/cm2
The torque limit	300kgf.cm(30N.m)
Running accuracy	500mm/sec±0.02mm/axis
Operating mode	PLC+ human machine interface
Drive way	Linear bearing + cylinder or motor
Lock shaft number	2-12 axis
programming	Mechanically adjust the lock pay position
Tighten the way	Air blowing about 3.0s/time
Apply screwdriver	Electric driver pneumatic driver servo driver
Effective stroke	Fixed mechanical stroke (customized)
Overall dimensions	1300(L)1000(W)1800(H)mm (customized)
Integration capabilities	Multi-head synchronous screw intelligent detection of missing material sliding teeth floating lock leakage lock bad alarm and prompt

1.Applies to most of the screws, strong commonality, the screw length to diameter ratio and material there is no requirement.
2.Can replace artificial specific screw lock pay operations, realizing mechanization production.Reduce the labor intensity of workers.The traditional manual screw placement, and alignment of the screw head need to work takes up a lot of time and energy.
3.Do not need to match the external computers , convenient installation.Setting operation is simple, the staff quickly master the operation skill and debugging.
4.Apply to mobile phones, digital products, photoelectric, health care, small household electrical appliances.
