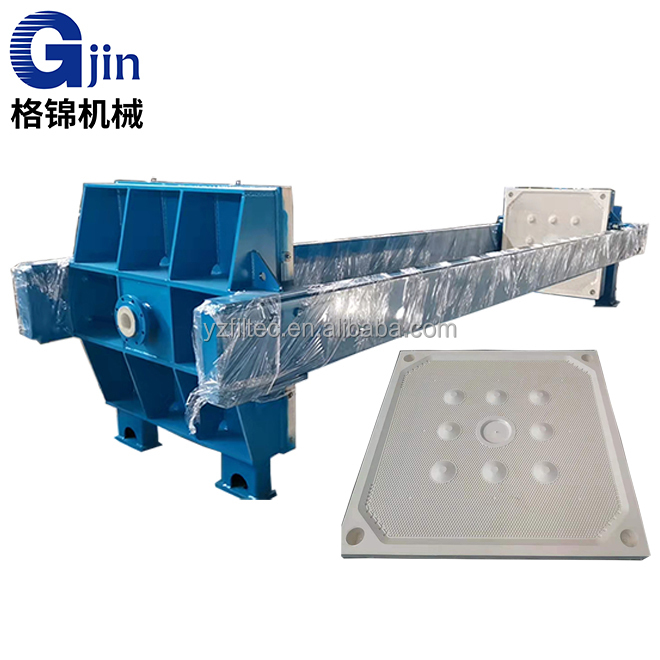

high efficiency Fully Automatic Chamber Filter Press 1250*1250 filter plate for coal slurry coal washing plant
$1000.00
~ $50000.00
/ Set/Sets
Options:
- High Efficiency
- GJXAMYZ30/870-1000/2000
Get Latest Price
You might also like
$800.00
1 Set/Sets (MOQ)
Basic Info
| Applicable Industries | Manufacturing Plant, Food & Beverage Factory, Farms, Printing Shops, Energy & Mining, Chemical, Sugar Industry, Cooking Oil, Petroleum, metallurgy, Pharmaceutical |
|---|---|
| Showroom Location | Viet Nam, Philippines, Brazil, Peru, Indonesia, Pakistan, India, Russia |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
| Marketing type | New Product 2020 |
Show More
Product description
Product Overview
Structure And Working Principles:
1,Filter Press Machine Consist by frame,filter plate,pressing system(including manual,hydraulic,mechanical three types) and electrical control cabinets.

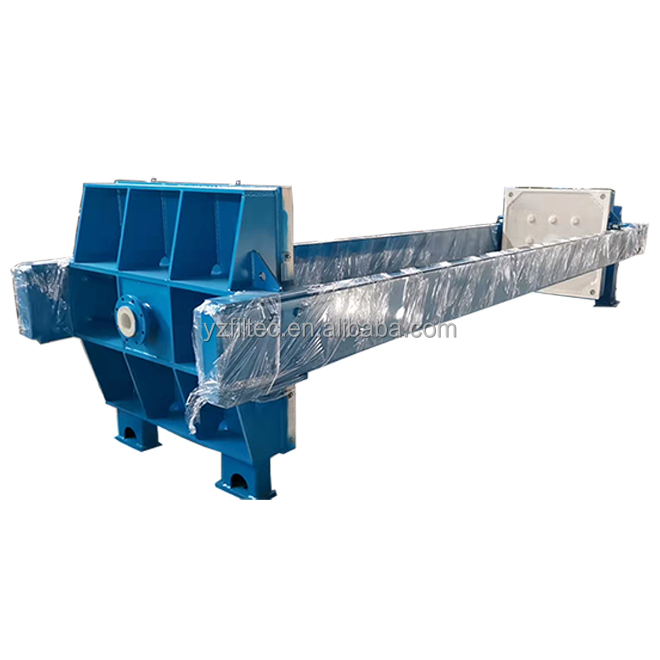

2 The frame parts used for supporting pressing equipment and filter plates,including machine base, compression plate, thrust plate and main beam.
3 Filter plate were installed on main beam between compression plate and trust plate, and filter cloth putted between each filter plate.
4 when working,the pressing devices(oil cylinder piston stem or screw stem) will push the compression plate,then the filter plates and filter cloth located between the compression plate and thrust plate will be pressed,and filter chambers were formed between the pressed filter plates and filter cloth. Material pressed by dosing pump entering each chamber through the feeding hole of the thrust plate.The solid particles are trapped in the filter chamber and form a filter cake. The liquid passes through the filter cake and the filter cloth then discharge from outlet hole. If the filter cake needs to be cleaned, the filter cake can be cleaned with washing water through the washing liquid hole of the tail plate. If the filter cake needs to be blown dry, compressed air can be passed through the washing liquid hole to blow the filter cake dry.
5 Frame and Plate Filter Press has the same structure with Chamber Filter Press, the only different is filtration part consists of frame,plate and filter cloth,the space between frame and plate is filter chamber.
6 Discharge method divided to seen flow and unseen flow, the seen flow means liquid directly discharge from outlet hole of each filter plate,and unseen flow means liquid from each filter plate collected first then discharge them.
PRODUCT SPECIFICATIONS

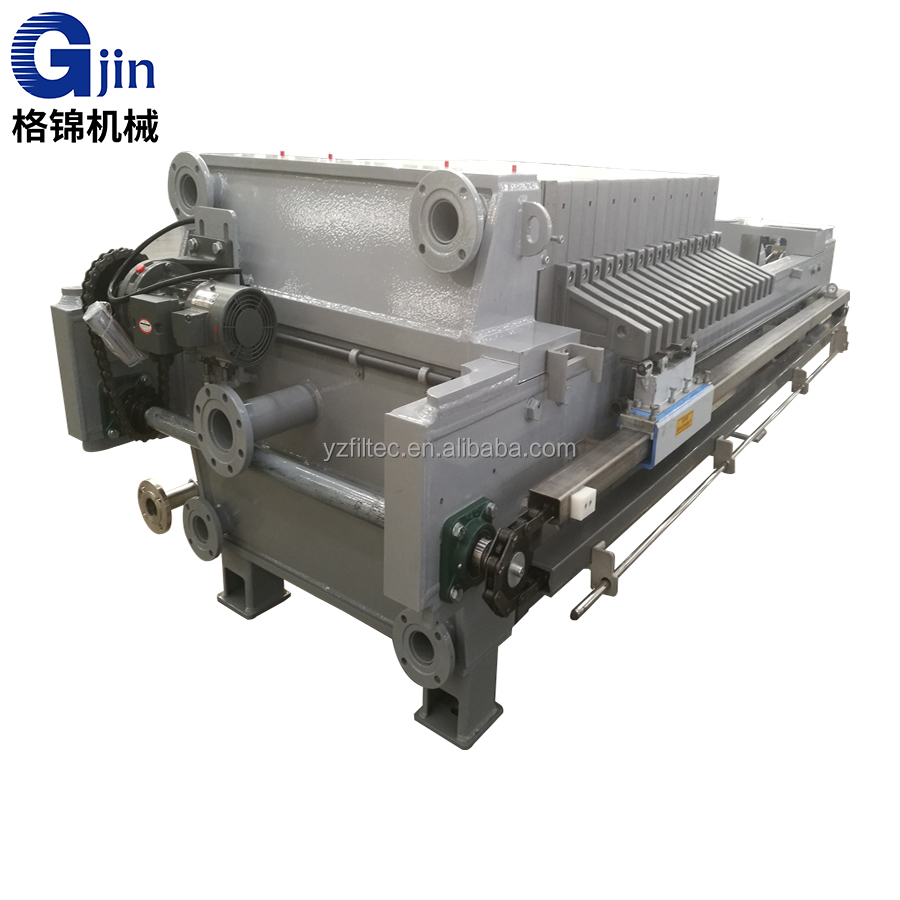

800 Type Auto pulling Plate

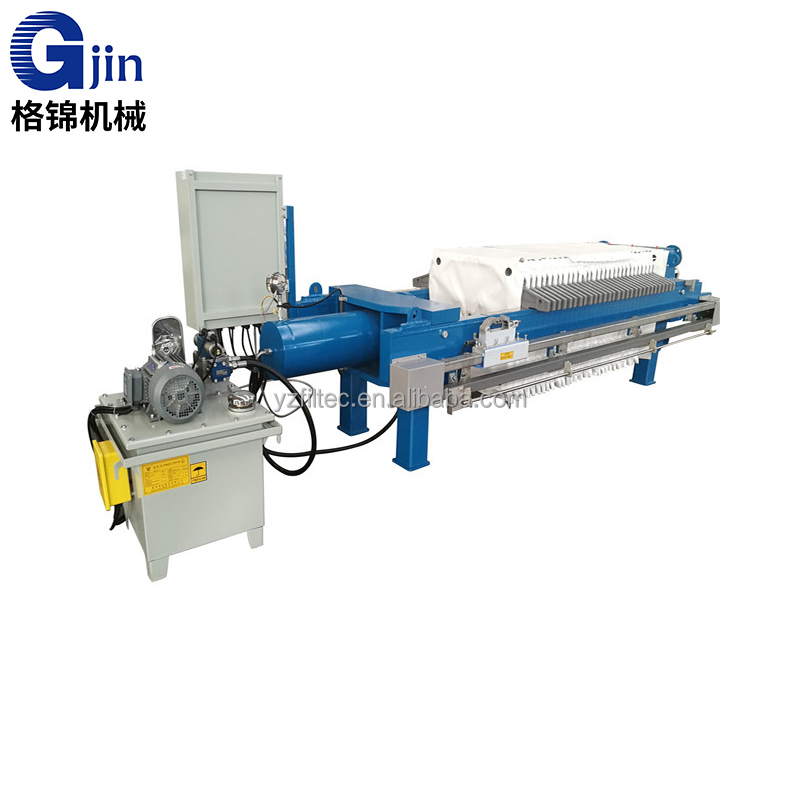

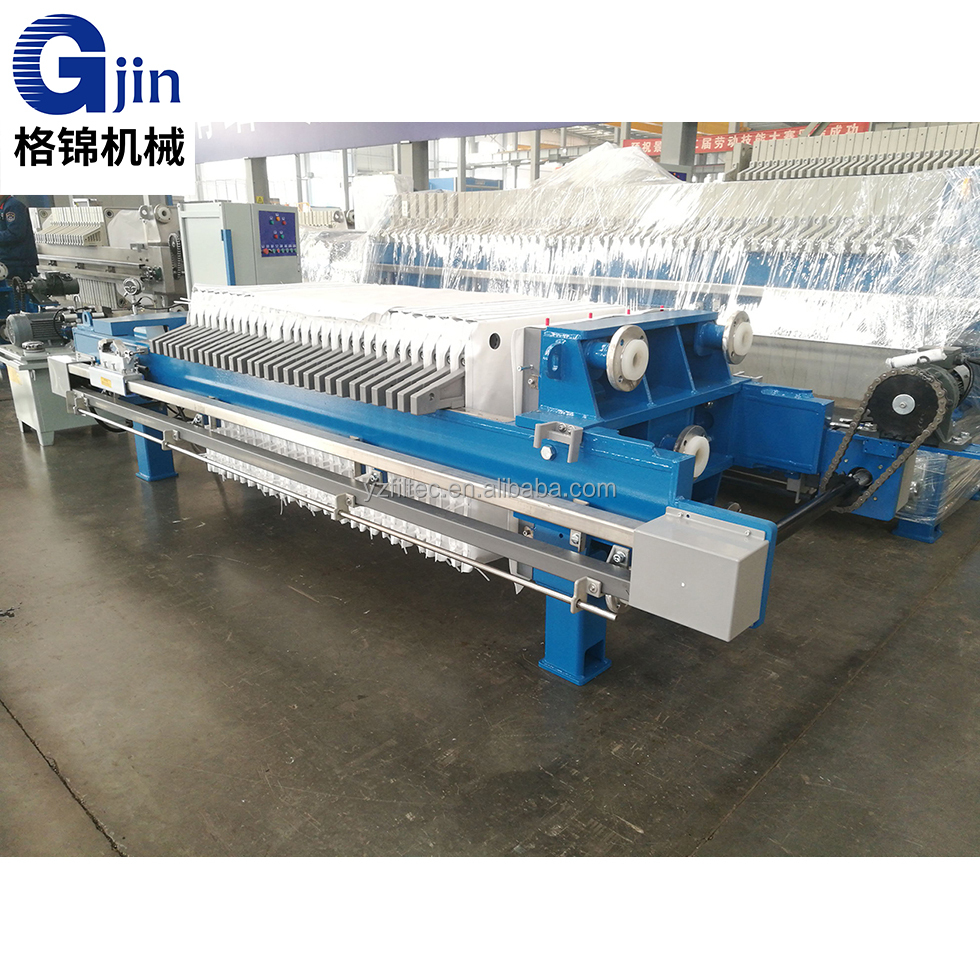

1000 Type Auto Pulling Plate

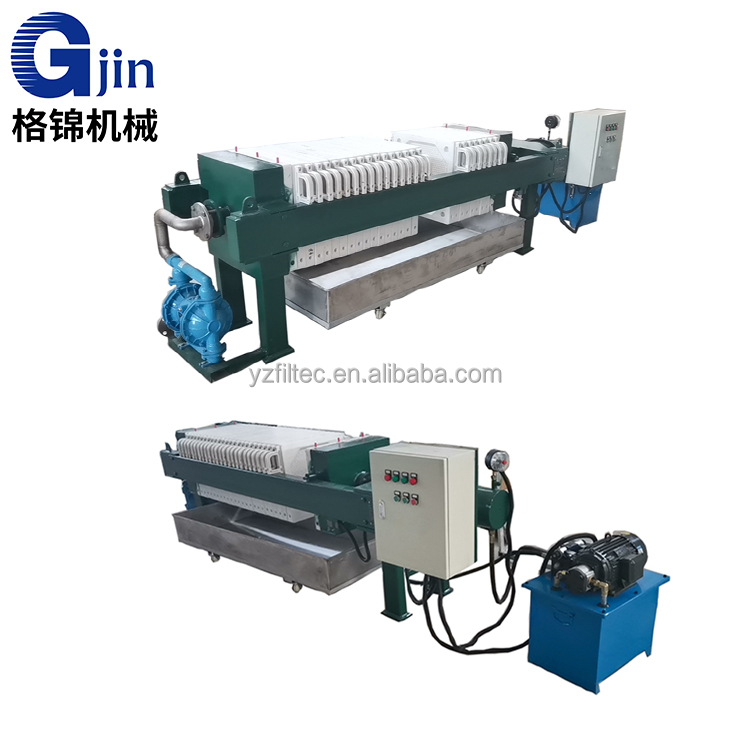

Filter Press With Auto Water Cleaning
Filter Plate
According to your requirement on filter press and the working condition on site,we will recommend you the suitable and durable type filter plate to make sure the equipment can working well and low maintaince cost.
Filter Cloth
Filter cloth is also one important part to help the filter press realizes good filtration result, we will supply you the right type filter cloth on the equipment you buy from us, helping your filter press running long time and has good filtration result.
Filter cloth are divided into several type due to their different material, Such as PP, PE,Nylon,Vinylon.
Main Features:
1,Manpower saving,full automatically operating,easy to use.
2,Using hydraulic pressing system, automatic control, automatic pressure maintaining, with program control functions.
3,Equipped with safety device, make sure operate safely,
4,Widely application: Petroleum,Chemical Industry, Pharmaceutical,Sugar Industry,Food And beverage Industry, Brewing, Coal Washing, Oil Product Industry, Mining, Metallurgy,Waster Water Treatment,Etc.
Packing And Delivery
FAQ
Q1:Are you filter press manufacturer?
A1：Yes, We are experienced manufacturer of filter press equipment, we can provide you sample test, consult for product model seclect,degign,after service,etc.
Q2: What products you provide?
A2: Chamber filter press, membrane filter press, plate and frame filter press, belt filter press, round filter press, cast iron filter press, stainless steel filter machine, filters,filter plate and filter cloth ,filter element etc.
Q3:How to select the type you needed
A3:When you contact us, we will ask some basic questions to help you select the product type.such as, what is the usage for the equipment you want to buy, water sources, flowrate, filtration area,working temperature & pressure,etc.
Q4:What is the delivery time?
A4:It will depends on the order quantity,sometimes when you put order also will influence on the delivery time, once you order from us, we will arrange delivery the cargo as soon as possible.
Q5:What is the MOQ
A5: Our MOQ is one set or we will set MOQ for item in the quotation list.
Q6:Do you accept OEM,
Yes, we can provide the OEM services according to your requirement for the products.
Q7:What is your acceptable payment term?
A7:Usually by T/T, 30%-50% deposit payment once PI/Contract confirmed, then the remaining balance will be paid after inspection and before shipment via T/T ;
Q8: Do you support on site installation & commissioning?
A8: Yes,We have professional technician can guide you finish such job.
