High Efficiency V-cut Pcb Separator , Automatic Pcb Cuttin
Basic Info
| Model No. | CWV-1A600 |
|---|---|
| Brand Name | Chuangwei |
Product description

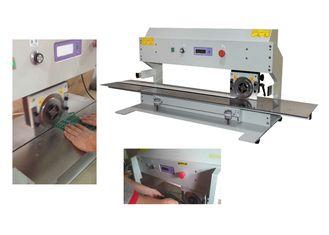

High Efficiency V-cut Pcb Separator , Automatic Pcb Cutting Machine
1. Separate pre-scored PCB assembly without stress on either PCB or component
2. One touch programming of cut length with digital display
3. Separating speed is adjusted by a rotary knob
4. Handle Intermittent scoring or cut-outs
5, Board with projected component can be cut precisely
6. Large stainless steel platform on both side of cutting blade prevents board wobble and table height and angle are adjustable
7. Optional PCB conveyor belt to remove finished board
8. Clearance between circular and linear blades are adjustable to fit different groove depth and compensates for blade wear out
Specifications:
|
Model: |
CWV-1A600 |
|
Size: |
1080*860*660mm |
|
Machine Weight: |
120Kg |
|
Minimize thickness: |
0.6-3.5mm |
|
Minimize Speed: |
100/200/300/500mm/s |
|
The Longest Minimize: |
600mm |
Competitive Advantage:
High Efficiency V-cut Pcb Separator , Automatic Pcb Cuttin
