Basic Info
| Model No. | EPS 700HA |
|---|---|
| Brand Name | SuTuan |
| Old and new | New |
| Plastic type | Eps, Pp |
| Video factory inspection | Provided |
| Mechanical test report | Provided |
| Marketing type | Ordinary Product |
Product description

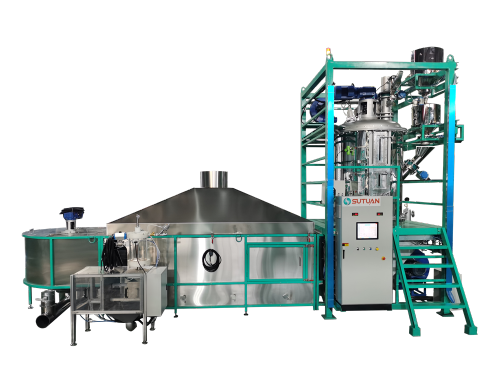

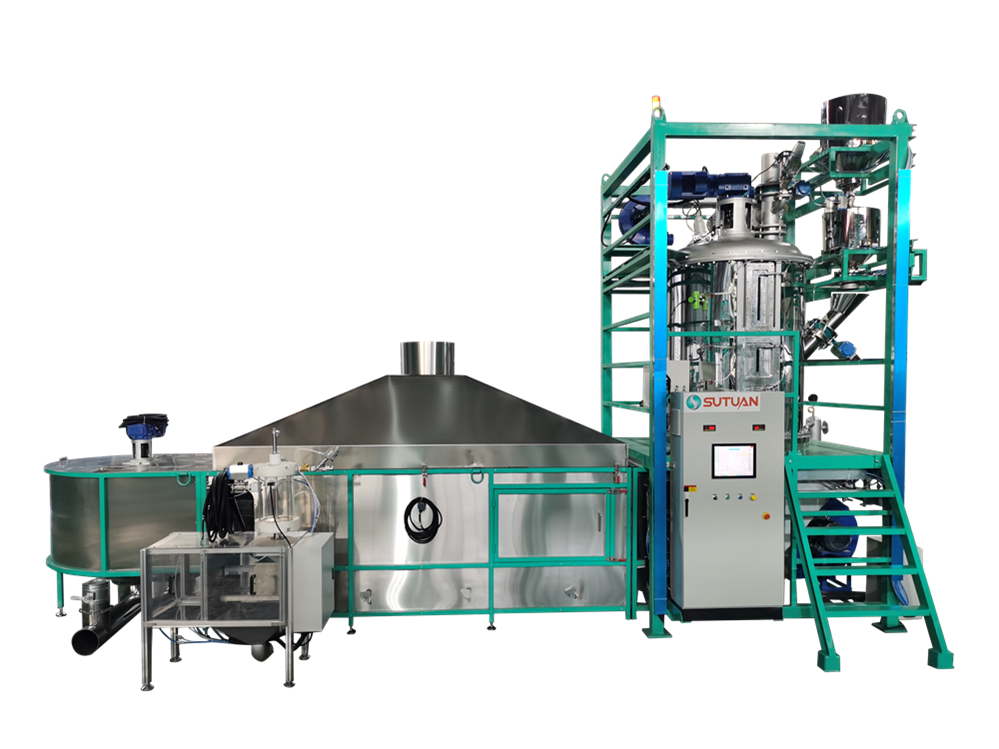

Overall, a high-end pre-expander can help foam manufacturers produce high-quality foam products efficiently and consistently.
Hangzhou Sutuan Machinery longtime working people focus on EPS Machines and others including designing,producing,installing,and service etc . High efficient and Energy-Saving Environmental.The main products include Pre Expander, Forming Machine, Block Machine, Cutting Machine.
|
Model
|
|
EPS 500HA
|
EPS 700HA
|
EPS-900HA
|
EPS-1200HA
|
|
|
Parameter
|
Unit
|
|||||
|
Feed Barel Body
|
Barrel body diameter |
mm
|
φ500
|
Φ700
|
Φ900
|
Φ1200
|
|
Height of barrel |
mm
|
1094
|
1294
|
1394
|
1594
|
|
|
Volume of barrel |
m3
|
1.0 |
1.2 |
1.4 |
1.6 |
|
|
Effective volume |
m3
|
0.6 |
0.85 |
1.05 |
1.25 |
|
|
Steam
|
Inlet of stean |
DN
|
DN25
|
DN40
|
DN50
|
DN65
|
|
Pressure of entry |
MPa |
0.6-0.8MPa
|
0.6-0.8MPa
|
0.6-0.8MPa
|
0.6-0.8MPa
|
|
|
Compressed Gas |
Inlet of air
|
DN |
DN40 |
DN40 |
DN40 |
DN40 |
|
Pressure of entry
|
MPa |
0.6-0.8MPa
|
0.6-0.8MPa
|
0.6-0.8MPa
|
0.6-0.8MPa
|
|
|
Sewage
|
Sewage discharge outlet |
DN |
DN100
|
DN100
|
DN100
|
DN100
|
|
Condensed water
|
DN |
DN100
|
DN100
|
DN100
|
DN100
|
|
|
Efficiency of production
|
g/l kg/h
|
15g/l 360kg/h 18g/I 430kg/h 25g/l 600kg/h 32g/l 680kg/h
|
12g/l330kg/h 18g/550kg/h 25g/l770kg/h 32g/l850kg/h
|
12g/l 300kg/h 15g/ 390kg/h 20g/l520kg/h 30g/l 640kg/h |
12g/l 530kg/h 15g/l 670kg/h 20g/l 1120kg/h 30g/l 1220kg/h |
|
|
Feed pipe
|
mm |
φ200mm
|
φ200mm
|
φ200mm
|
φ200mm
|
|
|
Installed power
|
KW |
13.2KW |
14KW |
18KW |
20.1KW |
|
|
Density of foam
|
g/I
|
10-70g/l
|
10-70g/l
|
10-50g/l
|
12-30g/l
|
|
|
Precision |
|
±%1
|
±%1
|
±%1
|
±%1
|
|
|
Overall dimensions
|
mm |
6080×2100×3800 |
6780×2500×4000 |
6980×2700×4200 |
7380×3000×4500 |
|
|
Weight of machine
|
kg |
1800 |
2200 |
3200 |
4200 |
|
