High Frequency Modulated All-Solid-State laser
Basic Info
| Model No. | MBL-III-473/532/671-AOM |
|---|---|
| Brand Name | CNI |
| Warranty | 1 Year |
| Customized | Customized |
| Standard Component | Standard Component |
| Kind | Other |
| Operating Mode | CW |
Product description
The modulation rate of high frequency laser 473/532/671nm laser can be up to 4MHz. With the advantages of quick modulation rate, high extinction ratio, easy coding and convenient use, high frequency laser made by CNI Laser is mainly used in the fields such as laser text-image processing, laser lithography, laser phototypesetting, and laser digital communication. It is suitable for OEM system integration and scientific research laboratories, etc.
The laser system can be used for a variety of wavelengths such as UV laser, Blue laser, Green laser, Yellow laser, Orange laser, Red laser and IR laser, TTL modulation or analog modulation are optional. You can change the frequency or intensity of laser by inputting different digital signal (TTL level) into the driving power supply.
Model
MGL-III-473-AOM
MGL-III-532-AOM
MGL-III-671-AOM
Wavelength (nm)
473±1
532±1
671±1
Operating mode
CW
Output power (mW)
>1,10,20,-,50
>1,10,20,-,150
>1,10,20,-,100
Power stability (rms, over 4 hours)
<1%, <2%, <3%
M2 factor
<1.5
Transverse mode
TEM00
Beam diameter at the aperture (1/e2, mm)
~3.0
Warm-up time (minutes)
<10
Beam divergence, full angle (mrad)
<1.5
Polarization ratio
>100:1
Beam height from base plate (mm)
24.8
Pointing stability after warm-up (mrad)
<0.05
Operating temperature (℃)
10~35
Power supply (90-264VAC)
PSU-III-FDA-AOM
Modulation
>1MHz
Expected lifetime (hours)
10000
Warranty period
1 year
|

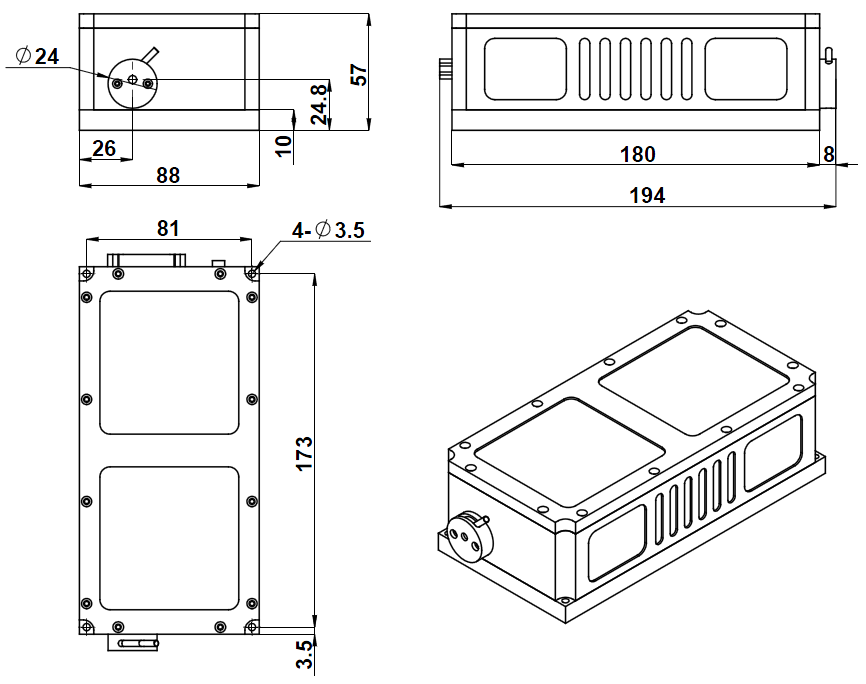

MxL-III-xxx-AOM |

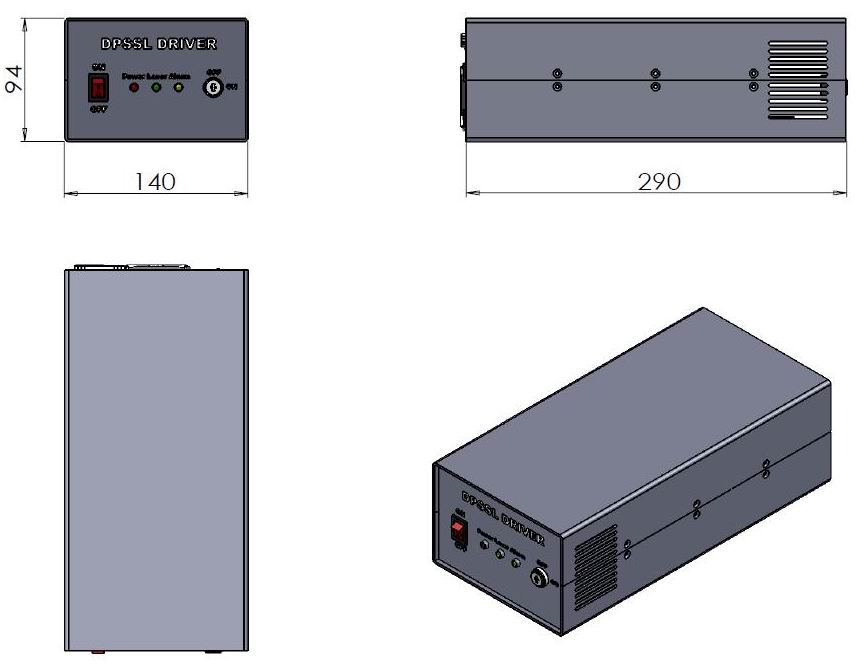

PSU-III-FDA-AOM |
|
194(L)×88(W) ×57(H) mm3, 1.6kg |
290 (L) ×140(W) ×94 (H) mm3, 2.3 kg |
Changchun New Industries (CNI) founded in 1996, located in Changchun, CHINA, is a leading manufacturer of solid-state and diode laser systems. Our products include green laser, blue laser, yellow laser, red laser, RGB laser, infrared laser, UV laser, single longitudinal mode laser and Q-switched laser systems. CNI lasers are featured with high performance, low cost and excellent laser beam quality, which are specifically designed for OEM, scientific, industrial and instrumentation use. In addition, CNI lasers are ISO-9001, FDA, CE and JQA certified.
FAQ
1. What about the delivery?
TNT UPS FEDEX DHL
2. What about the warranty?
For 1 year
3.How to pay?
