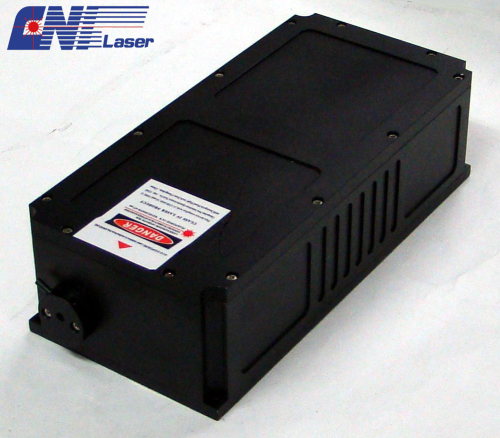

High frequency modulation Single longitudinal mode laser
Basic Info
| Model No. | MSL-III-532-AOM |
|---|---|
| Brand Name | CNI |
| Warranty | 1 Year |
| Operating Mode | CW |
| Warm-up Time (minutes) | <10 |
| Operating Temperature (℃) | 10~35 |
| Pointing Stability After Warm-up (mrad) | <0.05 |
Product description
High frequency modulated laser system has such characteristics as quick modulation rate, high extinction ratio, easy coding and convenient use. Laser modulation frequency of this laser system can be up to 1MHz, It is mainly used in such fields as laser text-image processing , laser lithography, laser Phototypesetting, and laser digital communication. It is suitable for OEM system integration and scientific research laboratories etc..
Wavelength(nm)
532±1
Operating mode
CW
Output power(mW)
>1, 5, - , 30
Power stability (rms over 4 hours)
＜1%, <2%, <3%
Transverse mode
Near TEM00
Longitudinal mode
Single
Spectral linewidth (nm)
＜0.00001
Coherent length (m)
>50
Optical Noise (rms,1~20MHz)
＜0.5%
M2 factor
＜1.3
Beam diameter at the aperture 1/e2 (mm)
~1.5
Beam divergence, full angle (mrad)
＜1.2
Beam height from base plate (mm)
24.8
Operating temperature (℃)
15~35
Power supply (90-264VAC)
PSU-III-FDA-AOM
Modulation
1MHz
Expected lifetime (hours)
10000
Warranty
1 year
Changchun New Industries (CNI) founded in 1996, located in Changchun, CHINA, is a leading manufacturer of solid-state and diode laser systems. Our products include green laser, blue laser, yellow laser, red laser, RGB laser, infrared laser, UV laser, single longitudinal mode laser and Q-switched laser systems. CNI lasers are featured with high performance, low cost and excellent laser beam quality, which are specifically designed for OEM, scientific, industrial and instrumentation use. In addition, CNI lasers are ISO-9001, FDA, CE and JQA certified.
FAQ
1. What about the delivery?
TNT UPS FEDEX DHL
2. What about the warranty?
For 1 year
3.How to pay?
- 8yrs
- Manufacturer
High frequency modulation Single longitudinal mode laser
